Product Overview
Technical Summary
| Parameter | Value |
|---|---|

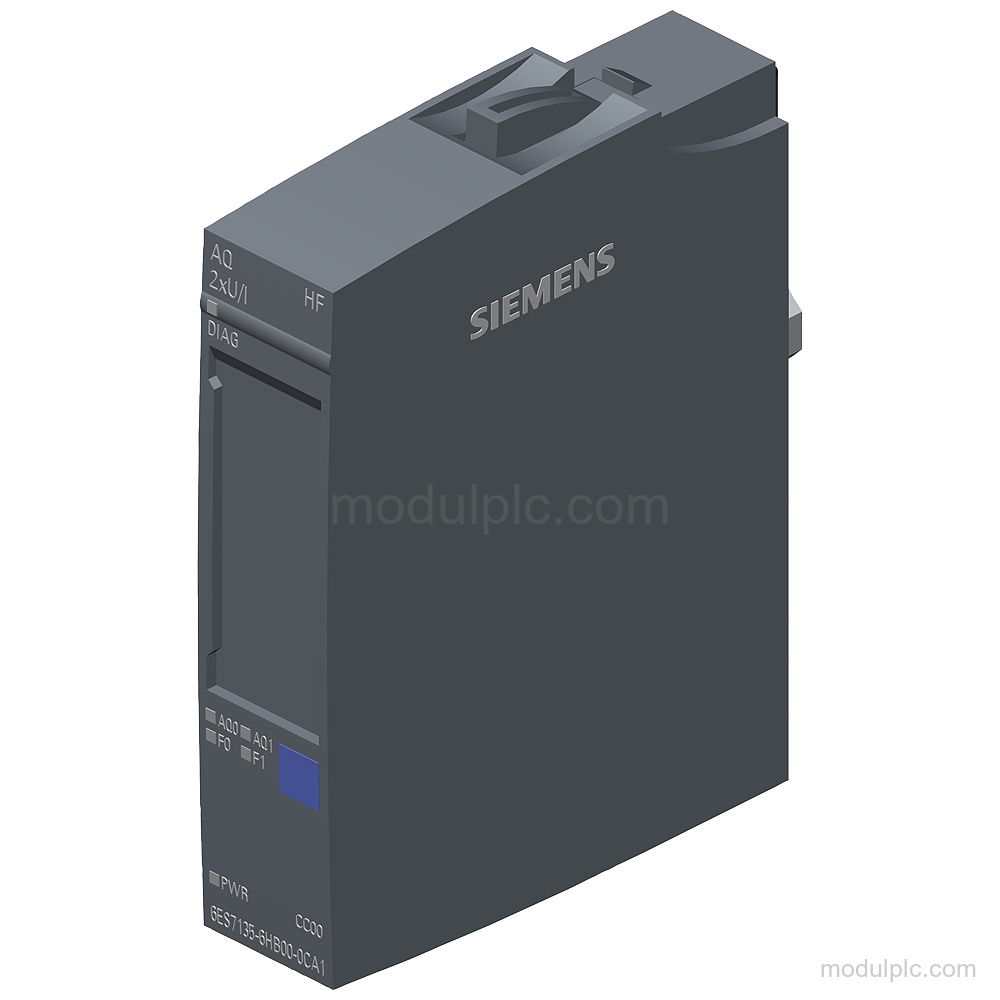

| Module type | AQ 2xU/I HF |
| Analog output channels | 2 |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit including sign |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V |
| Cycle time, all channels, min. | 750 μs |
| Supported BaseUnits | BU type A0, A1 |
Applications
- Analog signal output: Provides voltage or current output signals for connected actuators.
Key Features

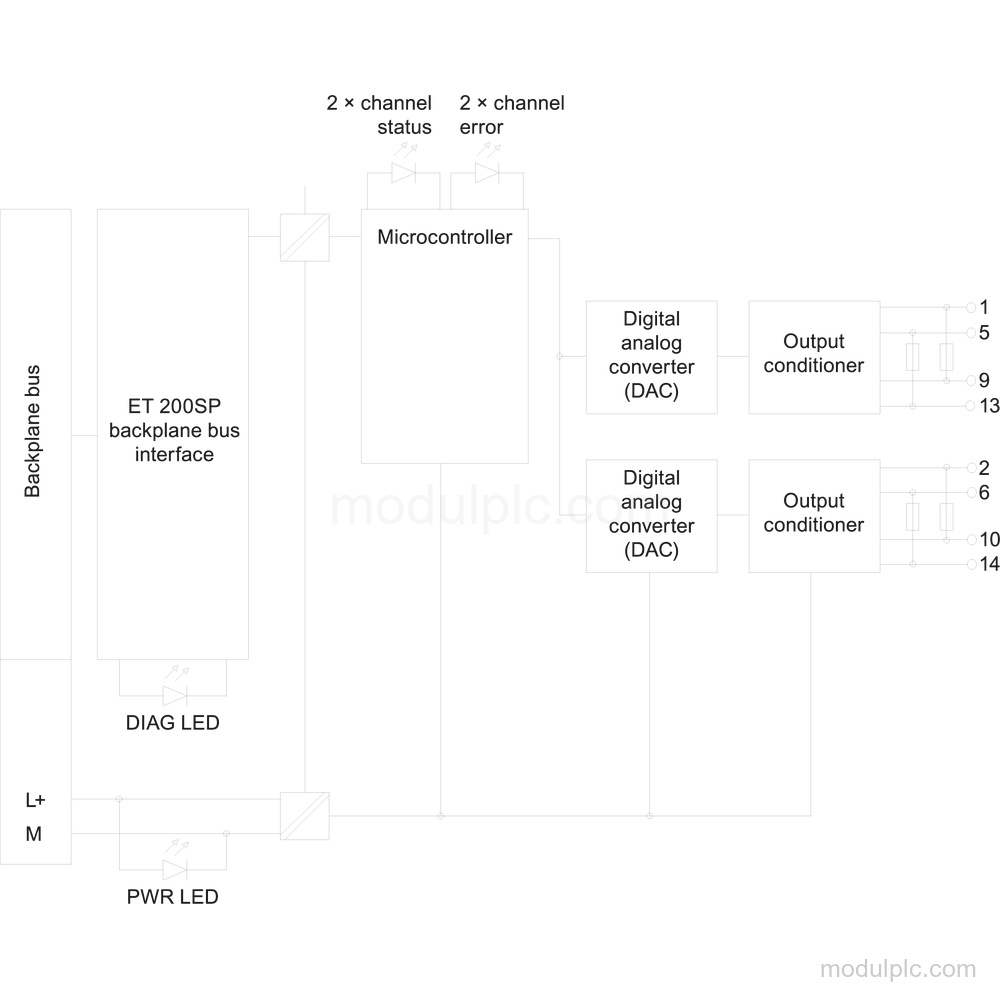

- Analog outputs: 2 analog output channels support voltage ranges from -10 V to +10 V and current ranges from -20 mA to +20 mA.
- Resolution: Resolution with overrange is up to 16 bit including sign.
- Supply and protection: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics: Diagnostics include supply-voltage monitoring, channel-by-channel wire-break detection for current output, short-circuit detection for voltage output, group error, and overflow/underflow.
- Interfaces and connections: Voltage outputs support two-wire and four-wire connections; current outputs support two-wire connections.

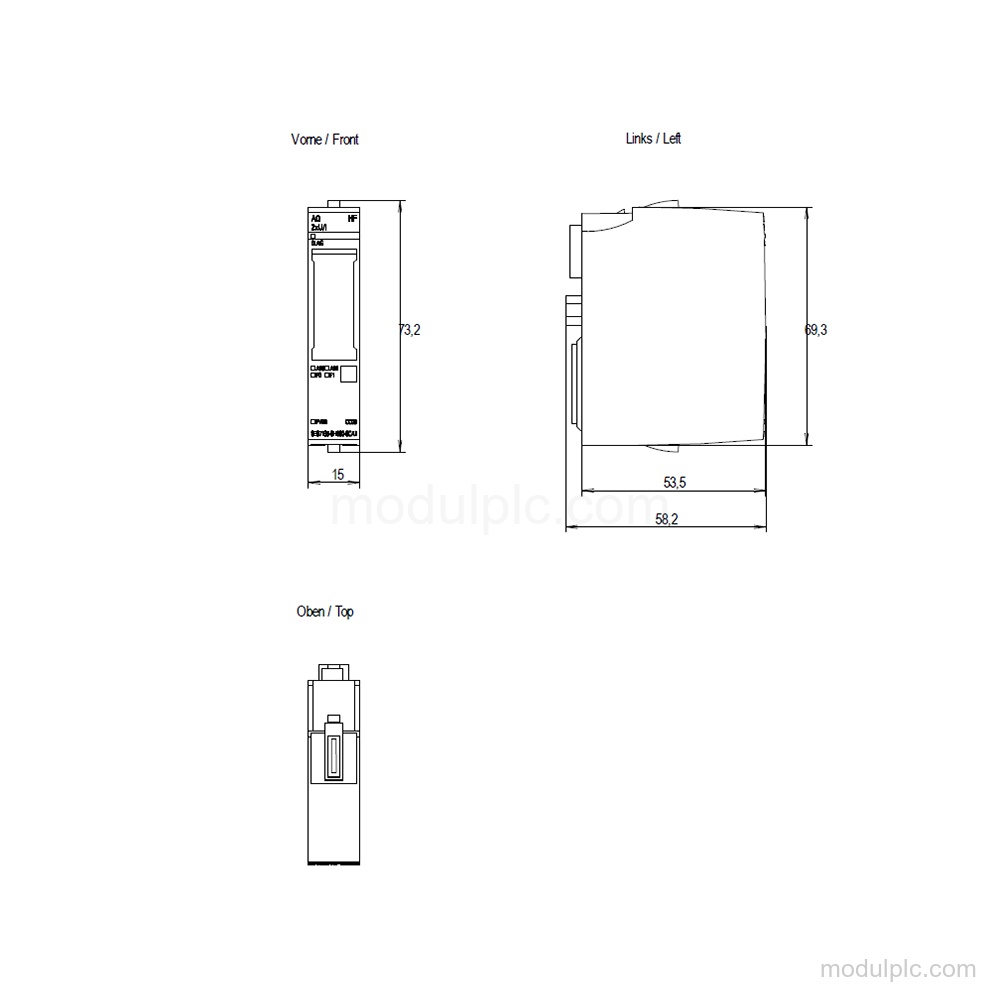

- Installation dimensions: The module supports BU type A0, A1 and has dimensions of 15 mm width, 73 mm height, and 58 mm depth.
Frequently Asked Questions
1. How many analog outputs does 6ES7135-6HB00-0CA1 have?
It has 2 analog output channels.
2. Which signal ranges does the module support?
Voltage ranges are 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What diagnostics are available?
It has supply-voltage monitoring, channel-by-channel wire-break detection for current output, channel-by-channel short-circuit detection for voltage output, group error, and channel-by-channel overflow/underflow.
4. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
