Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 8xRTD/TC 2-wire HF |
| Analog inputs | 8 |
| Supported signal types | RTD, thermocouple, voltage, resistance, and PTC |
| Resolution | 16 bit including sign; 15 bit for resistor ranges |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| Connection | 2-wire; BU type A0, A1 |
| Diagnostic functions | Channel diagnostics, wire break, overflow/underflow, group error, and supply-voltage monitoring |
Applications
- Temperature measurement: Measures temperature with RTD and thermocouple inputs, including configurable °C, °F, and K units.
- Resistance measurement: Measures resistance with two-wire connection across supported resistance ranges.
- Voltage measurement: Measures voltage through supported input ranges from -1 V to +1 V, -250 mV to +250 mV, -50 mV to +50 mV, and -80 mV to +80 mV.
Key Features
- Analog inputs: 8 analog inputs for RTD, thermocouple, voltage, resistance, and PTC measurement.
- Signal resolution: Resolution up to 16 bit including sign; resistor ranges use 15 bit.
- Channel diagnostics: Diagnostic alarm, channel-by-channel wire-break and overflow/underflow detection, group error, and supply-voltage monitoring.
- Supply voltage: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V; reverse polarity protection: Yes.

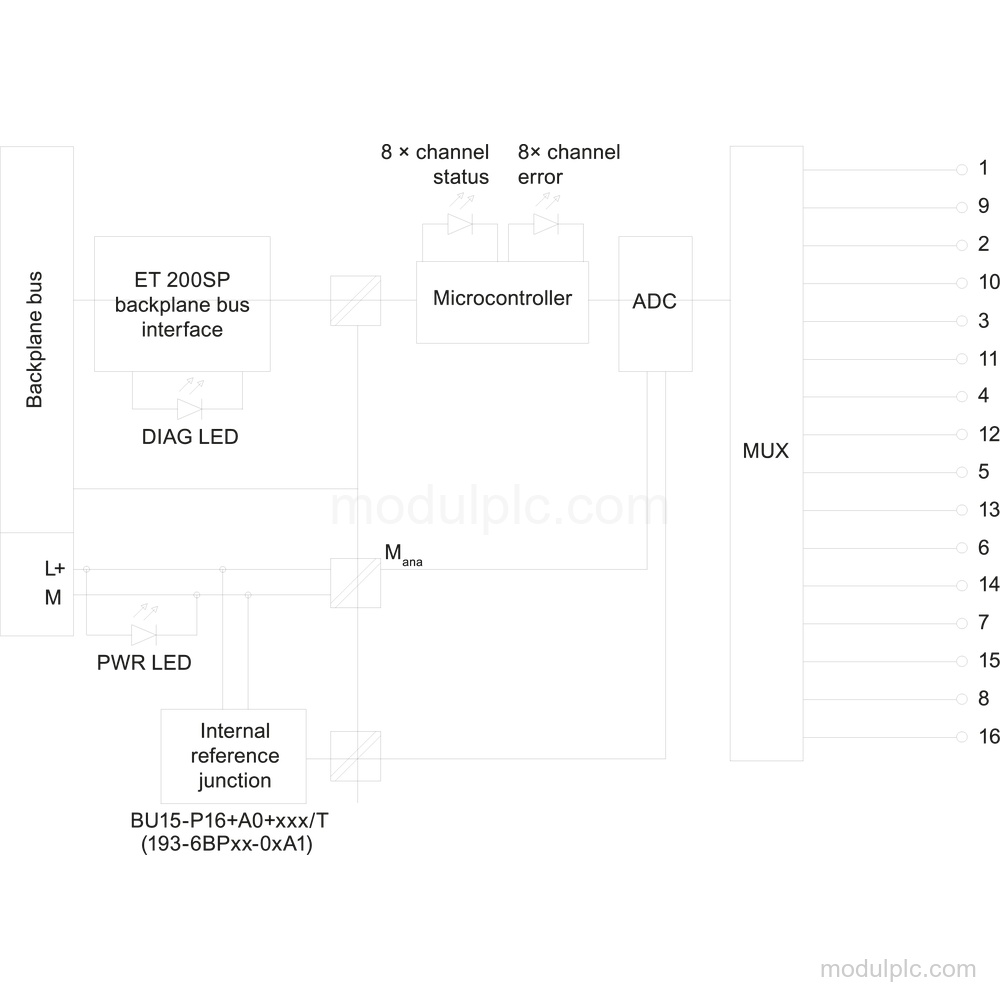

- Connection and BaseUnit: 2-wire connection with BU type A0, A1; internal comparison point is available with BaseUnit type A1.

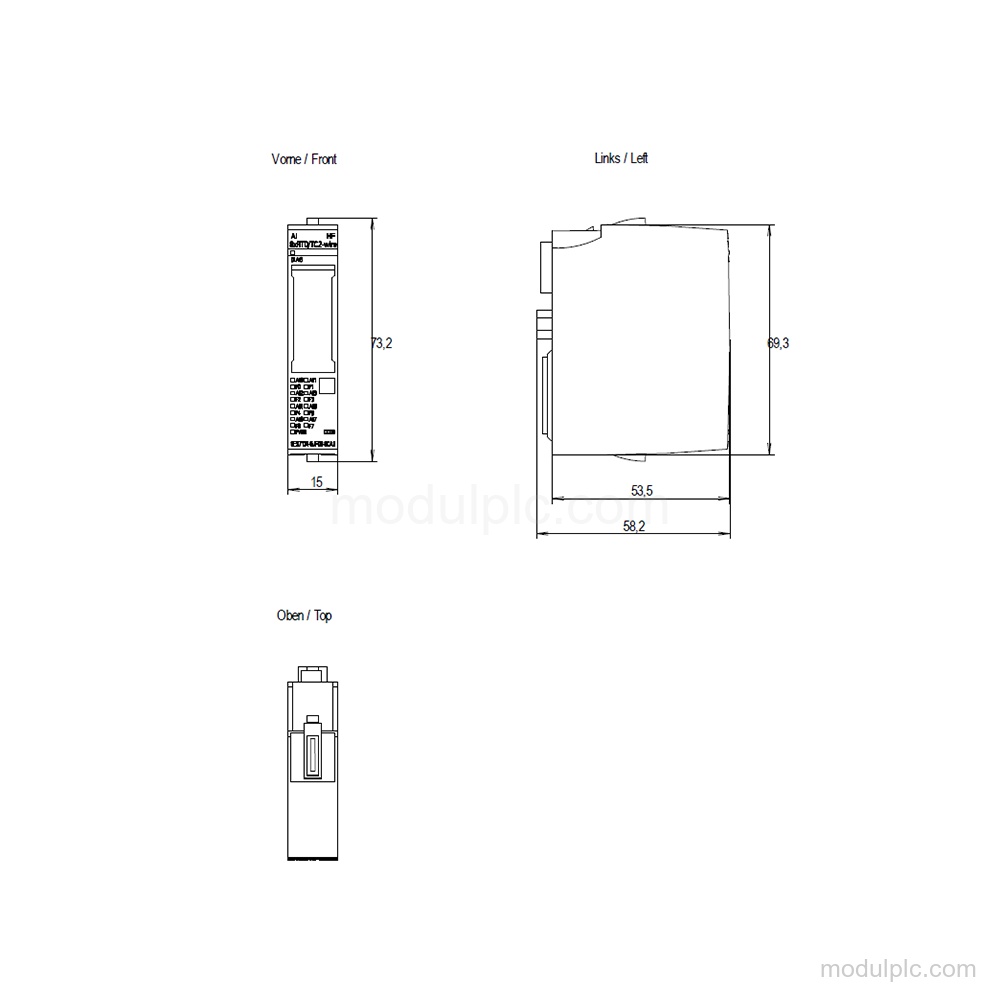

- Module dimensions: Width: 15 mm; height: 73 mm; depth: 58 mm.
Frequently Asked Questions
1. How many analog inputs does Siemens 6ES7134-6JF00-0CA1 have?
It has 8 analog inputs.
2. Which signals can the module measure?
It supports RTD, thermocouple, voltage, resistance, and PTC measurement.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. Which BaseUnits and connection are supported?
It supports 2-wire connection with BU type A0 or A1.
5. What diagnostics are available?
It has channel diagnostics, channel-by-channel wire-break and overflow/underflow detection, group error, diagnostic alarm, and supply-voltage monitoring.
