Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | AI 4xRTD/TC 2-/3-/4-wire HF |
| Analog inputs | 4 |
| Supply voltage | 24 V DC; permissible range 19.2 V DC to 28.8 V DC |
| Resolution | Up to 16 bit including sign |
| Signal connections | Voltage; resistance with 2-wire, 3-wire, or 4-wire connection |
| Conversion time | 180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms per channel |
| Diagnostics | Channel-by-channel wire break and overflow/underflow; supply-voltage monitoring; group error |
| BaseUnits | BU type A0, A1 |
Applications
- Temperature and resistance measurement: Measures temperature and resistance signals through RTD, thermocouple, voltage, and resistance inputs.
Key Features
- Analog input channels: 4 analog inputs for RTD, thermocouple, voltage, resistance thermometer, and resistor measurement.
- Signal connections: Supports voltage measurement and resistance measurement with 2-wire, 3-wire, and 4-wire connections.
- Input ranges and resolution: Voltage ranges include -1 V to +1 V, -250 mV to +250 mV, -50 mV to +50 mV, and -80 mV to +80 mV; resolution is up to 16 bit including sign.
- Supply and consumption: Rated supply is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC. Current consumption is 30 mA rated and 32 mA maximum.
- Diagnostics: Provides channel-by-channel wire-break and overflow/underflow diagnostics, supply-voltage monitoring, group error, diagnostic alarms, and green/red LED indications.

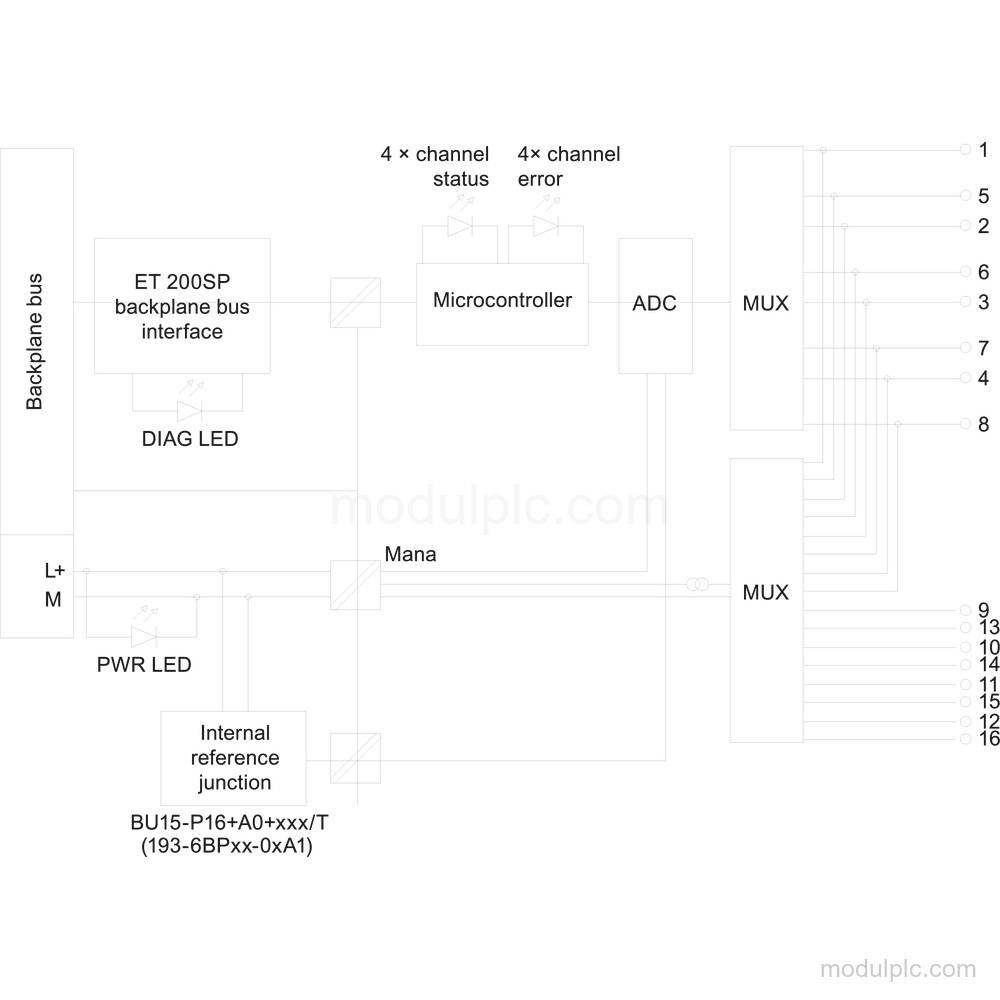

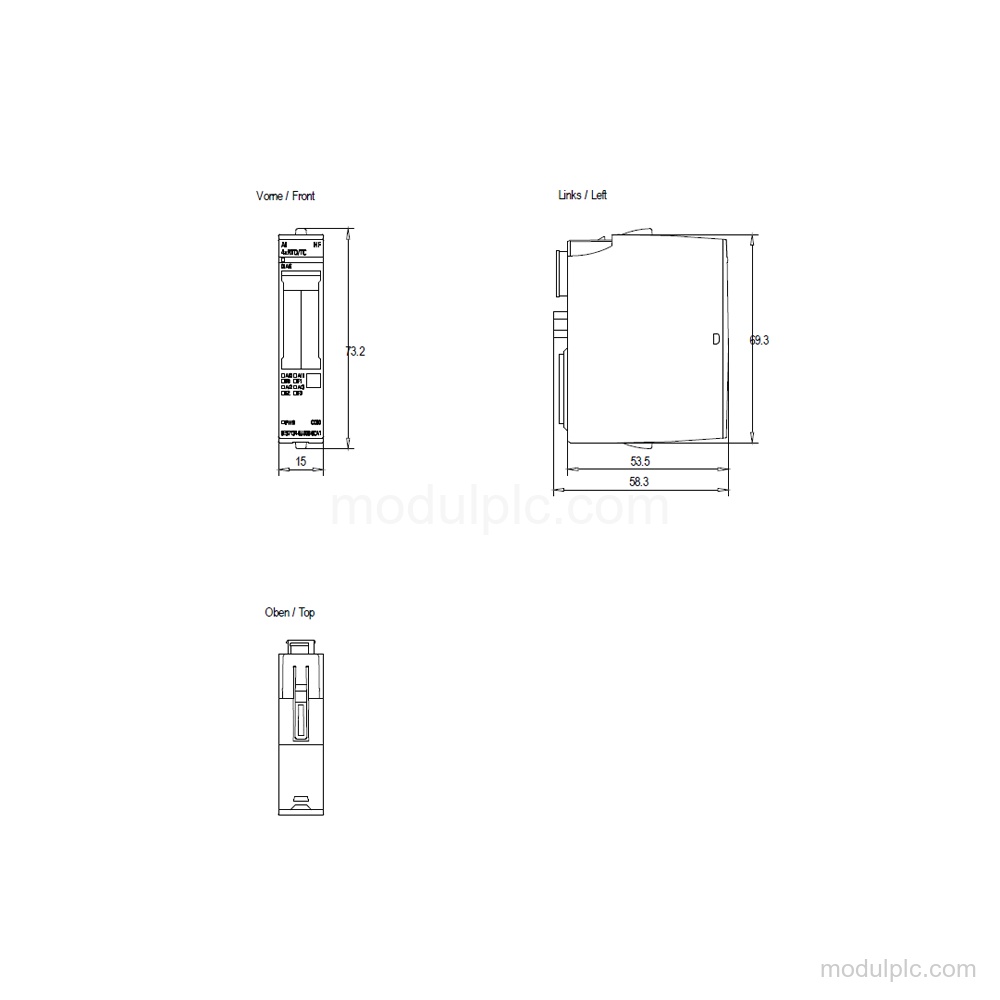

- Installation and dimensions: Suitable for BU type A0 and A1, with Type A mechanical coding. Dimensions are 15 mm wide, 73 mm high, and 58 mm deep.
Frequently Asked Questions
1. How many analog inputs does the Siemens 6ES7134-6JD00-0CA1 have?
It has 4 analog inputs.
2. Which signal connections does this module support?
It supports voltage measurement and resistance measurement with 2-wire, 3-wire, and 4-wire connections.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
4. What diagnostics are available?
It provides channel-by-channel wire-break and overflow/underflow diagnostics, supply-voltage monitoring, group error, diagnostic alarms, and LED indications.
