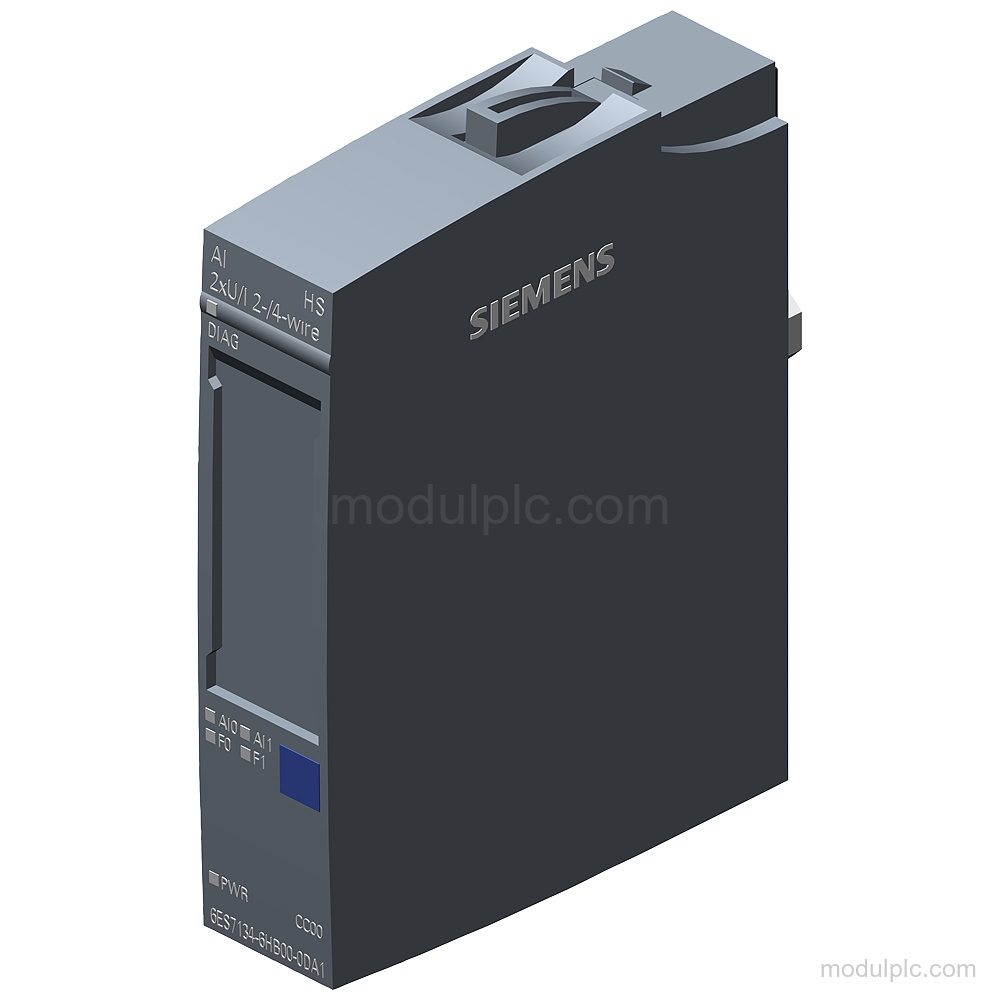

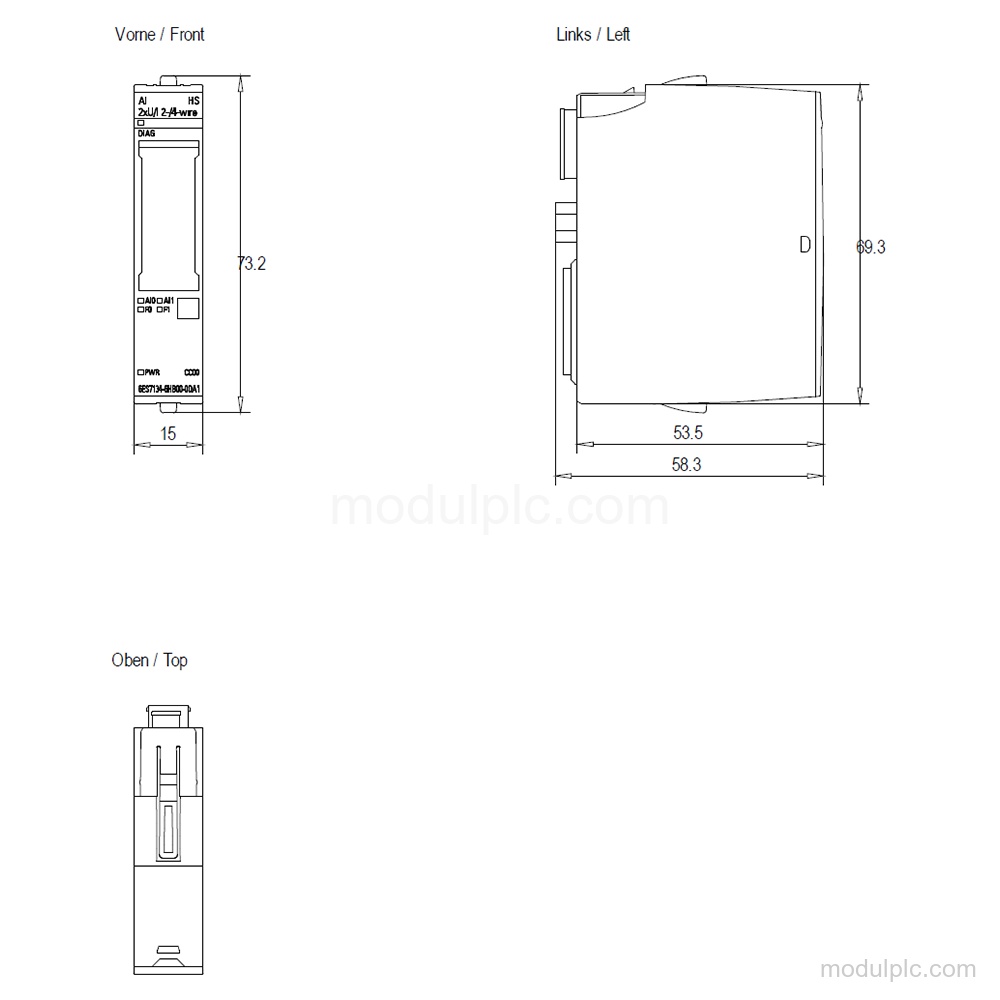

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 2xU/I 2-/4-wire HS |
| Analog inputs | 2 differential inputs |
| Voltage input ranges | 0 to +10 V; 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Current input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | Up to 16 bit including sign |
| Cycle time | Min. 125 μs for all channels |
| Conversion time | 10 μs per channel |
| Supply voltage | 24 V rated; 19.2 V to 28.8 V permissible |
| Connection | 2-wire and 4-wire; BU type A0, A1 |
Applications
- Voltage measurement: The module supports voltage measurement through its analog inputs with 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V input ranges.
- Current measurement: The module supports current measurement using 2-wire or 4-wire transducers with 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA input ranges.
Key Features
- Analog input channels: 2 differential analog inputs; 2 channels for current measurement and 2 channels for voltage measurement.
- Supported input ranges: Voltage: 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current: 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and timing: Resolution: up to 16 bit including sign; cycle time for all channels: min. 125 μs; conversion time per channel: 10 μs.
- Diagnostics and protection: Channel diagnostics, diagnostic alarm, wire-break detection at 4 to 20 mA, short-circuit detection, overflow/underflow detection, and potential separation are supported.
Frequently Asked Questions
1. How many analog input channels does 6ES7134-6HB00-0DA1 have?
It has 2 differential analog input channels.
2. Which voltage and current ranges are supported?
Voltage ranges are 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and cycle time does the module provide?
Resolution is up to 16 bit including sign. Cycle time for all channels is min. 125 μs.

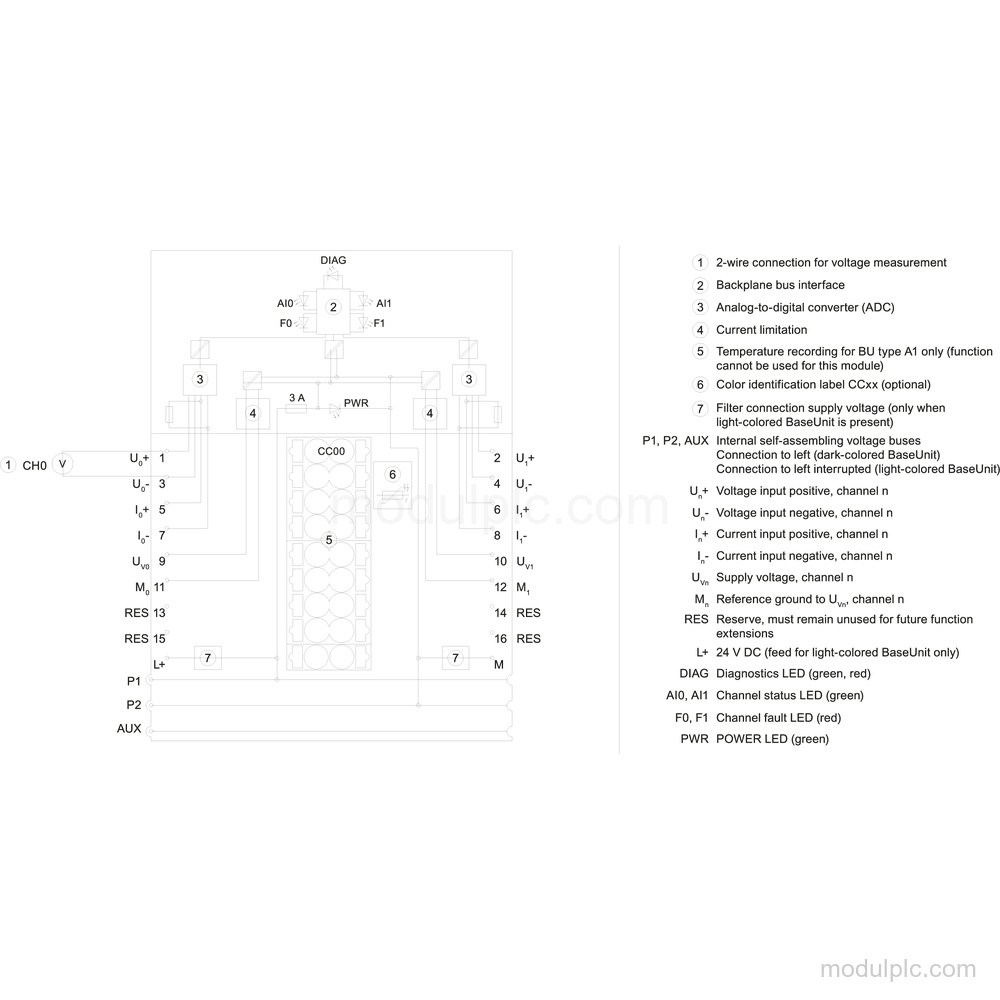

4. Which BaseUnits and connections are supported?
BU type A0 and A1 support both 2-wire and 4-wire connections.
