Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 2xU/I 2-/4-wire HF |
| Analog input channels | 2; differential inputs |
| Voltage input ranges | 0 to +10 V; 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Current input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | Up to 16 bit including sign |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| BaseUnits | BU type A0, A1; 2-wire and 4-wire connections |
| Protection and diagnostics | Channel diagnostics; diagnostic and limit value alarms; supply-voltage monitoring; wire-break and short-circuit detection |
Applications
- Analog signal acquisition: Measures voltage and current signals through 2 differential analog input channels.
Key Features
- Analog input channels: 2 differential analog inputs support voltage measurement and current measurement.
- Signal ranges: Voltage ranges: 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current ranges: 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and conversion: Resolution with overrange is up to 16 bit including sign. Integration time is parameterizable, with 8 selectable values from 67.5 ms to 0.625 ms.
- Diagnostics: The module has channel diagnostics, diagnostic and limit value alarms, supply-voltage monitoring, wire-break detection for 4 to 20 mA, and channel-by-channel short-circuit detection.
- Supply and encoder output: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Encoder supply has short-circuit protection and output current of 20 mA, with max. 50 mA per channel for < 10 s in two-wire connection.

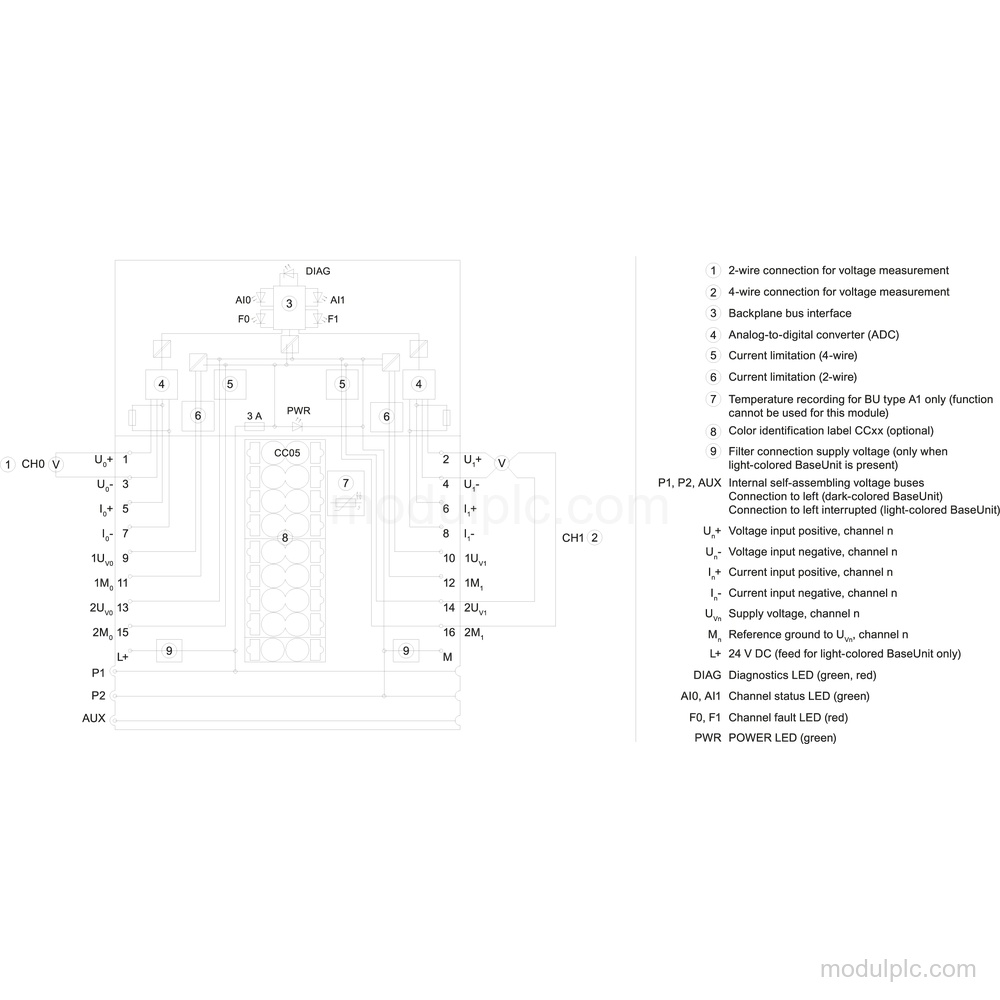

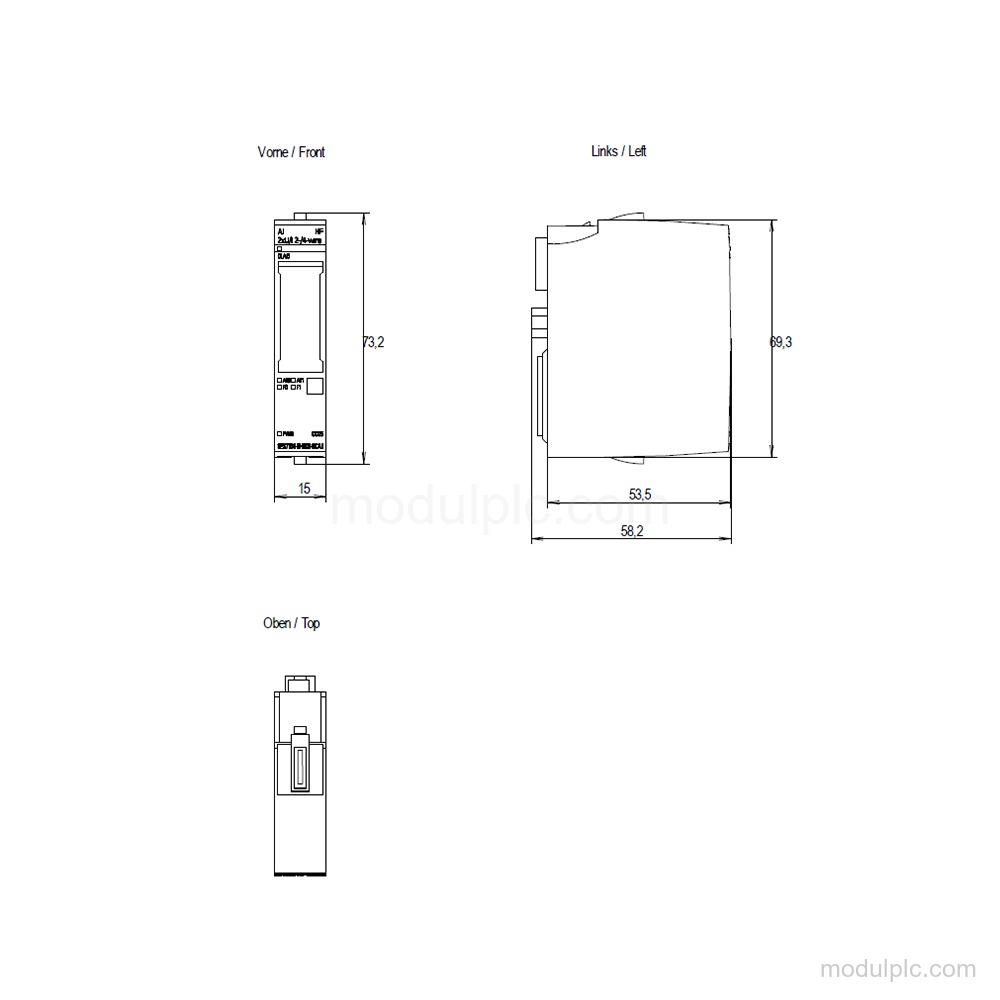

- Installation and dimensions: Suitable BaseUnits are BU type A0, A1 for 2-wire and 4-wire connections. Dimensions are 15 mm wide, 73 mm high, and 58 mm deep; horizontal installation supports -30 °C to 60 °C and vertical installation -30 °C to 50 °C.
Frequently Asked Questions
1. How many analog input channels does 6ES7134-6HB00-0CA1 have?
It has 2 differential analog input channels.
2. Which signal ranges does this analog input module support?
Voltage ranges are 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution is available?
Resolution with overrange is up to 16 bit including sign.
4. What diagnostics are available?
It has channel diagnostics, diagnostic and limit value alarms, supply-voltage monitoring, wire-break detection for 4 to 20 mA, and channel-by-channel short-circuit detection.
