Product Overview
Technical Summary
| Parameter | Value |
|---|---|

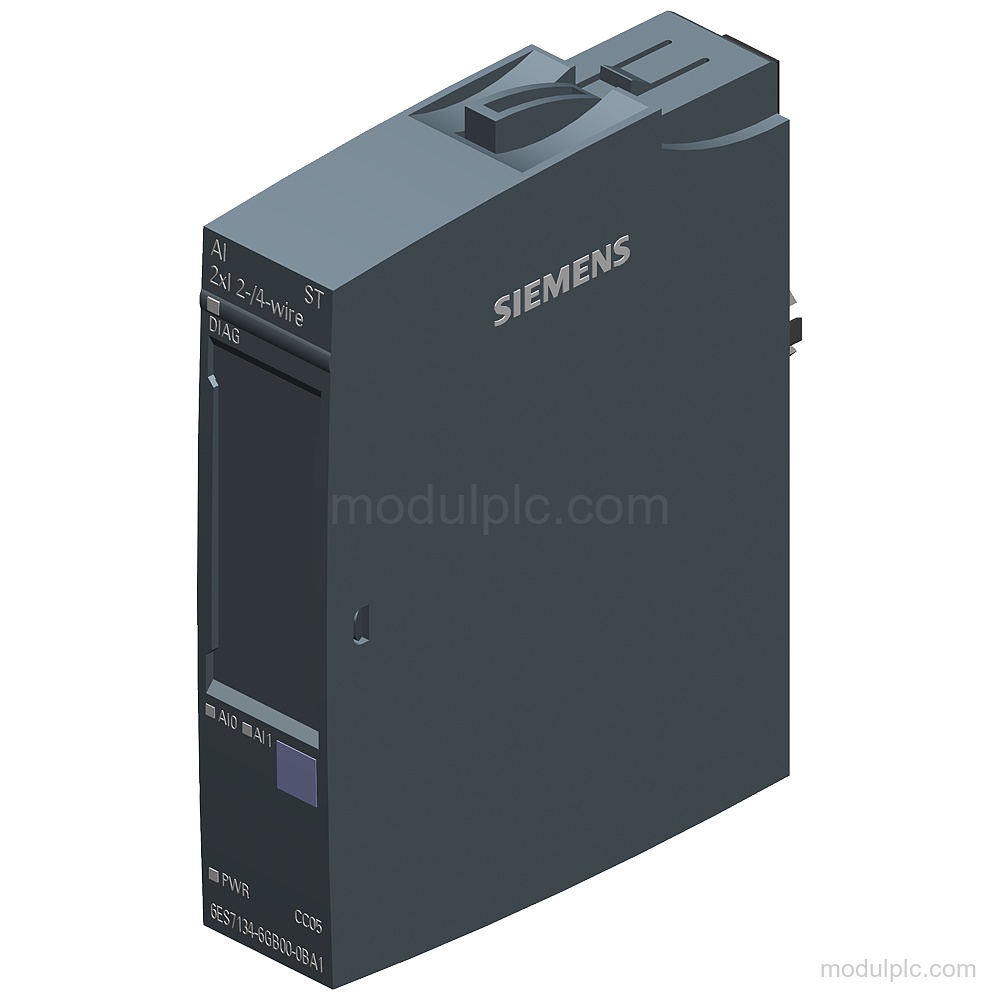

| Module type | AI 2xI 2-/4-wire ST |
| Analog inputs | 2 |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit including sign |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible |
| Conversion time | 50 ms @ 60 Hz; 60 ms @ 50 Hz; 180 ms @ 16.6 Hz; 500 μs without filter |
| BaseUnits | BU type A0, A1 |
| Diagnostics | Module diagnostics; diagnostic alarm; supply-voltage monitoring; wire break at 4 mA to 20 mA |
Applications
- Current signal acquisition: Acquires current signals from 2-wire and 4-wire transducers using the supported current input ranges.
Key Features

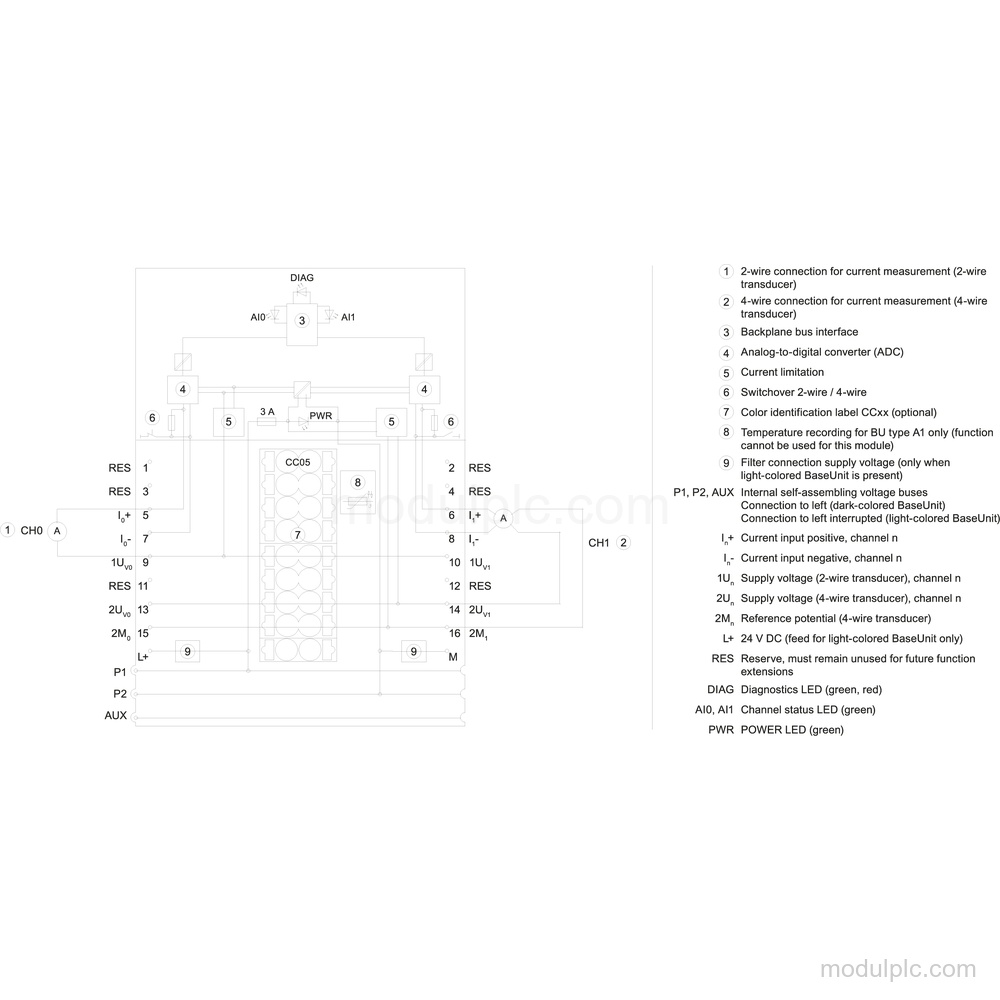

- Analog input channels: 2 analog inputs for current measurement with 2-wire and 4-wire transducers.
- Supported input ranges: 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and conversion: Resolution with overrange: 16 bit including sign. Conversion time per channel: 50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, or 500 μs without filter.
- Supply and consumption: Rated supply: 24 V DC. Permissible range: 19.2 V to 28.8 V DC. Current consumption, max.: 45 mA without sensor supply.
- Diagnostics and isolation: Module diagnostics, diagnostic alarm, supply-voltage monitoring, wire-break diagnosis at 4 mA to 20 mA, and green/red DIAG LED. Channels are not isolated from each other, but are isolated from the backplane bus and electronics power supply.

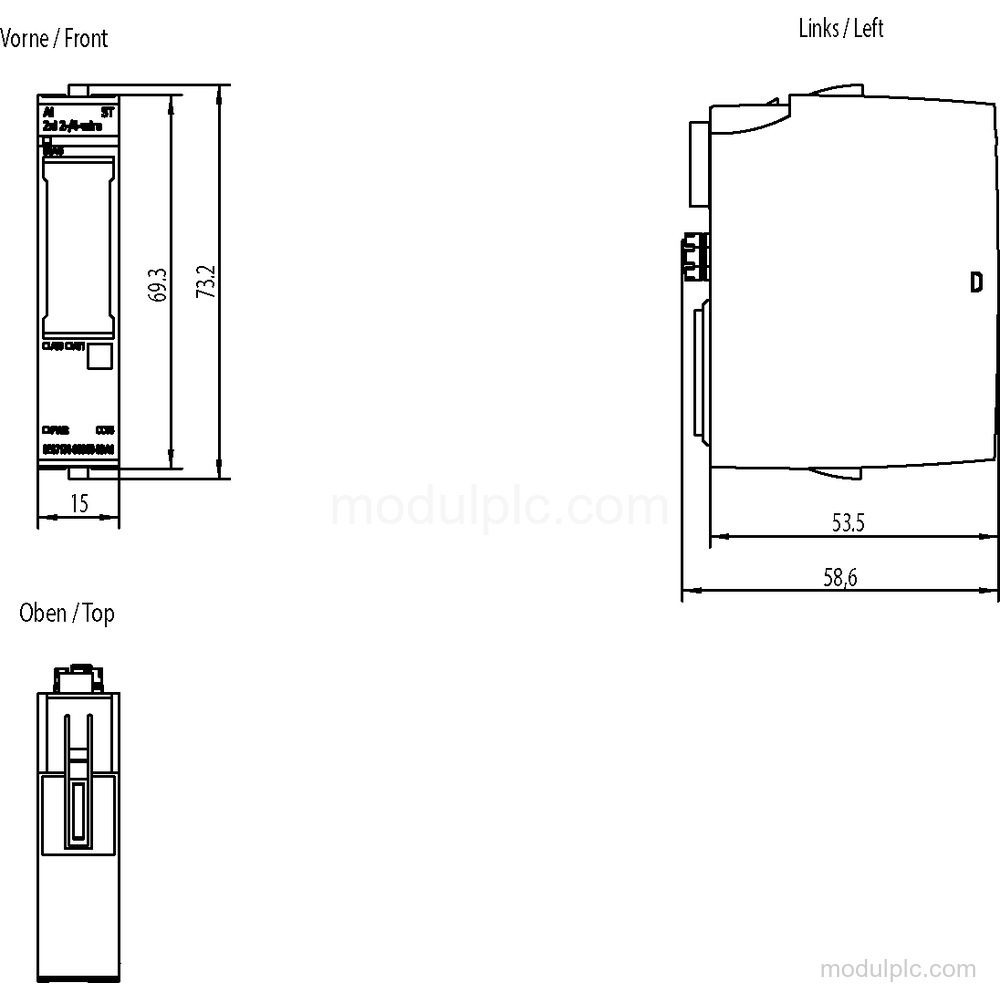

- BaseUnit and dimensions: Suitable BaseUnits: BU type A0, A1. Width: 15 mm; height: 73 mm; depth: 58 mm.
Frequently Asked Questions
1. How many analog inputs does the 6ES7134-6GB00-0BA1 have?
It has 2 analog inputs for current measurement.
2. Which current input ranges are supported?
It supports 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. Which BaseUnits can be used with this module?
It is suitable for BU type A0 and BU type A1.
