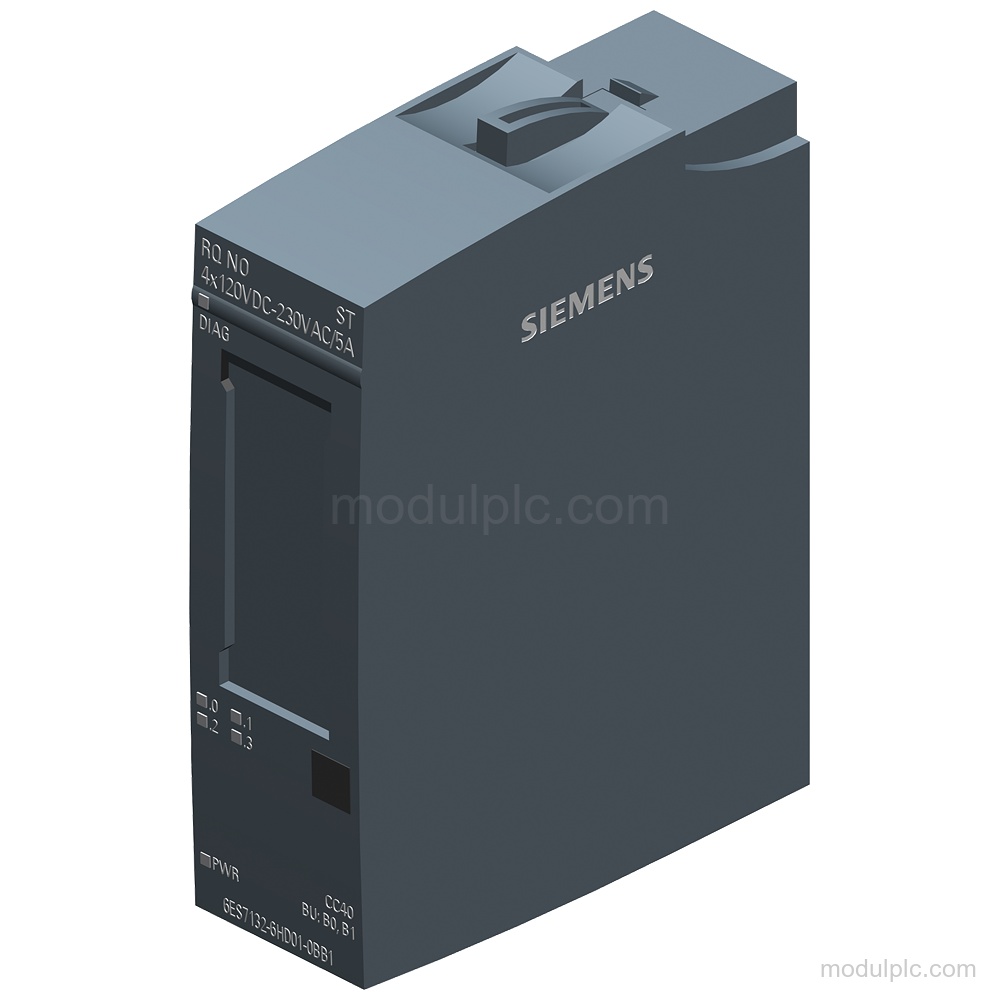

Product Overview

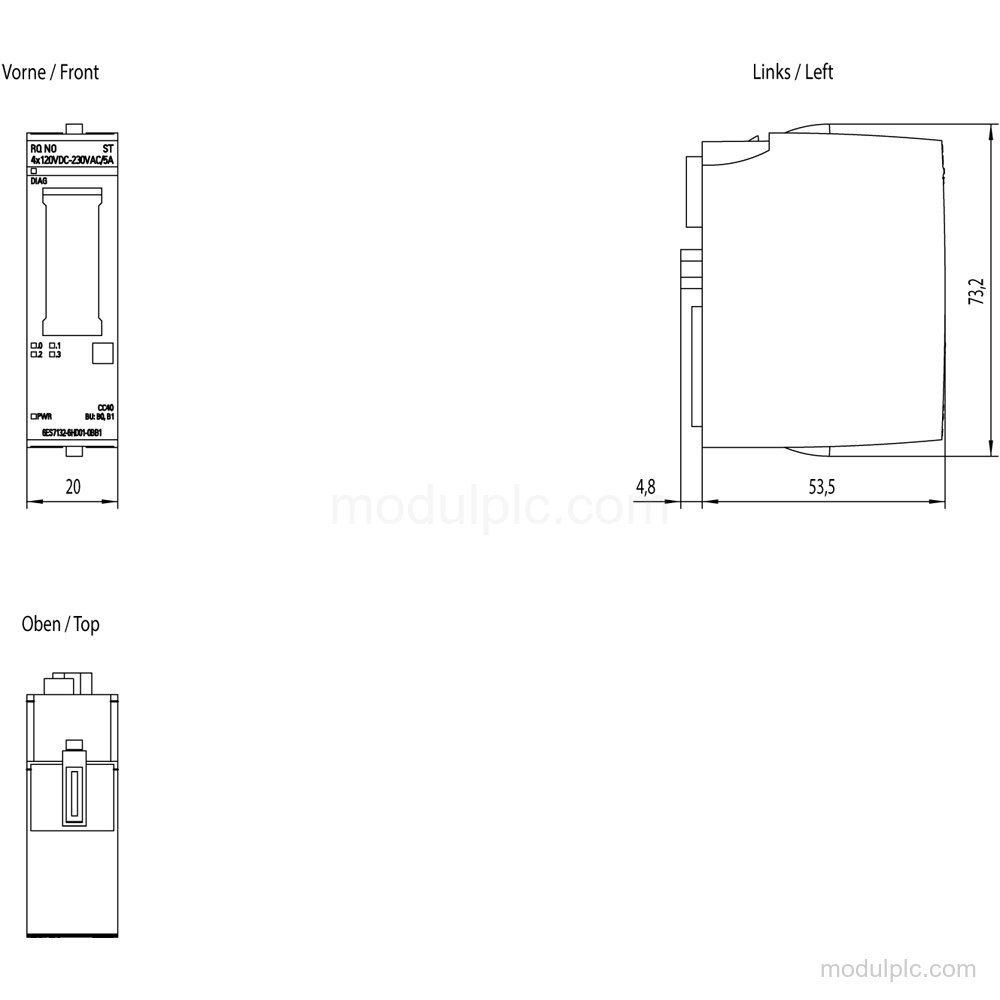

Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Relays |
| Number of digital outputs | 4 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V |
| Maximum current per channel | 5 A |
| Maximum current per module | 20 A |
| Rated switching voltage (DC) | 24 V DC to 120 V DC |
| Rated switching voltage (AC) | 24 V AC to 230 V AC |
| Usable BaseUnits | BU type B0, B1 |
| Module diagnostics | Yes |
Applications

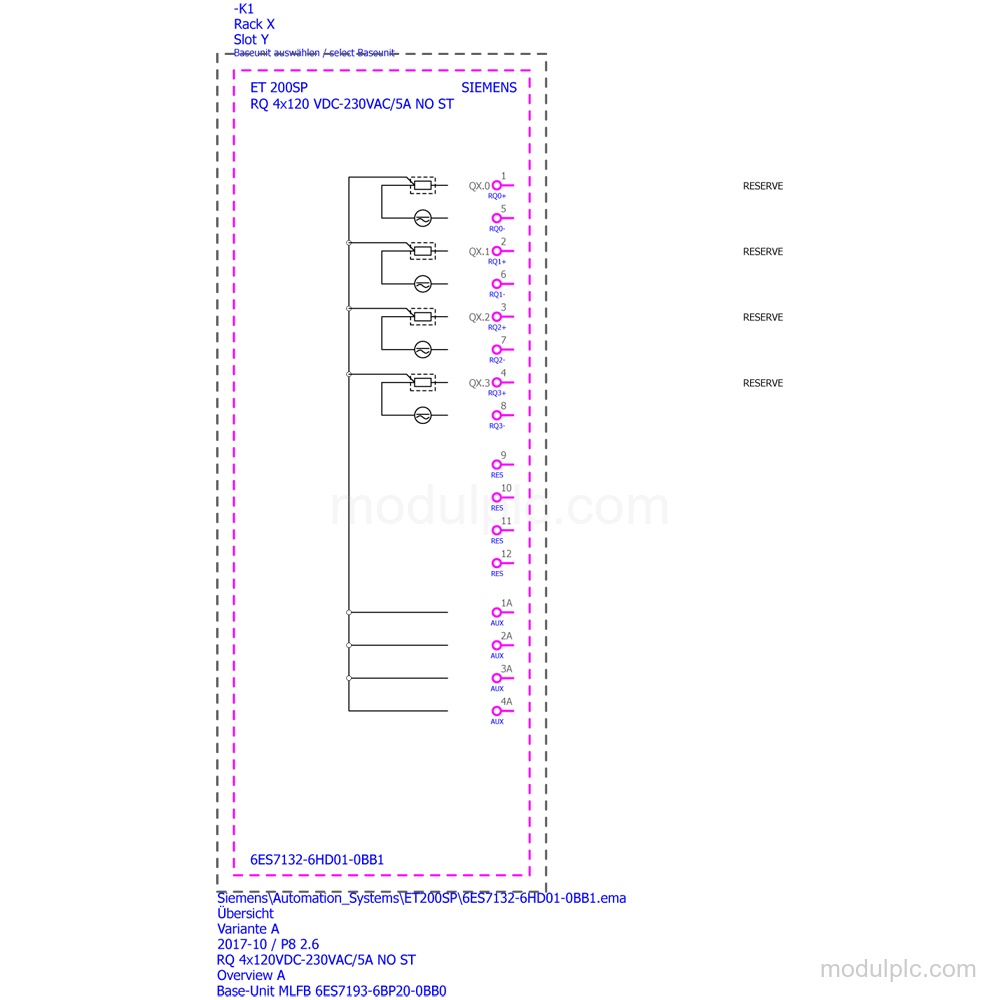

- Relay output switching: Controls connected loads through 4 digital relay outputs with normally open contacts.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.
Key Features
- Relay outputs: 4 parameterizable digital relay outputs with normally open contacts; current-sinking and current-sourcing operation is supported.
- Switching capacity: Maximum current is 5 A per channel and 20 A per module; maximum contact switching current is 5 A with resistive load and 2 A with inductive load.
- Switching voltage: Rated switching voltage is 24 V DC to 120 V DC or 24 V AC to 230 V AC.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics and isolation: The module monitors supply voltage and provides diagnostic alarms, substitute values, green PWR and channel LEDs, and a green/red DIAG LED. Channels are isolated from each other and from the backplane bus and electronics supply.
Frequently Asked Questions
1. How many relay outputs does the 6ES7132-6HD01-0BB1 have?
It has 4 parameterizable digital relay outputs with normally open contacts.
2. What supply voltage does this relay module require?
Its rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
3. What switching voltage ranges are supported?
The rated switching voltage is 24 V DC to 120 V DC or 24 V AC to 230 V AC.
4. What diagnostics are available?
The module monitors the supply voltage, provides diagnostic alarms and substitute values, and has PWR, channel-status, and DIAG LEDs.
