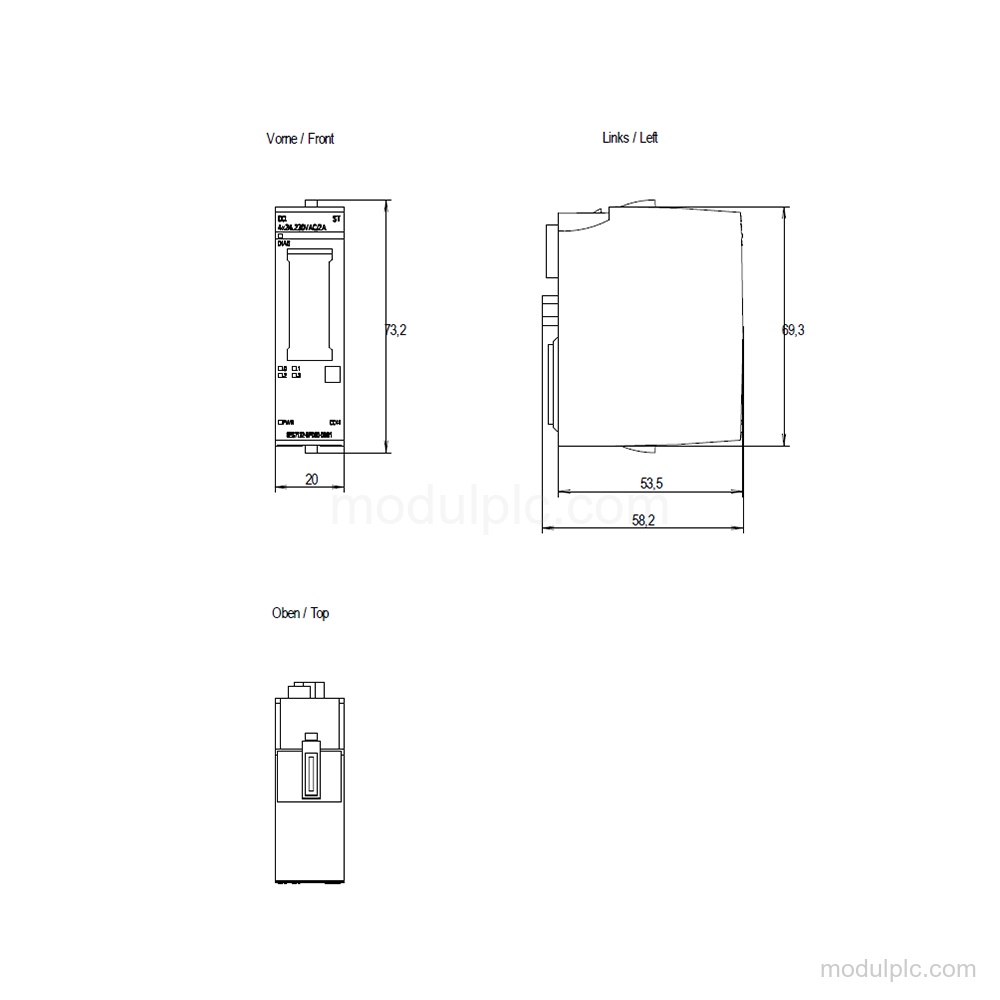

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | DQ 4×24 … 230 V AC/2 A ST |
| Digital outputs | 4 |
| Output type | Triac with zero point detection |
| Output voltage | 24 V AC to 230 V AC |
| Current per channel, max. | 2 A |
| Current per module, max. | 8 A |
| Usable BaseUnits | BU type B1 |
| Firmware version | V1.0 |
| PROFINET GSDML | V2.3 |
| PROFIBUS GSD revision | GSD Revision 5 |
| Mechanical coding | type C |
| Isolation test | 2 545 V DC/2 s (routine test) |
Applications
- Digital input control: The digital outputs can control a digital input.
- Redundant load control: Two outputs can be switched in parallel for redundant control of a load.
Key Features
- Digital output channels: 4 current-sourcing digital outputs use Triac technology with zero point detection.
- Output voltage and current: Output voltage is 24 V AC to 230 V AC; signal "1" current is 2 A per channel.
- Switching capacity: Maximum switching capacity is 2 A with a resistive load and 100 W with a lamp load.
- Installation-dependent current: With horizontal installation, maximum module current is 8 A up to 40 °C, 6 A up to 50 °C, or 4 A up to 60 °C. With vertical installation, it is 8 A up to 30 °C, 6 A up to 40 °C, or 4 A up to 50 °C.

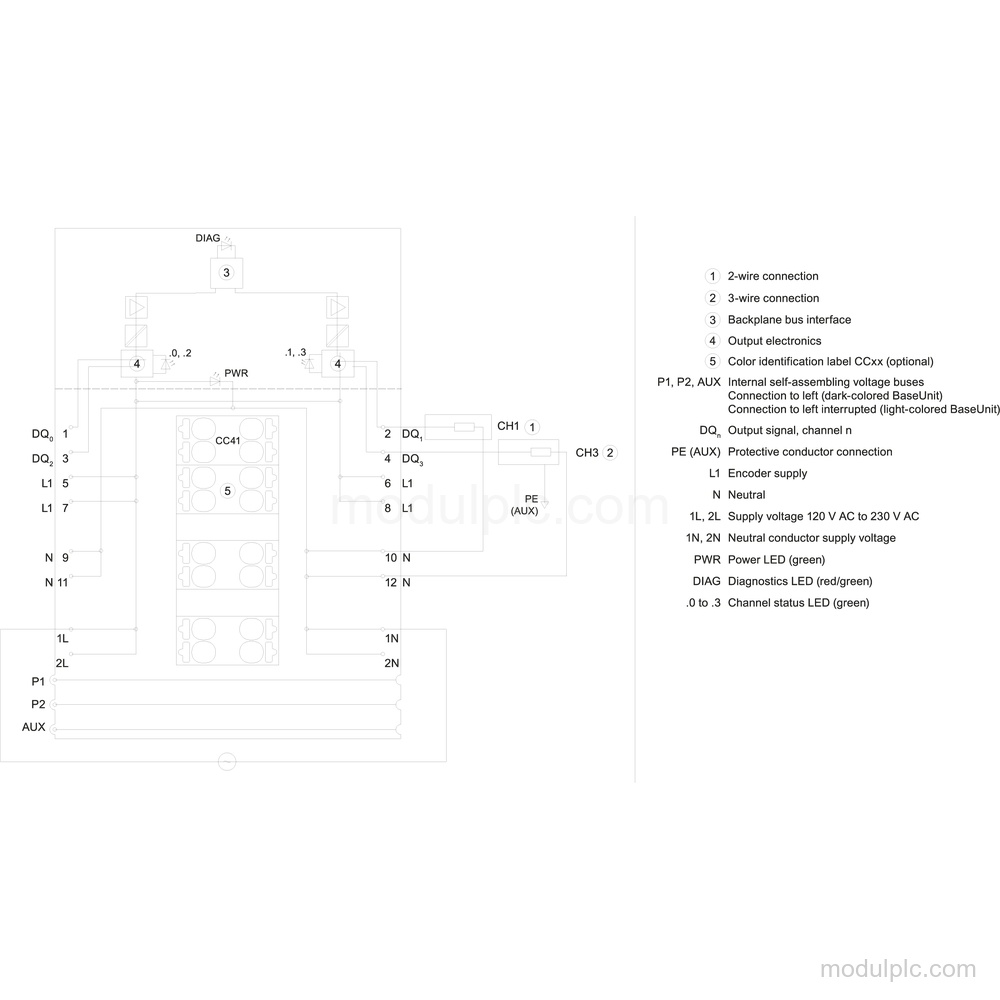

- System connection and coding: The module is suitable for BU type B1, uses mechanical coding type C, and has CC41 color code.
- Indication and isolation: Green PWR and channel status LEDs are provided, along with a green/red DIAG LED. Channels are isolated from the backplane bus; isolation is tested with 2 545 V DC/2 s (routine test).
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7132-6FD00-0BB1 have?
It has 4 digital outputs.
2. What output signal does the module provide?
It provides Triac outputs with zero point detection and an output voltage of 24 V AC to 230 V AC.
3. What is the maximum output current per channel?
The maximum current per channel is 2 A.
4. Which BaseUnit is suitable for this module?
It is suitable for BU type B1.
5. Does the module have short-circuit protection?
It has no short-circuit protection. When using BU type B1, a miniature, quick-response fuse with 10 A tripping current must be provided.
