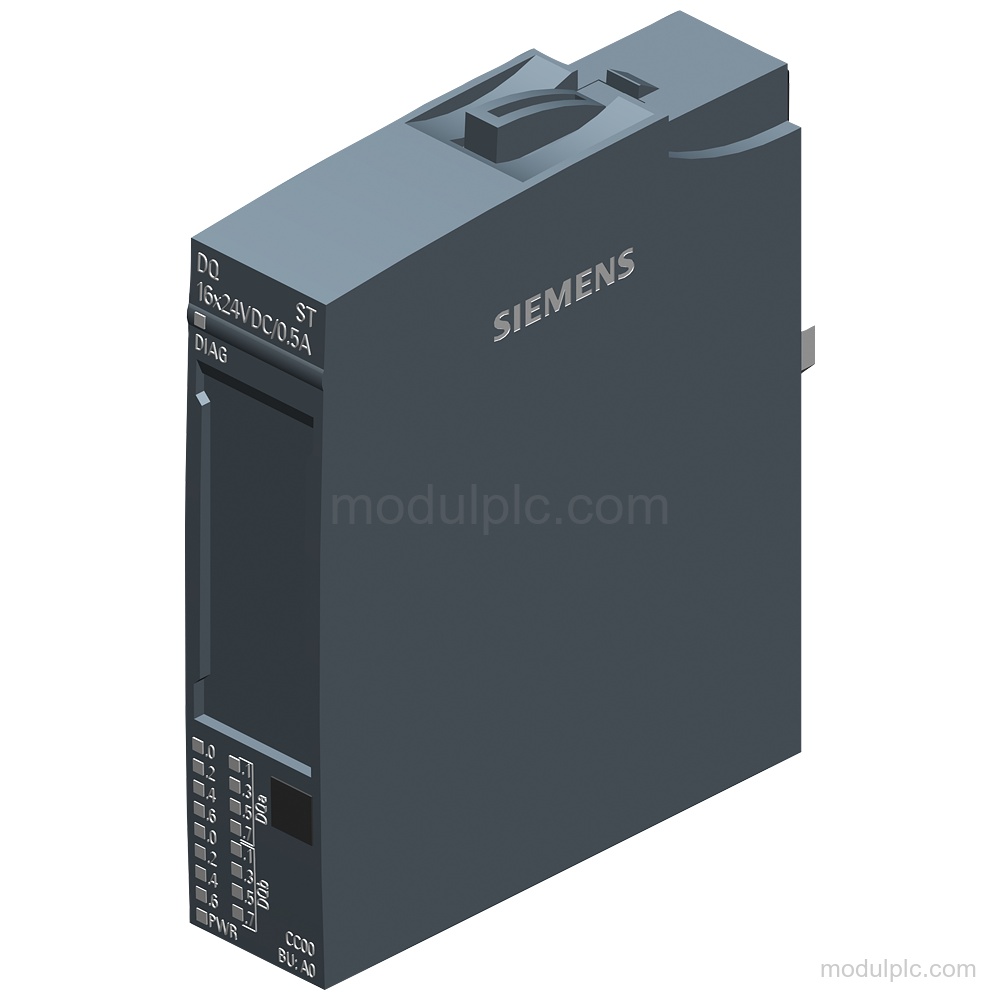

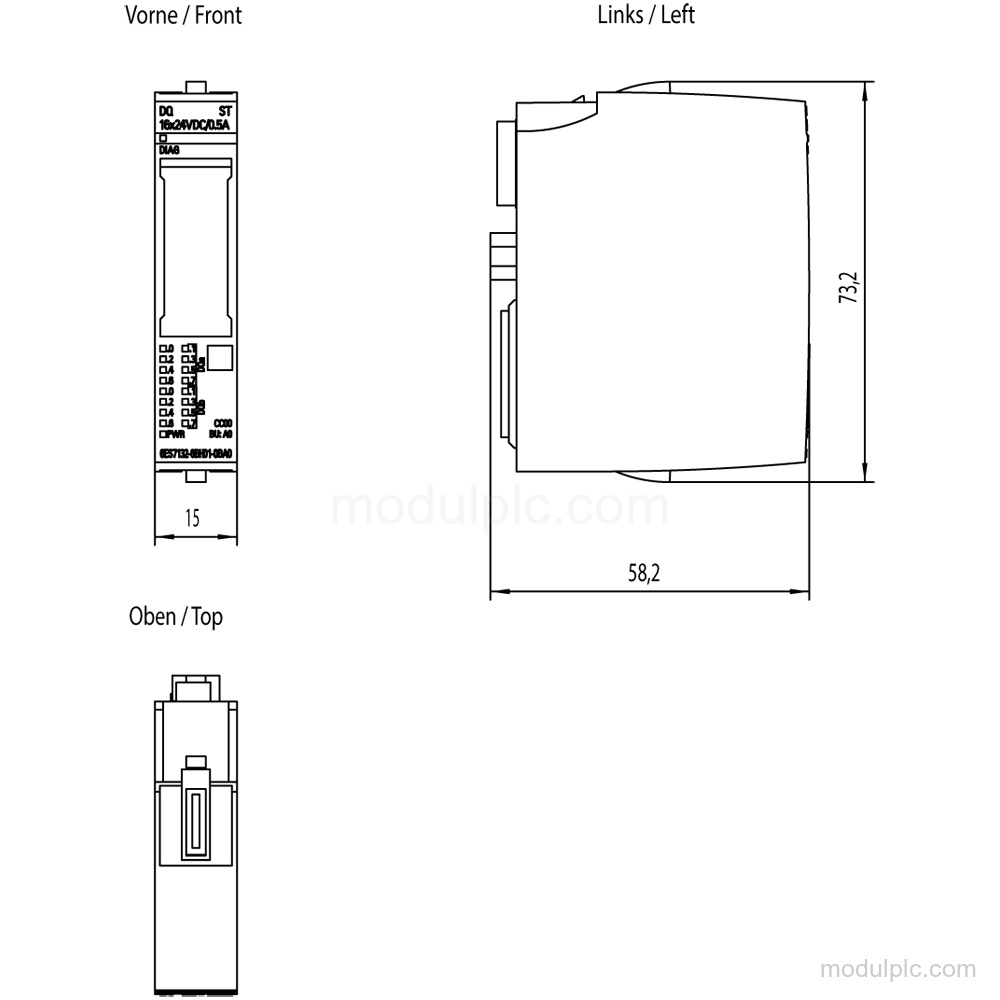

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Output type | Source output (PNP, current-sourcing) |
| Digital outputs | 16 |
| Rated output voltage | 24 V DC |
| Rated output current per channel | 0.5 A |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Output delay with resistive load | 50 μs from "0" to "1"; 100 μs from "1" to "0" |
| Diagnostics | Supply voltage, wire break, short-circuit to ground, short-circuit to L+, and group error |
| BaseUnit | BU type A0 |
Applications
- Digital output control: Controls digital inputs using the module's digital outputs.
- Redundant load control: Supports redundant control of a load by parallel switching of two outputs.
Key Features

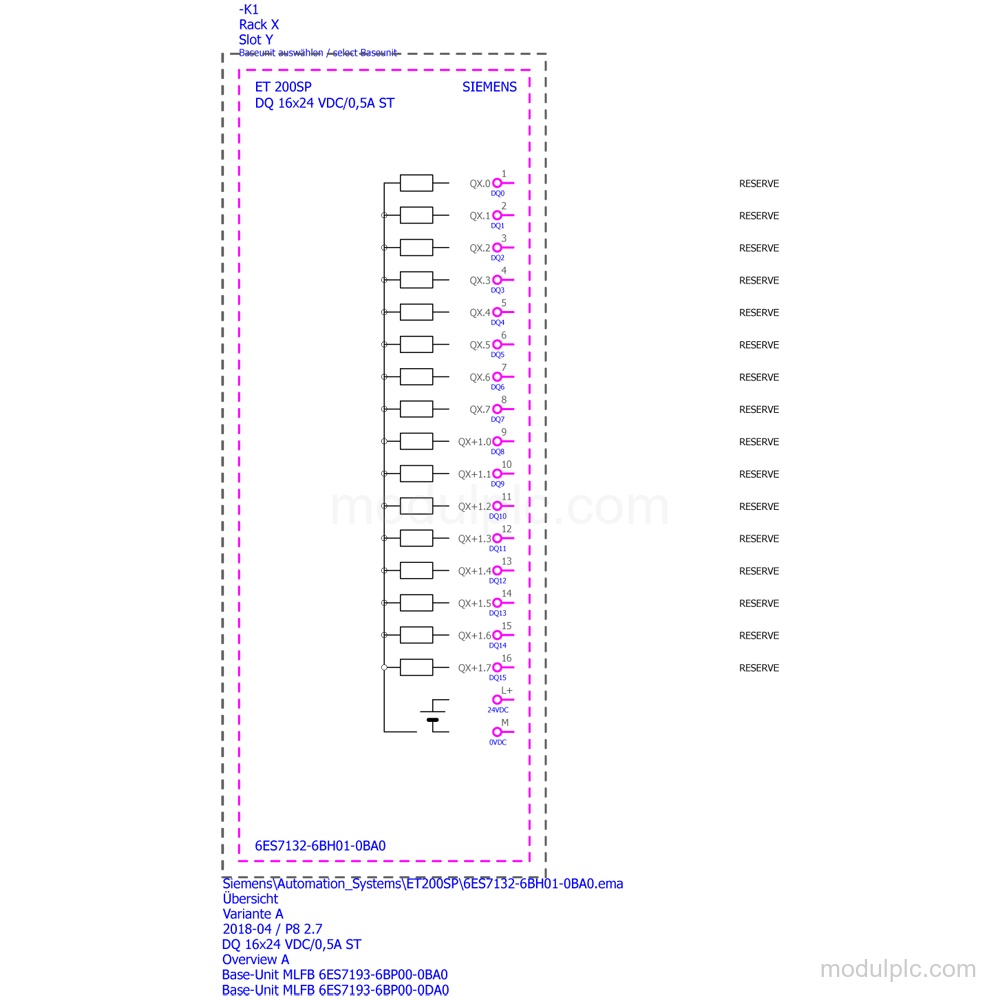

- 16-channel source output: Provides 16 parameterizable digital source outputs (PNP, current-sourcing) with a 24 V DC rated output voltage and 0.5 A rated current per channel.
- Output protection and detection: Includes electronic short-circuit protection, open-circuit detection, and control of a digital input.
- Module diagnostics: Supports diagnostics for supply voltage, wire break, short-circuit to ground, short-circuit to L+, and group error; a green/red DIAG LED indicates module diagnostics.
- Timing and switching: Typical output delay is 50 μs from "0" to "1" and 100 μs from "1" to "0" with resistive load; switching frequency is max. 100 Hz with resistive load.
- Supply and installation: Supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection. The module fits BU type A0.
- Isolation and connections: Channels are electrically isolated from the backplane bus. 1-wire connection uses BU type A0; 2-wire and 3-wire connections use BU type A0 with AUX terminals or a potential distributor module.
Frequently Asked Questions
1. How many outputs does the 6ES7132-6BH01-0BA0 have?
It has 16 parameterizable digital source outputs.
2. What output voltage and current does this module support?
The rated output voltage is 24 V DC, and the rated output current is 0.5 A per channel.
3. Which diagnostics are available?
It supports supply-voltage, wire-break, short-circuit-to-ground, short-circuit-to-L+, and group-error diagnostics.
4. Which BaseUnit is used for the 6ES7132-6BH01-0BA0?
It fits BU type A0. 2-wire and 3-wire connections use BU type A0 with AUX terminals or a potential distributor module.
