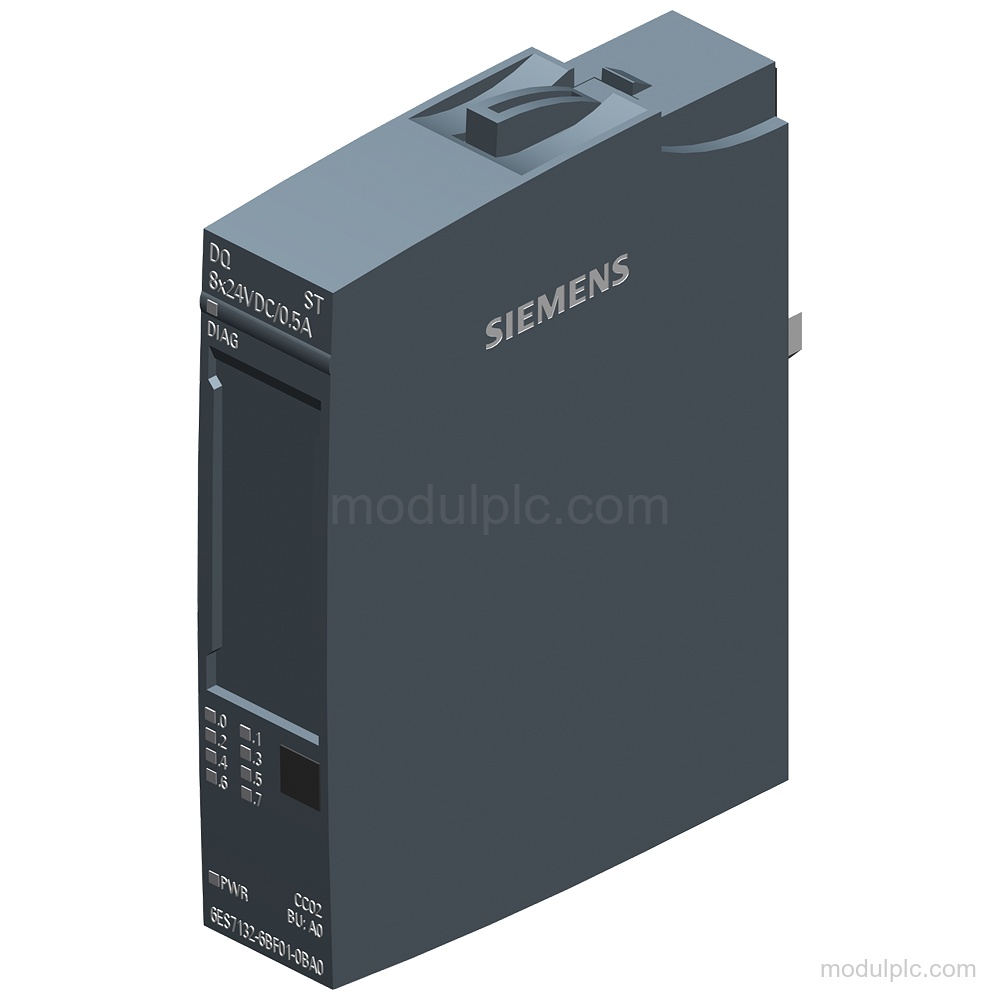

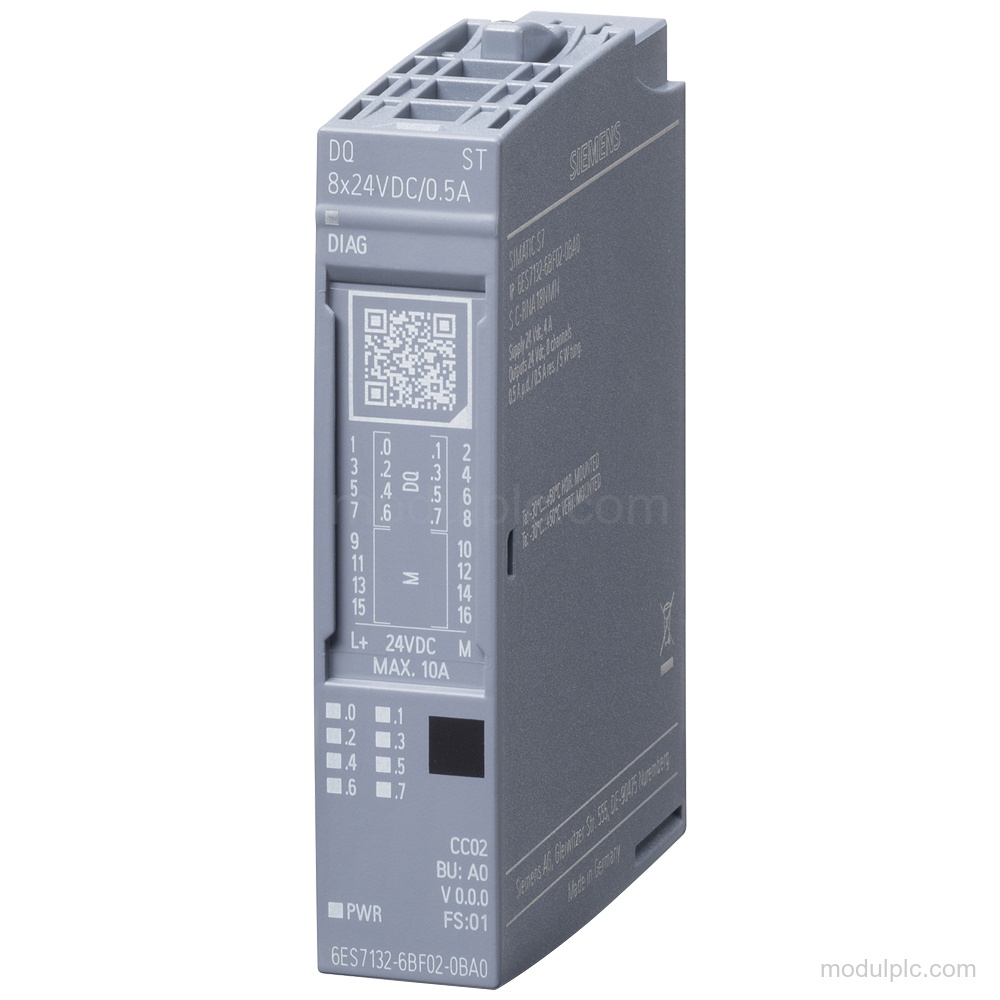

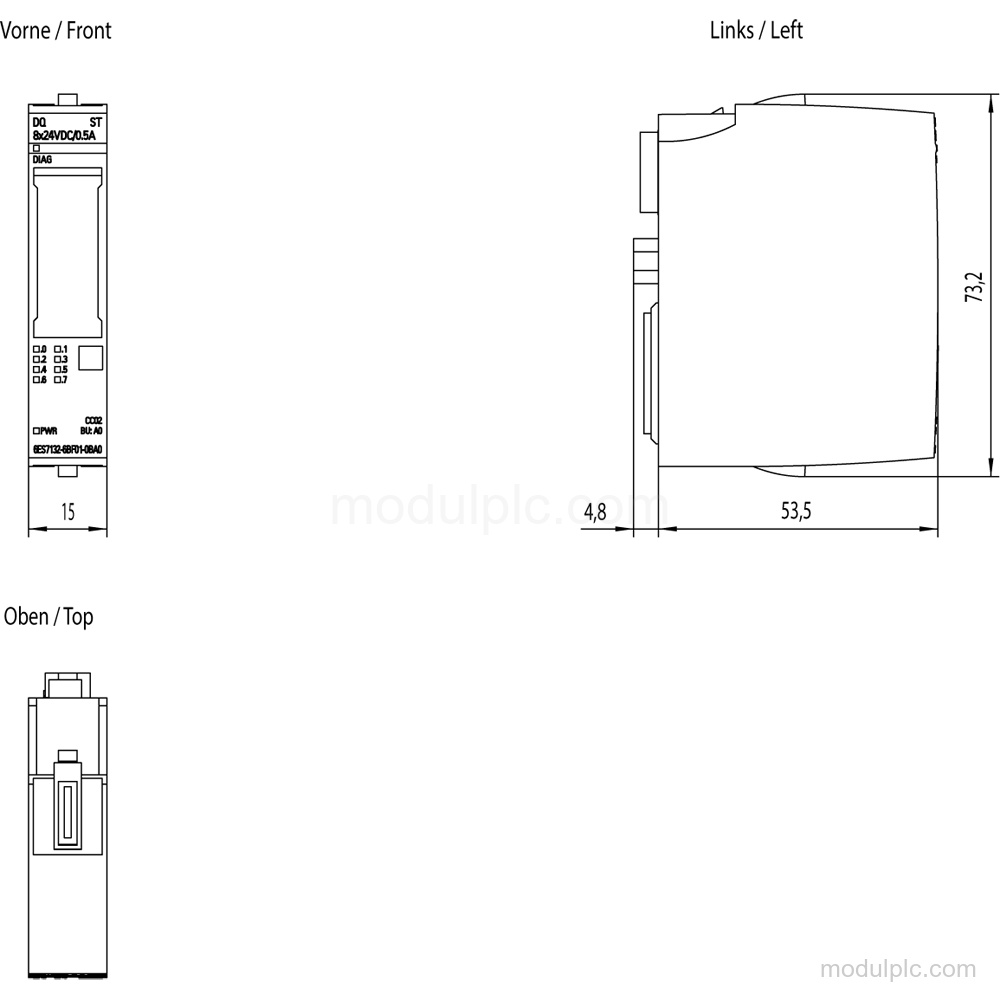

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Source output (PNP, current-sourcing) |
| Number of digital outputs | 8 |
| Output voltage, rated | 24 V DC |
| Output current per channel, rated | 0.5 A |
| Output current per module, maximum | 4 A |
| Supply voltage, permissible range | 19.2 V to 28.8 V DC |
| Output delay, maximum | 50 μs from "0" to "1"; 100 μs from "1" to "0" at rated load |
| Diagnostics | Supply voltage, wire break, short-circuit to ground, short-circuit to L+, group error, and diagnostic alarm |
| Connection BaseUnit | BU type A0 |
| Firmware version | V0.0 |
| Isolation tested with | 707 V DC (type test) |
Applications
- Digital output control: Controls digital outputs with source output (PNP, current-sourcing) and can control a digital input.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.
Key Features
- 8-channel digital output: 8 parameterizable digital source outputs (PNP, current-sourcing) with 24 V DC rated output voltage.
- 0.5 A output current: Output current for signal "1": 0.5 A rated and 0.5 A maximum permissible; total current is limited to 4 A per module.
- Module diagnostics: Diagnostics include supply-voltage monitoring, wire-break detection, short-circuit detection to ground and L+, group error, and diagnostic alarms.
- Short-circuit protection: Electronic short-circuit protection is provided; substitute values can be connected.

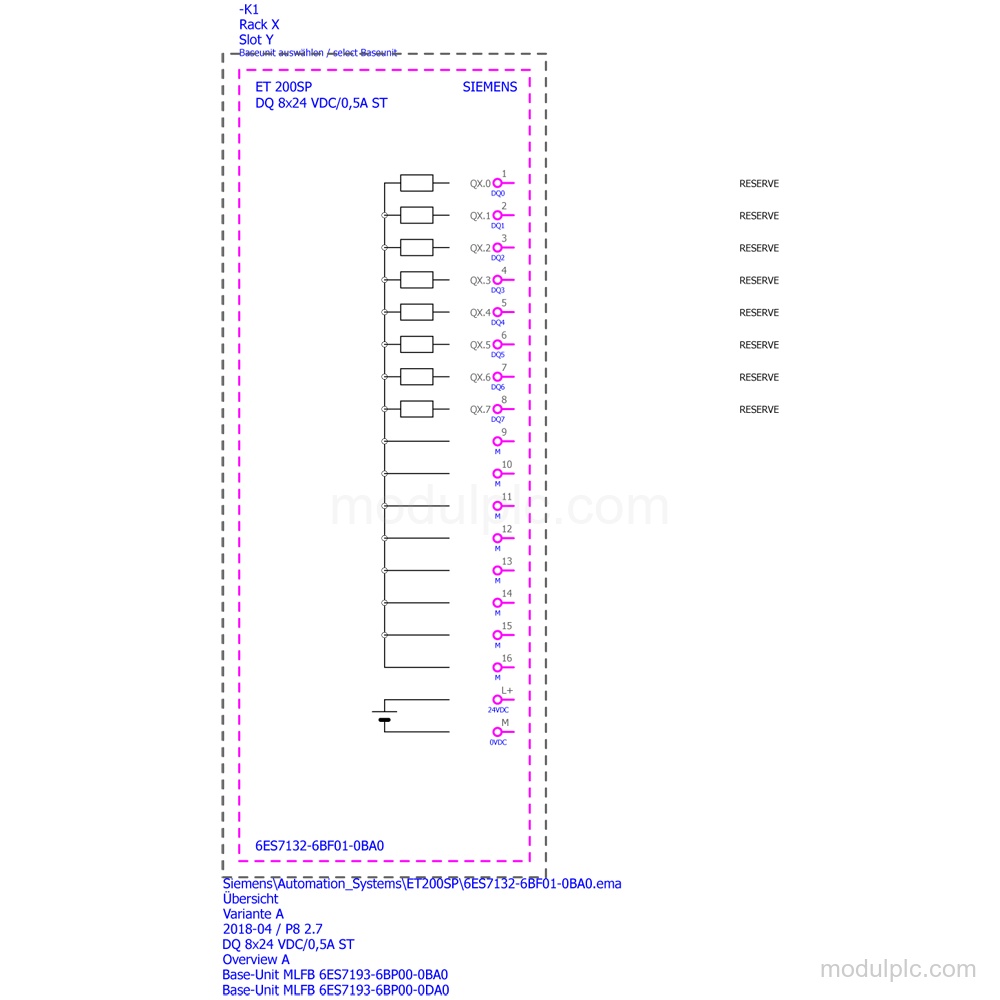

- Flexible BaseUnit connection: BU type A0 is used for 1-wire and 2-wire connections; 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module, while 4-wire connection uses BU type A0 plus a potential distributor module.
- Output timing and installation limits: Output delay is maximum 50 μs from "0" to "1" and 100 μs from "1" to "0" with resistive load at rated load. Total current is 4 A with horizontal installation up to 60 °C or vertical installation up to 50 °C.
Frequently Asked Questions
1. What output type and channel count does 6ES7132-6BF01-0BA0 have?
It has 8 parameterizable digital source outputs (PNP, current-sourcing).
2. What output current is available per channel?
The rated output current for signal "1" is 0.5 A, with a maximum permissible value of 0.5 A per channel.
3. Which diagnostics does the module provide?
It provides supply-voltage monitoring, module-wise wire-break detection, module-wise short-circuit detection to ground and L+, group error, and diagnostic alarms.
4. Which BaseUnit is used for connection?
BU type A0 is used for 1-wire and 2-wire connections. 3-wire and 4-wire connections require the specified AUX terminals or potential distributor module configuration.
5. What installation restrictions apply to the 4 A total current?
The total current is 4 A with horizontal installation up to 60 °C or vertical installation up to 50 °C.
