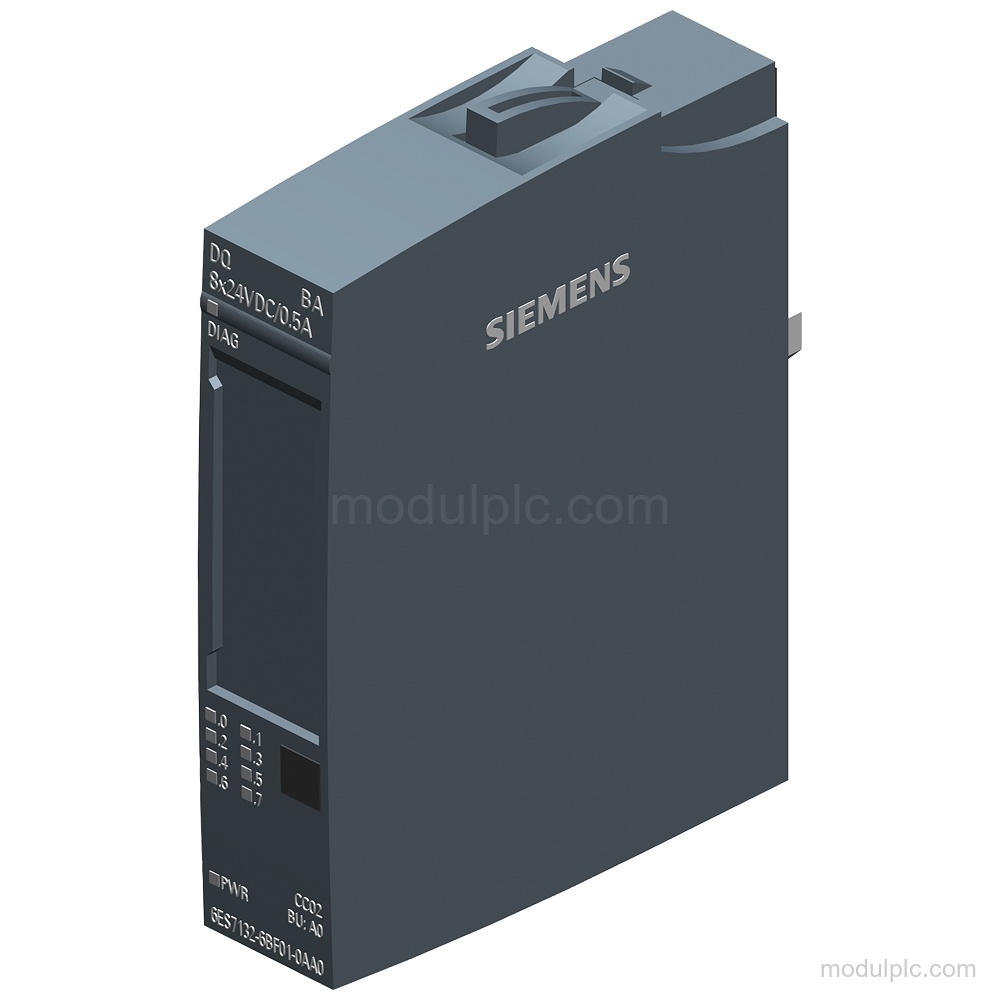

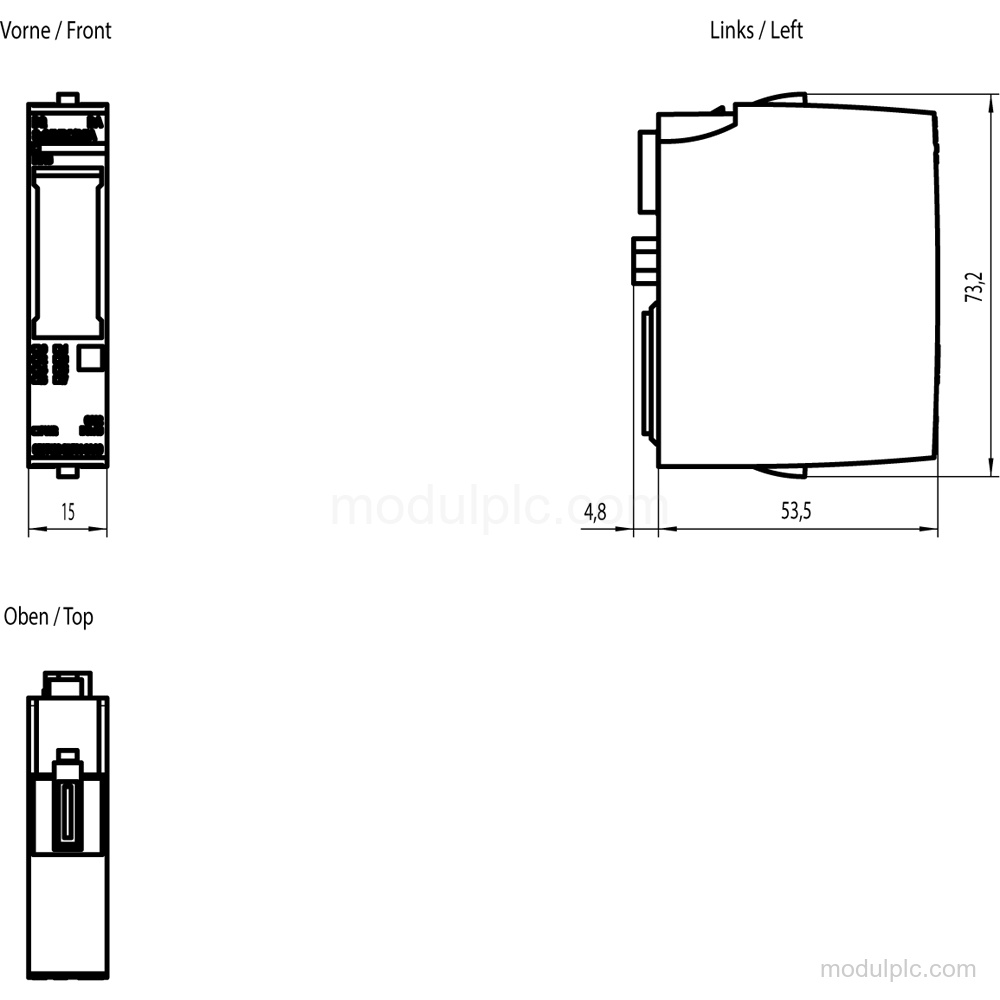

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC ET 200SP digital output module |
| Digital outputs | 8 source outputs (PNP, current-sourcing) |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Output current | 0.5 A per channel; 4 A per module |
| Output protection | Electronic short-circuit protection per channel |
| BaseUnit | BU type A0 |
| Diagnostics | Supply-voltage monitoring, diagnostic alarm, group error, substitute values |
| Switching frequency | 100 Hz resistive; 2 Hz inductive; 10 Hz lamp load |
| Firmware version | V0.0 |
| PROFINET engineering | GSDML V2.3 |
Applications
- Digital signal output: Controls digital output signals through 8 parameterizable source outputs.
- Digital input control: Can control a digital input.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.

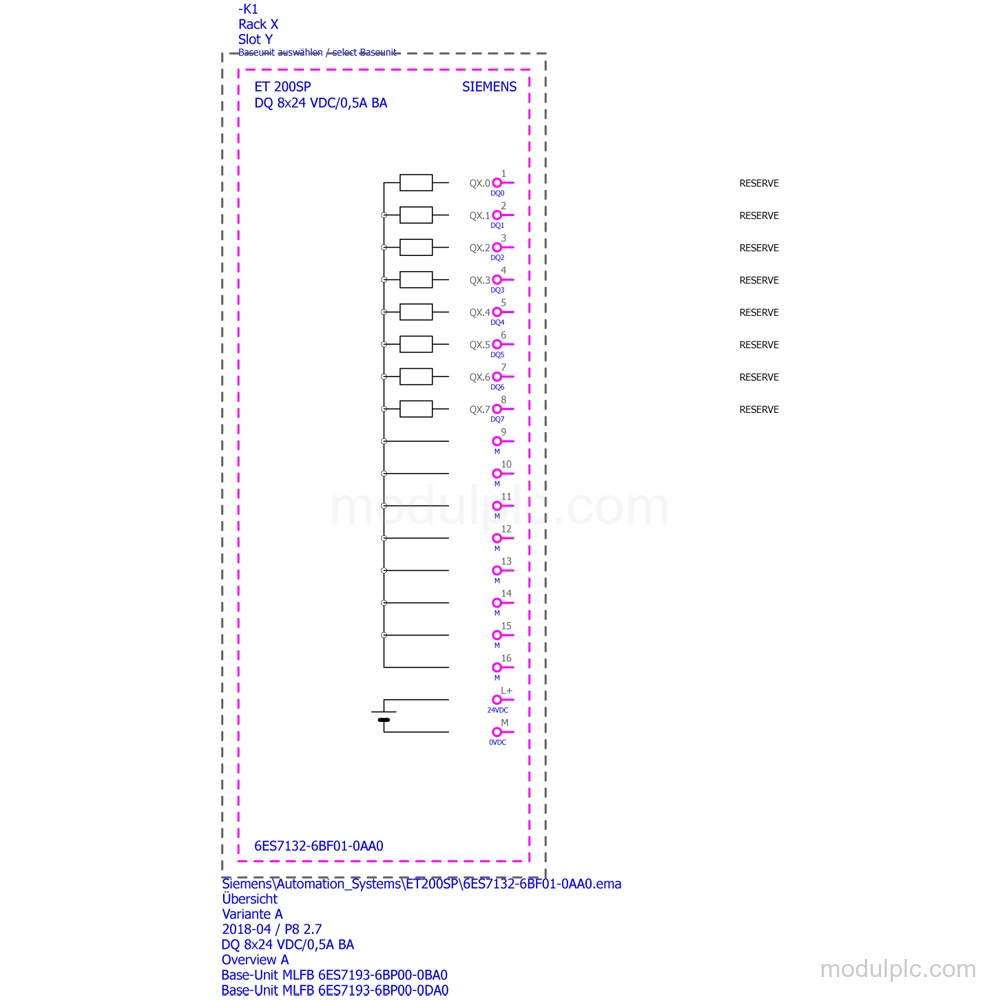

Key Features
- Digital outputs: 8 parameterizable source outputs (PNP, current-sourcing) with 0.5 A rated and maximum output current per channel.
- 24 V DC supply: Rated supply and output voltage: 24 V DC; permissible supply range: 19.2 V to 28.8 V.
- Output protection: Electronic short-circuit protection is provided per channel.
- Diagnostics: The module supports supply-voltage monitoring, diagnostic alarms, substitute values, group error, and green/red DIAG LED module indication.
- Connection and mounting: Fits BU type A0; 1-wire and 2-wire connections use BU type A0, while 3-wire and 4-wire options require the stated AUX or potential distributor configuration.
- Switching performance: Maximum switching frequency is 100 Hz with resistive load, 2 Hz with inductive load, and 10 Hz with lamp load.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7132-6BF01-0AA0 have?
It has 8 parameterizable source outputs (PNP, current-sourcing).
2. What supply voltage does this module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
3. What output current is available per channel?
The rated and maximum output current is 0.5 A per channel.
4. Which BaseUnit is used for this module?
It fits BU type A0. 3-wire and 4-wire connections require the stated AUX terminals or potential distributor configuration.
5. What diagnostics are supported?
It supports supply-voltage monitoring, diagnostic alarms, substitute values, group error, and module indication through a green/red DIAG LED.
