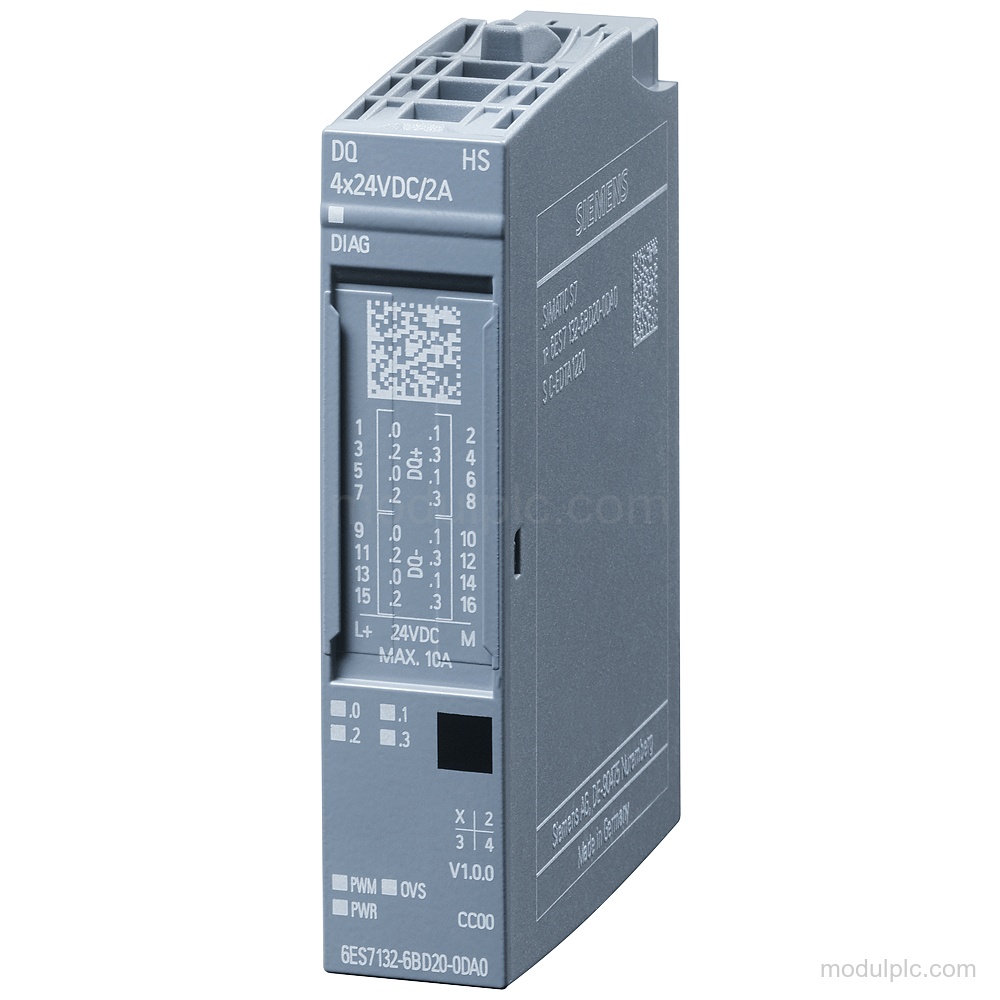

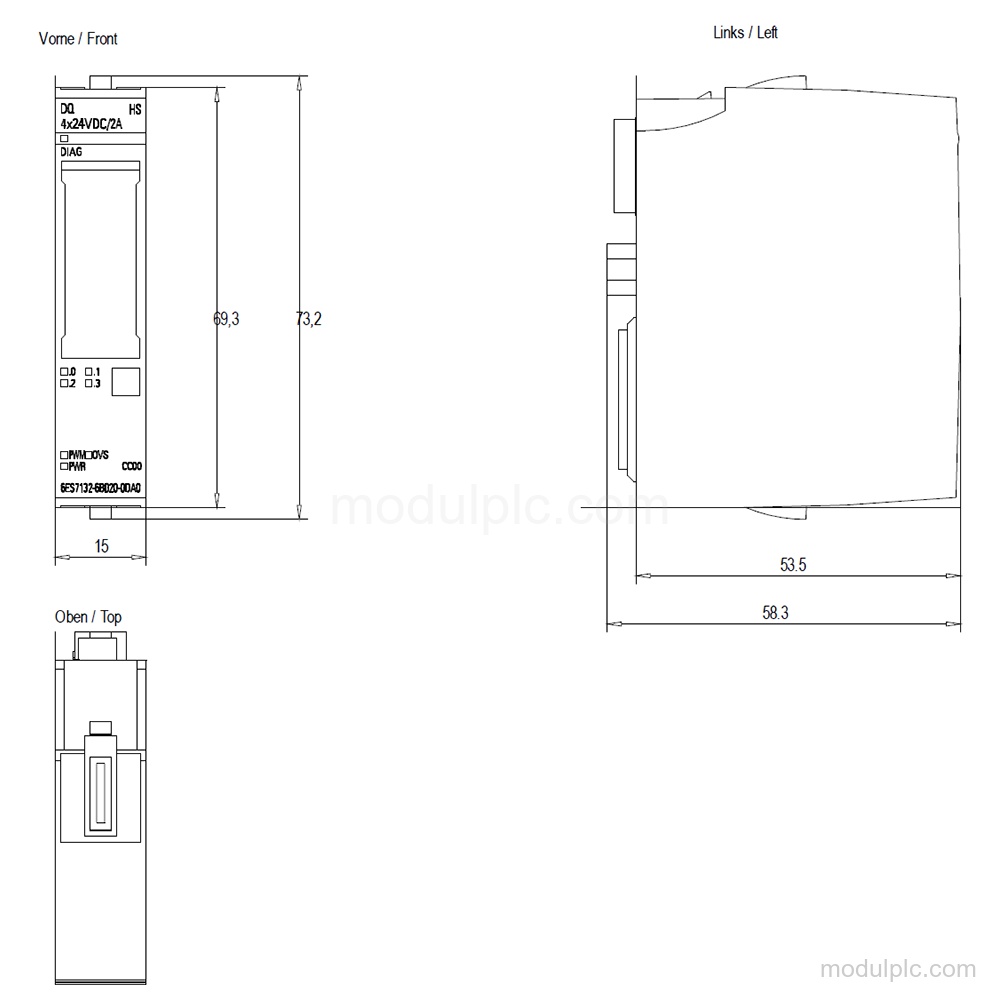

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Output type | Source output (PNP, current-sourcing); push-pull output |
| Digital output channels | 4 |
| Rated supply voltage | 24 V DC |
| Rated output current | 2 A per channel |
| PWM output count, max. | 4 |
| Oversampling values per cycle, max. | 32 |
| Oversampling resolution, min. | 100 μs |
| Short-circuit protection | Yes |
| Suitable BaseUnit | BU type A0 |
| Module diagnostics | Yes; group error and diagnostic alarm |
Applications
- Valve control: The DQ operating mode with energy-saving function supports valve control.
- Cam control: Cam control switches outputs at comparison values via MtM (module-to-module communication).
- PWM output control: PWM output provides parameterizable digital output pulses.
Key Features
- Digital outputs: 4 source outputs with push-pull output, 24 V DC rated voltage, and 2 A rated current per channel.
- Operating modes: Supports DQ, PWM, oversampling, and cam control; DQ with energy-saving function is available for valve control.
- PWM output: Up to 4 PWM outputs, with parameterizable cycle duration and 0.1 % duty-cycle resolution.
- Oversampling output: Supports up to 32 values per cycle with a minimum resolution of 100 μs.
- Diagnostics and protection: Provides short-circuit protection, module diagnostics, supply-voltage monitoring, group error, and diagnostic alarms.
- Connection and installation: Suitable for BU type A0; 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module, while 4-wire connection uses BU type A0 plus a potential distributor module.
Frequently Asked Questions
1. What output type and channel count does 6ES7132-6BD20-0DA0 have?
It has 4 source outputs (PNP, current-sourcing) with push-pull output. Current-sinking is not supported.
2. What supply voltage and output current are specified?
The rated supply voltage is 24 V DC, and the rated output current is 2 A per channel. The total current per module is 8 A.
3. Which operating modes are supported?
The module supports DQ, PWM, oversampling, and cam control. DQ with an energy-saving function is available for valve control.

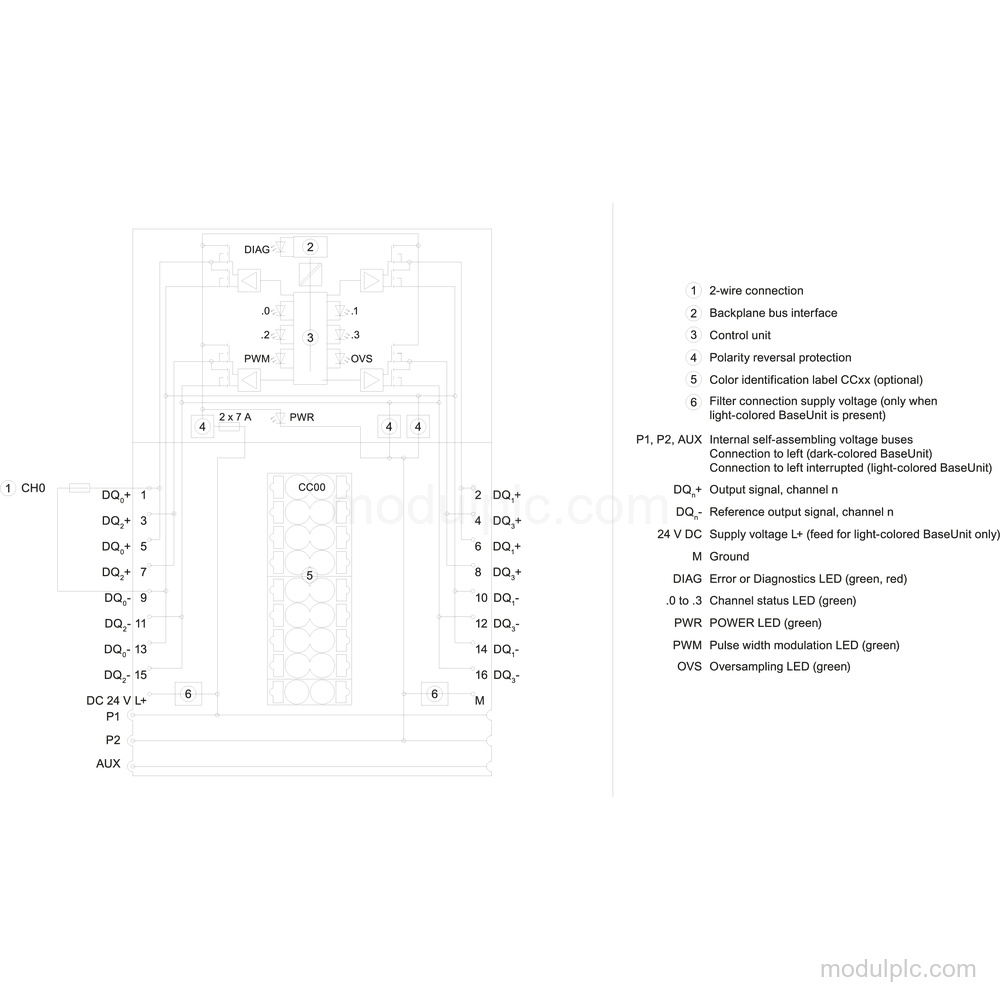

4. Which BaseUnit and connection variants are supported?
It is suitable for BU type A0. A 2-wire connection uses BU type A0; a 3-wire connection uses BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection uses BU type A0 plus a potential distributor module.
