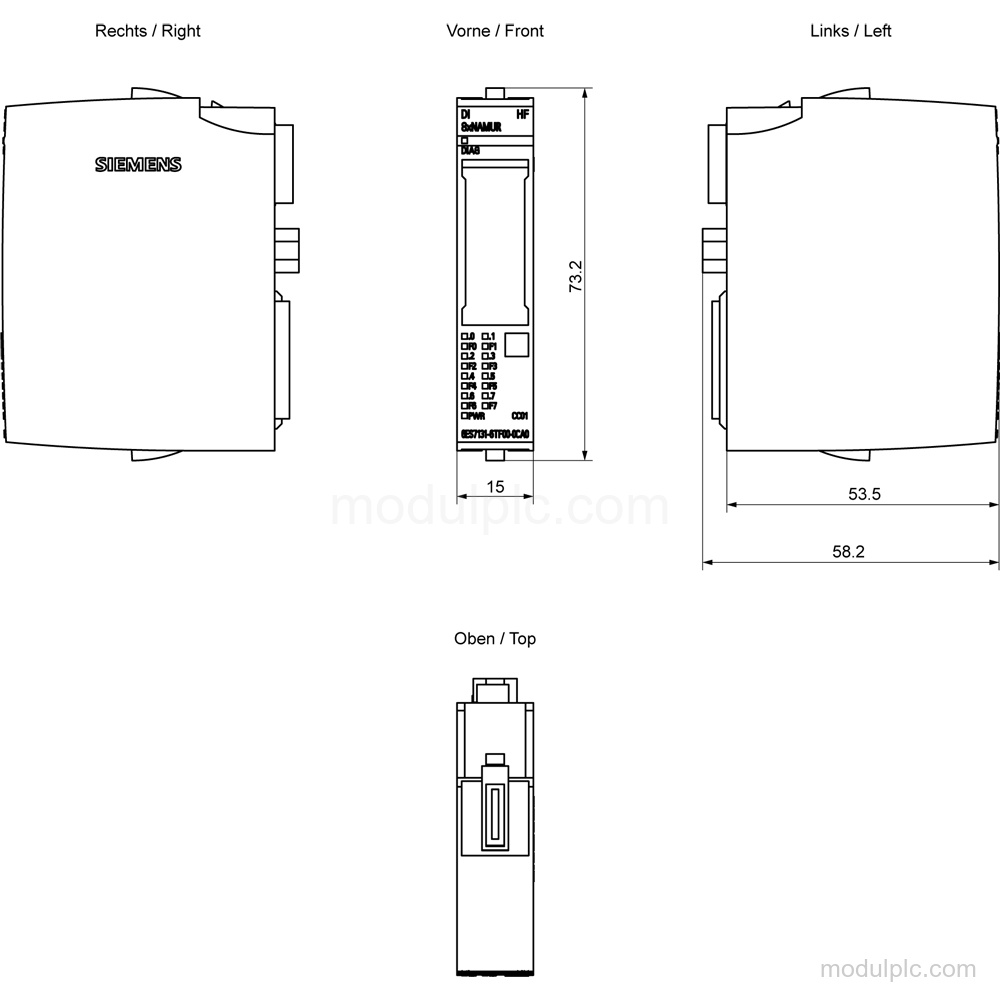

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

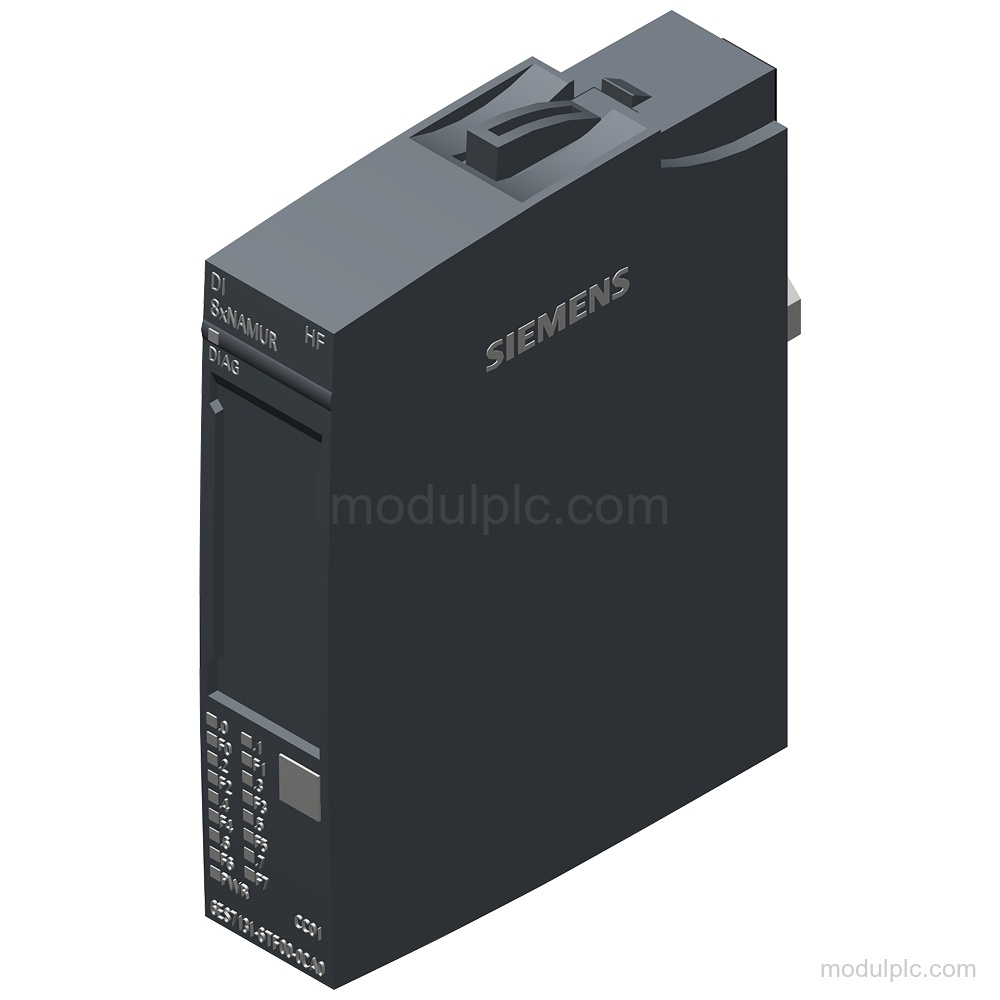

| Product type | DI 8xNAMUR HF |
| Digital inputs | 8; NAMUR |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Counter frequency, max. | 5 kHz |
| NAMUR encoder supply | 8.2 V |
| Output current per channel, max. | 8 mA |
| BaseUnit | BU type A0 |
| Firmware version | V2.0 or higher |
| Color code | CC01 |
Applications
- Digital signal acquisition: Acquires signals from NAMUR encoders and changeover contacts through 8 digital input channels.
- Counter operation: Counts input signals with up to 4 counters, 5 kHz maximum counting frequency, and selectable up/down counting direction.
Key Features
- Digital input channels: 8 parameterizable NAMUR digital inputs support DI and counter operation.
- Counter function: Up to 4 counters are supported, with a maximum counting frequency of 5 kHz and 32-bit counting width.
- Supply and current: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and maximum current consumption of 70 mA.
- Diagnostics: Channel-by-channel diagnostics include wire-break and short-circuit detection, diagnostic alarms, and hardware interrupts on channels 0 to 7.
- NAMUR encoder supply: The module provides 8.2 V NAMUR encoder supply with a maximum output current of 8 mA per channel.

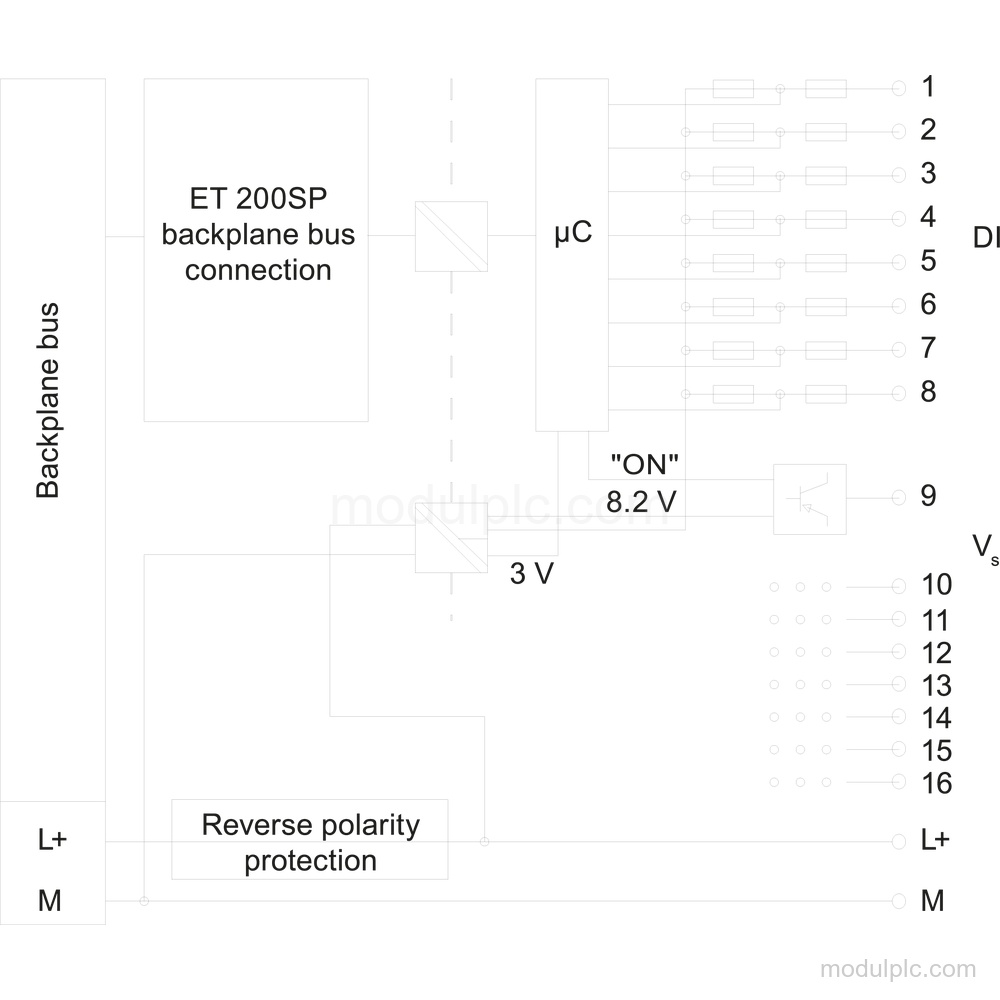

- Connection and isolation: BU type A0 is supported for 2-wire and 3-wire connections; channels are isolated from the backplane bus and load voltage L+.
Frequently Asked Questions
1. How many NAMUR inputs does Siemens 6ES7131-6TF00-0CA0 have?
It has 8 parameterizable NAMUR digital inputs.
2. What supply voltage does 6ES7131-6TF00-0CA0 require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Does this module support counter operation?
Yes. It supports up to 4 counters, a maximum counting frequency of 5 kHz, 32-bit counting width, and up/down counting direction.
4. What diagnostics are available?
It provides channel-by-channel wire-break and short-circuit diagnostics, diagnostic alarms, hardware interrupts on channels 0 to 7, and diagnostic LEDs.
