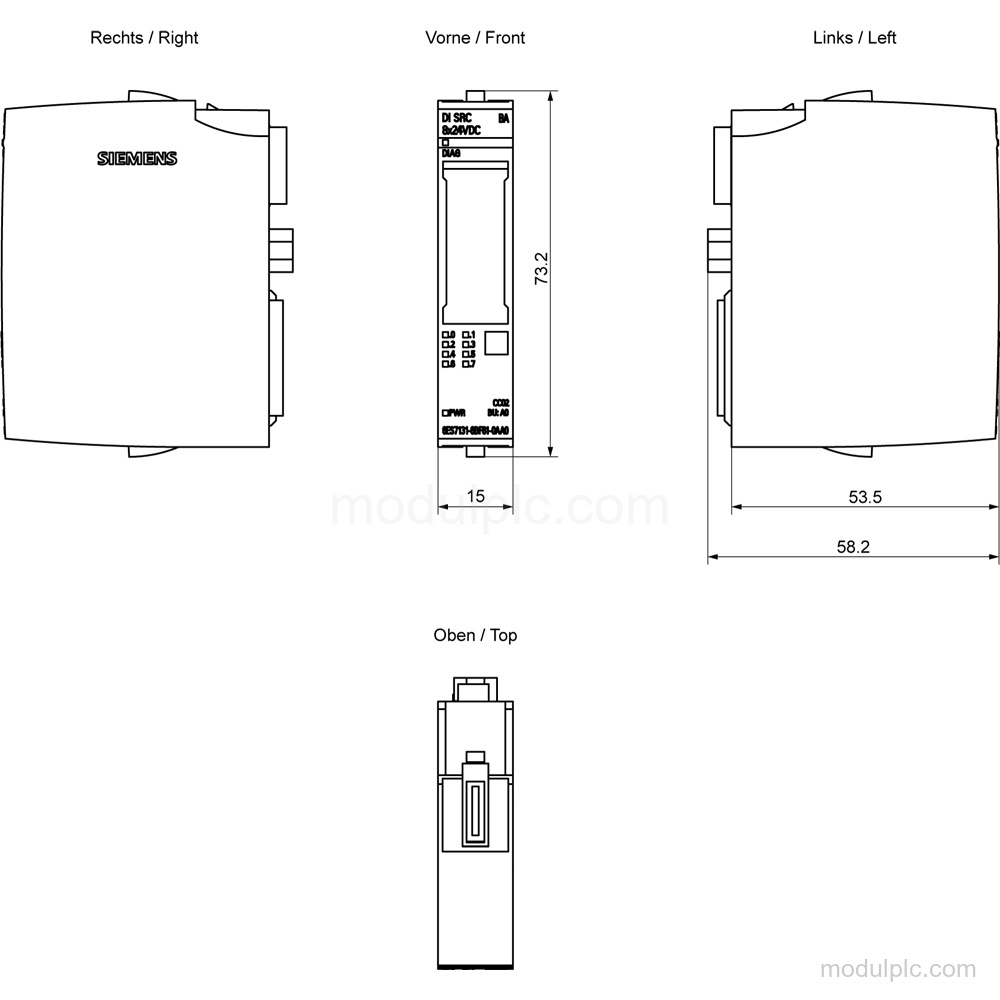

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital input channels | 8 |
| Input type | Sourcing |
| Input characteristic | IEC 61131, type 1 |
| Rated input voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Input delay | 0.05 ms to 20 ms, parameterizable |
| BaseUnit | BU type A0 |
| Supply-voltage diagnostics | Yes |
| Module diagnostics | Yes |
| Backplane-bus isolation | Yes |
| Firmware update | No |
Applications
- Digital signal acquisition: Acquires digital signals through 8 sourcing inputs with parameterizable input delay.
Key Features
- 8 digital inputs: Provides 8 parameterizable sourcing inputs with an IEC 61131 type 1 input characteristic.
- 24 V DC input and supply: Rated input and supply voltage is 24 V DC; the permissible supply range is 19.2 V to 28.8 V DC.
- Adjustable input delay: Standard-input delay is parameterizable from 0.05 ms to 20 ms, with an additional 30 to 500 μs delay depending on line length.
- Diagnostics and LEDs: Includes supply-voltage monitoring, diagnostic alarms, readable diagnostic information, a green PWR LED, green channel-status LEDs, and a green/red DIAG LED.

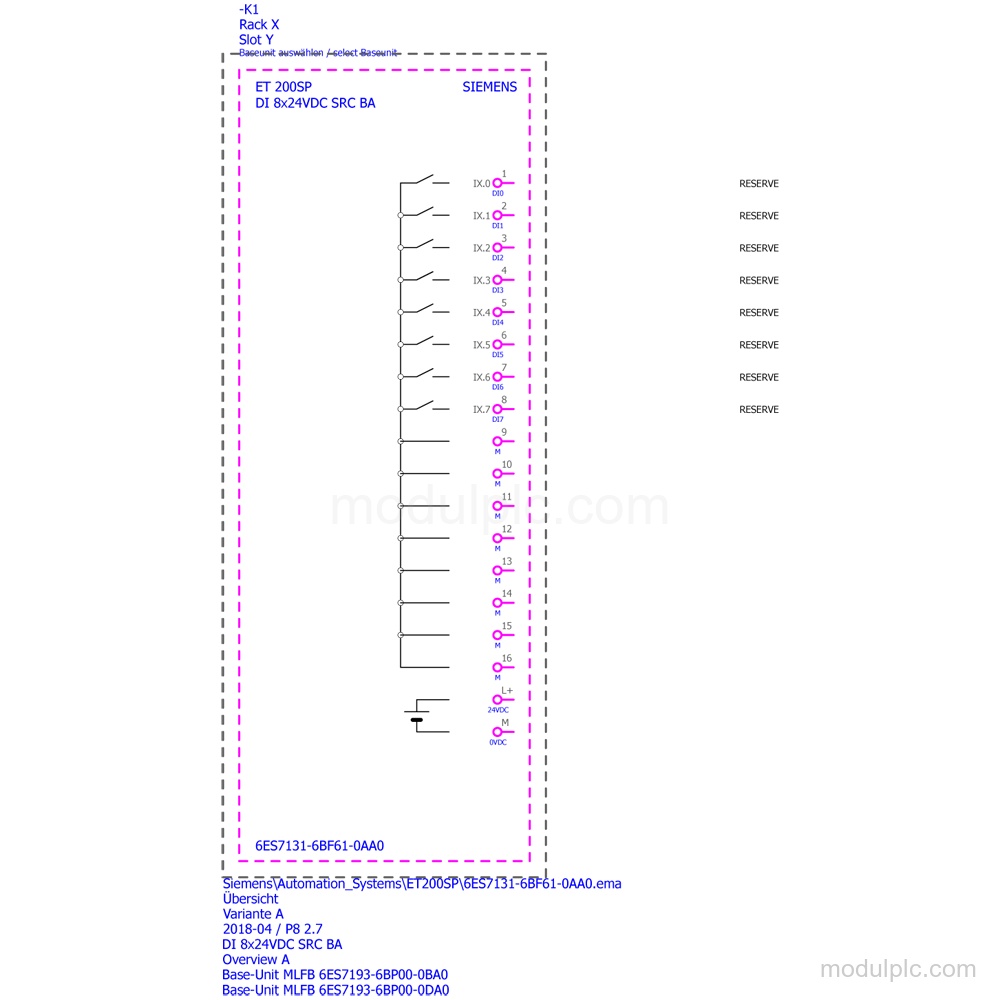

- BU type A0 connection: Uses BU type A0 for 1-wire and 2-wire connections; 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module, while 4-wire connection requires BU type A0 plus a potential distributor module.
- Electrical isolation: Channels are isolated from the backplane bus; isolation is tested with 707 V DC in a type test.
Frequently Asked Questions
1. How many digital inputs does 6ES7131-6BF61-0AA0 have?
It has 8 parameterizable sourcing digital inputs.
2. What input voltage does this module use?
The rated input voltage is 24 V DC.
3. Which BaseUnit is used for the connection?
BU type A0 is used for 1-wire and 2-wire connections. A 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection requires BU type A0 plus a potential distributor module.
4. What diagnostics are available?
The module provides supply-voltage monitoring, diagnostic alarms, readable diagnostic information, a green PWR LED, green channel-status LEDs, and a green/red DIAG LED.
5. Is firmware updating supported?
No. Firmware updating is not possible.
