Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Connection module for PROFIBUS interface module ET 200 Pro |
| Connection function | PROFIBUS DP and 24 V power |

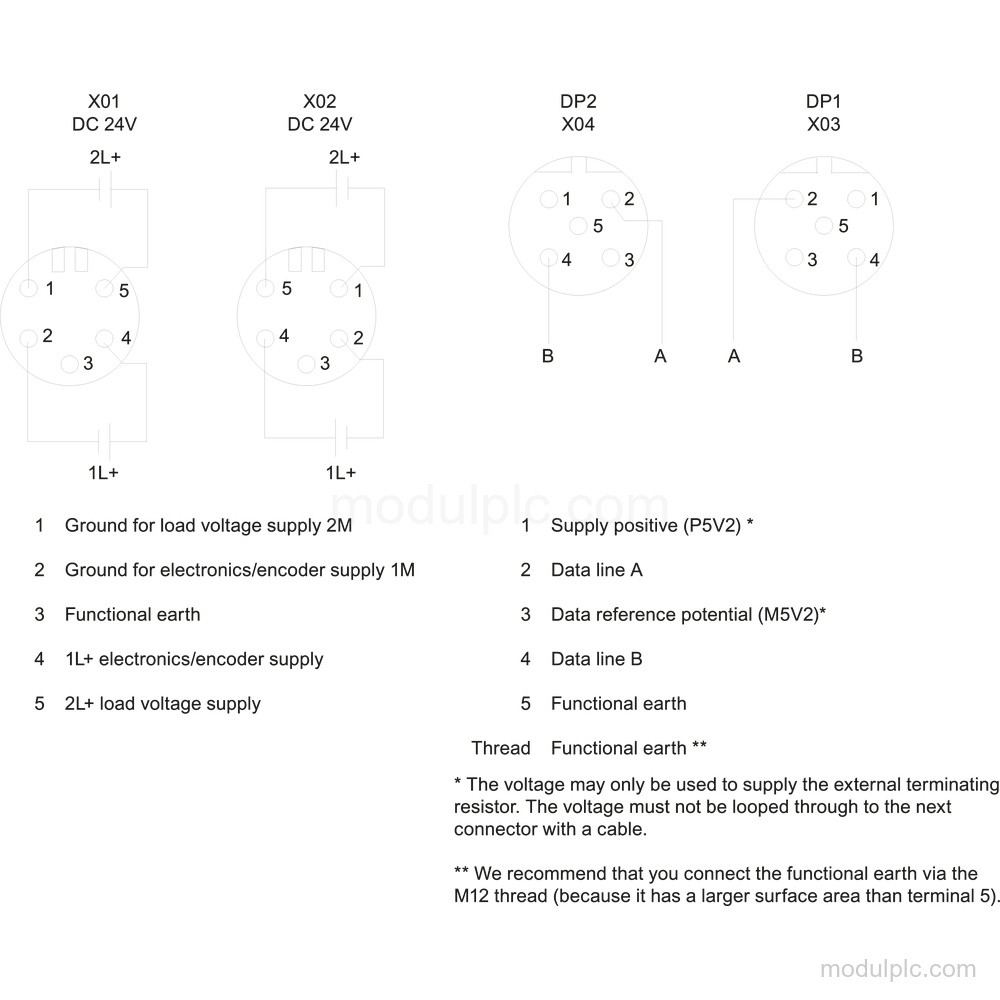

| Connections | 2x M12 and 2x 7/8" |
| Address setting | Integrated address setter |
| Termination | Integrated terminating resistor |
| Input current from supply voltage 1L+, max. | 8 A |
Applications
- PROFIBUS DP connection and 24 V power: Connects PROFIBUS DP and 24 V power through the M12 and 7/8" connections.
Key Features
- PROFIBUS DP connection module: Connection module for the PROFIBUS interface module ET 200 Pro.
- M12 and 7/8" connections: Provides 2x M12 and 2x 7/8" connections for PROFIBUS DP and 24 V power.
- Integrated address setter: Has an integrated address setter for PROFIBUS DP.
- Integrated terminating resistor: Has an integrated terminating resistor for PROFIBUS DP.
- Input current from 1L+: Maximum input current from supply voltage 1L+: 8 A.

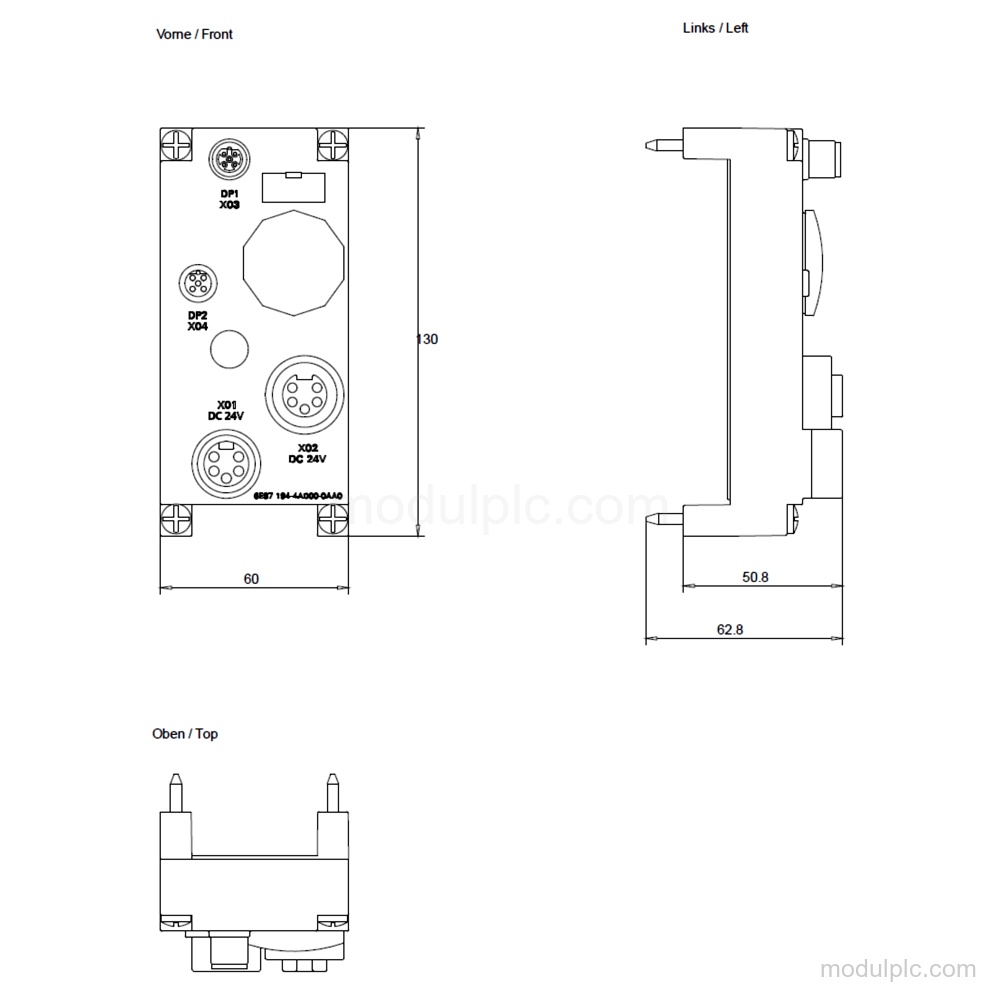

- Dimensions and weight: Dimensions: 60 mm width, 130 mm height, and 60 mm depth. Weight, approx.: 440 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7194-4AD00-0AA0?
It is a connection module for the PROFIBUS interface module ET 200 Pro, providing PROFIBUS DP and 24 V power connections.
2. Which connections does the 6ES7194-4AD00-0AA0 have?
It has 2x M12 and 2x 7/8" connections.
3. Does this module include address setting and termination?
It has an integrated address setter and an integrated terminating resistor for PROFIBUS DP.
4. What are the dimensions and approximate weight?
Dimensions are 60 mm width, 130 mm height, and 60 mm depth. Weight, approx.: 440 g.
