Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1513pro F-2 PN |
| Interfaces | 2 PROFINET interfaces; 3 ports: 2x M12 + 1x RJ45 |
| Supply voltage | 20.4 V to 28.8 V DC |
| Program work memory | 450 kbyte |
| Data work memory | 1.5 Mbyte |
| PROFINET IO Devices, max. | 128; in total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET |
| Degree of protection | IP65/67 |
| Diagnostic buffer | 1 000 entries, max. |
| Safety performance | PLe according to ISO 13849-1; SIL 3 according to IEC 61508 |
Applications
- PROFINET I/O control: Supports PROFINET IO Controller and PROFINET IO Device functions.
- Motion Control: Supports Motion Control technology objects, with 800 available Motion Control resources.
- PID control: Supports PID_Compact, PID_3Step, and PID-Temp controllers with integrated optimization.
- Open industrial communication: Supports Open IE communication via TCP/IP, ISO-on-TCP (RFC1006), and UDP.
Key Features

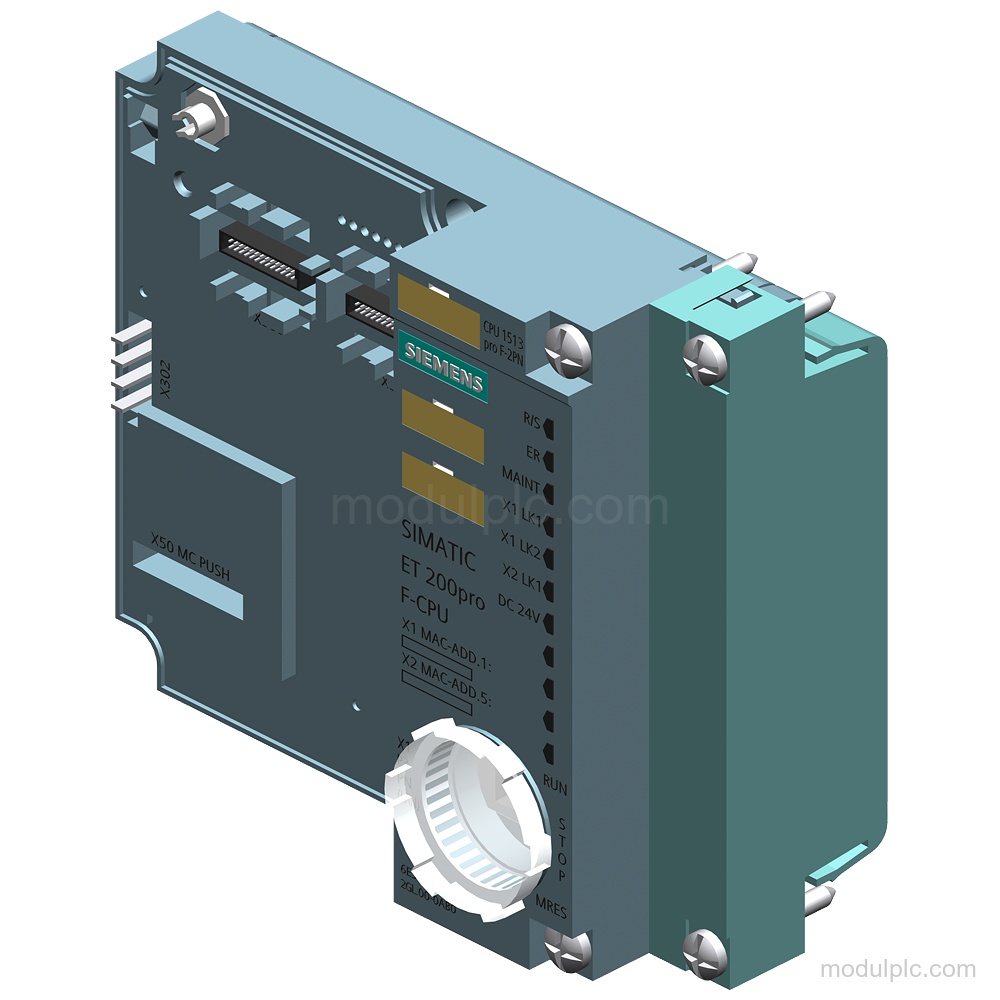

- CPU 1513pro F-2 PN: Central processing unit with 40 ns typical bit-operation processing time.

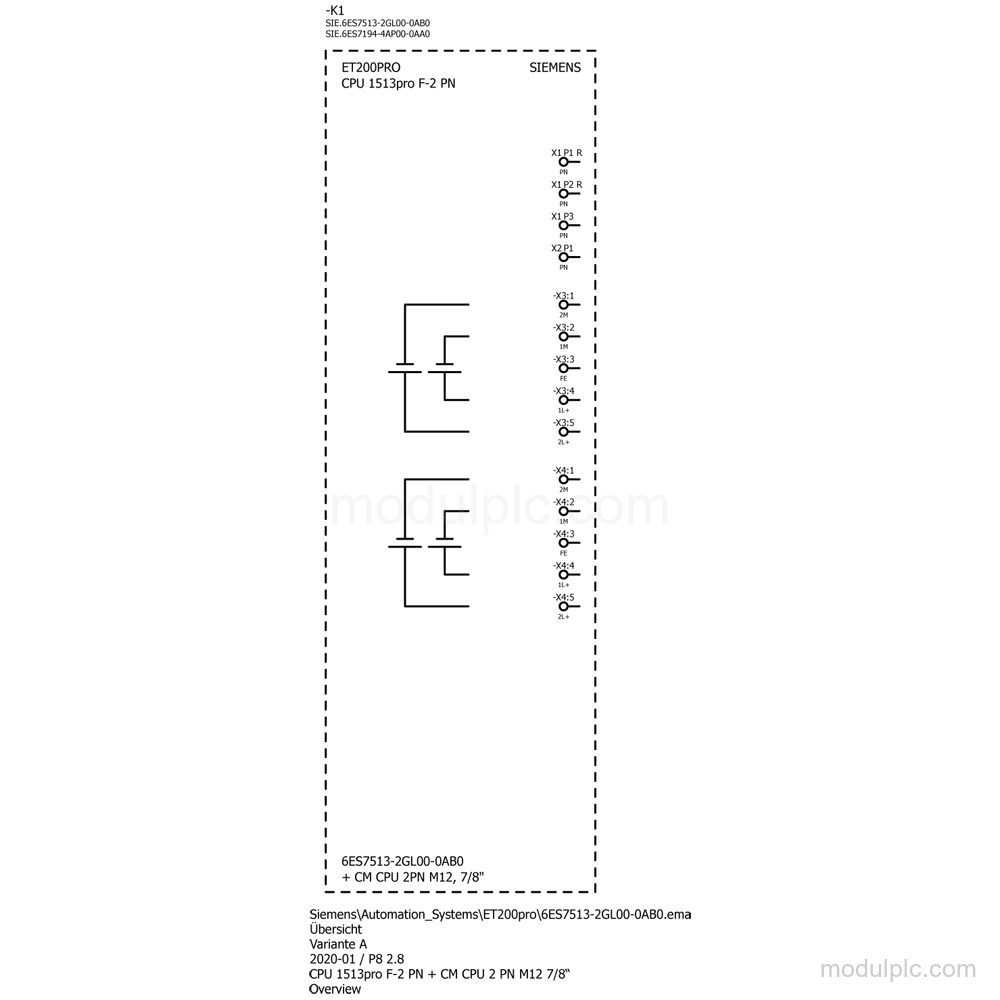

- PROFINET interfaces: 2 PROFINET interfaces are provided: X1 with PROFINET IRT and a 3-port switch, plus a second PROFINET RT interface.
- Memory: Integrated work memory is 450 kbyte for the program and 1.5 Mbyte for data. A SIMATIC Memory Card is required; plug-in load memory supports up to 32 Gbyte.
- Supply voltage: Permissible DC supply voltage is 20.4 V to 28.8 V, with reverse polarity protection.

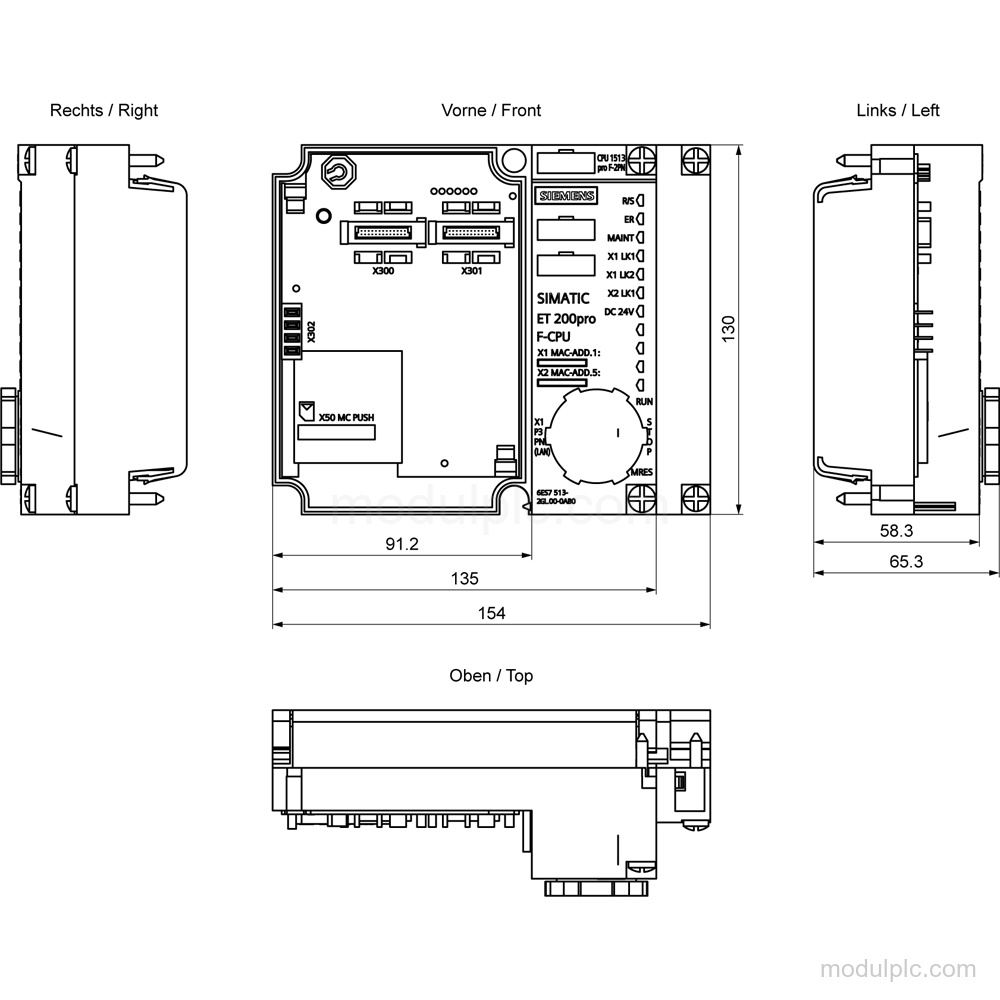

- Protection and installation: Degree of protection is IP65/67. Dimensions are 135 mm × 130 mm × 65 mm and approximate weight is 614 g.
- Diagnostics and safety: The CPU has a diagnostic buffer with up to 1 000 entries, supports PROFIsafe, and achieves PLe according to ISO 13849-1 and SIL 3 according to IEC 61508 in safety mode.
Frequently Asked Questions
1. What is the function of Siemens 6ES7513-2GL00-0AB0?
It is a CPU 1513pro F-2 PN central processing unit for ET 200pro with PROFINET IO Controller and PROFINET IO Device functions.
2. How many PROFINET interfaces and ports does it have?
It has 2 PROFINET interfaces and 3 ports: 2x M12 + 1x RJ45. The first interface has a 3-port integrated switch.
3. What supply voltage does this CPU require?
The permissible DC supply voltage range is 20.4 V to 28.8 V, with reverse polarity protection.
4. Is a SIMATIC Memory Card required?
Yes. A SIMATIC Memory Card is required, and plug-in load memory supports up to 32 Gbyte.
5. What should be verified before requesting a quote?
Verify the required memory card, connection module, PROFINET interface arrangement, mounting dimensions, and IP65/67 protection requirement.
