Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module |
| Interface | PROFIBUS DP |
| Connection | Direct connection |
| Integrated functions | Address setter and terminating resistor |
| Power connection | 24 V power |
| Cable glands | Up to 6 x M20 cable glands |
Applications
- Direct PROFIBUS DP connection: Connects directly to a PROFIBUS interface module in the ET 200 Pro context.

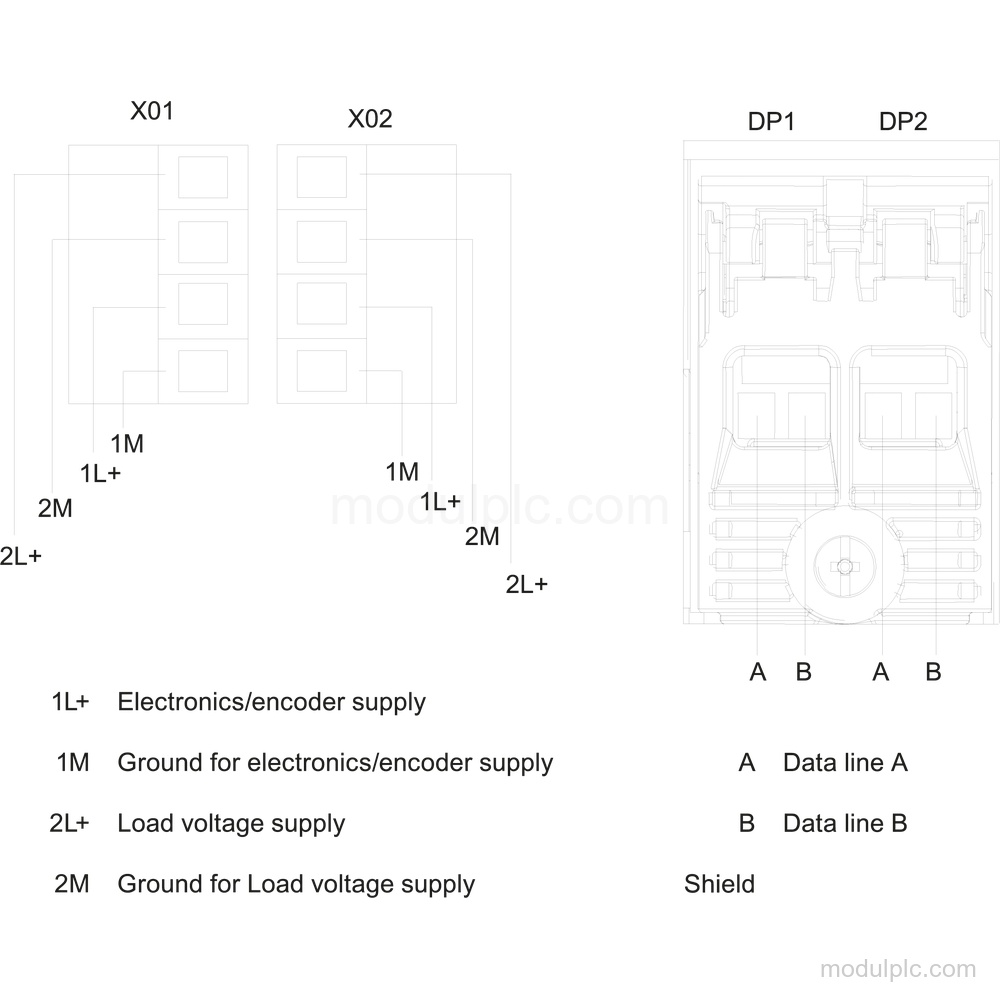

- PROFIBUS DP and 24 V power connection: Provides the terminal module connection for PROFIBUS DP and 24 V power.
Key Features
- PROFIBUS DP connection: Provides direct connection for the PROFIBUS interface module ET 200 Pro.
- Integrated address setter: Has an integrated address setter for the PROFIBUS DP connection.
- Terminating resistor: Has an integrated terminating resistor for PROFIBUS DP.
- Power connection: The direct terminal module supports PROFIBUS DP and 24 V power, with up to 6 x M20 cable glands.

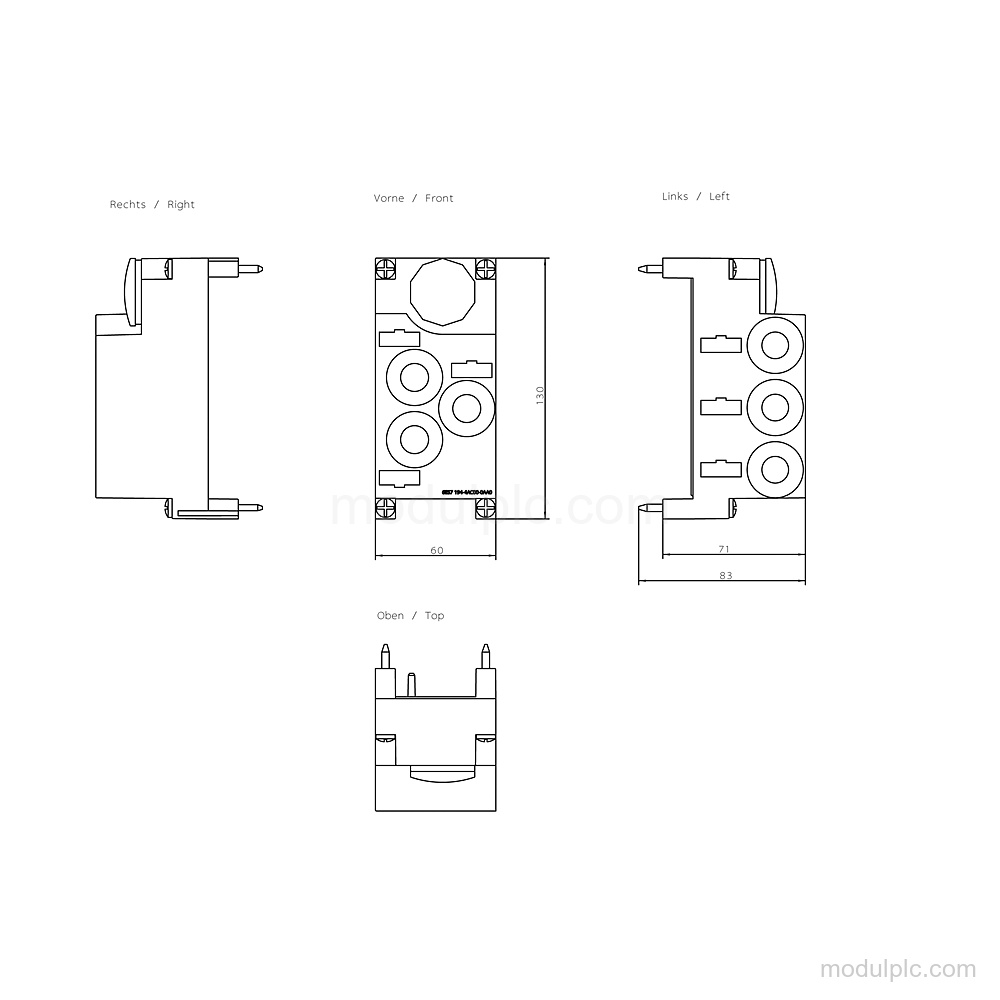

- Dimensions and weight: Measures 90 mm wide, 130 mm high, and 100 mm deep; weight is approx. 292 g.
- Product lifecycle: Product phase-out is planned; see SIOS 109989704.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-4AC00-0AA0?
It is a SIMATIC DP connection module for the PROFIBUS interface module ET 200 Pro, providing direct PROFIBUS DP connection.
2. Does the module include an address setter and terminating resistor?
Yes. It has an integrated address setter and terminating resistor for PROFIBUS DP.
3. What connections does the terminal module provide?
It provides direct PROFIBUS DP and 24 V power connections, with up to 6 x M20 cable glands.
4. What are the dimensions and weight?
The dimensions are 90 mm x 130 mm x 100 mm, and the weight is approx. 292 g.
