Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 154-4 PN HF |
| Interface | PROFINET IO |
| M12 transmission rate, max. | 100 Mbit/s |
| Supply voltage, rated (DC) | 24 V |
| Load voltage 2L+, rated (DC) | 24 V |
| Input addressing volume | 256 byte |
| Output addressing volume | 256 byte |
| Diagnostic alarm | Yes; Parameterizable |
| Hardware interrupt | Yes; Parameterizable |
| Operating ambient temperature | -25 °C to 55 °C |
| Hot swapping of modules | possible |
Applications
- PROFINET IO communication: Provides the PROFINET IO interface for communication in the ET 200 PRO context.
Key Features
- PROFINET interface module: Product type designation: IM 154-4 PN HF for ET 200 PRO, with integrated switch and PROFINET IO interface.
- 24 V supply: Rated supply voltage and load voltage 2L+: 24 V DC. Both have reverse polarity protection against destruction.
- M12 communication port: The M12 port supports autonegotiation and a maximum transmission rate of 100 Mbit/s.
- Communication protocols: Supports PROFINET IO, PROFIsafe, SNMP, ping, ARP and MRP. PROFIBUS and EtherNet/IP are not supported.

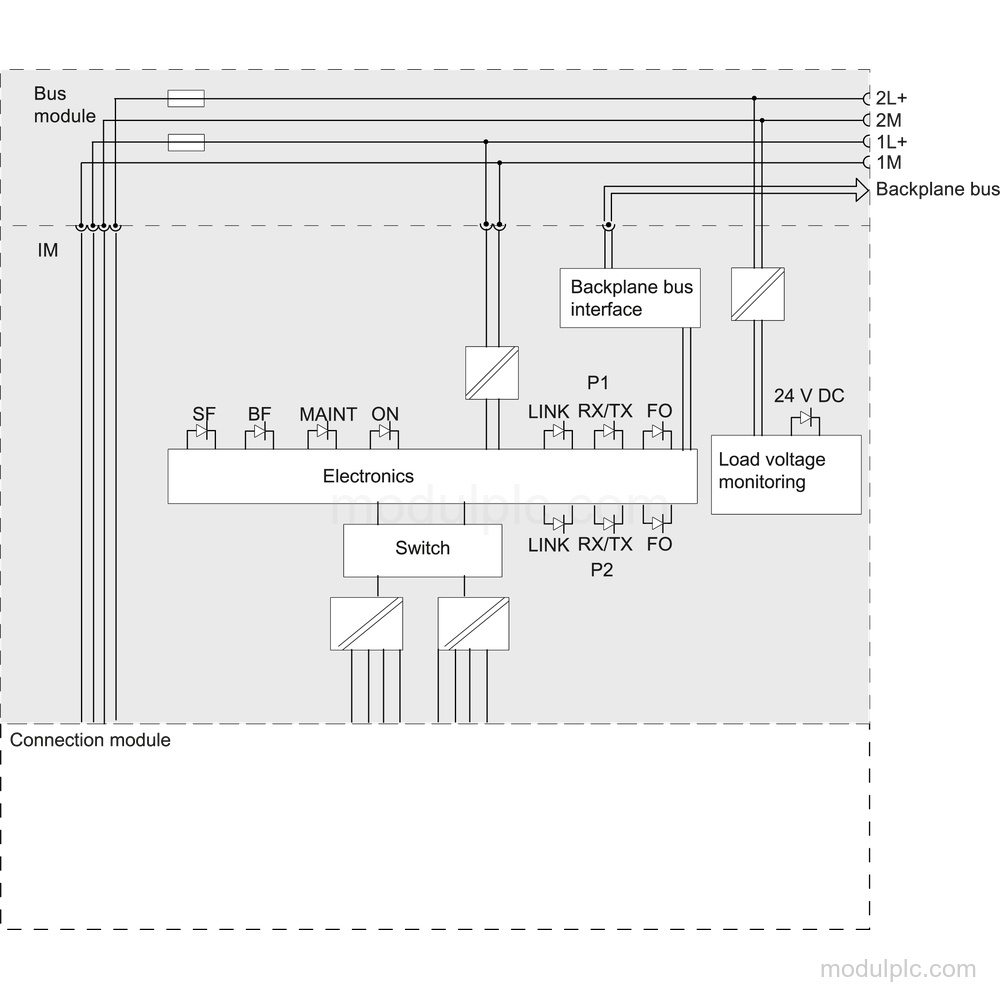

- Diagnostics and interrupts: Provides parameterizable diagnostic alarms and hardware interrupts, plus MAINT, LINK, RX/TX, BF, SF and 24 V monitoring LEDs.

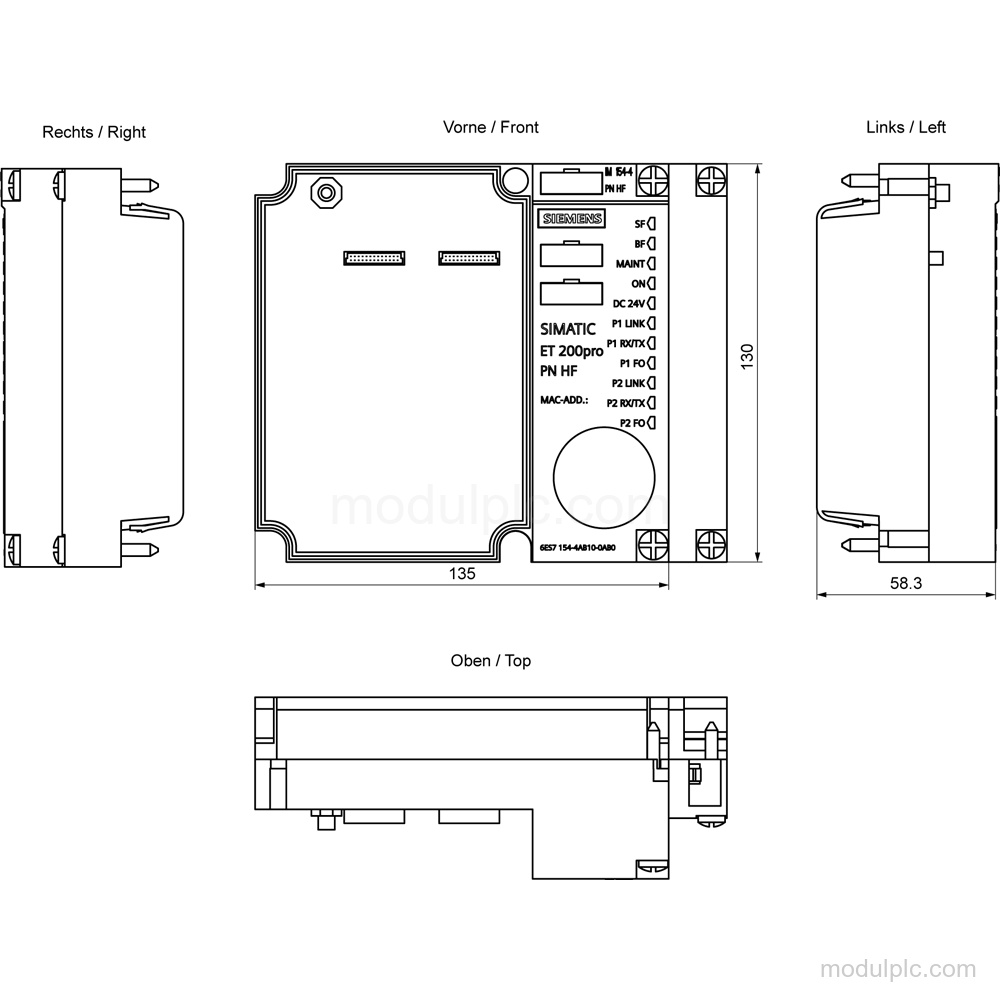

- Dimensions and installation data: Dimensions: 135 mm wide, 130 mm high and 60 mm deep. Hot swapping of modules is possible.
Frequently Asked Questions
1. What interface does Siemens 6ES7154-4AB10-0AB0 provide?
It provides a PROFINET IO interface with an M12 port, autonegotiation and a maximum transmission rate of 100 Mbit/s.
2. What supply voltage does the module use?
The rated supply voltage is 24 V DC, and the rated load voltage 2L+ is also 24 V DC.
3. Which protocols are supported?
It supports PROFINET IO, PROFIsafe, SNMP, ping, ARP and MRP. PROFIBUS and EtherNet/IP are not supported.
4. What diagnostics does the module provide?
It has parameterizable diagnostic alarms and hardware interrupts, with MAINT, LINK, RX/TX, BF, SF and 24 V monitoring LEDs.
5. What are the module dimensions and mounting detail?
The dimensions are 135 mm x 130 mm x 60 mm, and hot swapping of modules is possible.
