Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 154-3 PN HF |
| Interface | PROFINET IO |
| Rated supply voltage | 24 V DC |
| Rated load voltage 2L+ | 24 V DC |
| M12 transmission rate, max. | 100 Mbit/s |
| Input addressing volume | 256 byte |
| Output addressing volume | 256 byte |
| Supported protocols | PROFINET IO, PROFIsafe, SNMP, LLDP, ping, ARP and MRP |
| Power loss, typ. | 5 W |
| Operating ambient temperature | -25 °C to 55 °C |
Key Features

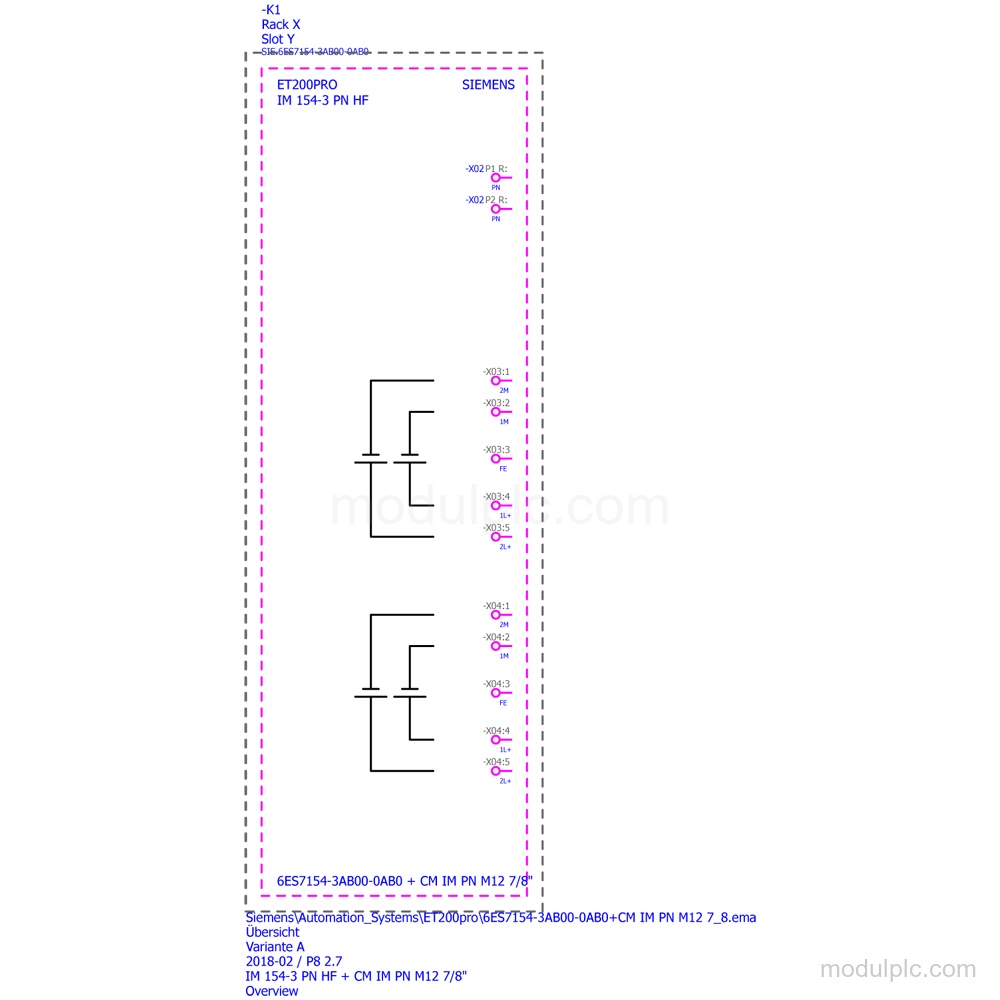

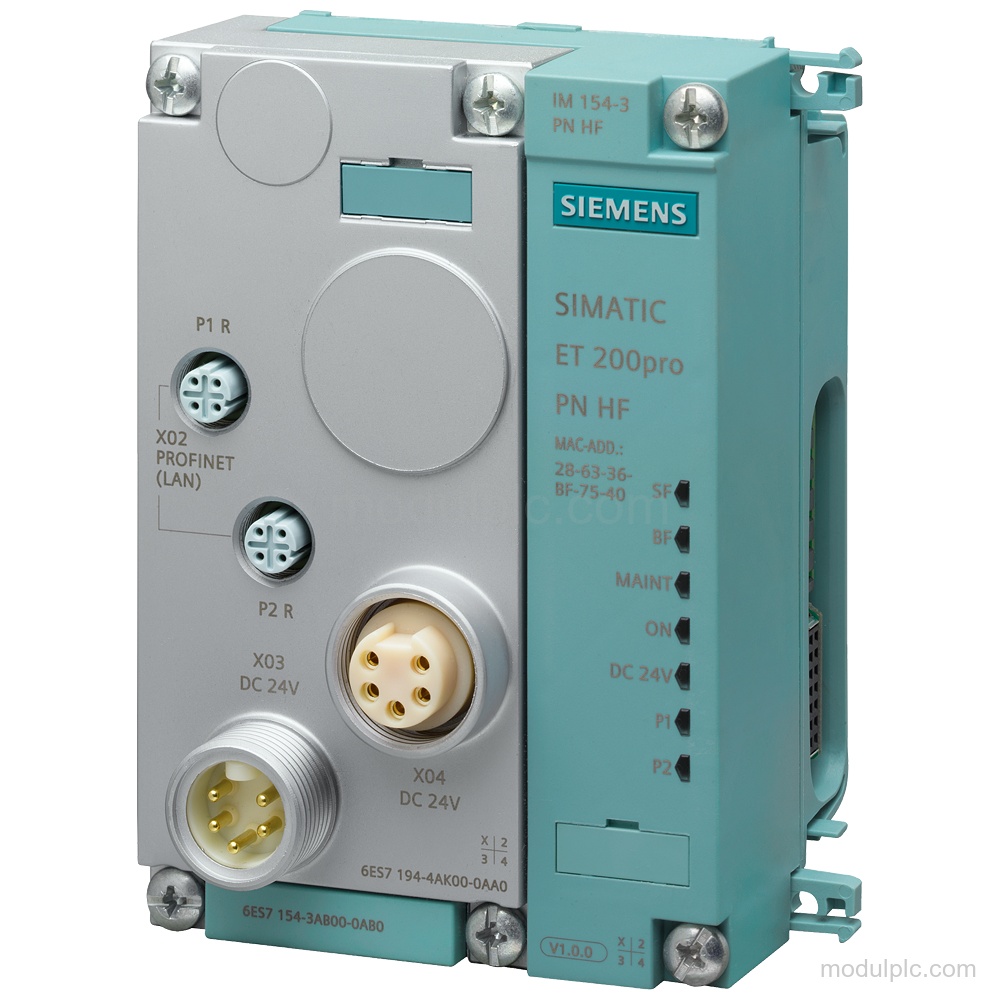

- PROFINET interface: Product type designation: IM 154-3 PN HF with PROFINET IO interface and an integrated switch.
- Supply and load voltage: Rated supply voltage is 24 V DC, and rated load voltage 2L+ is 24 V DC. Reverse polarity protection is provided against destruction.
- M12 port: The M12 port supports autonegotiation and a maximum transmission rate of 100 Mbit/s.
- Protocols and redundancy: Supports PROFINET IO, PROFIsafe, SNMP, LLDP, ping, ARP and MRP. PROFIBUS and EtherNet/IP are not supported.
- Diagnostics and interrupts: Diagnostic alarm, hardware interrupt, swapping interrupt and startup when the setpoint differs from the actual configuration are parameterizable. MAINT, LINK, RX/TX, BF and SF LEDs are provided.

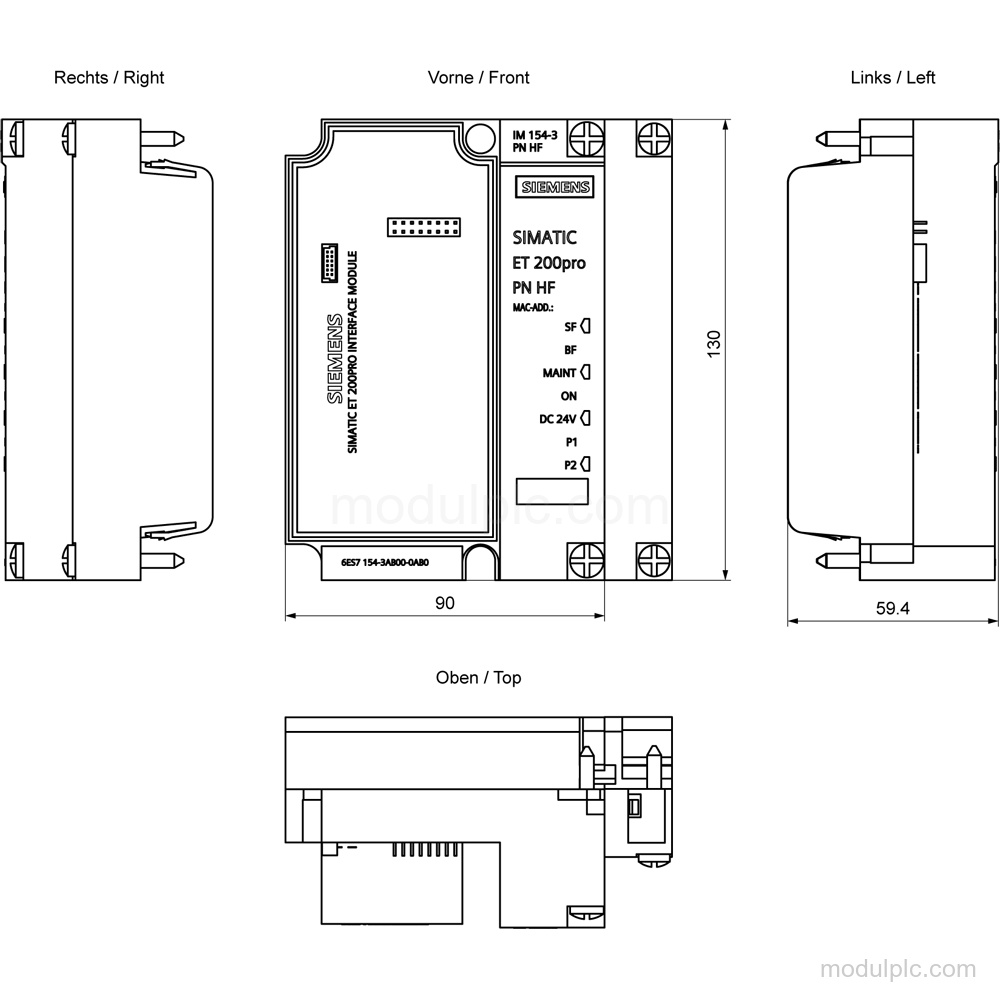

- Dimensions and installation context: Dimensions are 90 mm wide, 130 mm high and 60 mm deep. Hot swapping of modules is possible; the termination module is included, while connection modules 6ES7194-4AK00-0AA0 are ordered separately.
Frequently Asked Questions
1. What is the module type of Siemens 6ES7154-3AB00-0AB0?
It has the product type designation IM 154-3 PN HF and is a PROFINET IO interface module.
2. What supply voltage does 6ES7154-3AB00-0AB0 use?
The rated supply voltage is 24 V DC, and the rated load voltage 2L+ is 24 V DC.
3. Which protocols does the module support?
It supports PROFINET IO, PROFIsafe, SNMP, LLDP, ping, ARP and MRP. PROFIBUS and EtherNet/IP are not supported.
4. What is included and what must be ordered separately?
The integrated switch and termination module are included. Connection modules 6ES7194-4AK00-0AA0 are ordered separately.
