Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 154-2 DP HF |
| Interface and bus type | PROFIBUS DP |
| Rated supply voltage | 24 V DC |
| Maximum RS 485 transmission rate | 12 Mbit/s |
| Input addressing volume | 244 byte |
| Output addressing volume | 244 byte |
| Supported protocols | PROFIBUS; PROFIsafe |
| Maximum input current from supply voltage 1L+ | 200 mA |
| Typical power loss | 5 W |
| Diagnostic functions | Diagnostic alarm; hardware interrupt; load-voltage, bus-fault BF, group-error SF, and 24 V supply LEDs |
| Ambient temperature during operation | -25 °C to 55 °C |
Applications
- PROFIBUS DP communication: Provides PROFIBUS DP interface communication for the ET 200 PRO context.
- Slave-to-slave data exchange: Supports direct data exchange between slaves.
Key Features
- PROFIBUS DP interface: Interface and bus type: PROFIBUS DP; PROFIBUS protocol supported.
- 24 V supply: Rated supply voltage: 24 V DC. Load voltage 2L+ rated value: 24 V DC.
- Transmission rate: RS 485 transmission rate, max.: 12 Mbit/s, with automatic transmission-rate detection.
- Data exchange services: Supports SYNC, FREEZE, and direct data exchange for slave-to-slave communication.
- Diagnostics and protection: Diagnostic alarm and hardware interrupt are parameterizable. The module has load-voltage, bus-fault BF, group-error SF, and 24 V supply LEDs, plus reverse polarity and short-circuit protection.

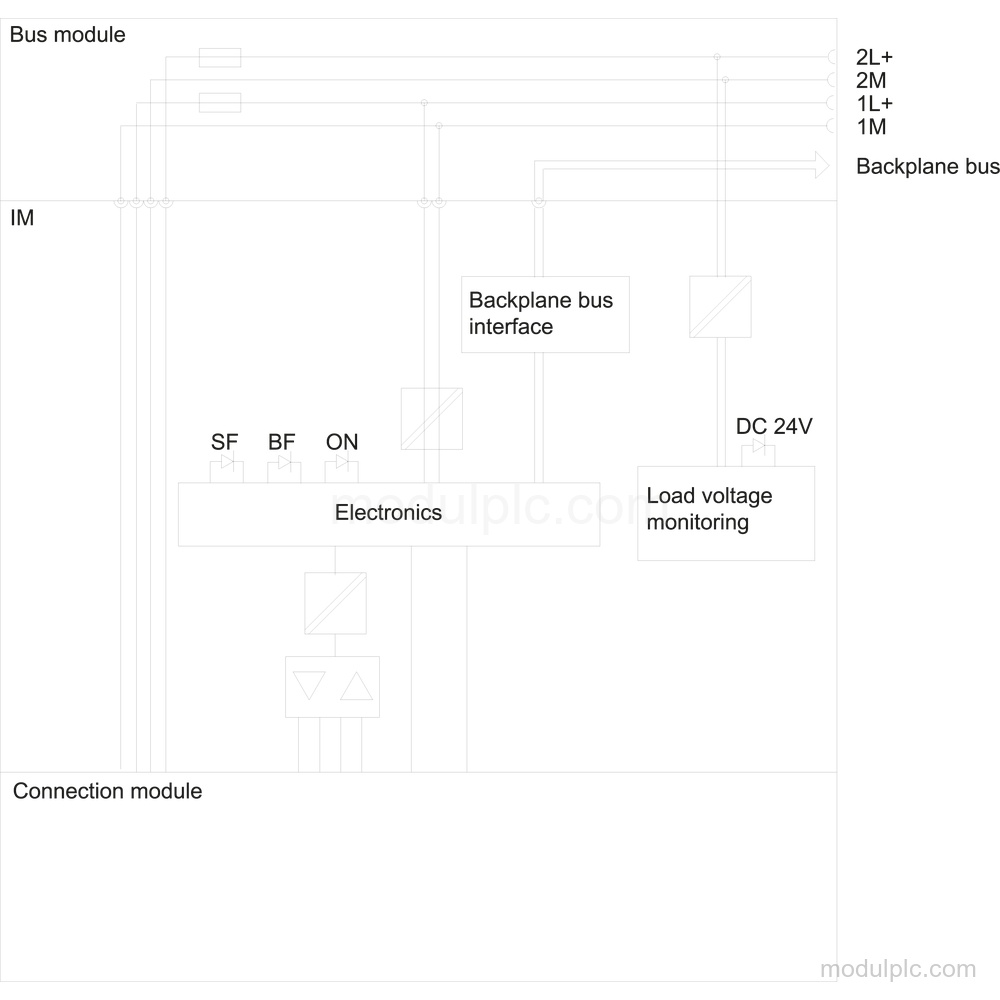

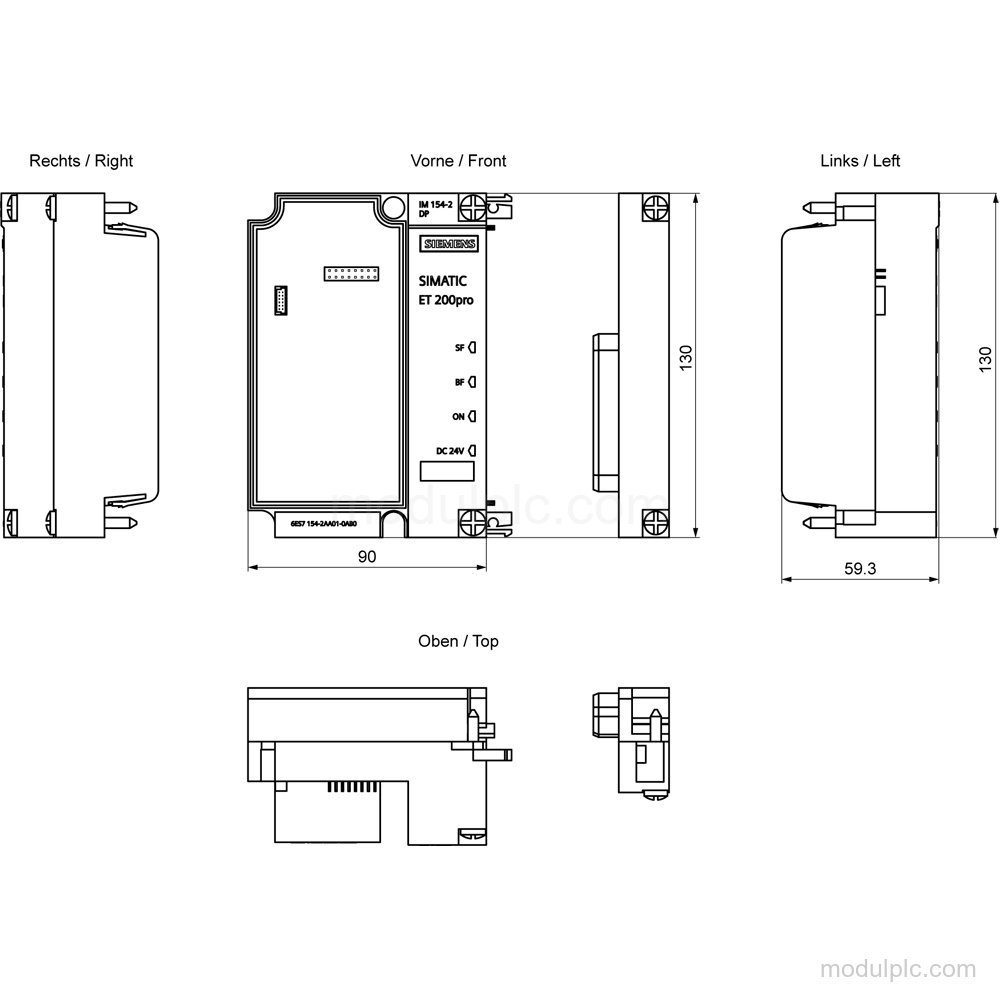

- Dimensions and installation data: Width: 90 mm; height: 130 mm; depth: 60 mm; weight, approx.: 375 g. Hot swapping of modules is possible.
Frequently Asked Questions
1. What interface does the IM 154-2 DP HF use?
It uses a PROFIBUS DP interface with RS 485 and supports the PROFIBUS protocol.
2. What supply voltage does this module require?
The rated supply voltage is 24 V DC. Load voltage 2L+ also has a rated value of 24 V DC.
3. What transmission rate does the module support?
The maximum RS 485 transmission rate is 12 Mbit/s, with automatic transmission-rate detection.
4. What diagnostics are available?
The module has parameterizable diagnostic alarms and hardware interrupts, plus LEDs for load-voltage monitoring, bus fault BF, group error SF, and 24 V supply monitoring.
5. What should be verified before requesting a quote?
Verify the required PROFIBUS DP function, 24 V supply, 12 Mbit/s maximum transmission rate, dimensions of 90 mm × 130 mm × 60 mm, and the separately ordered connection module in 6ES7194-4A.00-0AA0.
