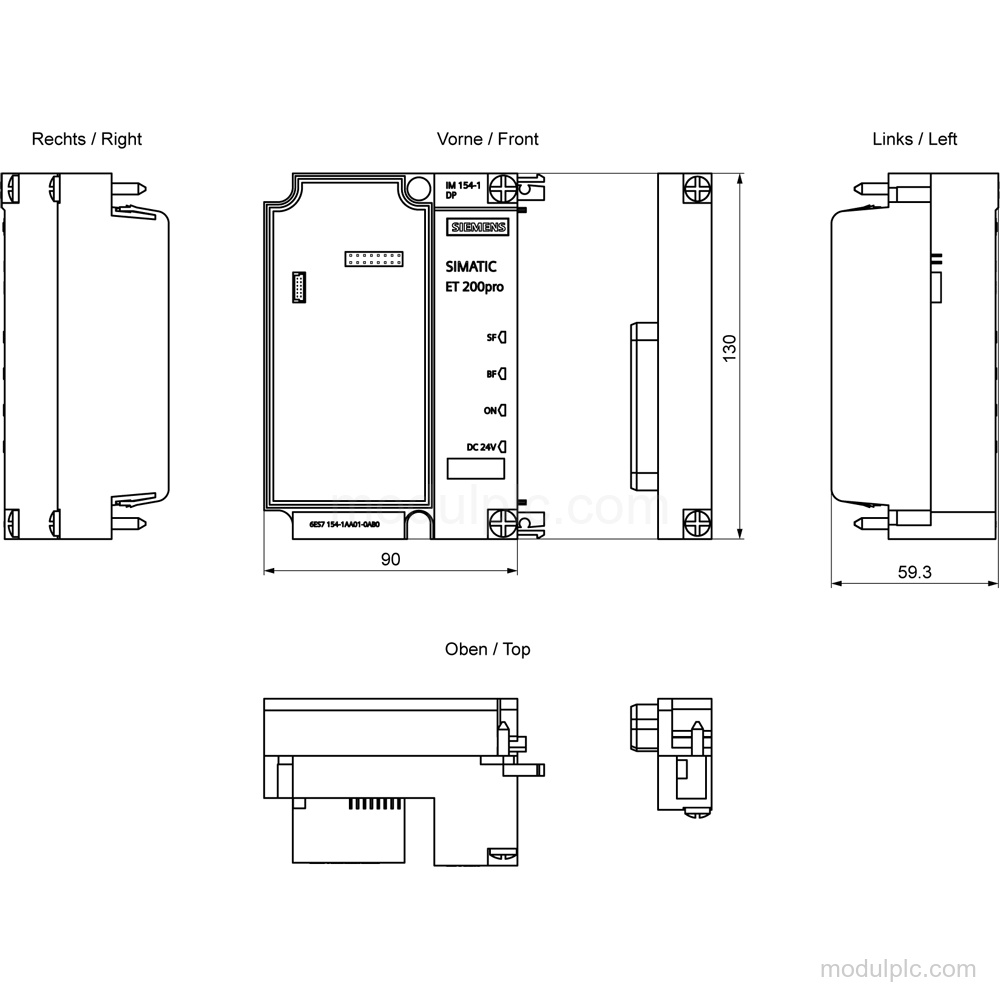

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 154-1 DP |
| Supply voltage, rated | 24 V DC |
| Load voltage 2L+, rated | 24 V DC |
| Bus type | PROFIBUS DP |
| Transmission rate, max. | 12 Mbit/s |
| Input current, max. | 200 mA |
| Power loss, typ. | 5 W |
| Addressing volume, inputs | 244 byte |
| Addressing volume, outputs | 244 byte |
| Operating ambient temperature | -25 °C to 55 °C |
Applications
- PROFIBUS DP interfacing: Provides PROFIBUS DP communication for an ET 200 PRO system.
- Slave-to-slave data exchange: Supports direct data exchange between slaves, as well as SYNC and FREEZE services.
Key Features
- PROFIBUS DP interface: Interface and bus type: PROFIBUS DP; PROFIBUS protocol supported.
- Transmission rate: RS 485 transmission rate: max. 12 Mbit/s, with automatic transmission-rate detection.
- 24 V DC supply: Rated supply voltage: 24 V DC; rated load voltage 2L+: 24 V DC.

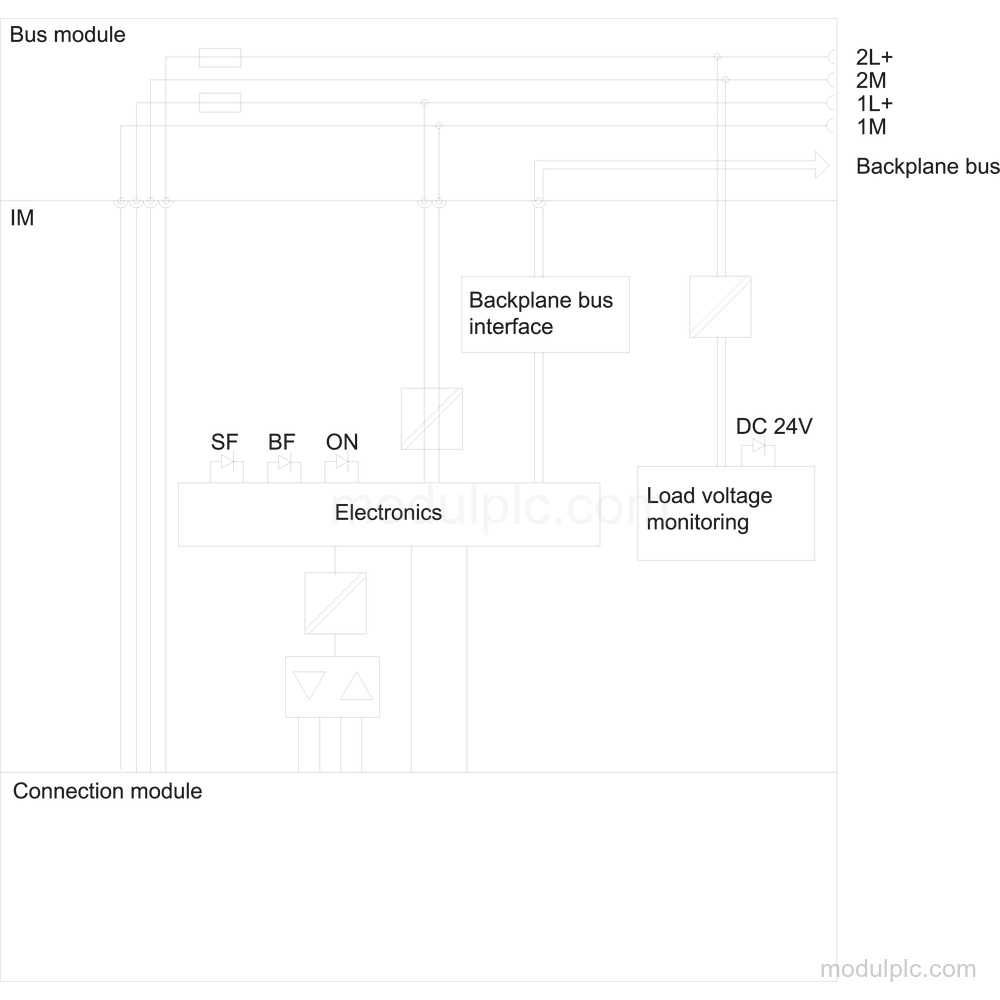

- Diagnostics and status LEDs: Diagnostic and hardware interrupts are parameterizable. LEDs indicate load-voltage monitoring, bus fault BF, group error SF, and 24 V voltage supply ON.
- Communication services: SYNC, FREEZE, and direct data exchange for slave-to-slave communication are supported.
- Installation and protection details: Hot swapping of modules is possible; supply voltage has reverse polarity protection, and the module has potential separation between supply voltage and electronics. Connection module 6ES7194-4A.00-0AA0 is ordered separately.
Frequently Asked Questions
1. What type of module is Siemens 6ES7154-1AA01-0AB0?
It is an IM 154-1 DP PROFIBUS DP interface module for ET 200 PRO.
2. What supply voltage does the module require?
The rated supply voltage is 24 V DC, and the rated load voltage 2L+ is 24 V DC.
3. What PROFIBUS DP transmission rate is supported?
The RS 485 transmission rate is up to 12 Mbit/s, with automatic transmission-rate detection.
4. What diagnostic functions are available?
The module supports parameterizable diagnostic and hardware interrupts and provides LEDs for load-voltage monitoring, bus fault BF, group error SF, and 24 V voltage supply ON.
5. Is the connection module included?
It is without connection module 6ES7194-4A.00-0AA0; that connection module must be ordered separately.
