Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Slot cover for the active backplane bus |
| System context | SIMATIC S7-1500 / ET 200MP |
| Protection function | Protection against ESD |
| Mounting function | Mechanical fixing on the S7-1500 mounting rail |
| Packing unit | 5 units per packing unit |
| Degree of protection | IP20 |
| Ambient temperature during operation | -30 °C to 60 °C |
| Ambient temperature during vertical installation | -30 °C to 40 °C |
| Ambient temperature during storage/transportation | -40 °C to 70 °C |
| Installation altitude above sea level, max. | 5 000 m |
Applications
- Unused-slot protection: Protects unused slots on the active backplane bus against ESD.
- Mounting-rail fixing: Provides mechanical fixing on the S7-1500 mounting rail.
Key Features
- Slot cover function: Covers unused slots on the active backplane bus of S7-1500; unused slots must be provided with a slot cover.
- ESD protection: Provides protection against ESD.
- Mechanical fixing: Provides mechanical fixing on the S7-1500 mounting rail.
- Packing unit: 5 units per packing unit.

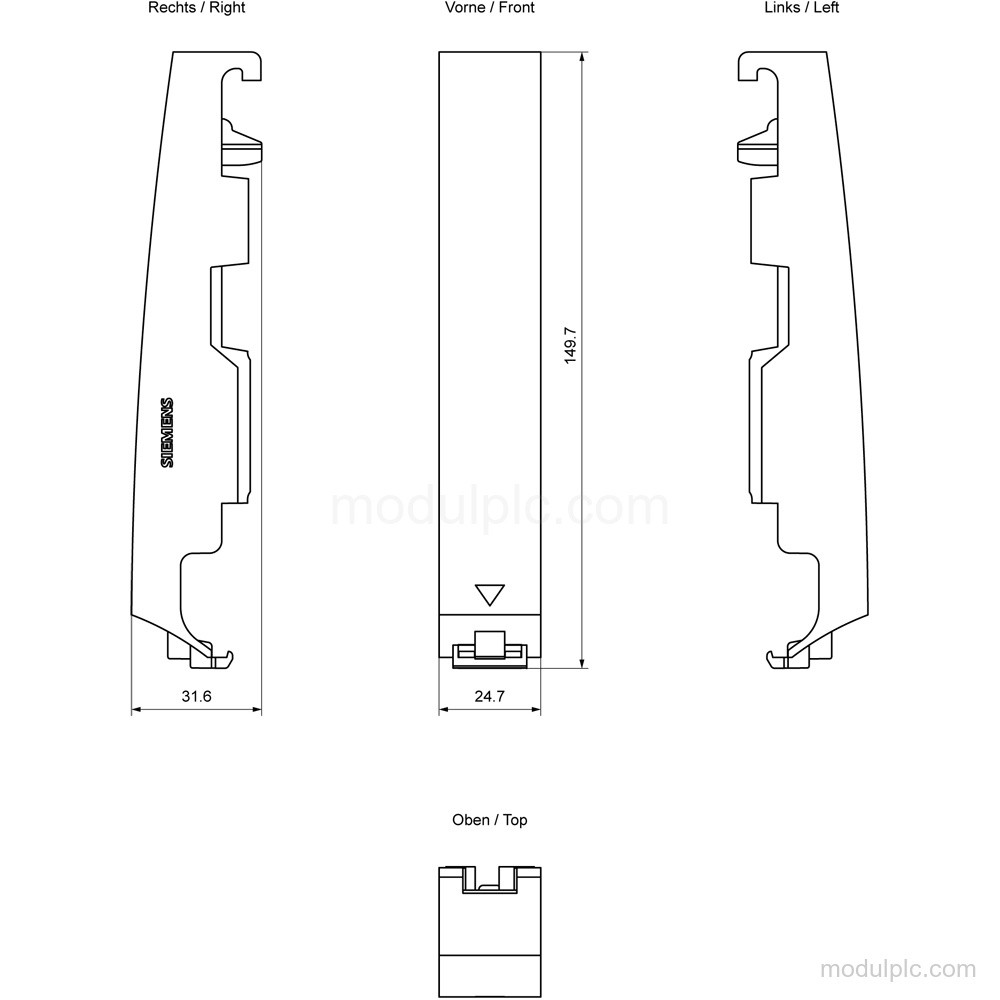

- Protection and dimensions: IP20 degree of protection; dimensions: 25 mm width, 150 mm height, and 32 mm depth.
- Ambient temperature during operation: -30 °C to 60 °C; for vertical installation, the maximum is 40 °C.
Frequently Asked Questions
1. What is the function of Siemens 6ES7590-0CA00-0AA0?
It is a slot cover for the active backplane bus of S7-1500 that protects against ESD and provides mechanical fixing on the S7-1500 mounting rail.
2. How many units are included per packing unit?
5 units per packing unit.
3. What are the dimensions of the slot cover?
The dimensions are 25 mm width, 150 mm height, and 32 mm depth.
4. What is the operating temperature range?
The operating temperature is -30 °C to 60 °C. For vertical installation, the maximum is 40 °C.
