Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Active backplane ST 1+12 slot |
| Number of slots | 13 |
| IM slots, max. | 1 |
| PS slots, max. | 12; Max. 2 PS per station |
| IO/CM/CP/TM slots, max. | 12 |
| F-IO slots, max. | 12 |
| Backplane-bus power consumption | 2 W |
| Firmware version | V1.0.0 |
| FW update possible | Yes |
Applications
- Hot swapping of S7-1500 I/O modules: Provides an active backplane bus for inserting S7-1500 I/O modules for hot swapping.
Key Features

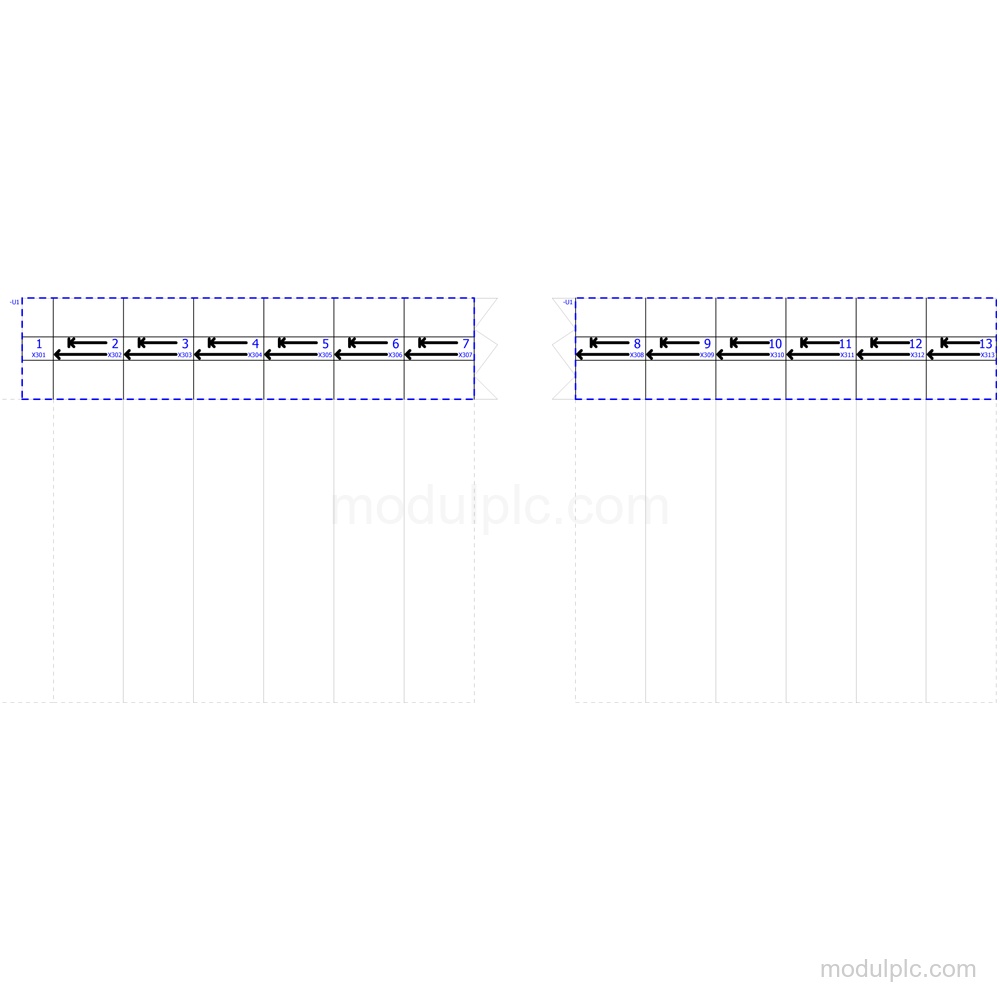

- Active backplane bus: Active backplane ST 1+12 slot with 12 slots for S7-1500 I/O modules and hot swapping.
- Slot capacity: Number of slots: 13; max. 1 for IM and max. 12 for PS, IO/CM/CP/TM, and F-IO.
- Backplane-bus power: Power consumption from the backplane bus: 2 W; power loss, typ.: 2 W.
- Engineering and firmware: Firmware version: V1.0.0, with FW update possible. STEP 7 TIA Portal is configurable/integrated from V16; STEP 7 from V5.6 and higher.
- Installation temperature: During operation, the temperature range is -30 °C to 60 °C for horizontal installation and -30 °C to 40 °C for vertical installation.

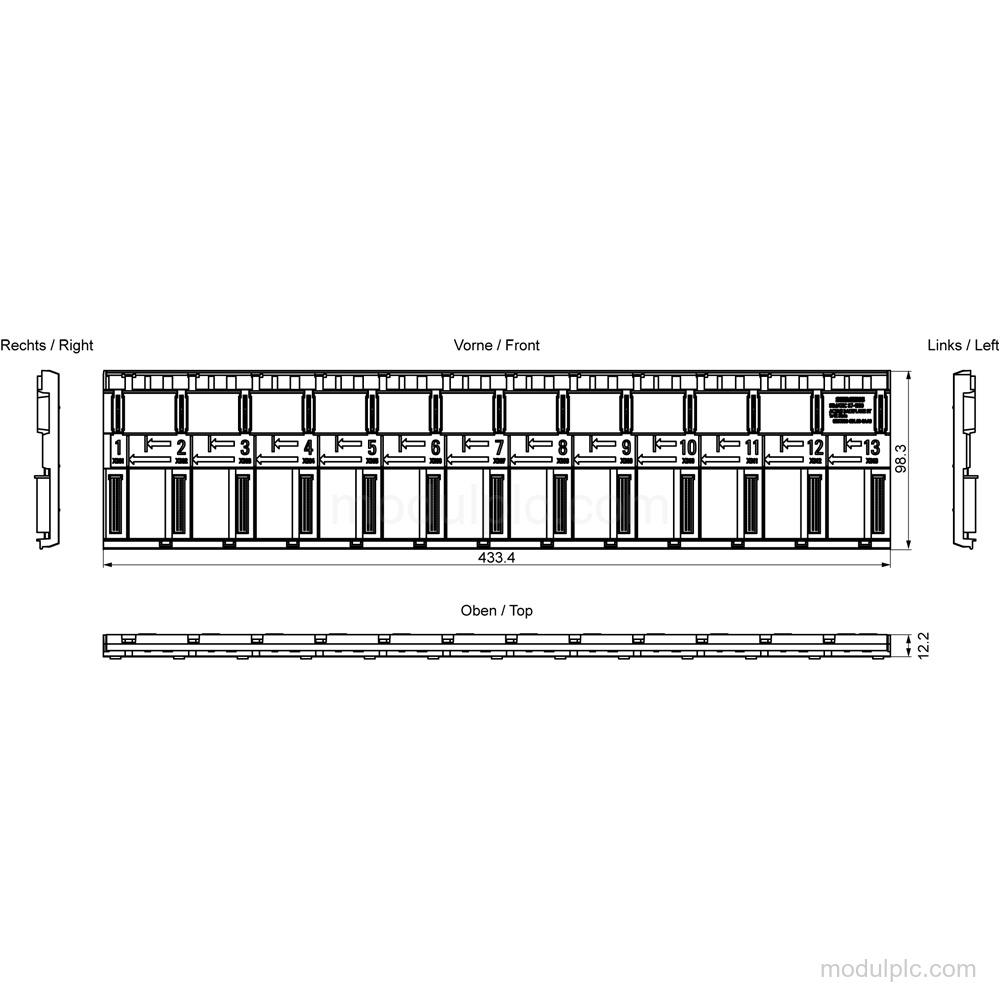

- Dimensions and weight: Width: 434 mm; height: 99 mm; depth: 14 mm; weight, approx.: 352 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7590-0BL00-0AA0?
It is an active backplane ST 1+12 slot for inserting S7-1500 I/O modules for hot swapping.
2. How many slots does the active backplane have?
It has 13 slots, including max. 1 slot for IM and max. 12 slots for PS, IO/CM/CP/TM, and F-IO.
3. What installation temperatures are supported?
During operation, it supports -30 °C to 60 °C with horizontal installation and -30 °C to 40 °C with vertical installation.
