Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-5 PN BA |
| I/O module capacity | Up to 12 I/O modules |
| Submodules per station, max. | 108; 9 per I/O module |
| PROFINET interfaces | 1; 2 RJ45 ports with integrated switch |
| Transmission procedure | 100BASE-TX |
| Supply voltage, rated | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Infeed power to backplane bus | 14 W |
| Current consumption, rated | 1 A; at 24 V DC and without load |
| Firmware version | V4.3.0 |
| Firmware update | Yes |
Applications
- PROFINET I/O device communication: Operates as a PROFINET IO Device for communication with IO Controllers.
- Shared device communication: Supports Shared Device operation with up to 2 IO Controllers.
- Media-redundant communication: Supports PROFINET MRP client media redundancy.
- Module diagnostics: Provides status indication, alarms, and diagnostics functions.
Key Features

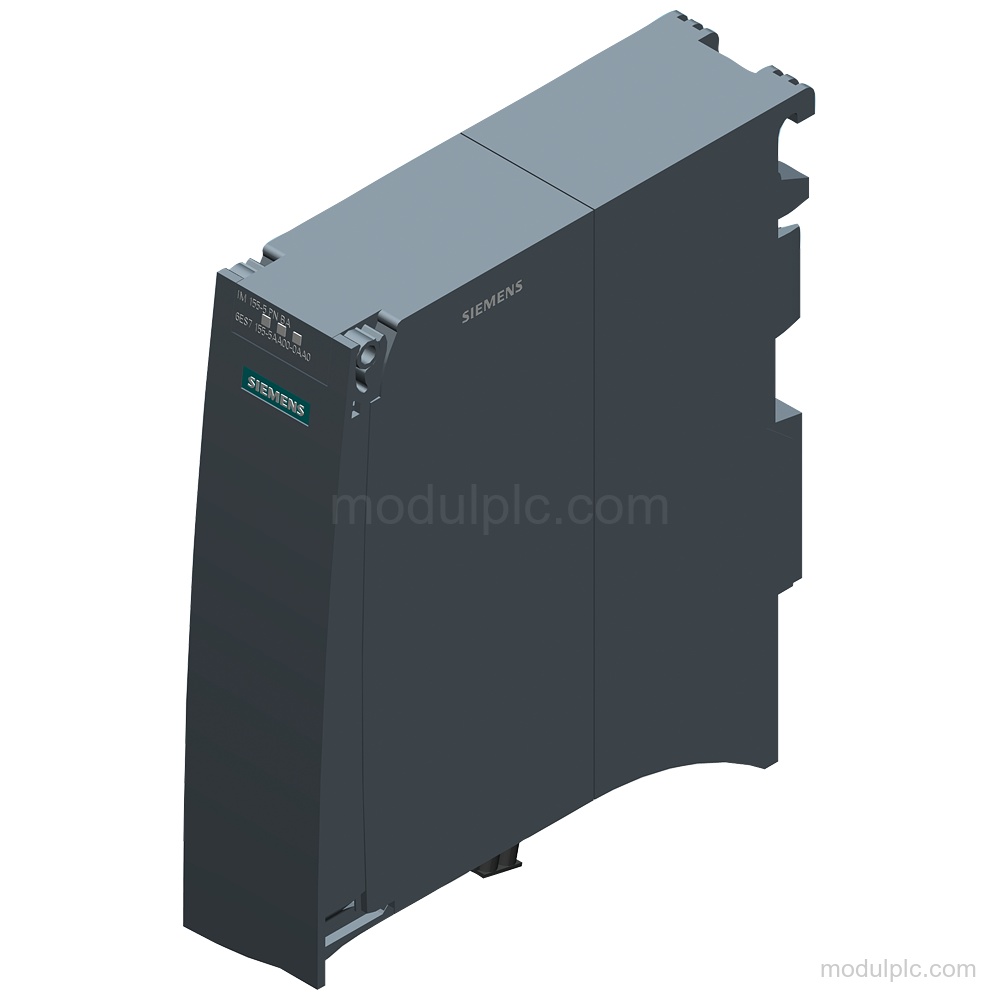

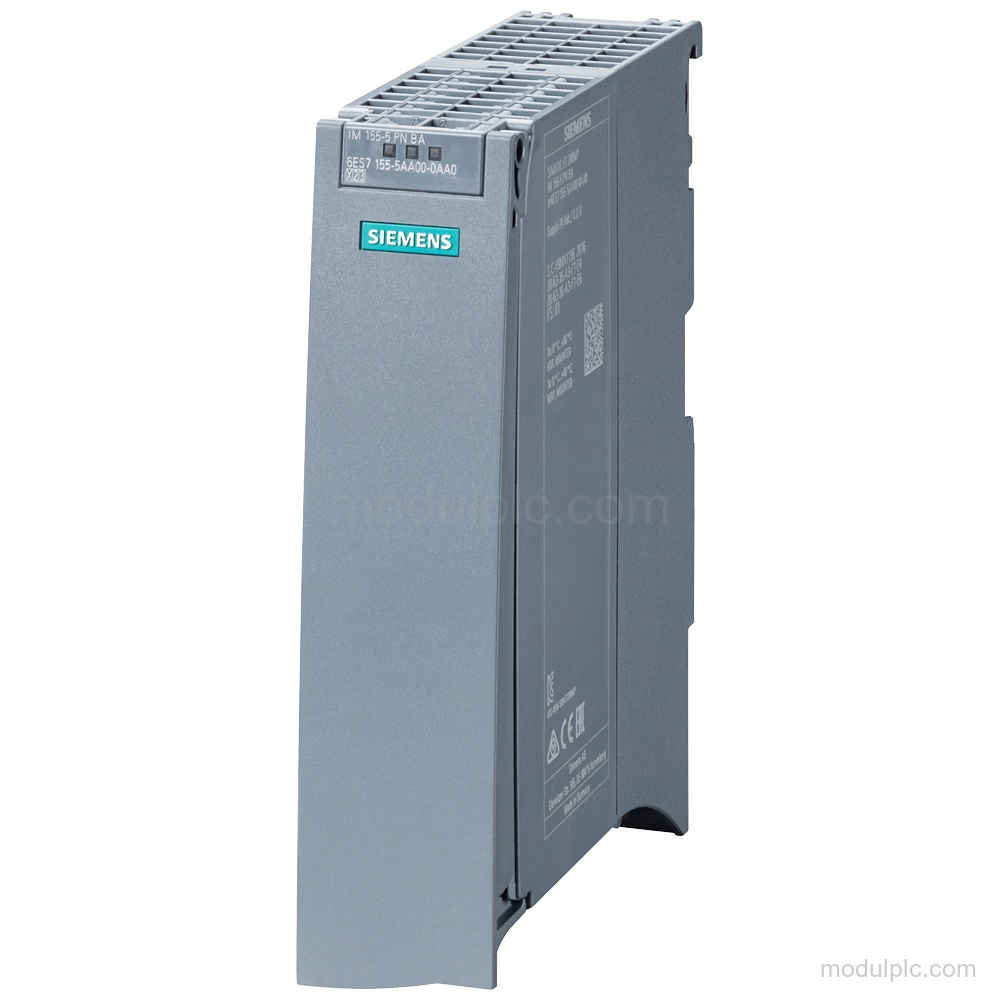

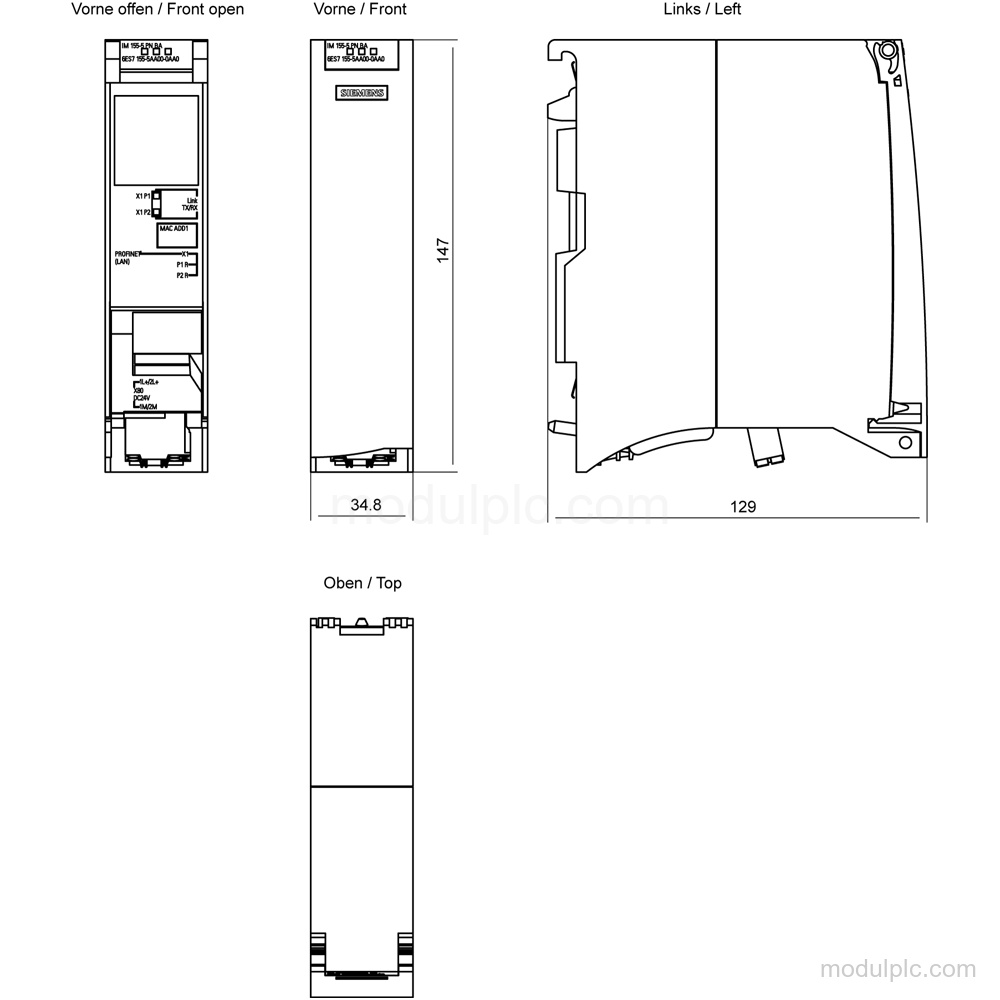

- Interface module: IM 155-5 PN BA for SIMATIC ET 200MP electronic modules and PROFINET IO device operation.
- Station capacity: Supports up to 12 I/O modules and up to 108 submodules per station, with 9 per I/O module.
- PROFINET interfaces: 1 PROFINET interface with 2 RJ45 ports and an integrated switch; transmission uses 100BASE-TX.
- Communication protocols: Supports PROFINET IO, Open IE communication, TCP/IP, SNMP, LLDP, and PROFINET MRP client media redundancy.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Infeed power to the backplane bus: 14 W.

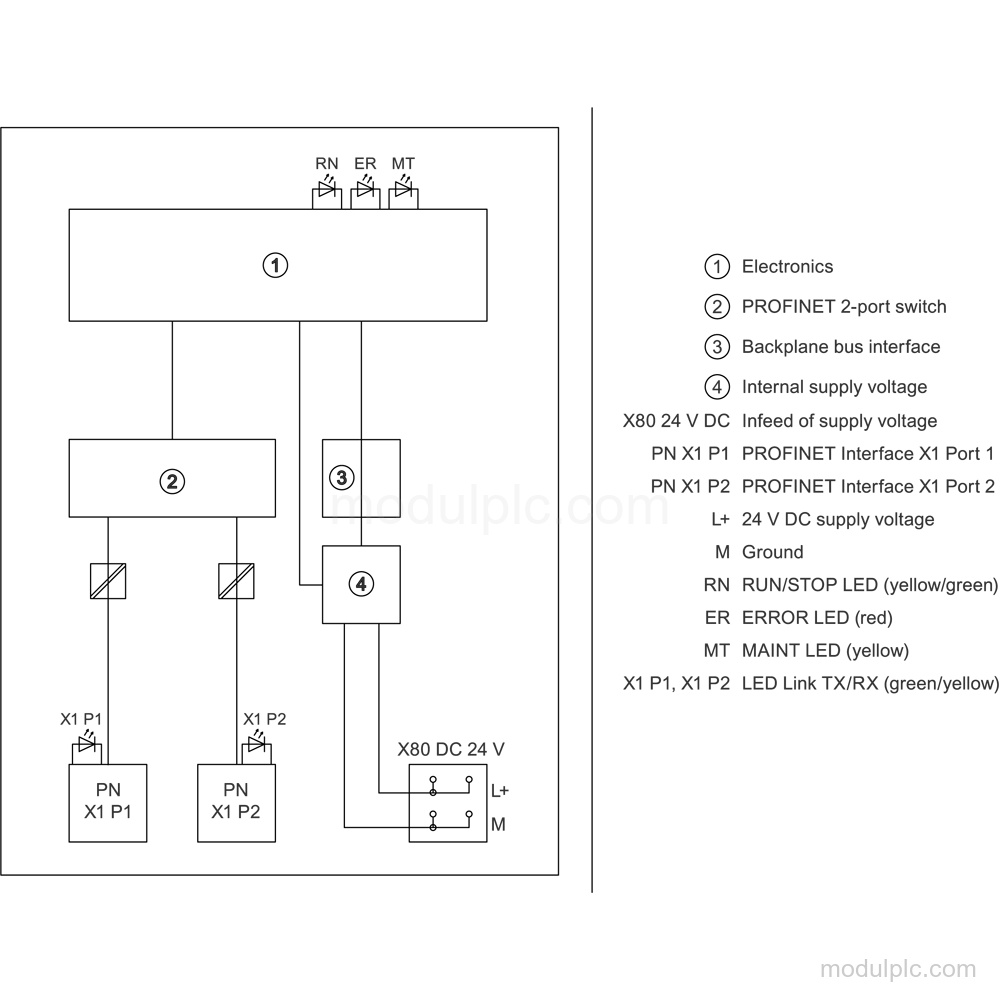

- Diagnostics and isolation: Includes status, alarm, and diagnostics functions, RUN, ERROR, MAINT, and LINK TX/RX indicators, plus 1500 V AC type-test separation between PROFINET and all other circuits.
Frequently Asked Questions
1. What type of module is 6ES7155-5AA00-0AA0?
It is an IM 155-5 PN BA interface module for SIMATIC ET 200MP electronic modules and operates as a PROFINET IO Device.
2. How many I/O modules can the station support?
It supports up to 12 I/O modules and up to 108 submodules per station, with 9 per I/O module.
3. What PROFINET interfaces and connectors does it have?
It has 1 PROFINET interface with 2 RJ45 ports and an integrated switch, using 100BASE-TX.
4. What supply voltage does the module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What should be verified before requesting a quotation?
Verify the exact order number, firmware requirement, I/O module capacity, PROFINET functions, and 24 V DC supply conditions.
