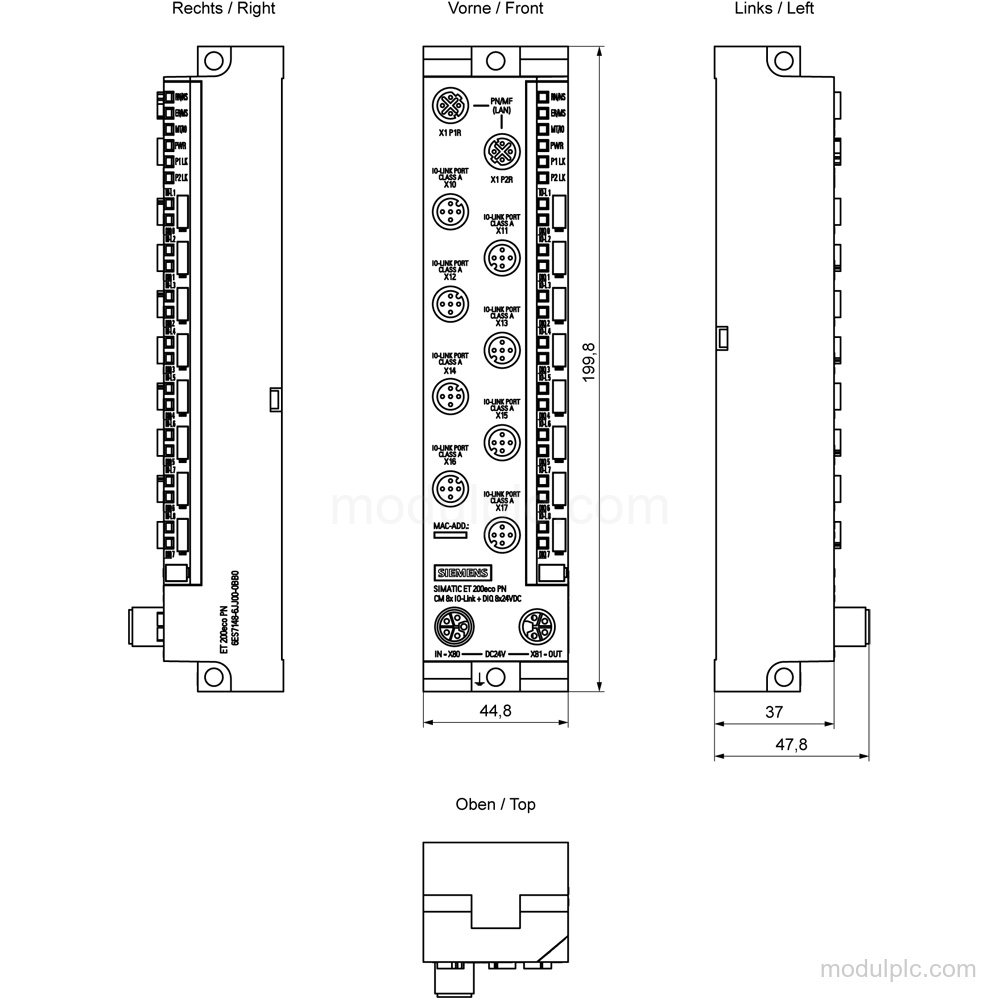

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| IO-Link ports | 8; 8 simultaneously controllable |
| Digital I/O | 8 digital inputs and 8 digital outputs; parameterizable as DIQ |
| Input signal range | Signal "0": -3 to +5 V; signal "1": +11 to +30 V |
| Load voltage | 1L+ and 2L+: 24 V DC rated; 20.4 V to 28.8 V permissible |
| Output current | 0.5 A rated and maximum for signal "1" |
| PROFINET interface | 1; 100 Mbit/s full duplex; 100BASE-TX |
| Communication protocols | PROFINET IO, EtherNet/IP, Modbus TCP |
| Protection | IP65/67/69K |
Applications
- IO-Link device connection: The module connects IO-Link devices through 8 port type A interfaces and supports IO-Link process-data exchange.
- Digital signal acquisition: The 8 digital inputs acquire 24 V DC signals and can be parameterized as DIQ.
- Digital output control: The 8 current-sourcing digital outputs control connected loads and can control a digital input.
- Industrial Ethernet communication: The module exchanges I/O data through PROFINET IO and supports EtherNet/IP and Modbus TCP communication.
Key Features

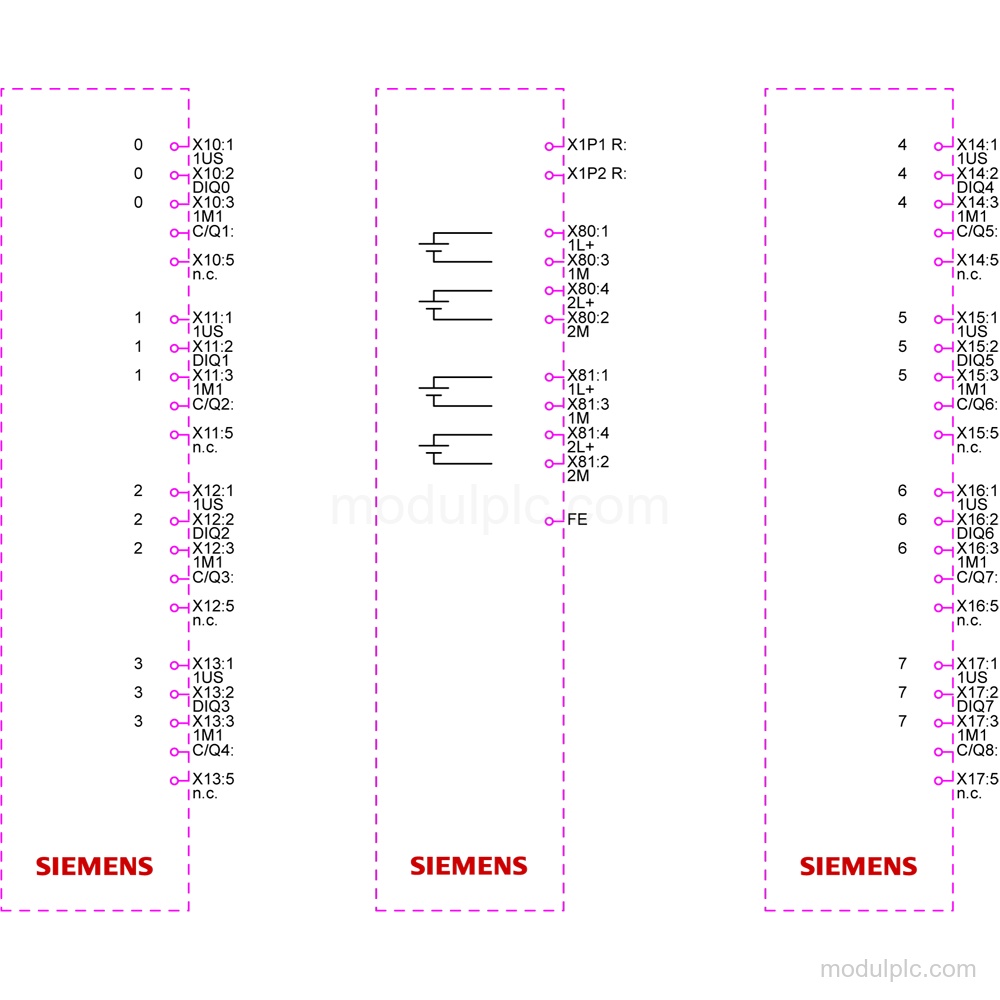

- 8 IO-Link ports: The module has 8 simultaneously controllable IO-Link ports supporting IO-Link protocol 1.0 and 1.1. Port type A connections use 3-core cables.
- 8 DIQ channels: It provides 8 digital inputs and 8 digital outputs, parameterizable as DIQ, with digital input and output operation in groups of 8.
- Industrial Ethernet interfaces: The module has 1 PROFINET interface with 100 Mbit/s full duplex, 2 four-pin D-coded M12 ports, and an integrated switch. EtherNet/IP and Modbus TCP are supported.
- 24 V DC supply: Load voltages 1L+ and 2L+ have a rated value of 24 V DC and a permissible range of 20.4 V to 28.8 V, with reverse polarity protection.
- Channel diagnostics: The module provides parameterizable diagnostic, maintenance, and hardware interrupts, plus wire-break and encoder-supply short-circuit diagnostics per channel.
- Protection and diagnostics display: Protection is IP65/67/69K. RUN, ERROR, MAINT, NS, MS, IO, channel-status, channel-diagnostics, load-voltage, and LINK TX/RX LEDs are provided.
Frequently Asked Questions
1. How many IO-Link ports does Siemens 6ES7148-6JJ00-0BB0 have?
It has 8 IO-Link ports, all 8 simultaneously controllable, with IO-Link protocol 1.0 and 1.1 support.
2. What digital I/O does this module provide?
It provides 8 digital inputs and 8 digital outputs, parameterizable as DIQ in groups of 8.
3. Which Ethernet interfaces and protocols are supported?
It has 1 PROFINET interface, 2 four-pin D-coded M12 ports, and an integrated switch. PROFINET IO, EtherNet/IP, and Modbus TCP are supported.
4. What supply voltage is required?
Load voltages 1L+ and 2L+ have a rated value of 24 V DC, with a permissible range of 20.4 V to 28.8 V.
