Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 8 |
| Supported measurements | Resistance, resistance thermometer, and thermocouple |
| Rated voltage input range | -80 mV to +80 mV |
| Thermocouple types | E, J, K, and N |
| Resolution with overrange | max. 16 bit |
| PROFINET interfaces | 1 |
| Transmission procedure | 100BASE-TX |
| Maximum transmission rate | 100 Mbit/s |
| Rated supply voltage | 24 V |

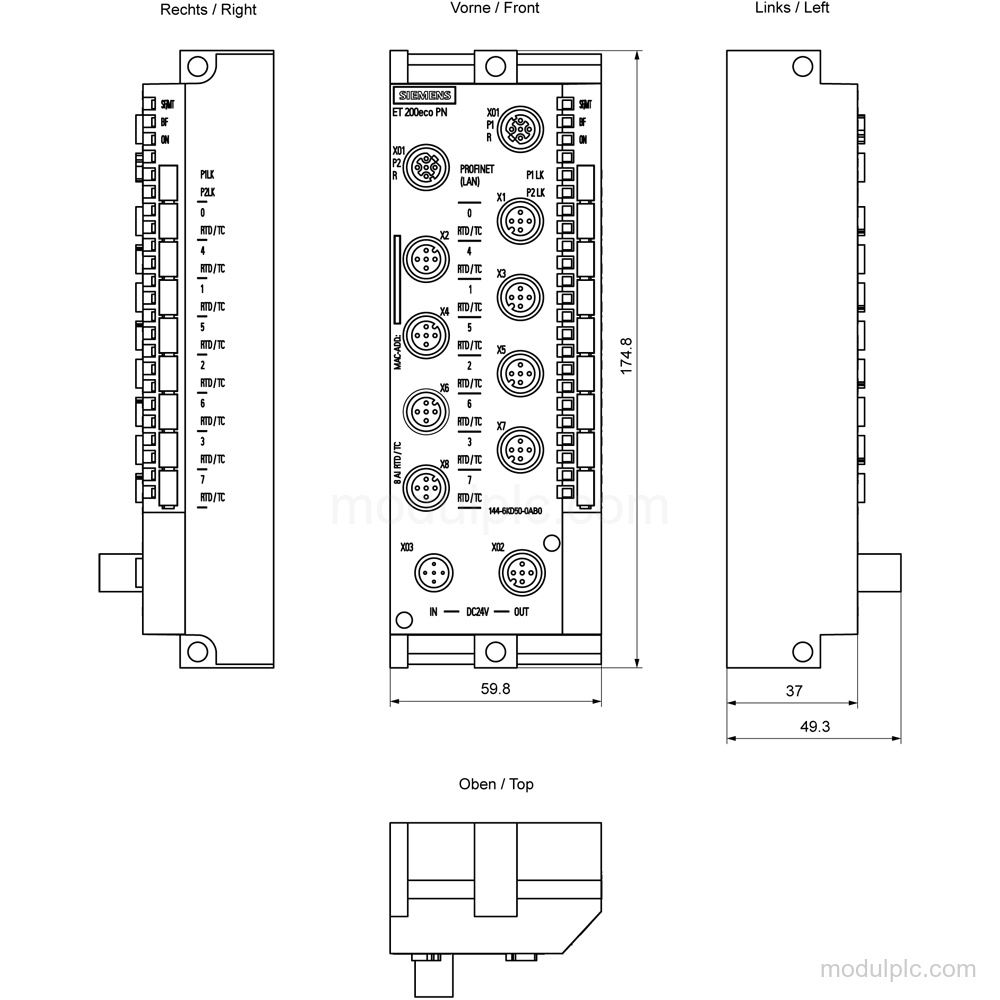

| M12 connections | 8x M12 |
| IP degree of protection | IP65/67 |
Applications
- Resistance and temperature measurement: The module performs resistance, resistance thermometer, and thermocouple measurement through its 8 analog inputs.
- PROFINET data transmission: The module transmits data using PROFINET IO through its PROFINET interface.
- Analog value generation: The module generates analog values in SIMATIC S7 format using an integrating measurement principle.
Key Features

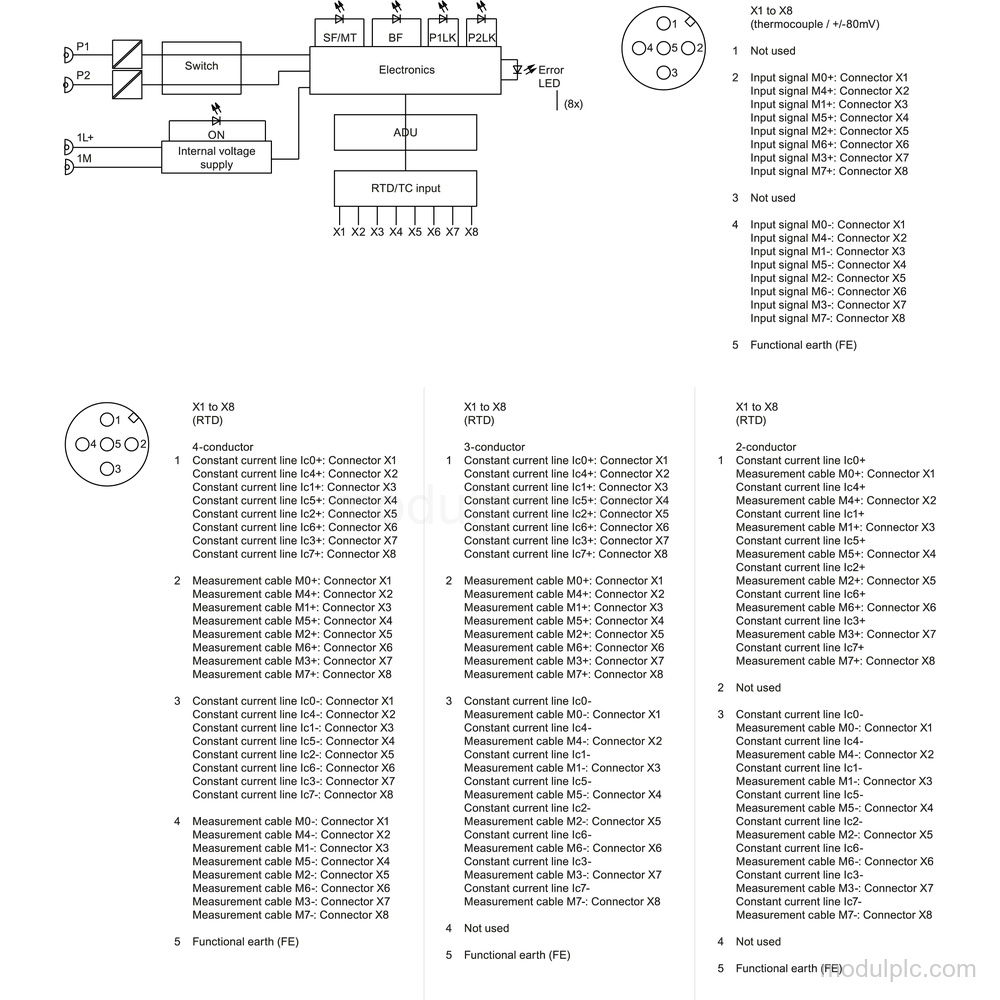

- 8 analog inputs: All 8 analog inputs support resistance, resistance thermometer, and thermocouple measurement.
- Signal ranges and resolution: Rated input range: -80 mV to +80 mV; supported thermocouple types: E, J, K, and N; resolution with overrange: max. 16 bit.
- PROFINET interface: 1 PROFINET interface with 100BASE-TX transmission, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
- M12 connections and protection: The module has 8x M12 connections and IP67 degree of protection; the PDF also states IP65/67.
- Supply and diagnostics: Rated supply voltage: 24 V; typical current consumption: 110 mA; diagnostics include a diagnostic alarm, readable diagnostic information, and supply-voltage monitoring.
- Product lifecycle: Product cancellation; this item is identified as a spare part.
Frequently Asked Questions
1. How many analog inputs does Siemens 6ES7144-6KD50-0AB0 have?
It has 8 analog inputs.
2. Which measurements and signal ranges does the module support?
It supports resistance, resistance thermometer, and thermocouple measurement, with a rated input range of -80 mV to +80 mV. Thermocouple types E, J, K, and N are supported.
3. What PROFINET interface does this module provide?
It provides 1 PROFINET interface using 100BASE-TX, with a maximum transmission rate of 100 Mbit/s and an integrated switch.
4. What supply voltage and protection does it have?
The rated supply voltage is 24 V. The collected description states IP67, while the PDF states IP65/67.
