Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 8, in groups of 4 |
| Output current for signal "1" | 1.3 A; Maximum |
| Supply voltage | 24 V DC |
| Load voltage range | 20.4 V to 28.8 V DC for 1L+ and 2L+ |
| PROFINET interfaces | 1 |
| M12 connections | 4xM12 |
| Transmission rate | 100 Mbit/s maximum |
| Protection | IP65/67 |
| Power loss | 5.5 W typical |
| Diagnostics | Diagnostics function, diagnostic alarm, wire-break, short-circuit, and Group error |
| Product lifecycle | Product cancellation |
Applications
- Digital output control: Controls digital outputs and can control a digital input.
- Redundant load control: Supports redundant control of a load by parallel switching of two outputs.
Key Features
- Digital outputs: 8 digital outputs in groups of 4, with short-circuit protection and a typical response threshold of 1.8 A.
- Supply and load voltage: Supply voltage and load voltages 1L+ and 2L+ are rated at 24 V DC; each load-voltage range is 20.4 V to 28.8 V.
- PROFINET interface: 1 PROFINET interface with M12 port, integrated switch, 100BASE-TX, and maximum transmission rate of 100 Mbit/s.

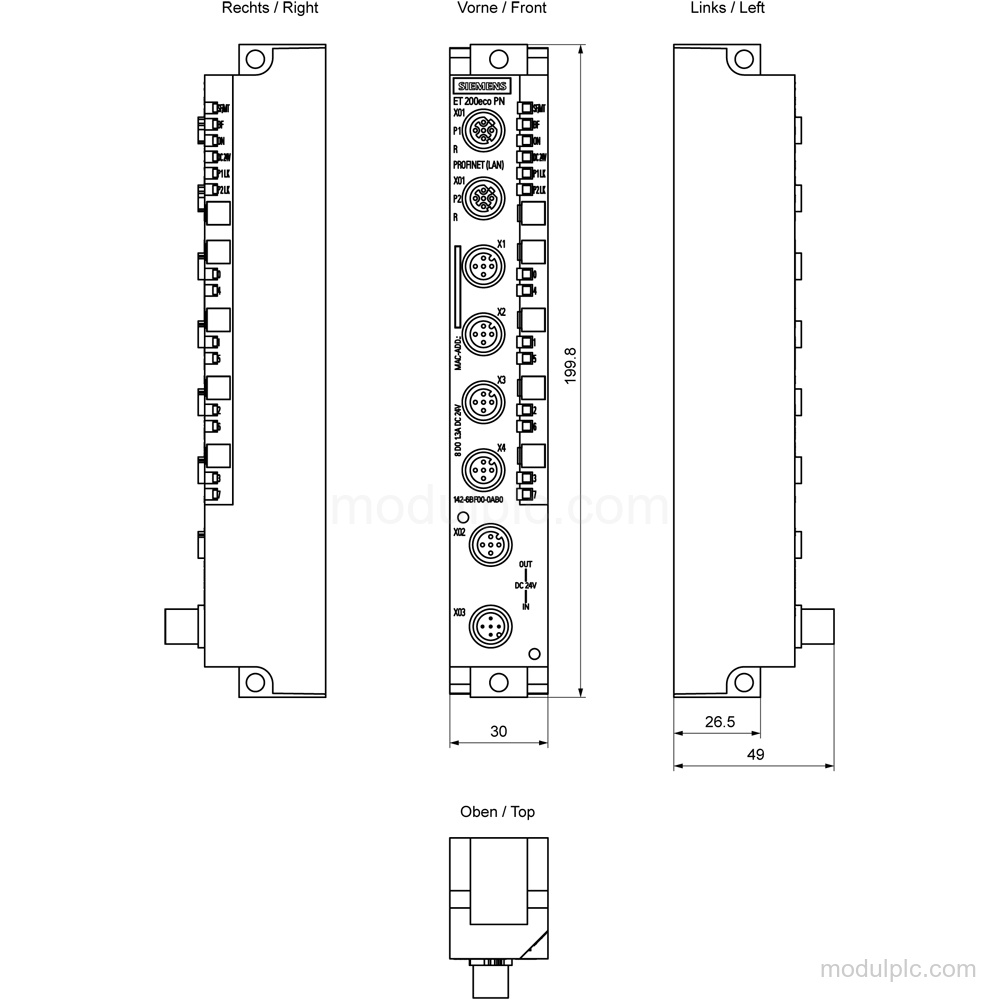

- Connections and protection: 4xM12 connections and IP65/67 protection; the module has an Ethernet-to-electronics potential separation.
- Diagnostics: Diagnostics function, diagnostic alarm, readable diagnostic information, wire-break and short-circuit diagnostics, and Group error with red/yellow "SF/MT" LED.
- Output characteristics: Output current for signal "1" is 1.3 A maximum; lamp load is 5 W maximum and residual current for signal "0" is 1.5 mA maximum.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7142-6BF00-0AB0 have?
It has 8 digital outputs arranged in groups of 4.
2. What supply and output values apply to 6ES7142-6BF00-0AB0?
The supply voltage and load voltages 1L+ and 2L+ are rated at 24 V DC. The output current for signal "1" is 1.3 A maximum.
3. Which connection and protection details should be verified before inquiry?
Verify the 4xM12 connections, 1 PROFINET interface, maximum 100 Mbit/s transmission rate, and IP65/67 protection.
