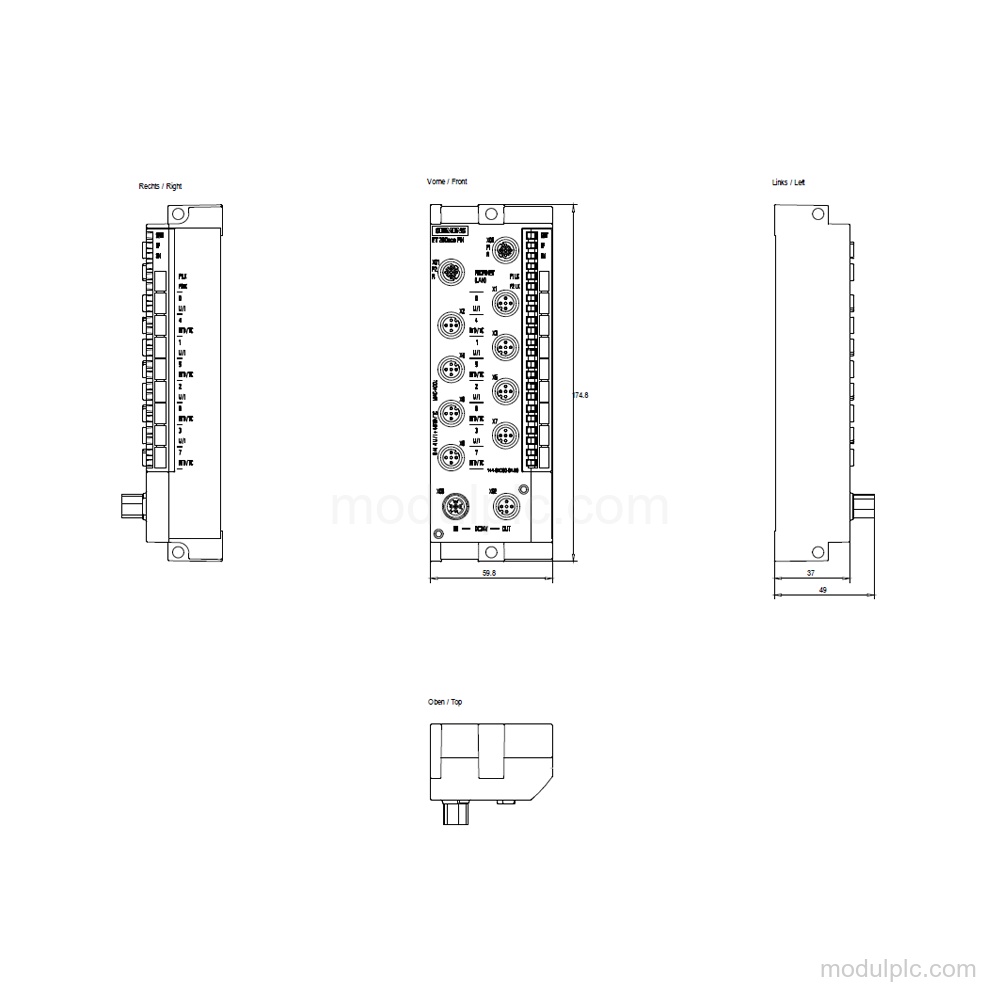

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 8 (4 voltage/current, 4 resistance/resistance thermometer) |
| Voltage input ranges | 0 to +10 V; 1 V to 5 V; -10 V to +10 V; -80 mV to +80 mV |
| Current input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit including sign |
| Integration time | 2/16.67/20/100 ms, parameterizable |
| Conversion time per channel | 4 / 19 / 22 / 102 ms |
| PROFINET interfaces | 1 |
| Network interface | 100BASE-TX, up to 100 Mbit/s, M12 port, integrated switch |
| Rated supply | 24 V DC |
| Connection and protection | 8 M12 ports; IP65/67 |
Applications
- Analog signal measurement: Measures voltage, current, resistance, resistance thermometer and thermocouple signals through its analog inputs.
- PROFINET IO communication: Communicates analog input data using the supported PROFINET IO protocol.
Key Features

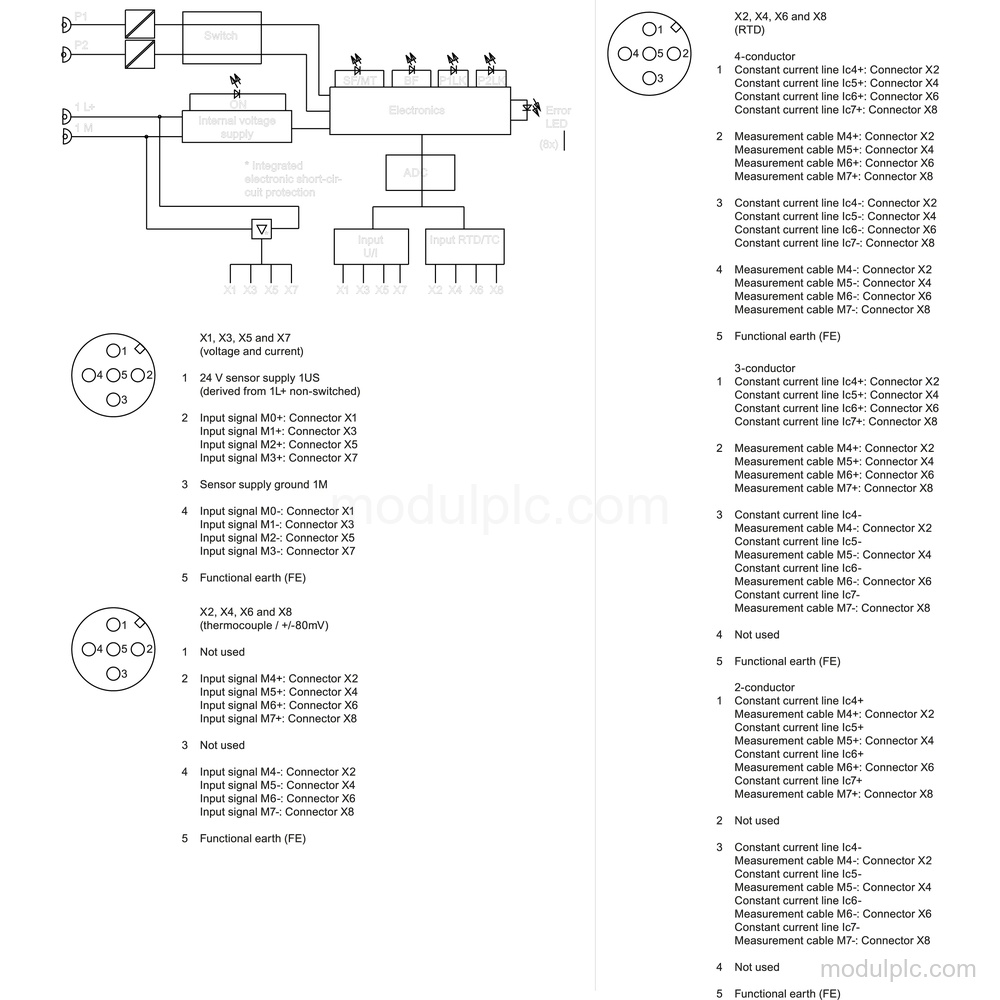

- Analog input channels: 8 analog inputs: 4 for voltage/current measurement and 4 for resistance/resistance thermometer measurement.
- Supported input ranges: Voltage ranges include 0 to +10 V, 1 V to 5 V, -10 V to +10 V and -80 mV to +80 mV; current ranges include 0 to 20 mA, -20 mA to +20 mA and 4 mA to 20 mA.
- Temperature and resistance inputs: Supports thermocouples Type E, Type J, Type K and Type N; resistance thermometer types include Ni 100, Ni 1000, Ni 120, Ni 200, Ni 500, Pt 100, Pt 1000, Pt 200 and Pt 500.
- PROFINET interface: 1 PROFINET interface with 100BASE-TX, integrated switch, M12 port and transmission rate up to 100 Mbit/s.
- Resolution and timing: Maximum resolution is 16 bit including sign; parameterizable integration time is 2/16.67/20/100 ms and conversion time per channel is 4 / 19 / 22 / 102 ms.
- Supply and protection: Rated supply is 24 V DC with reverse polarity protection; degree of protection is IP65/67 and connection uses 8 M12 ports.
Frequently Asked Questions
1. How many analog inputs does 6ES7144-6KD00-0AB0 have?
It has 8 analog inputs: 4 for voltage/current measurement and 4 for resistance/resistance thermometer measurement.
2. Which signal ranges are supported?
Supported voltage ranges are 0 to +10 V, 1 V to 5 V, -10 V to +10 V and -80 mV to +80 mV. Supported current ranges are 0 to 20 mA, -20 mA to +20 mA and 4 mA to 20 mA.
3. What PROFINET interfaces and protocols are available?
It has 1 PROFINET interface with 100BASE-TX, an M12 port and an integrated switch. PROFINET IO, SNMP, DCP, LLDP, ping and ARP are supported; TCP/IP, PROFINET CBA and PROFIsafe are not supported.
4. What are the resolution and conversion times?
Maximum resolution is 16 bit including sign. Parameterizable integration time is 2/16.67/20/100 ms, and conversion time per channel is 4 / 19 / 22 / 102 ms.
5. What supply and connection details should be verified?
Rated supply is 24 V DC, reverse polarity protection is provided, and the module has 8 M12 ports with IP65/67 protection.
