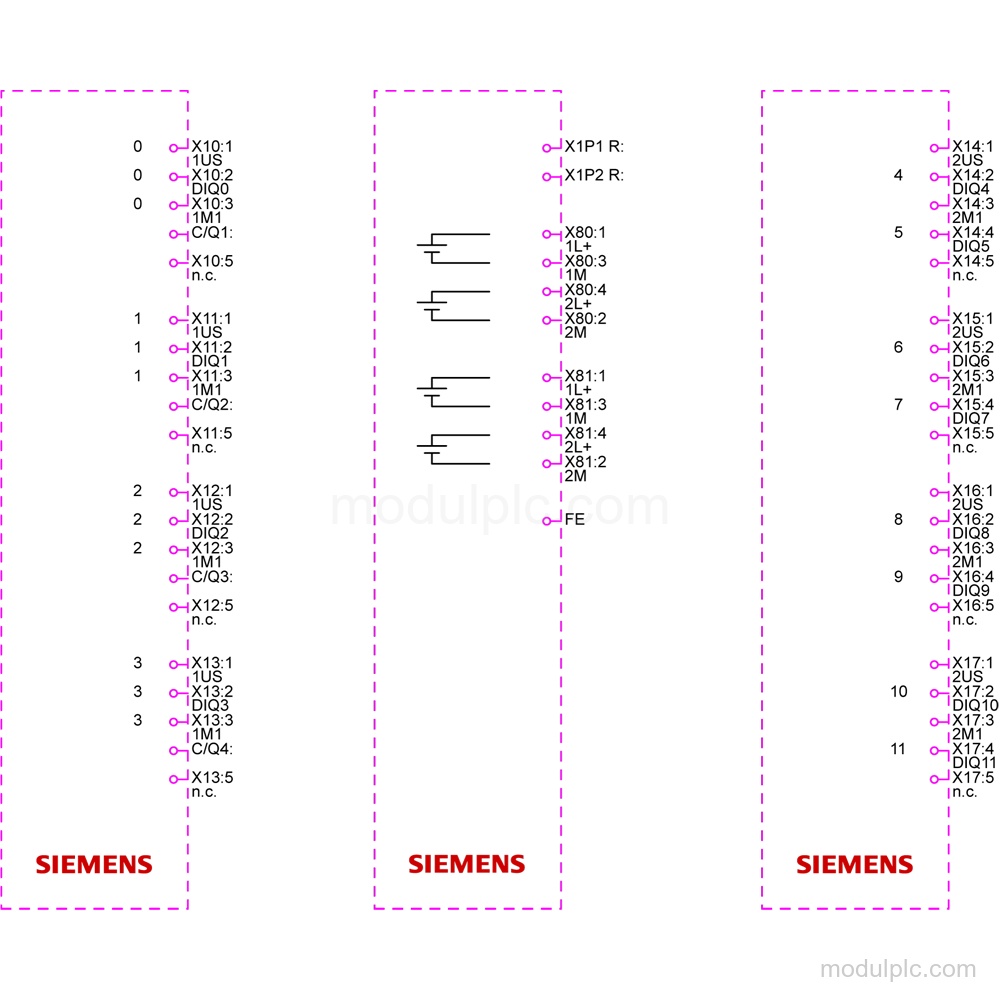

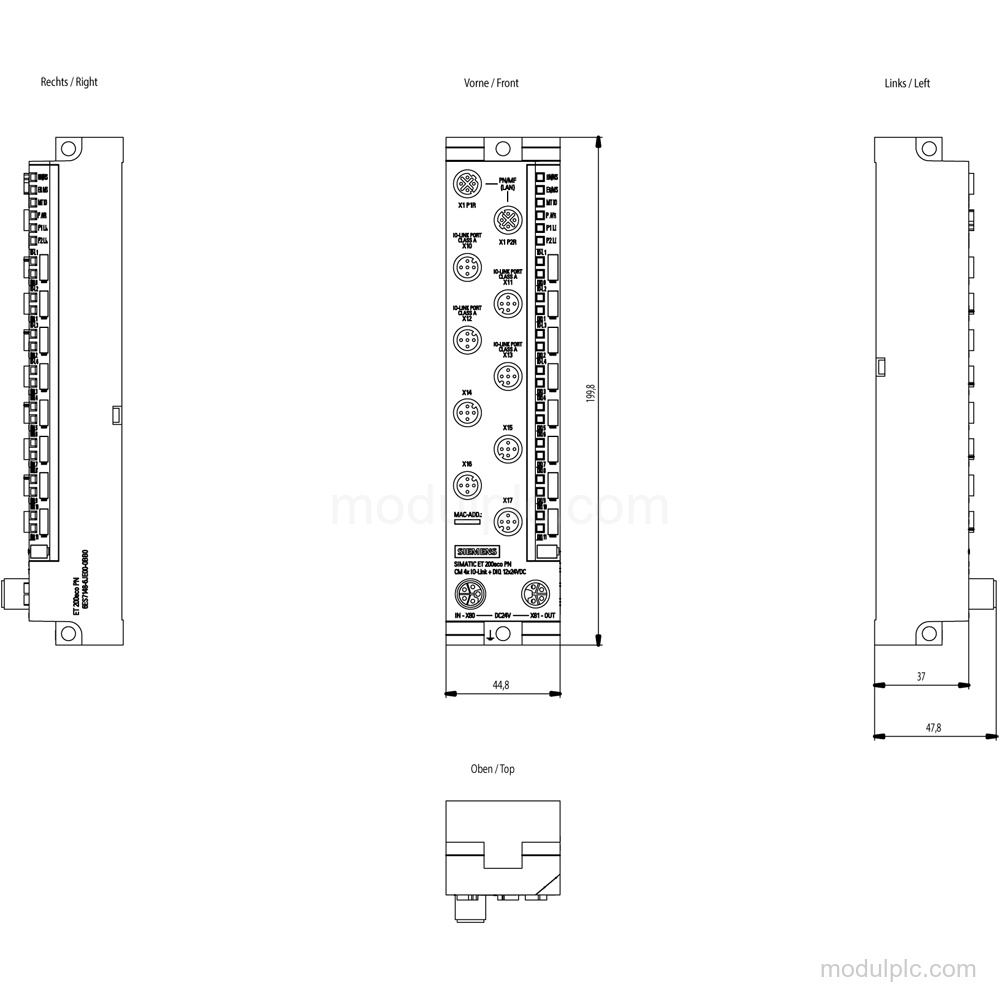

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| IO-Link ports | 4; simultaneously controllable |
| Digital input channels | 12; parameterizable as DIQ |
| Digital output channels | 12; parameterizable as DIQ |
| Load voltage | 1L+ and 2L+: 24 V; 20.4 V to 28.8 V permissible range |
| Output current | 0.5 A or 2 A per channel |
| PROFINET interface | 1; 100 Mbit/s full duplex; 100BASE-TX |
| IO-Link cycle time, min. | 2 ms |
| Connections | 2x M12, 4-pin, D-coded; 8x M12 |
| Protection | IP65/67/69K |
| Diagnostic functions | Diagnostic, maintenance, and hardware interrupts; wire-break detection; supply-voltage monitoring |
| PROFINET redundancy | S2 supported; MRP supported |
Applications
- IO-Link device communication: Communicates with IO-Link devices through 4 Port type A connections using 3-core cables and IO-Link protocol 1.0 or 1.1.
- Digital signal acquisition: Acquires digital signals through 12 parameterizable digital inputs, configurable as DIQ in groups of 4.
- Digital output control: Controls digital loads through 12 current-sourcing digital outputs with short-circuit protection and output current of 0.5 A or 2 A per channel.
- Industrial Ethernet communication: Provides PROFINET IO, EtherNet/IP, and Modbus TCP communication, including supported read and write services.
Key Features
- IO-Link and DIQ channels: Has 4 simultaneously controllable IO-Link ports and 12 digital inputs and 12 digital outputs, configurable as DIQ.
- Communication interfaces: Provides 1 PROFINET interface with 100 Mbit/s full duplex, 2 M12 D-coded 4-pin ports, an integrated switch, EtherNet/IP, and Modbus TCP.
- Supply and output current: Load voltage 1L+ and 2L+ are each 24 V with a permissible range of 20.4 V to 28.8 V. Output current is 0.5 A or 2 A per channel.
- Diagnostics and status indication: Supports parameterizable diagnostic, maintenance, and hardware interrupts, wire-break detection, supply-voltage monitoring, and channel diagnostics with LED indication.
- Installation and protection: Uses M12 connections and has IP65/67/69K protection. Maximum unshielded cable length is 30 m for digital I/O and 20 m for IO-Link.
- Timing and redundancy: IO-Link cycle time is 2 ms minimum. Supports IRT, prioritized startup, shared device, PROFINET system redundancy S2, and MRP.
Frequently Asked Questions
1. How many IO-Link ports does 6ES7148-6JE00-0BB0 have?
It has 4 IO-Link ports, all simultaneously controllable.
2. How many digital channels are available?
It has 12 digital inputs and 12 digital outputs, each parameterizable as DIQ.
3. Which communication protocols are supported?
It supports PROFINET IO, EtherNet/IP, and Modbus TCP. PROFIsafe is not supported.
4. What supply voltage does the module use?
Load voltage 1L+ and 2L+ are each rated at 24 V, with a permissible range of 20.4 V to 28.8 V.
5. What should be verified before requesting a quote?
Verify the required M12 connections, digital output current of 0.5 A or 2 A per channel, cable lengths, and required communication protocol.
