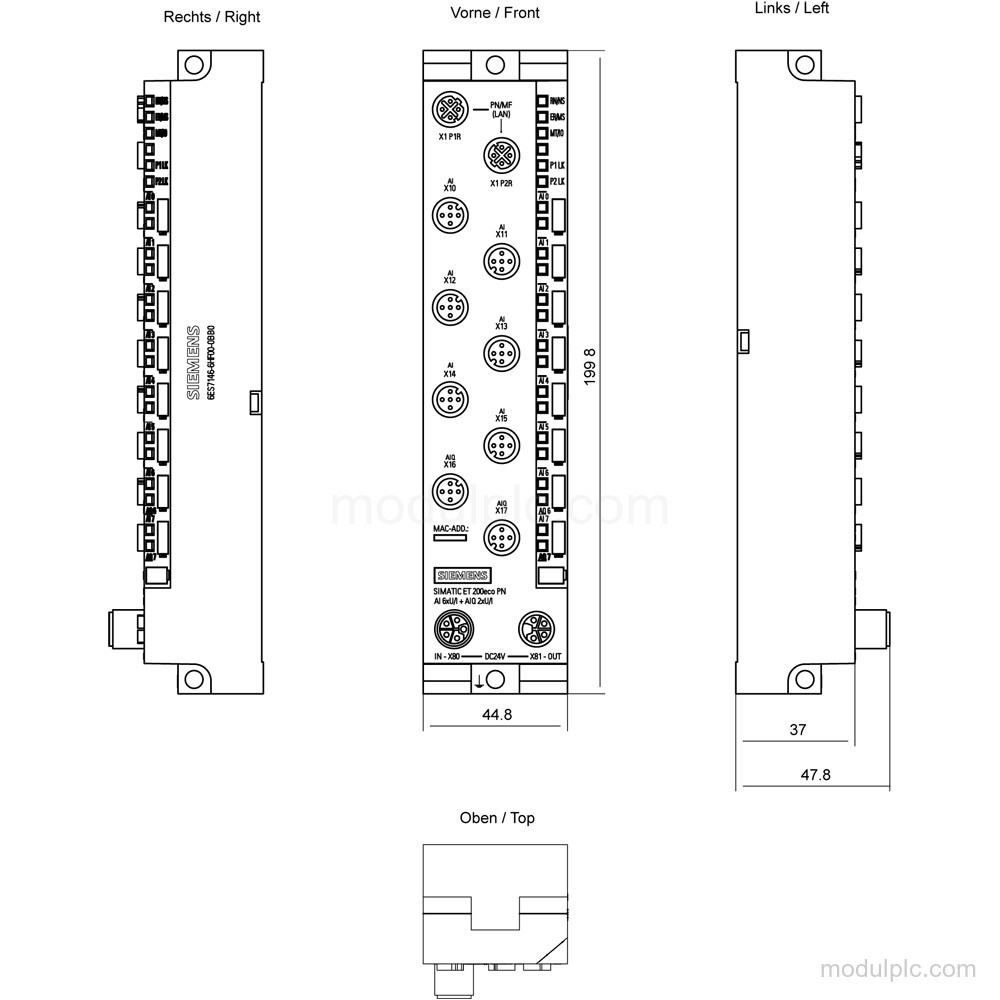

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog channels | 8 analog inputs: 6 fixed AI, 2 parameterizable AIQ; 2 analog outputs |
| Input signal ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V; 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Output signal ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V; 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit with overrange including sign, max. |
| Analog output cycle time | 1 ms, max. |
| PROFINET interface | 1; 100 Mbit/s full duplex, 100BASE-TX |
| M12 ports | 2; 4-pin, D-coded |
| Load voltage | 24 V DC rated; permissible range 20.4 V to 28.8 V |
| Diagnostics | Wire break, short-circuit, overflow/underflow, diagnostic alarms, maintenance interrupt, and limit value alarm |
| Protection | IP65/67/69K |
Applications
- Analog signal acquisition: Measures voltage and current signals through the supported analog input ranges.
- Analog signal output: Generates voltage and current signals through the supported analog output ranges.
- Industrial Ethernet communication: Communicates through PROFINET IO, EtherNet/IP, and Modbus TCP.
Key Features

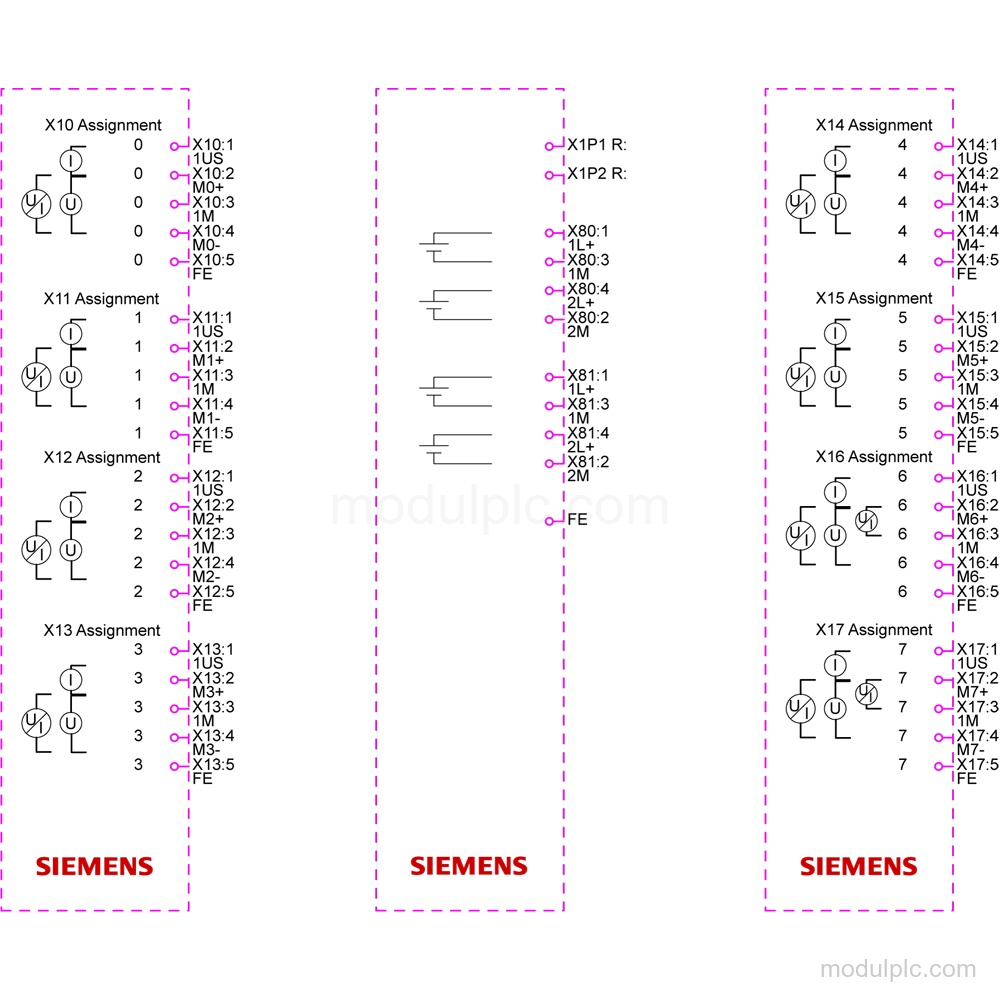

- Analog channels: 8 analog inputs: 6 fixed AI and 2 AIQ that can be parameterized; 2 analog outputs are supported.
- Signal ranges: Inputs and outputs support 0 to 10 V, 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and timing: 16-bit resolution with overrange including sign; analog output cycle time is 1 ms max.
- Diagnostics: Channel diagnostics include wire break at 4 mA to 20 mA and 1 V to 5 V, short-circuit detection, overflow/underflow, diagnostic alarms, and limit value alarms.
- Interfaces and connections: 1 PROFINET interface with 100 Mbit/s full duplex, 2 M12 4-pin D-coded ports, and an integrated switch.
- Supply and protection: Rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V; protection is IP65/67/69K.
Frequently Asked Questions
1. How many analog channels does the 6ES7146-6HF00-0BB0 provide?
It provides 8 analog inputs: 6 fixed AI and 2 AIQ that can be parameterized, plus 2 analog outputs.
2. Which analog signal ranges are supported?
The supported voltage and current ranges are 0 to 10 V, 1 V to 5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and output timing does the module have?
Resolution is 16 bit with overrange including sign. Analog output cycle time is 1 ms max.
4. Which interfaces and connectors are available?
The module has 1 PROFINET interface, 2 M12 4-pin D-coded ports, and an integrated switch. It also supports EtherNet/IP and Modbus TCP.
5. What supply voltage and protection rating apply?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V. Protection is IP65/67/69K.
