Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 8 |
| Measurement types | Voltage, resistance, resistance thermometer, and thermocouple |
| Voltage input range | -80 mV to +80 mV |
| Resolution | 16 bit including sign |
| Communication interfaces | 2x M12, 4-pin, D-coded; PROFINET with 100 Mbit/s full duplex |
| Supported protocols | PROFINET IO Device, EtherNet/IP, and Modbus TCP |
| Shared device capacity | Up to 2 IO Controllers |
| Rated load voltage | 24 V DC |
| Permissible load-voltage range | 20.4 V to 28.8 V |
| Protection | IP65/67/69K |
| Firmware version | V5.1.x |
Applications
- Analog measurement: Measures voltage, resistance, resistance thermometer, and thermocouple signals.
- Industrial communication: Exchanges I/O data through PROFINET IO Device, EtherNet/IP, and Modbus TCP.
- Signal diagnostics: Monitors wire break, supply voltage, overflow/underflow, diagnostic conditions, maintenance conditions, and limit values.
Key Features

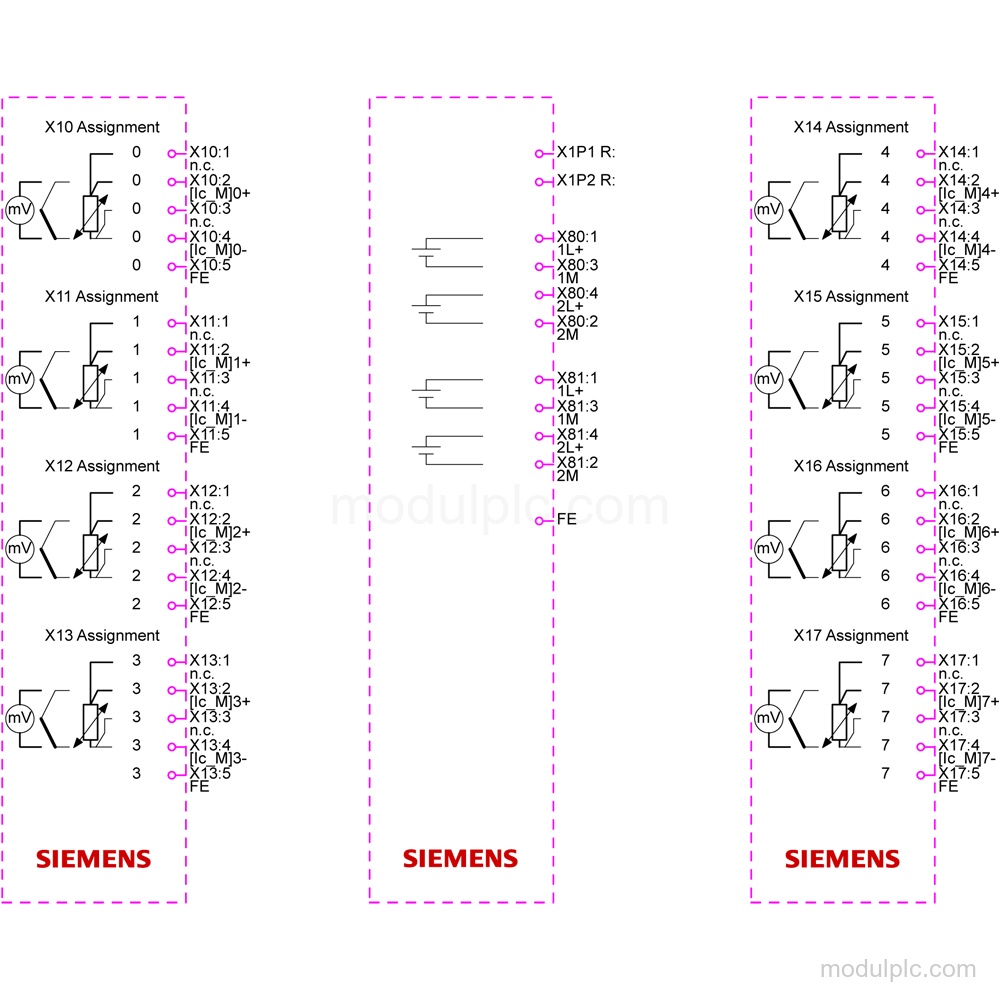

- 8 analog input channels: Supports voltage, resistance, resistance thermometer, and thermocouple measurement on 8 channels.
- Signal ranges and resolution: Supports -80 mV to +80 mV voltage input and 16-bit resolution including sign; resistance ranges include 0 to 150 ohms, 0 to 300 ohms, 0 to 600 ohms, 0 to 3000 ohms, and 0 to 6000 ohms.

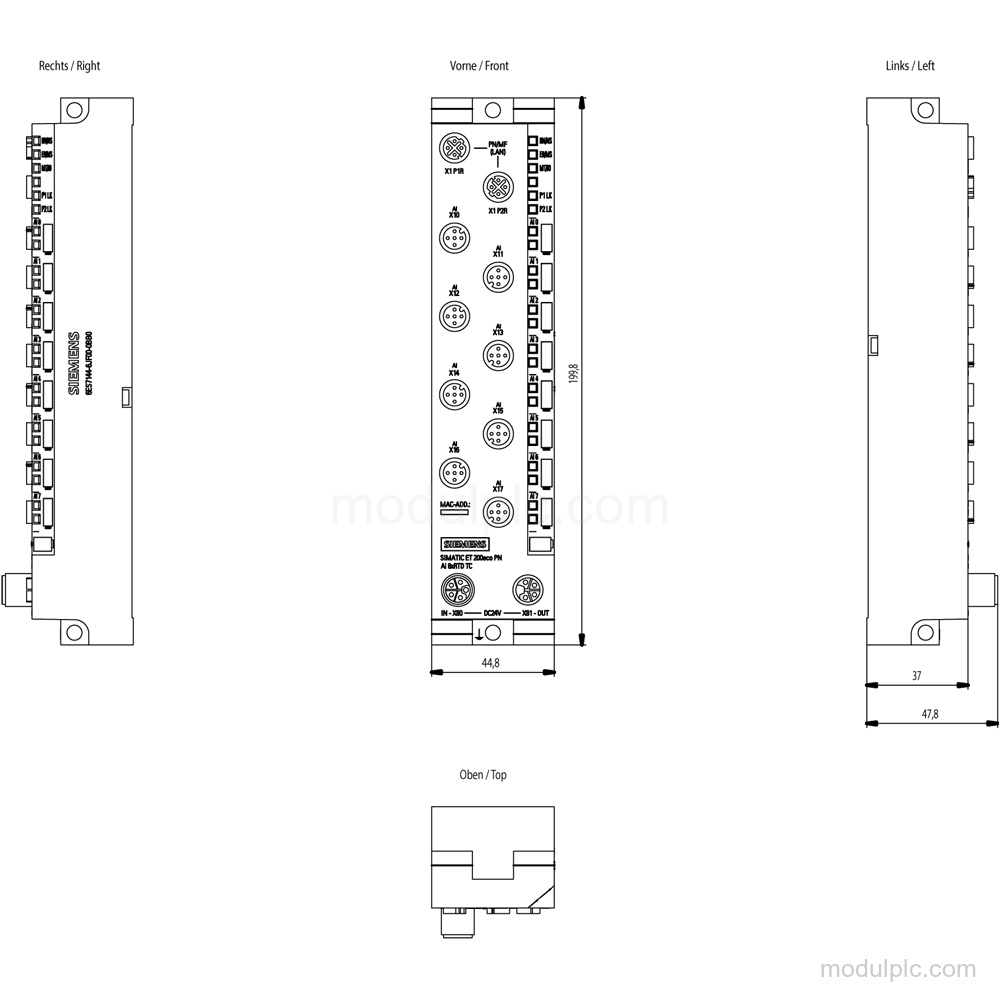

- M12 communication interfaces: Has 2x M12, 4-pin, D-coded ports, an integrated switch, and 100BASE-TX transmission at up to 100 Mbit/s.
- Protocols and shared device: Supports PROFINET IO Device, EtherNet/IP, Modbus TCP, and shared device operation with up to 2 IO Controllers.
- Diagnostics and protection: Provides wire-break, overflow/underflow, supply-voltage, diagnostic, maintenance, and limit-value alarms. Protection is IP65/67/69K.
- 24 V supply and installation: Uses a rated 24 V DC load voltage with a permissible range of 20.4 V to 28.8 V and has M12 connections.
Frequently Asked Questions
1. What signals does the 6ES7144-6JF00-0BB0 measure?
It measures voltage, resistance, resistance thermometer, and thermocouple signals across 8 analog input channels.
2. What resolution does the module provide?
The module provides up to 16 bit resolution including sign.
3. Which communication protocols are supported?
It supports PROFINET IO Device, EtherNet/IP, and Modbus TCP.
4. What supply voltage does the module use?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
5. What connections and protection does it have?
It has 2x M12, 4-pin, D-coded ports and IP65/67/69K protection.
