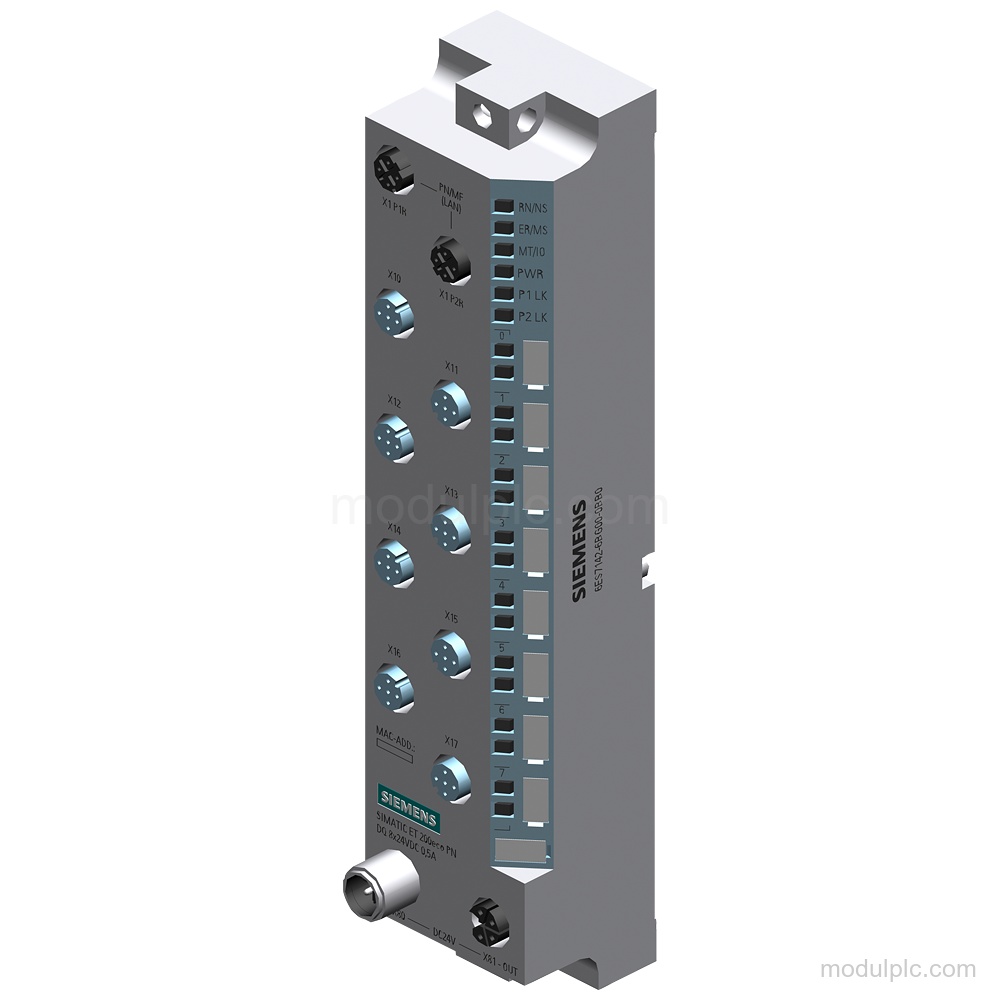

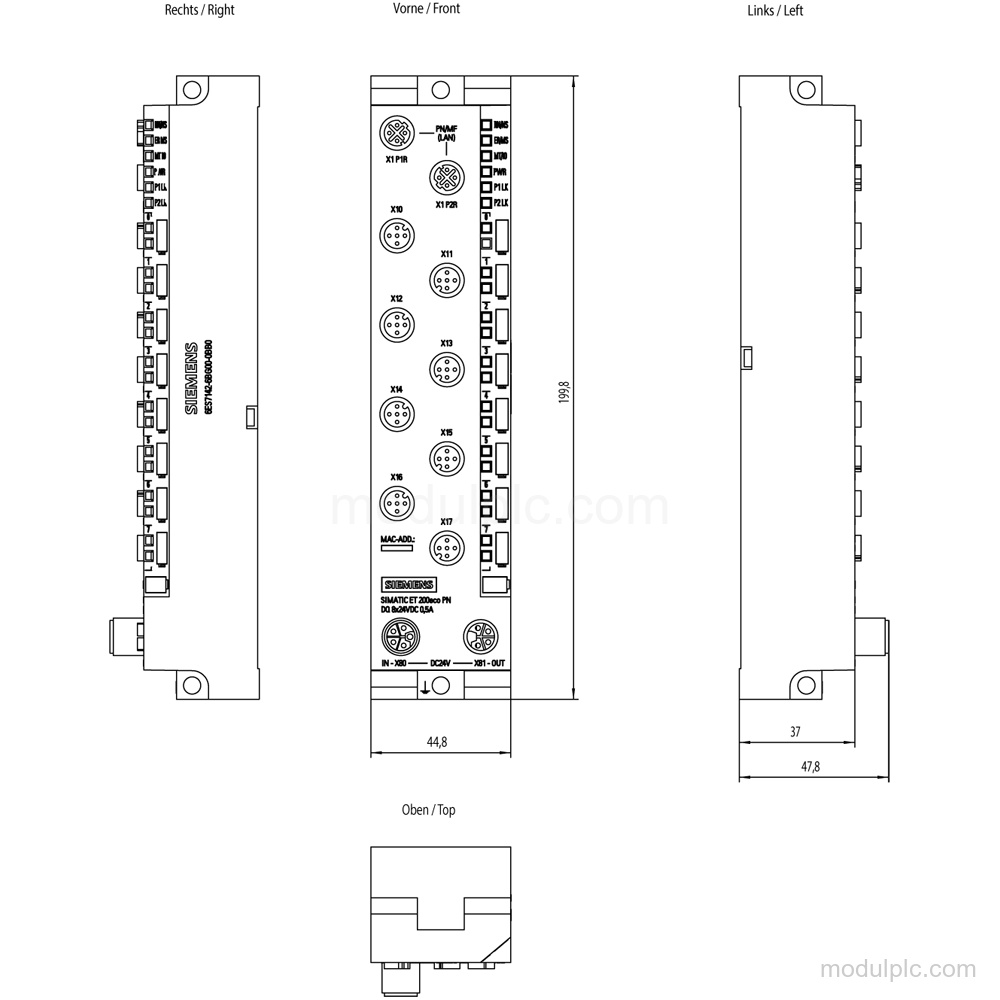

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
| Load voltage | 24 V DC; 20.4 V to 28.8 V permissible range |
| Output current for signal "1" | 0.5 A rated value; 0.5 A permissible maximum |
| Total output current | 4 A per module maximum |
| PROFINET interfaces | 1; 100 Mbit/s full duplex (100BASE-TX) |
| M12 ports | 2; 4-pin, D-coded |
| Supported protocols | PROFINET IO, EtherNet/IP, Modbus TCP |
| Protection degree | IP65/67/69K |
| Firmware version | V5.1.x |
Applications
- Digital output control: The 8 outputs control digital loads, including resistive, inductive and lamp loads within the supplied limits.
- Industrial Ethernet communication: The module exchanges I/O data through PROFINET IO and supports EtherNet/IP and Modbus TCP communication.
- Redundant output control: Two outputs can be used for redundant control of a load.
Key Features
- 8 digital outputs: The module has 8 current-sourcing digital outputs with electronic short-circuit protection per channel.
- 24 V DC load voltage: Load voltages 1L+ and 2L+ are rated at 24 V DC, with a permissible range of 20.4 V to 28.8 V.
- Output capacity: Output current for signal "1" is 0.5 A; total output current is 4 A per module maximum.
- PROFINET interfaces: The module has 1 PROFINET interface with 2 M12, 4-pin, D-coded ports and an integrated switch.
- Industrial Ethernet protocols: Supported protocols include PROFINET IO, EtherNet/IP and Modbus TCP; PROFINET system redundancy S2 is supported.
- Diagnostics and protection: The module provides channel diagnostics for wire break and short-circuit, substitute value outputs, and IP65/67/69K protection.
Frequently Asked Questions
1. How many digital outputs does 6ES7142-6BG00-0BB0 have?
It has 8 current-sourcing digital outputs.
2. What load voltage does the module use?
Load voltages 1L+ and 2L+ are rated at 24 V DC, with a permissible range of 20.4 V to 28.8 V.
3. Which network interfaces and protocols are supported?
It has 1 PROFINET interface with 2 M12, 4-pin, D-coded ports and supports PROFINET IO, EtherNet/IP and Modbus TCP.
4. What diagnostics are available?
It provides channel diagnostics for wire break and short-circuit, diagnostic and maintenance alarms, and substitute value outputs.
