Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515SP PC2 F |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Main memory | 8 GB RAM |
| CFast memory | 128 GB flash memory |
| PROFINET interfaces | 1 |
| PROFIBUS interfaces | 1 |
| Industrial Ethernet interfaces | 2 |
| USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 |
| Ethernet transmission rate, max. | 1 000 Mbit/s |
| PROFINET IO Devices, max. | 128 |
Applications
- PROFINET IO control: Supports PROFINET IO Controller and PROFINET IO device functions.
- PROFIBUS communication: Supports PROFIBUS DP master and PROFIBUS DP device functions via CM DP.
- Web-based access: Provides HTTP and HTTPS web server access via Windows and the PROFINET interface.
- Open industrial communication: Supports TCP/IP, ISO-on-TCP (RFC1006), UDP, SNMP, DCP, LLDP and MODBUS TCP communication.
Key Features

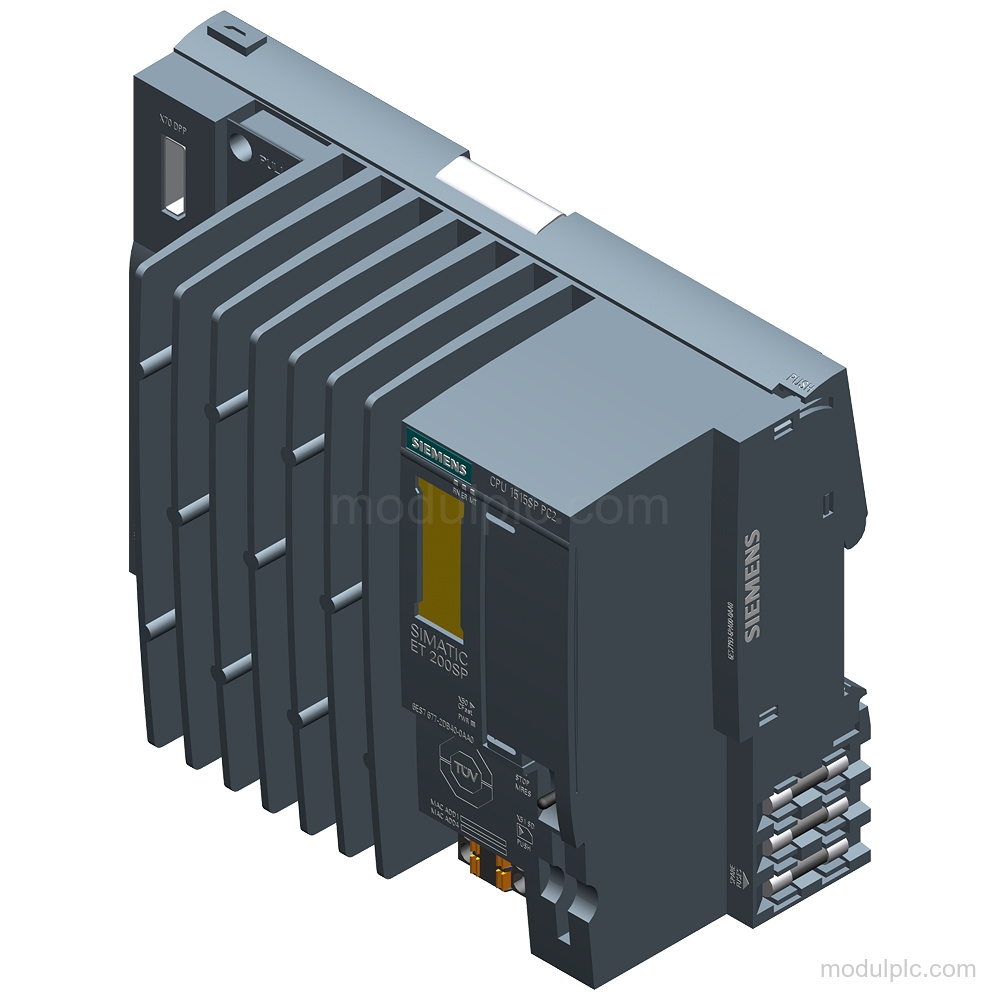

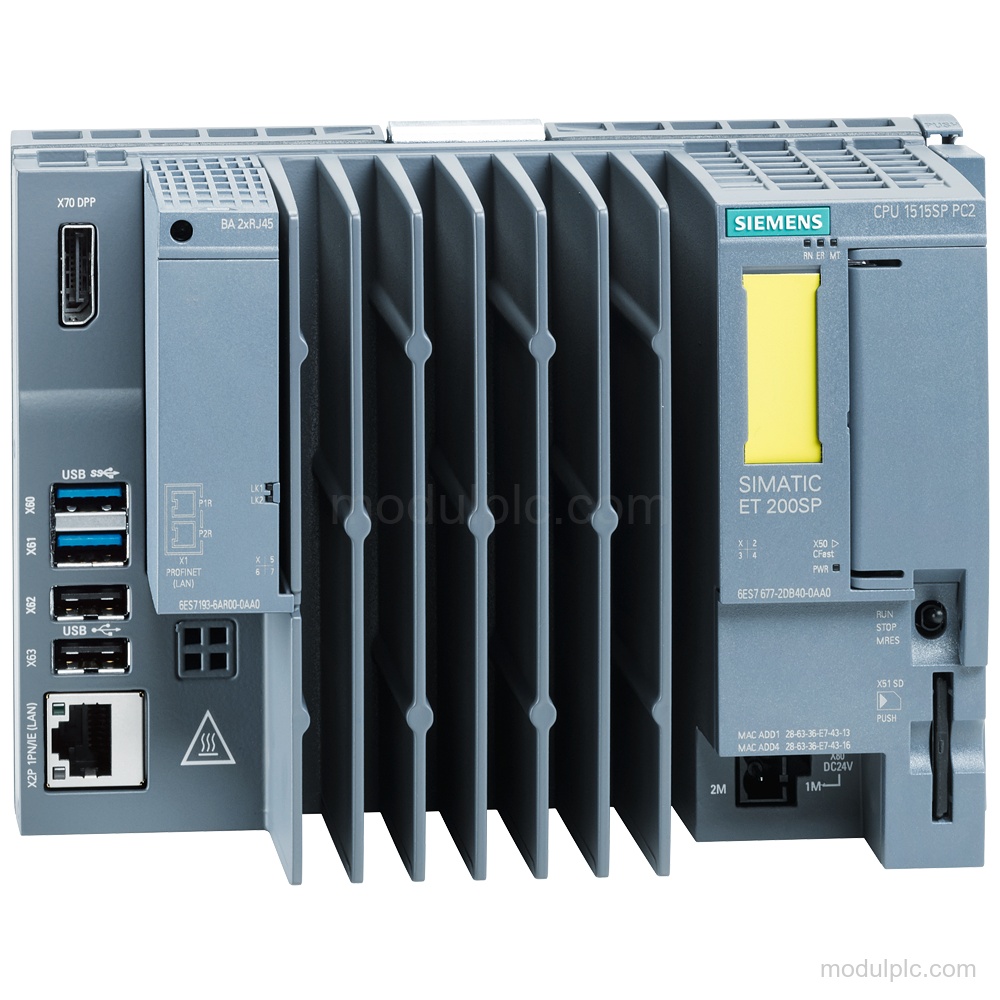

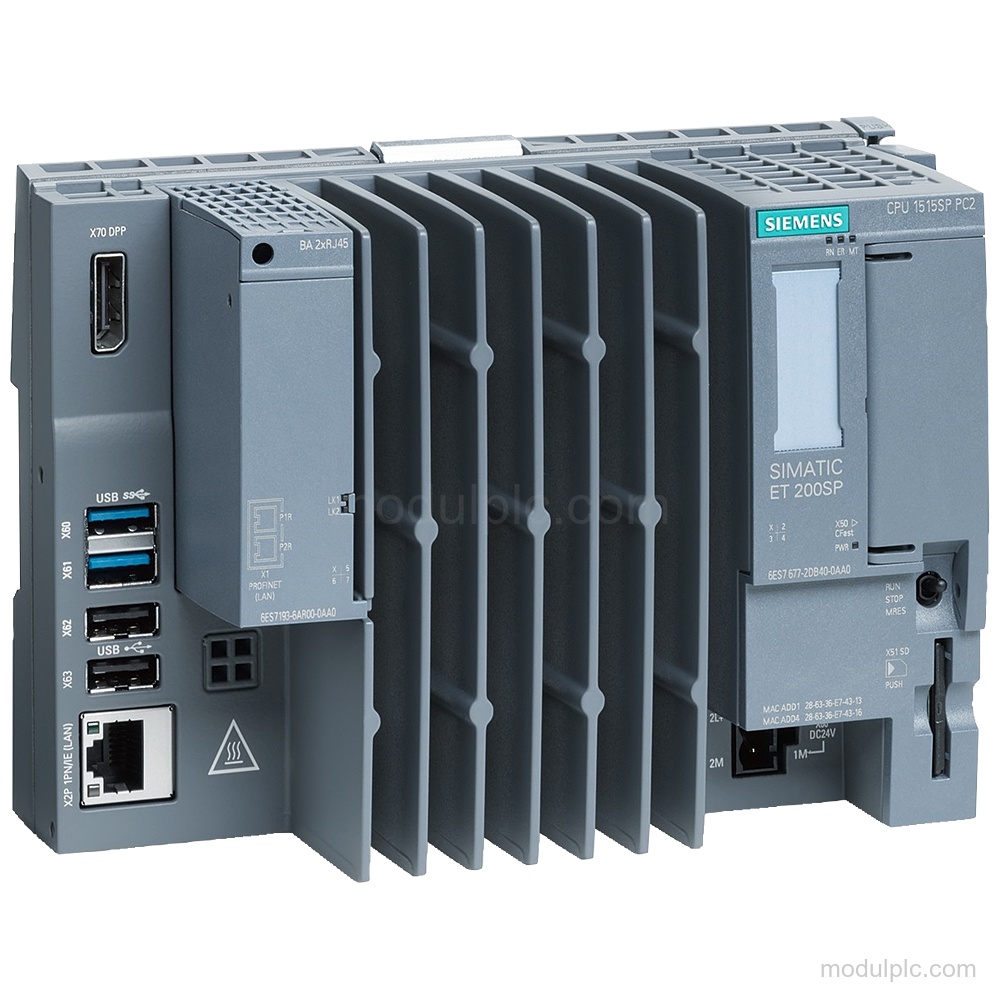

- Open Controller configuration: SIMATIC ET 200SP Open Controller with CPU 1515SP PC2 F, 8 GB RAM and 128 GB CFast flash memory.
- PROFINET and PROFIBUS interfaces: Provides 1 PROFINET interface and 1 PROFIBUS interface; PROFINET IO Controller, PROFINET IO device, PROFIBUS DP master and PROFIBUS DP device are supported.

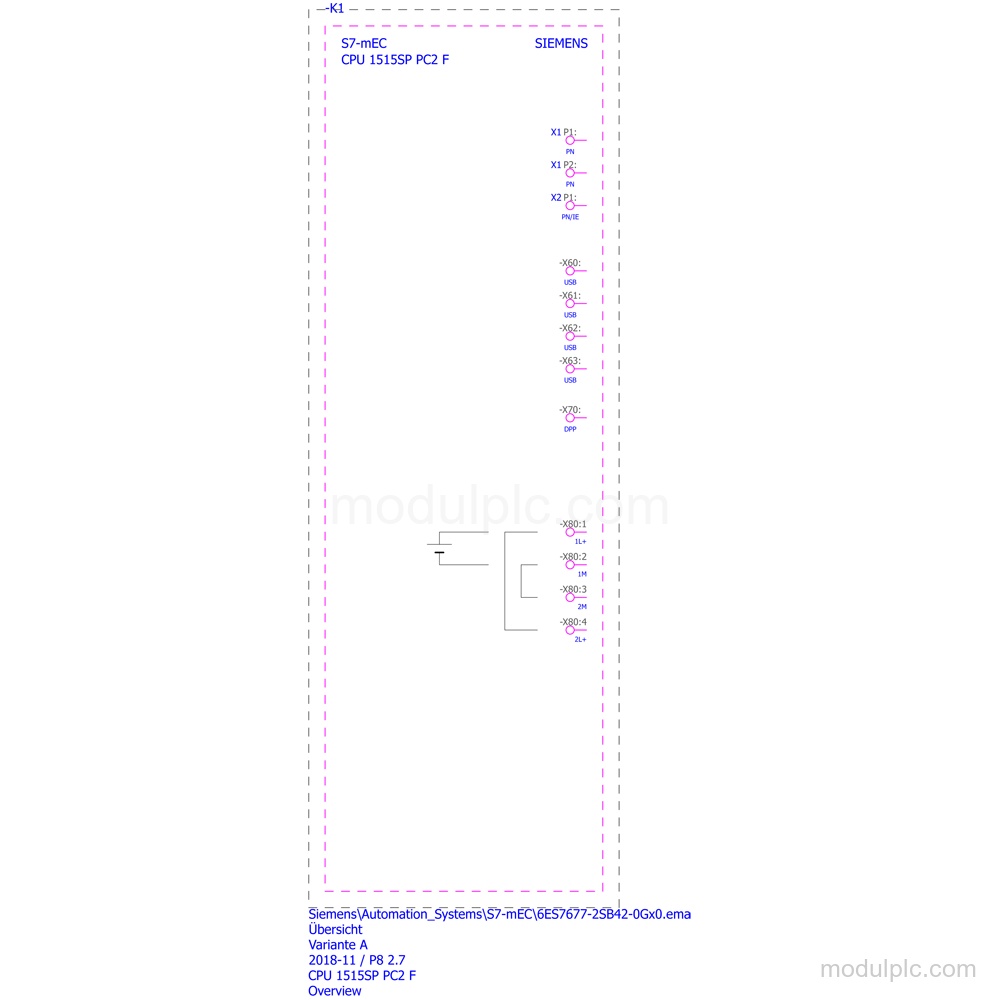

- Ethernet and USB connectivity: Includes 2 industrial Ethernet interfaces, 4 USB interfaces with 2x USB 2.0 and 2x USB 3.0, plus 1 DisplayPort.
- Supply voltage: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC and reverse polarity protection.
- Integrated software and storage: Includes Windows 10 IoT Enterprise LTSC 2019 64-bit and S7-1500 Failsafe Software Controller CPU 1505SP F V2x preinstalled; documentation and restore image are on CFast.

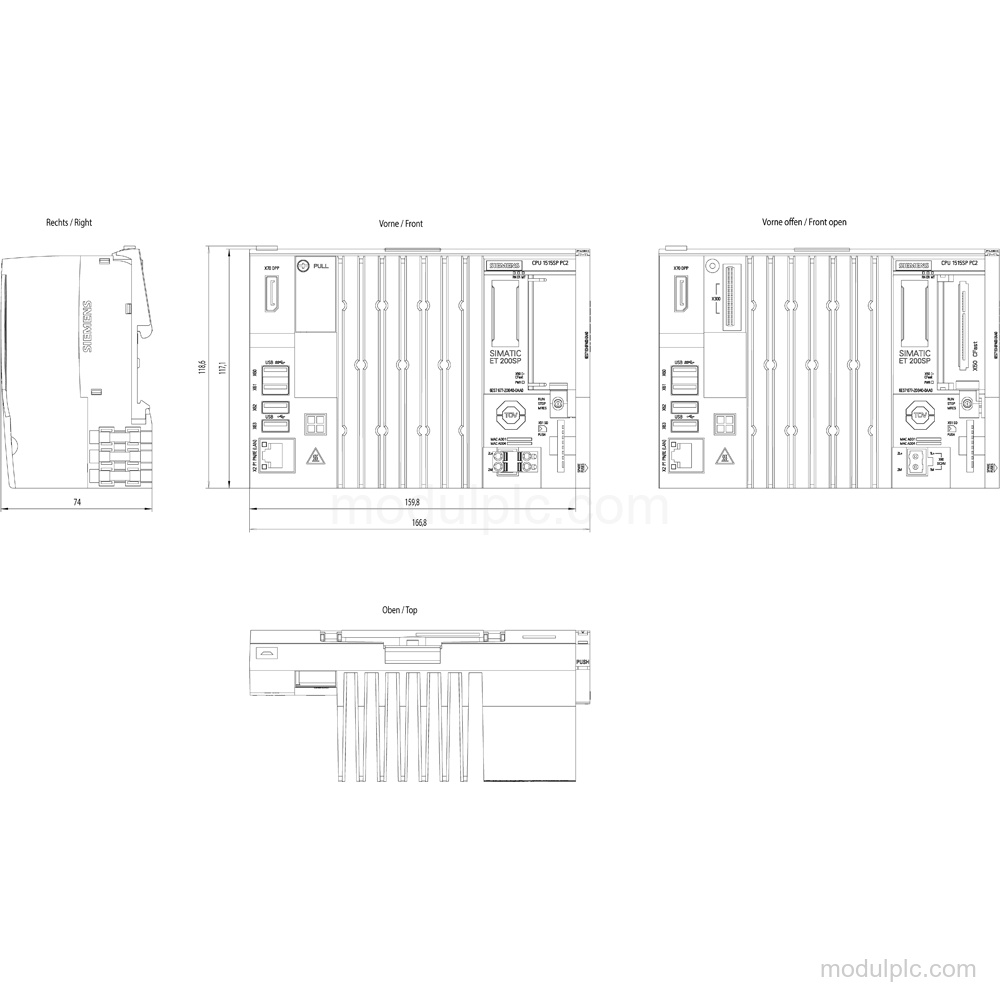

- Compact installation format: Packaging dimensions are 19.00 x 14.10 x 9.50 cm, and net weight is 1.051 kg.
Frequently Asked Questions
1. What type of controller is Siemens 6ES7677-2SB42-0GB0?
It is a SIMATIC ET 200SP Open Controller with product type designation CPU 1515SP PC2 F.
2. What supply voltage does 6ES7677-2SB42-0GB0 require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
3. Which communication interfaces are included?
It has 1 PROFINET interface, 1 PROFIBUS interface, 2 industrial Ethernet interfaces and 4 USB interfaces: 2x USB 2.0 and 2x USB 3.0.
4. How much memory is included?
The controller has 8 GB RAM and a 128 GB CFast flash memory card.
