Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP-1 PN |
| Program work memory | 400 kbyte |
| Data work memory | 2 Mbyte |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current consumption | 0.48 A rated; 0.7 A maximum |
| Bit performance | 6 ns |
Applications
- PROFINET I/O control: The CPU supports PROFINET IO Controller and PROFINET IO Device functions for configured PROFINET communication.
- Motion Control: The CPU supports Motion Control technology objects, including speed-controlled, positioning and synchronous axes.
Key Features
- ET 200SP central processing unit: CPU 1512SP-1 PN for ET 200SP with 400 kbyte integrated work memory for the program and 2 Mbyte for data.
- PROFINET IRT interface: One PROFINET interface with an integrated 3-port switch, 6 ns bit performance, PROFINET IO Controller and PROFINET IO Device functions.
- Supply and current: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Current consumption is 0.48 A rated and 0.7 A maximum.

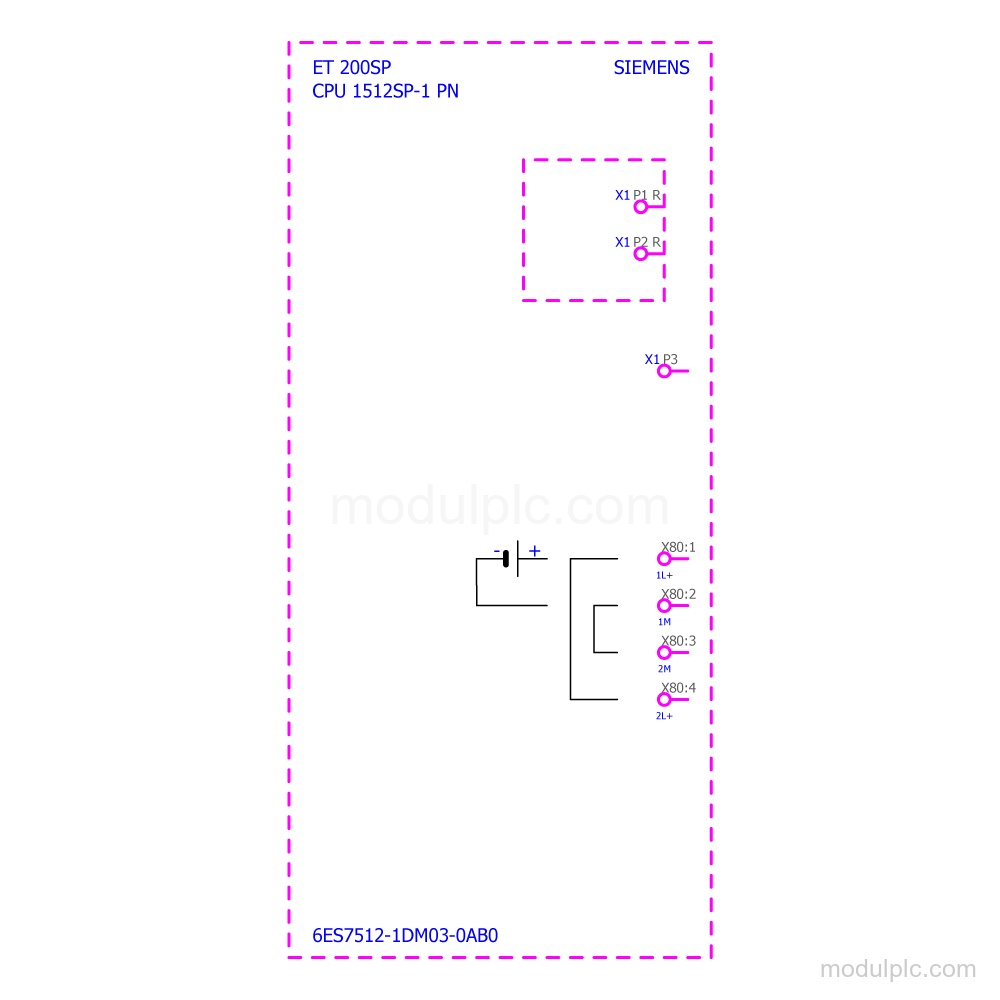

- Memory card and BusAdapter requirements: A SIMATIC Memory Card is required. A BusAdapter is required for ports 1 and 2; the supplied server module is 6ES7193-6PA00-0AA0.
- Diagnostics and protection: The CPU has I&M0 to I&M3 data, SysLog, multi-hot swapping, reverse polarity protection, RUN/STOP, ERROR, MAINT and PWR LEDs, and a diagnostic buffer with up to 1 000 entries.

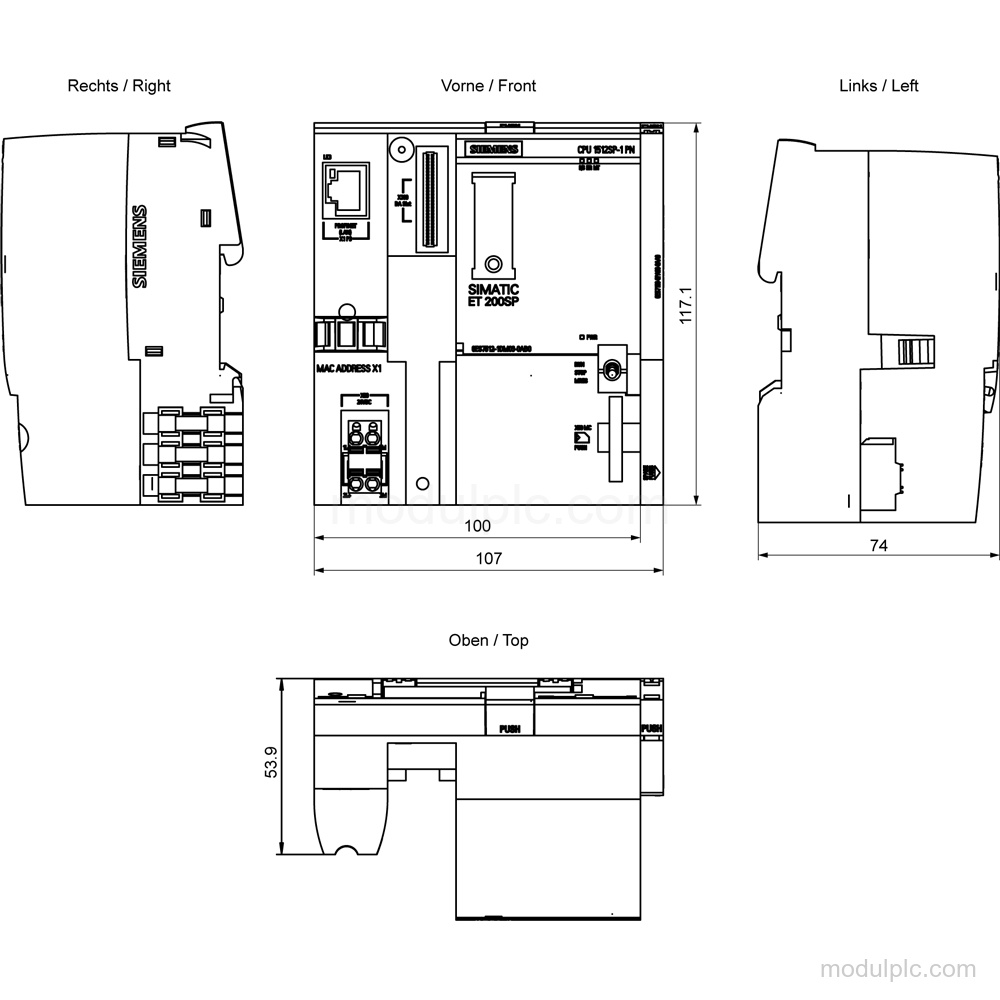

- Physical dimensions and weight: Dimensions: 100 mm width, 117 mm height, and 75 mm depth. Weight: approximately 265 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7512-1DM03-0AB0?
It is a SIMATIC DP CPU 1512SP-1 PN central processing unit for ET 200SP.
2. How much work memory does the CPU have?
It has 400 kbyte of integrated work memory for the program and 2 Mbyte for data.
3. What PROFINET interface does it provide?
It provides 1 PROFINET interface with a 3-port switch: 1 integrated port and 2 ports via a BusAdapter.
4. What supply voltage does this CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What must be verified before ordering?
Verify that a SIMATIC Memory Card and the required BusAdapter are provided for the intended configuration; the SIMATIC Memory Card is required and the BusAdapter is required for ports 1 and 2.
