Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU1515SP PC2 F – IndOS |
| Control | S7-1500 Software Controller CPU 1505SP F |
| Main memory | 8 GB RAM |
| CFast flash memory | 128 GB |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| PROFINET interfaces | 1 |
| Industrial Ethernet interfaces | 2 |
| USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 |
| Maximum active power input | 43 W; incl. ET 200SP modules and using USB |
| Connectable IO Devices, max. | 128 |
Applications
- PROFINET IO control and device communication: Supports PROFINET IO Controller and PROFINET IO Device functions, with up to 128 connectable IO Devices.
- PROFIBUS DP communication: Supports PROFIBUS DP master and PROFIBUS DP device functions via the CM DP module, with up to 125 DP devices.
Key Features
- Open Controller type: CPU1515SP PC2 F – IndOS with preinstalled S7-1500 Software Controller CPU 1505SP F.
- Memory and storage: 8 GB DDR3L RAM, 128 GB CFast flash memory and 320 Mbyte integrated load memory.

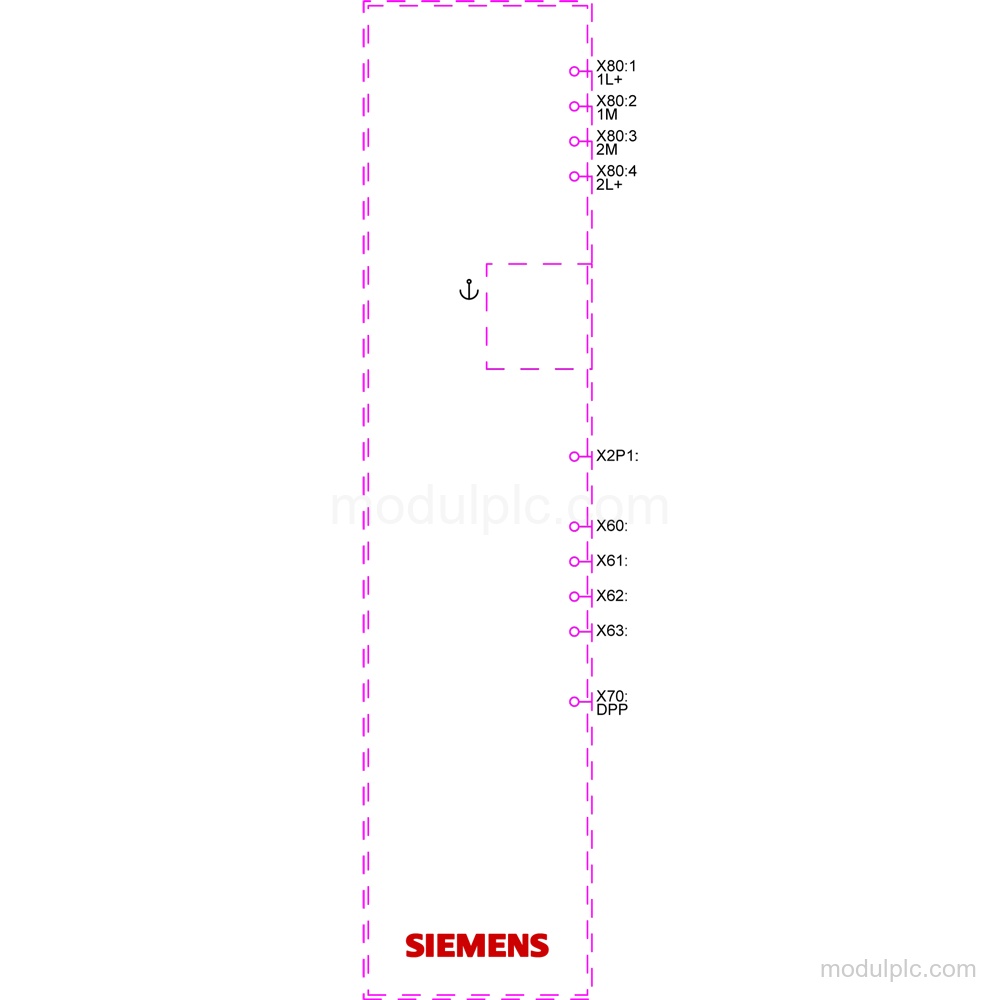

- Communication interfaces: 1 PROFINET interface, 2 industrial Ethernet interfaces, 1 PROFIBUS interface via CM DP module and 1 RS 485 interface via CM DP module.
- Front interfaces: 2 USB 3.0, 2 USB 2.0, 1 DisplayPort and 1 SD card slot.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Maximum active power input: 43 W, including ET 200SP modules and USB.
- PROFINET capacity: Up to 128 connectable IO Devices, including up to 64 IO Devices with IRT; PROFINET Security Class: 1.
Frequently Asked Questions
1. What is the function of 6ES7677-2SB43-0GB1?
It is a SIMATIC ET 200SP Open Controller with CPU1515SP PC2 F – IndOS and a preinstalled S7-1500 Software Controller CPU 1505SP F.
2. How much memory does the controller have?
It has 8 GB RAM, 128 GB CFast flash memory and 320 Mbyte integrated load memory.
3. Which communication interfaces are available?
It has 1 PROFINET interface, 2 industrial Ethernet interfaces, 1 PROFIBUS interface via CM DP module and 1 RS 485 interface via CM DP module.
4. What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
