Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU1515SP PC2 – IndOS |
| Processor | Intel Atom E3940, 1.6 GHz, 4 cores |
| Main memory | 8 GB RAM |
| CFast flash memory | 128 GB |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| PROFINET interfaces | 1 |
| Industrial Ethernet interfaces | 2 |
| USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 |
| Maximum Ethernet transmission rate | 1 000 Mbit/s |
| Maximum connectable IO Devices | 128 |
| Maximum active power input | 43 W; including ET 200SP modules and USB use |
Applications
- Controller operation: S7-1500 Software Controller CPU 1505SP is preinstalled for controller operation.
- PROFINET IO communication: The controller supports PROFINET IO Controller and PROFINET IO Device communication, including IRT and PROFIenergy.
- PROFIBUS DP communication: The controller supports PROFIBUS DP master and PROFIBUS DP device communication via CM DP.
- OPC UA data access: OPC UA Client and Server support data access, method calls and subscriptions.
Key Features
- Controller and memory: CPU1515SP PC2 – IndOS with Intel Atom E3940 processor, 1.6 GHz and 4 cores; 8 GB RAM, 128 GB CFast flash memory and 320 Mbyte integrated load memory.
- PROFINET interfaces: 1 PROFINET interface for ET 200SP BusAdapter; PROFINET IO Controller and PROFINET IO Device are supported, with up to 128 connectable IO Devices.
- Ethernet and PROFIBUS: 1 integrated Ethernet interface with 1 000 Mbit/s maximum transmission rate; PROFIBUS DP master and device are available via CM DP, with up to 125 DP devices.
- USB and display connections: 4 USB interfaces on the front side: 2x USB 2.0 and 2x USB 3.0; 1 DisplayPort interface.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Maximum current consumption: 2.9 A; maximum active power input: 43 W, including ET 200SP modules and USB use.
- Diagnostics and protocols: RUN/STOP, ERROR and MAINT LEDs, diagnostic buffer with up to 1 000 entries, OPC UA Client and Server, MODBUS TCP, PROFINET, PROFIBUS and Open IE communication.
Frequently Asked Questions
1. What is the product type of Siemens 6ES7677-2DB43-0GB1?
It has product type CPU1515SP PC2 – IndOS and is a SIMATIC ET 200SP Open Controller.
2. What supply voltage does 6ES7677-2DB43-0GB1 use?
Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Which interfaces are available on this controller?

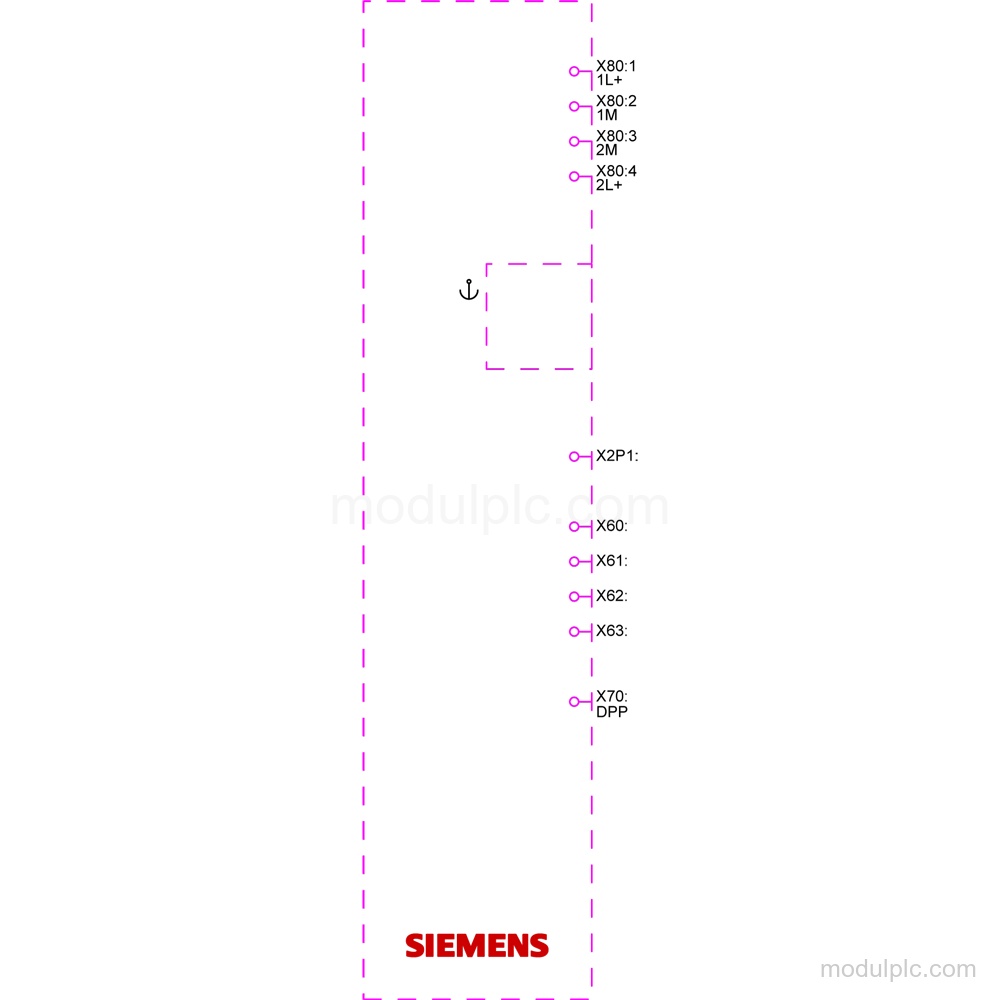

It has 1 PROFINET connection for an ET 200SP BusAdapter, 1 Ethernet interface up to 1 000 Mbit/s, 4 USB interfaces and 1 DisplayPort. PROFIBUS and RS 485 are available via CM DP.
