Product Overview
Technical Summary
| Parameter | Value |
|---|---|

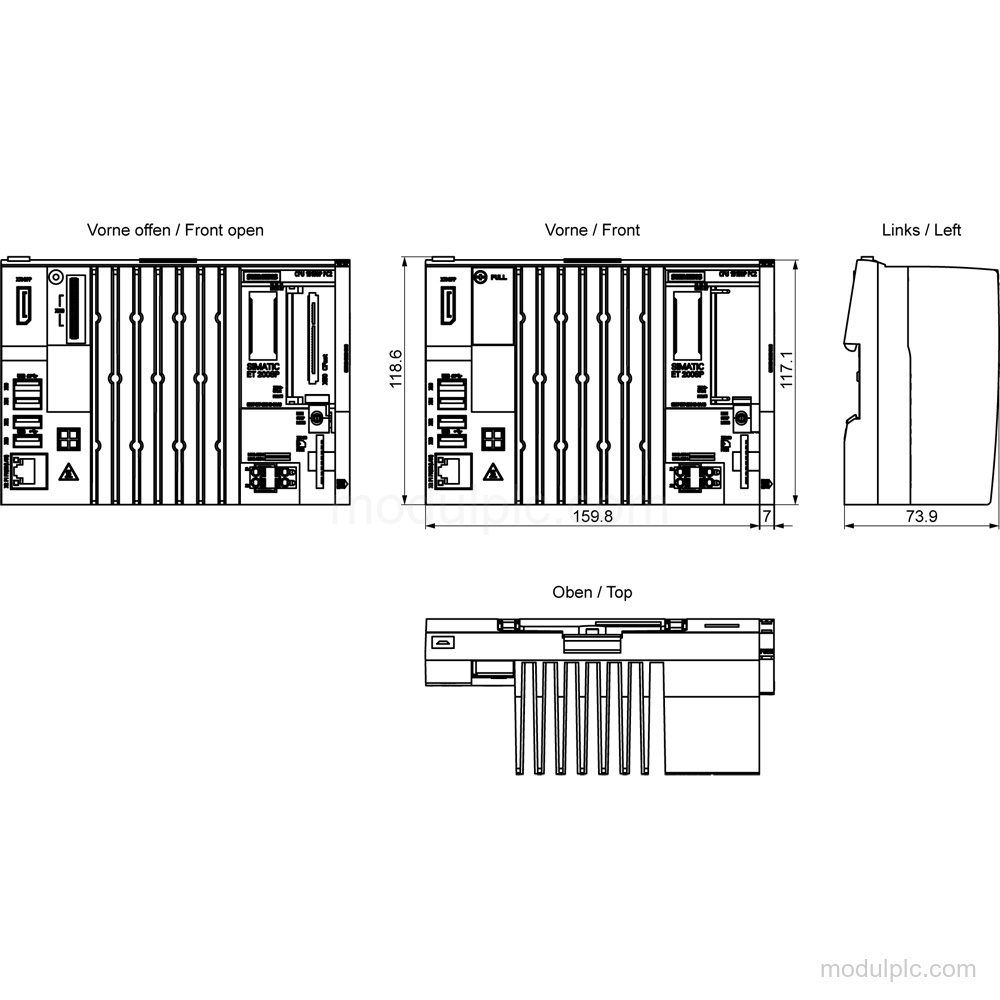

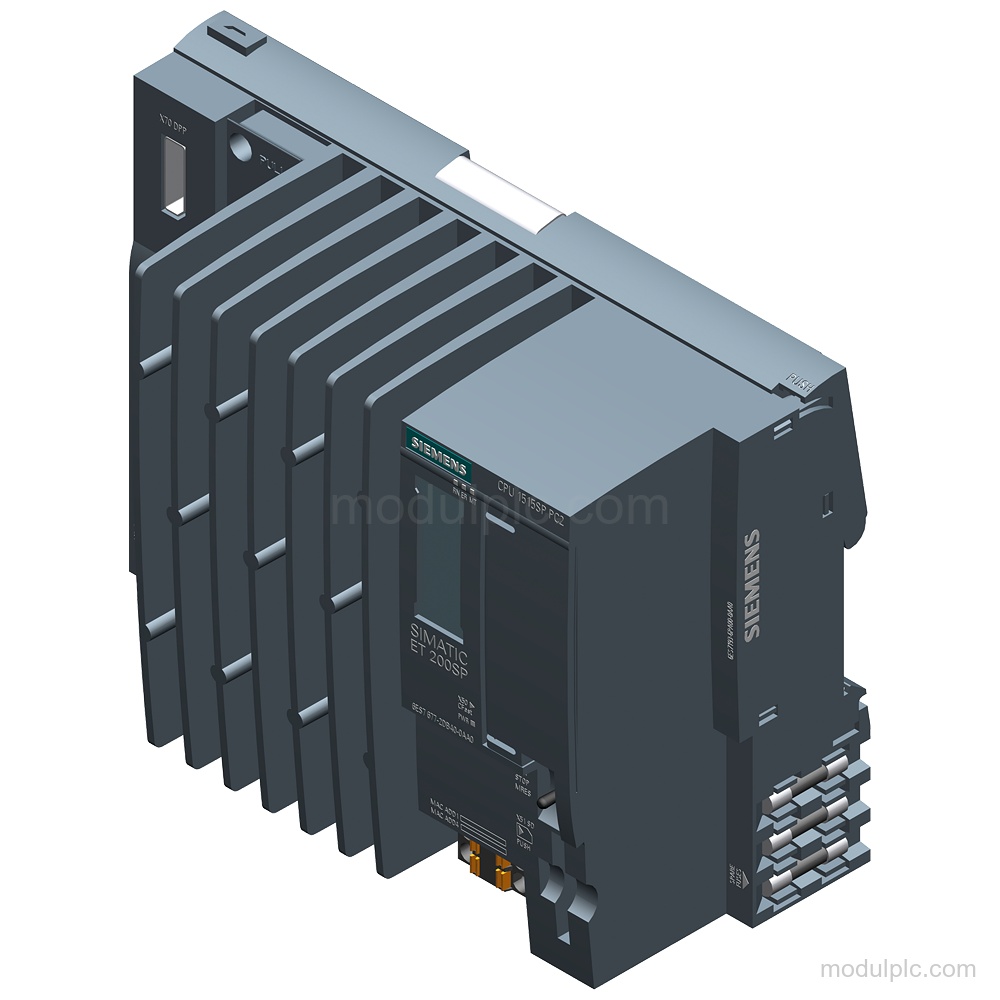

| Product type | SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible range |
| Memory | 8 GB RAM; 128 GB CFast flash memory |
| PROFINET interfaces | 1 |
| PROFIBUS interfaces | 1 |
| Industrial Ethernet interfaces | 2 |
| USB interfaces | 4; 2x USB 2.0 and 2x USB 3.0 |
| Maximum active power input | 43 W; including ET 200SP modules and USB use |
| PROFIBUS DP devices | 125 maximum |
| Connectable PROFINET IO Devices | 128 maximum |
| CFast slot | 1 |
| DisplayPort connections | 1 |
Applications
- Control program execution: Runs the S7-1500 Software Controller CPU 1505SP for control programs.
- HMI visualization: Provides visualization through the preinstalled WinCC Runtime Advanced V17 and HMI 512PT.
- PROFINET communication: Supports PROFINET IO Controller, PROFINET IO device and SIMATIC communication.
- PROFIBUS communication: Supports PROFIBUS DP master and PROFIBUS DP device communication.
Key Features
- Open Controller configuration: SIMATIC ET 200SP Open Controller with CPU 1515SP PC2, HMI 512PT, 8 GB RAM and 128 GB CFast flash memory.
- Preinstalled software: S7-1500 Software Controller CPU 1505SP V2x and WinCC Runtime Advanced V17 are preinstalled, with a 512 PowerTags license.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Maximum active power input: 43 W, including ET 200SP modules and USB use.
- PROFINET interfaces: 1 PROFINET interface and 2 industrial Ethernet interfaces are available. PROFINET supports up to 128 connectable IO Devices and up to 64 IO Devices with IRT.
- PROFIBUS interface: 1 PROFIBUS interface with CM DP supports PROFIBUS DP master and device functions, with up to 125 DP devices.

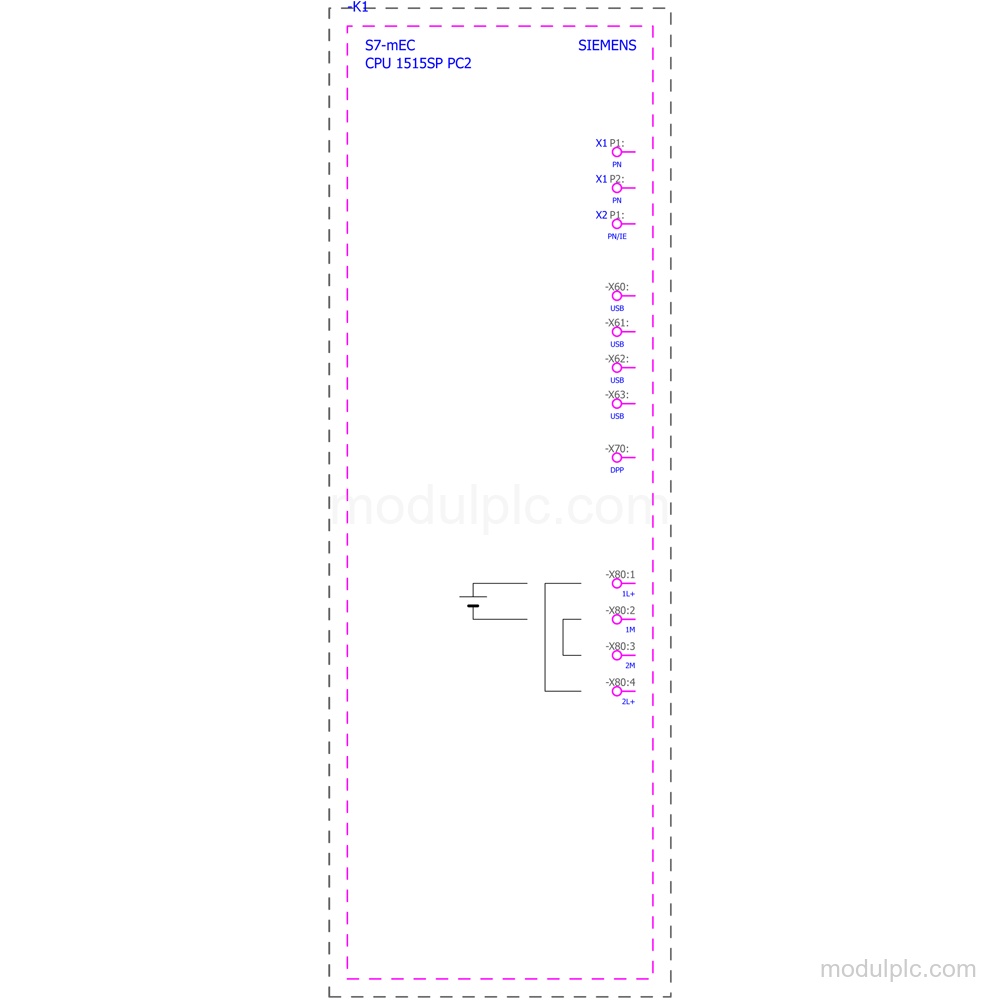

- Connections and storage slots: Connections include 2 USB 3.0, 2 USB 2.0, 1 DisplayPort, 1 SD card slot and 1 CFast slot. The RJ45 Ethernet interface has 1 000 Mbit/s maximum transmission rate.
Frequently Asked Questions
1. What controller configuration does Siemens 6ES7677-2DB42-0GL0 have?
It has a SIMATIC ET 200SP Open Controller with CPU 1515SP PC2, HMI 512PT, 8 GB RAM and 128 GB CFast flash memory.
2. What supply voltage does the controller require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Which communication interfaces are available?
It has 1 PROFINET interface, 1 PROFIBUS interface with CM DP, 2 industrial Ethernet interfaces and 4 USB interfaces.
4. Which software is preinstalled?
S7-1500 Software Controller CPU 1505SP V2x and WinCC Runtime Advanced V17 are preinstalled, with a 512 PowerTags license.
