Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP CPU 1514SP T-2 PN central processing unit |
| System context | ET 200SP |
| Program work memory | 900 KB |
| Data work memory | 3.5 MB |
| 1st interface | PROFINET IRT with 2-port switch |
| 2nd interface | PROFINET RT, 6 ns bit performance |
| Included component | Server module 6ES7193-6PA00-0AA0 |
| Required components | SIMATIC Memory Card; BusAdapter for the 1st interface |
| Product lifecycle | Active Product |
Key Features
- Central processing unit: SIMATIC DP CPU 1514SP T-2 PN for ET 200SP.
- Work memory: 900 KB for the program and 3.5 MB for data.
- PROFINET interfaces: 1st interface: PROFINET IRT with 2-port switch; 2nd interface: PROFINET RT with 6 ns bit performance.
- Included and required components: Includes server module 6ES7193-6PA00-0AA0. SIMATIC Memory Card required; BusAdapter required for the 1st interface.
- Product status and weight: Active Product; net weight: 0.339 kg.

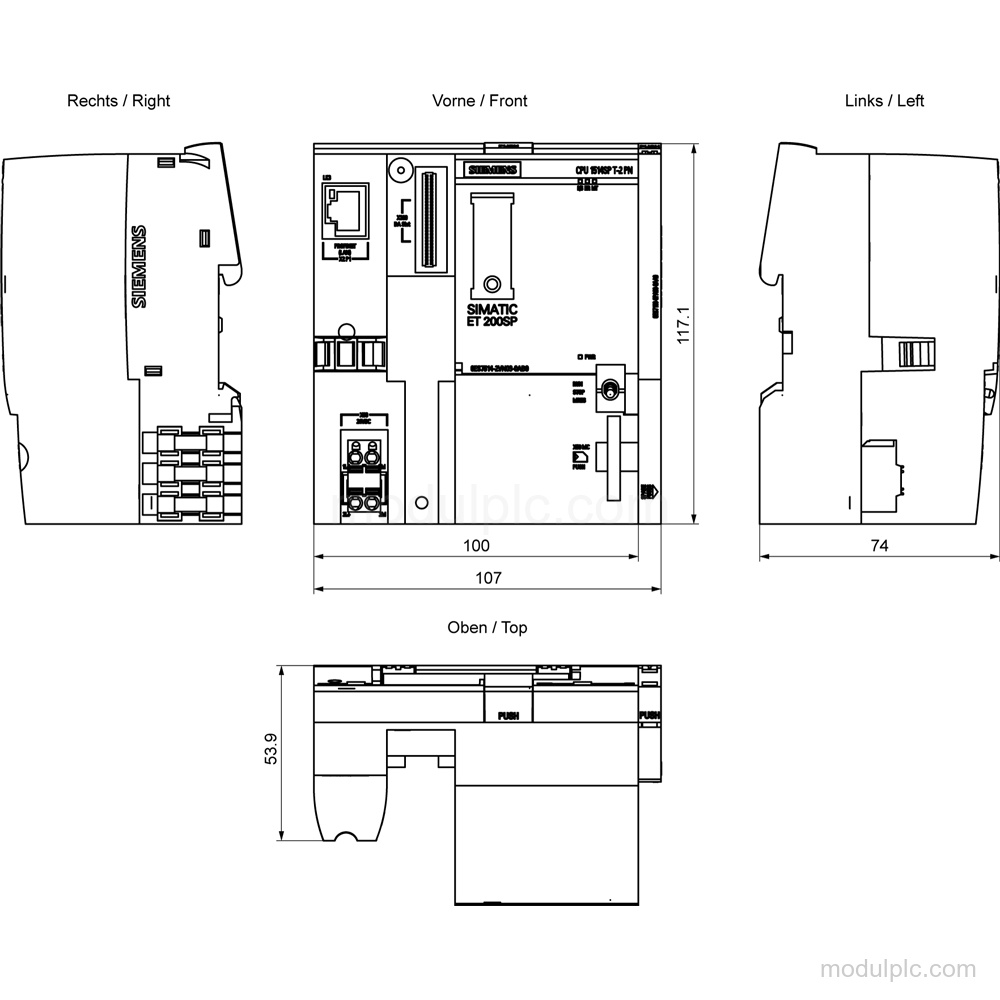

- Packaging dimensions: 13.50 x 13.30 x 8.20 cm (L x W x H).
Frequently Asked Questions
1. What is the function of the Siemens 6ES7514-2VN03-0AB0?
It is a SIMATIC DP CPU 1514SP T-2 PN central processing unit for ET 200SP.
2. How much work memory does the CPU 1514SP T-2 PN have?
It has 900 KB for the program and 3.5 MB for data.
3. Which PROFINET interfaces are provided?
The 1st interface is PROFINET IRT with a 2-port switch, and the 2nd interface is PROFINET RT with 6 ns bit performance.
4. What is included and what is required for this configuration?
The server module 6ES7193-6PA00-0AA0 is included. A SIMATIC Memory Card and a BusAdapter for the 1st interface are required.
