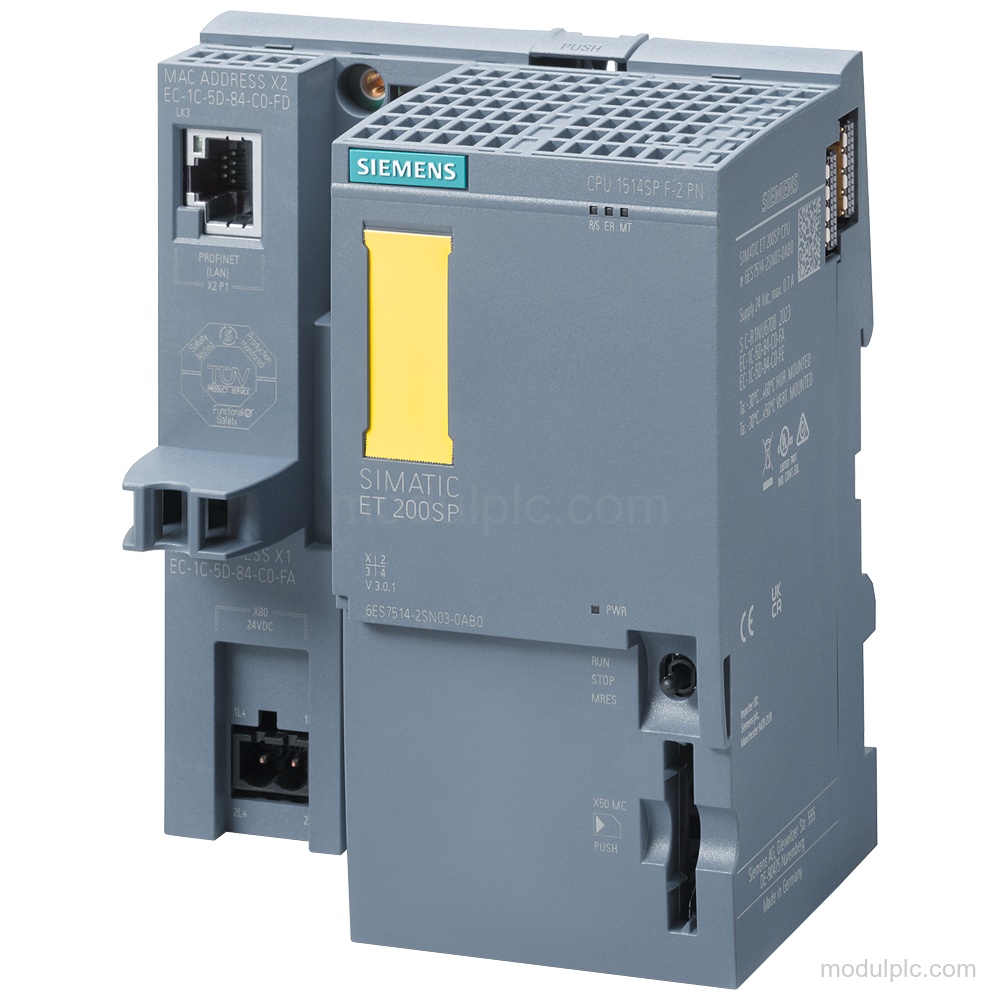

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1514SP F-2 PN |
| Application context | SIMATIC DP for ET 200SP |
| Program memory, integrated | 900 kbyte |
| Data memory, integrated | 3.5 Mbyte |
| PROFINET interfaces | 2 |
| 1st interface | PROFINET IRT with 2-port integrated switch |
| 2nd interface | PROFINET RT |
| Bit operation processing time, typ. | 6 ns |
| Rated supply voltage (DC) | 24 V |
| Rated current consumption | 0.48 A |
Applications
- Central processing: The CPU performs central processing for the ET 200SP system.
- PROFINET control and device communication: The CPU supports PROFINET IO Controller and PROFINET IO Device functions, including PROFINET IRT and RT services.
- PROFIBUS DP communication: The CPU supports PROFIBUS DP master and PROFIBUS DP device functions via a CM DP module.
- Motion control: The CPU supports Motion Control technology objects, including speed-controlled, positioning, synchronous and external encoder resources.
Key Features
- CPU and memory: CPU 1514SP F-2 PN has 900 kbyte integrated memory for programs and 3.5 Mbyte for data. A SIMATIC Memory Card is required; plug-in load memory supports up to 32 Gbyte.

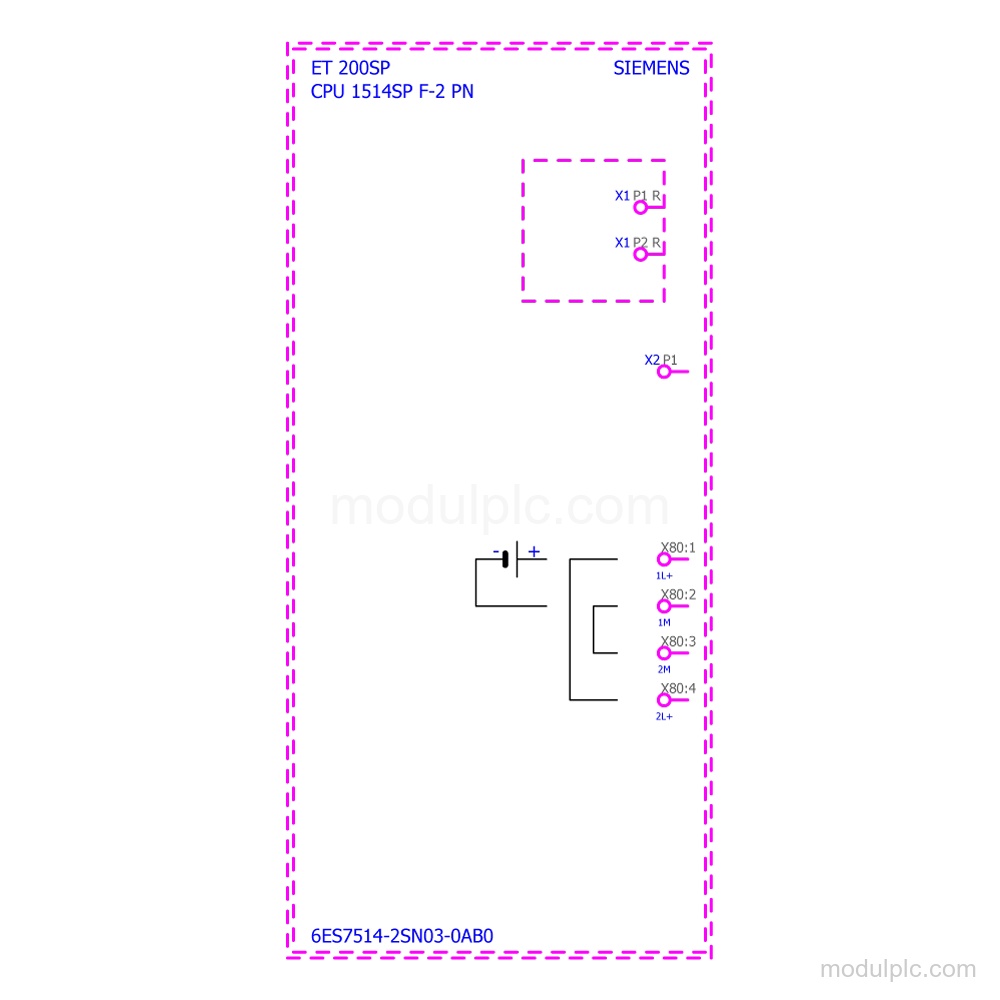

- PROFINET interfaces: The CPU has 2 PROFINET interfaces: the 1st interface provides PROFINET IRT with a 2-port integrated switch, and the 2nd provides PROFINET RT.
- Processing performance: Bit operations have a typical processing time of 6 ns; word operations are 7 ns, fixed-point arithmetic is 9 ns, and floating-point arithmetic is 37 ns.
- Supply and current: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection. Rated current consumption is 0.48 A; maximum current consumption is 0.7 A.

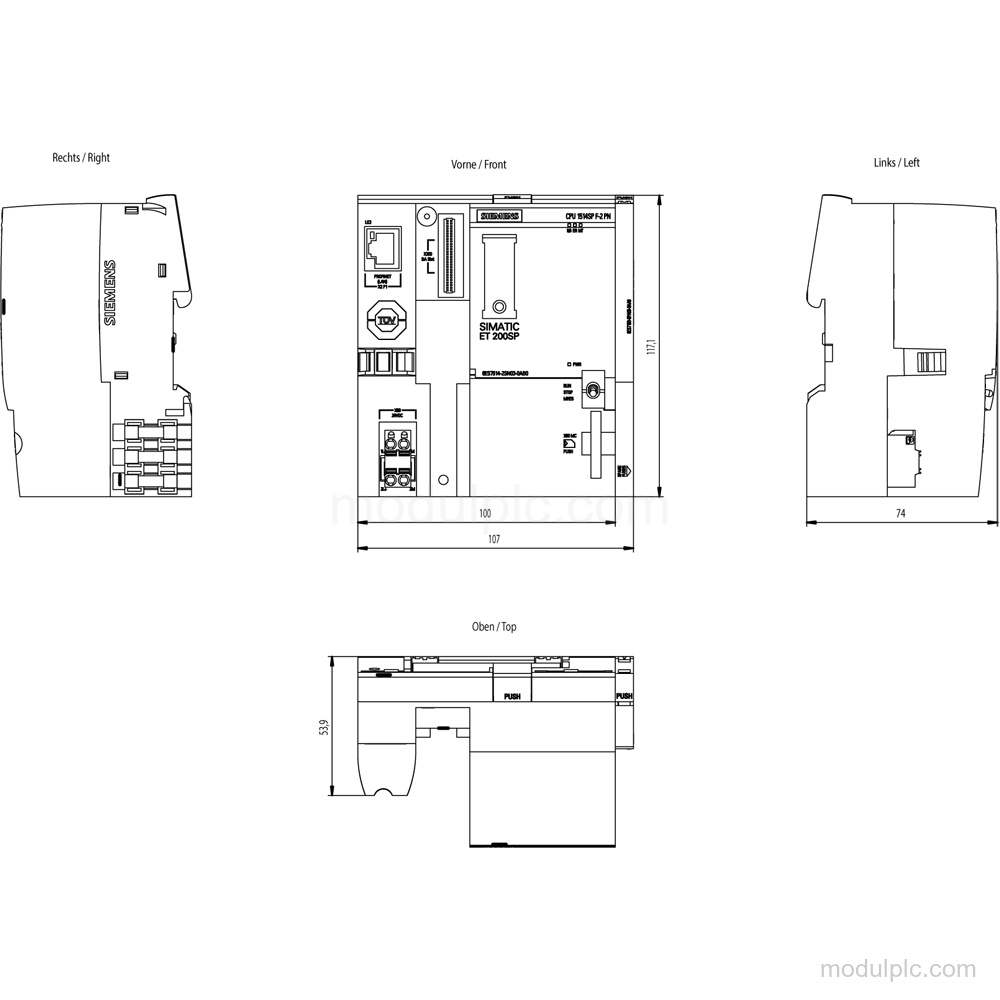

- Installation and included component: The unit includes server module 6ES7193-6PA00-0AA0. A BusAdapter is required for the 1st interface, and the CPU has 1 mode selector switch.
Frequently Asked Questions
1. What processing and memory specifications does 6ES7514-2SN03-0AB0 have?
It has 900 kbyte integrated program memory, 3.5 Mbyte integrated data memory, and typical bit operation processing time of 6 ns.
2. How many PROFINET interfaces does the CPU have?
It has 2 PROFINET interfaces. The 1st interface supports PROFINET IRT with a 2-port integrated switch; the 2nd supports PROFINET RT.
3. What supply voltage does the CPU require?
Rated supply is 24 V DC. The permissible range is 19.2 V to 28.8 V DC, with reverse polarity protection.
4. Is a memory card or BusAdapter included or required?
A SIMATIC Memory Card is required, and a BusAdapter is required for the 1st interface. The server module 6ES7193-6PA00-0AA0 is included.
5. What should be checked for mounting and connection?
Check the required BusAdapter for the 1st interface and the available position for the included server module. The CPU has 1 mode selector switch.
