Product Overview
Technical Summary
| Parameter | Value |
|---|---|

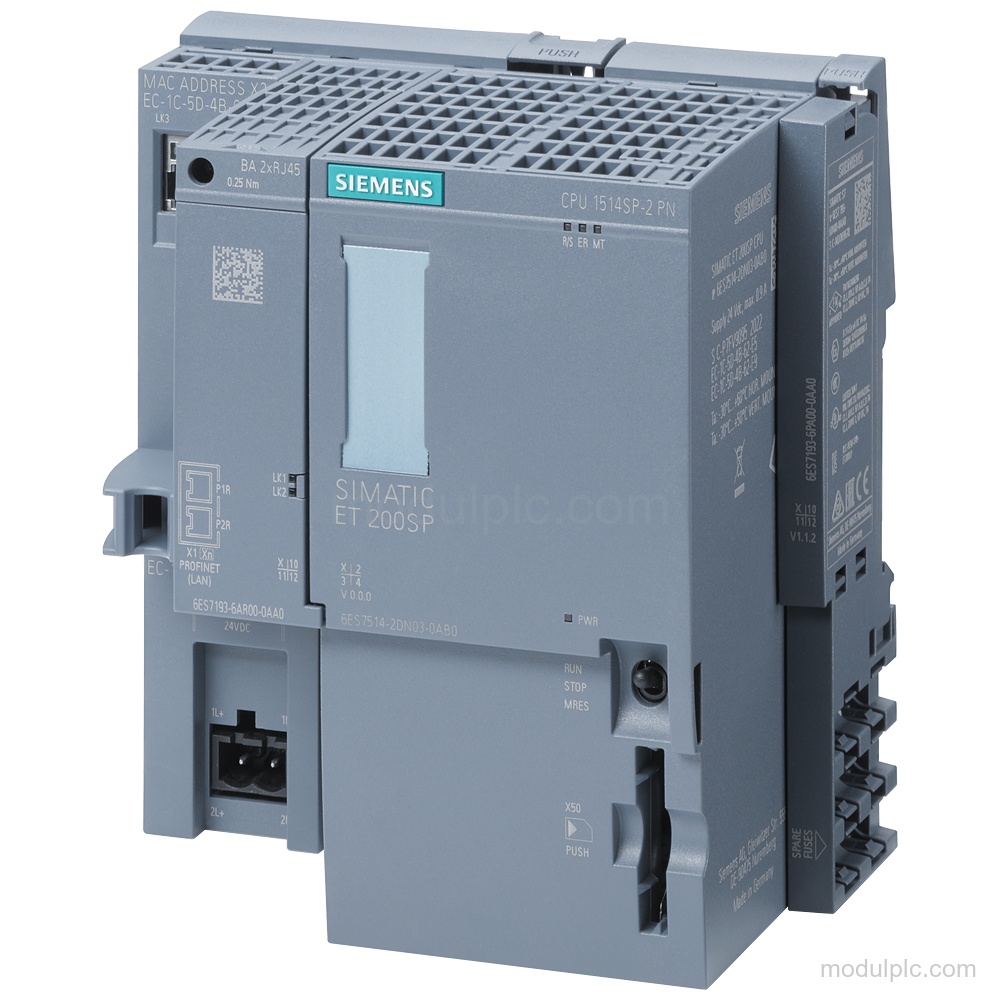

| Product type | CPU 1514SP-2 PN |
| Program work memory | 600 kbyte |
| Data work memory | 3.5 Mbyte |
| PROFINET interfaces | 2 |
| PROFIBUS interface | 1; Via CM DP module |
| Bit operation performance | 6 ns |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Load memory | Plug-in SIMATIC Memory Card, max. 32 Gbyte |
| SIMATIC Memory Card | Required |
Applications
- PROFINET I/O communication: Supports PROFINET IO Controller and PROFINET IO Device functions, with up to 256 connectable IO Devices for the 1st interface and up to 32 for the 2nd interface.
- PROFIBUS DP communication: Provides PROFIBUS DP master and device functions via a CM DP module, with up to 125 DP devices.
- OPC UA data exchange: Supports OPC UA Client and Server functions, including data access, method calls, alarms and conditions, and role-based access control.
Key Features
- CPU and memory: CPU 1514SP-2 PN with 600 kbyte integrated work memory for the program, 3.5 Mbyte for data, and plug-in SIMATIC Memory Card load memory up to 32 Gbyte.

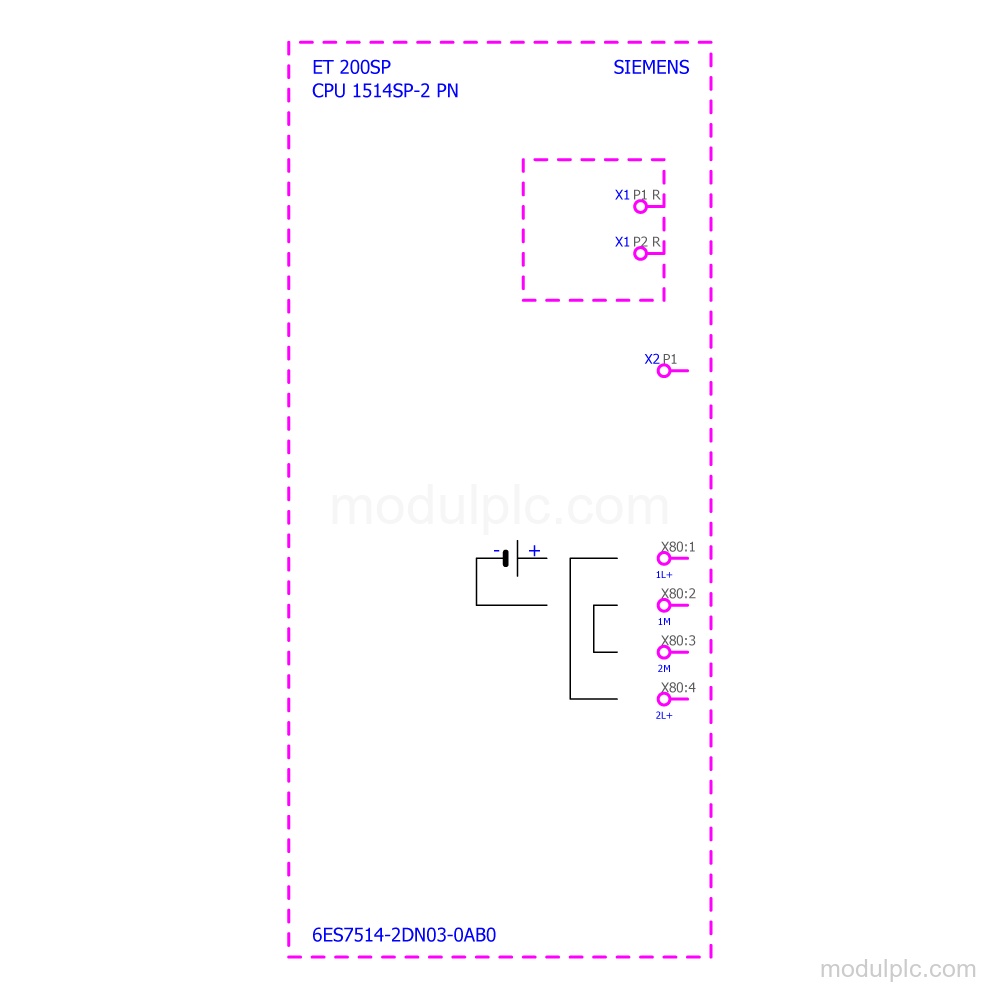

- PROFINET interfaces: 2 PROFINET interfaces: the 1st interface provides PROFINET IRT with a 2-port switch; the 2nd provides PROFINET RT with 1 port.
- PROFIBUS communication: 1 PROFIBUS interface is available via a CM DP module, with PROFIBUS DP master and device functions and a maximum transmission rate of 12 Mbit/s.
- Supply and processing: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC. Typical bit operation performance is 6 ns.

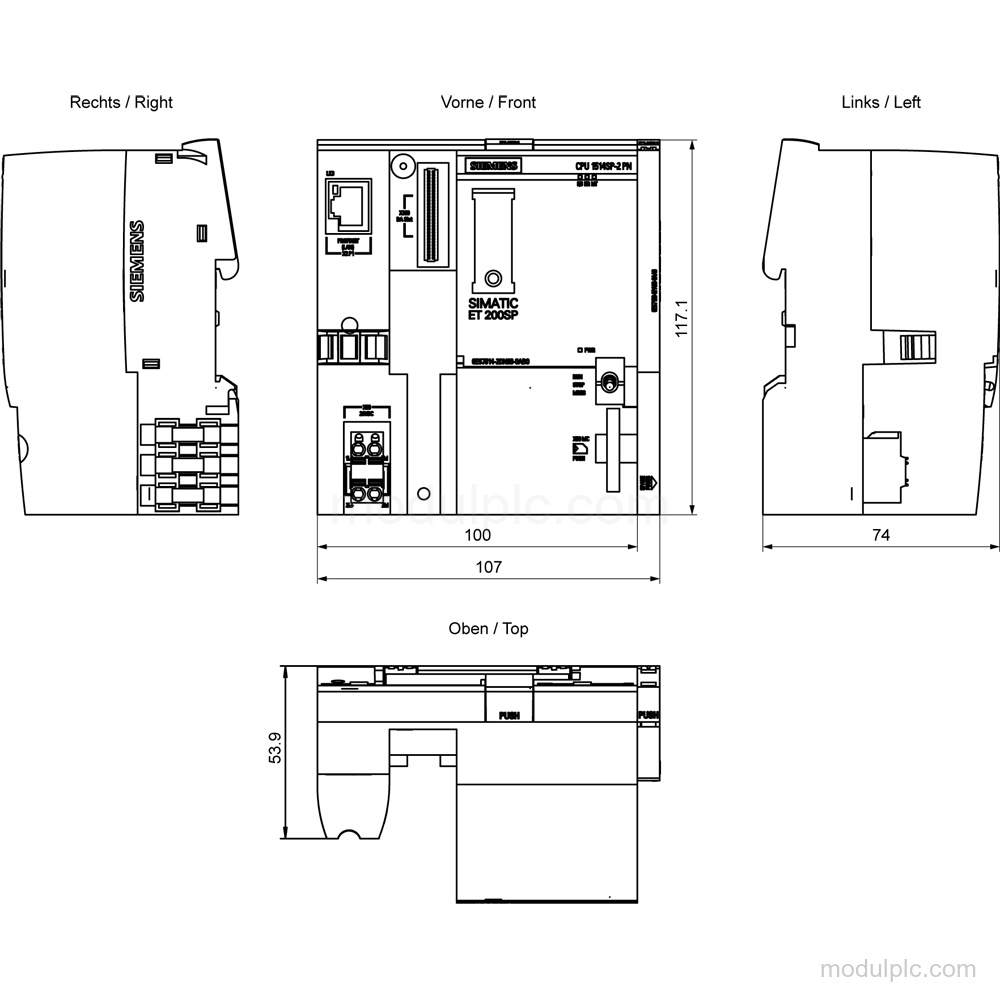

- Installation requirements: A SIMATIC Memory Card is required. A BusAdapter is required for the 1st interface; compatible options include BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x SCRJ, BA SCRJ/RJ45, and BA SCRJ/FC.
Frequently Asked Questions
1. What CPU type is Siemens 6ES7514-2DN03-0AB0?
It is a SIMATIC DP CPU 1514SP-2 PN for ET 200SP.
2. How much work memory does the CPU have?
It has 600 kbyte of integrated work memory for the program and 3.5 Mbyte for data.
3. Which PROFINET interfaces are provided?
It has 2 PROFINET interfaces: the 1st supports PROFINET IRT with a 2-port switch, and the 2nd supports PROFINET RT with 1 port.
4. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
5. What must be verified before ordering?
Verify that a SIMATIC Memory Card is available and that a BusAdapter is selected for the 1st interface.
