Product Overview
Technical Summary
| Parameter | Value |
|---|---|

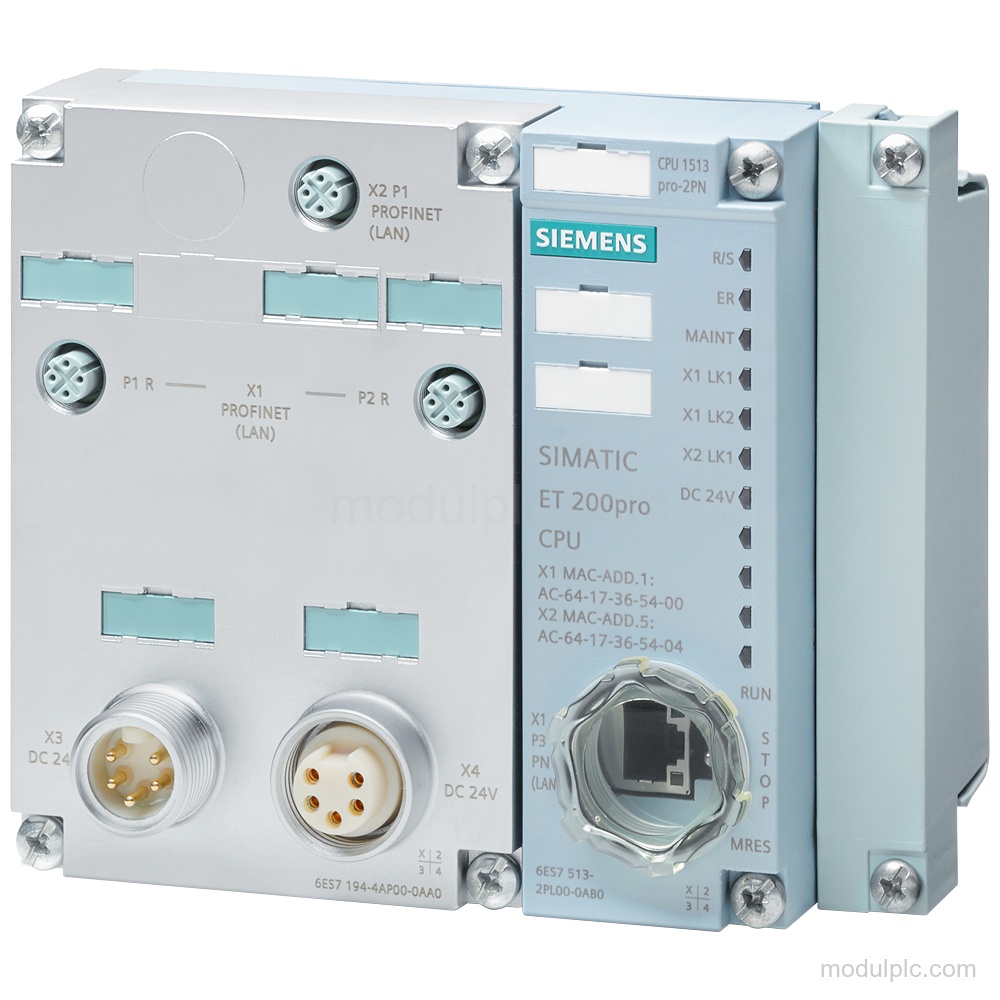

| Module type | CPU 1513pro-2 PN |
| Program work memory | 600 kbyte |
| Data work memory | 2.5 Mbyte |
| PROFINET interfaces | 2 |
| Bit performance | 6 ns |
| Rated supply voltage | 24 V DC |
| Protection rating | IP65/67 |
| Required components | SIMATIC Memory Card; connection module |
Applications
- Program processing: The CPU processes user programs with integrated work memory for program and data.
- PROFINET communication: The CPU supports PROFINET IO Controller, PROFINET IO Device, PROFINET IRT, PROFINET RT and SIMATIC communication.
- Motion control: The CPU supports Motion Control technology objects, including speed-controlled, positioning and synchronous axes.
Key Features
- Central processing unit: CPU 1513pro-2 PN for ET 200pro with 6 ns bit performance.
- Work memory: Integrated work memory provides 600 kbyte for the program and 2.5 Mbyte for data.
- PROFINET interfaces: 2 PROFINET interfaces are provided; the 1st interface has a 3-port switch and PROFINET IRT, while the 2nd supports PROFINET RT.
- Electrical supply: Rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V DC.

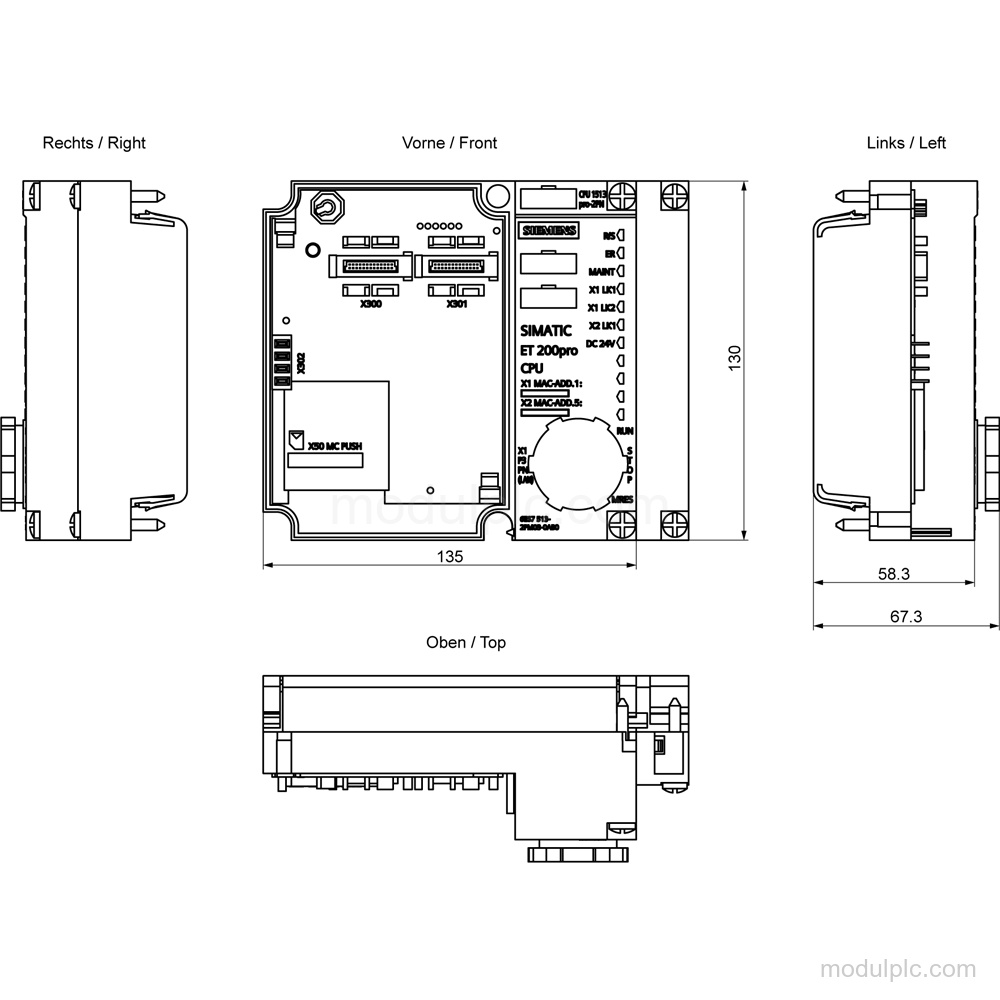

- Protection and installation: Degree of protection is IP65/67. Dimensions are 135 mm wide, 130 mm high and 65 mm deep without connection module M12 7/8 inch.
- Required components: A SIMATIC Memory Card and a connection module are required.
Frequently Asked Questions
1. What is the function of Siemens 6ES7513-2PM03-0AB0?
It is a SIMATIC DP CPU 1513pro-2 PN central processing unit for ET 200pro.
2. How much work memory does the CPU have?
It has 600 kbyte of integrated work memory for the program and 2.5 Mbyte for data.
3. Which PROFINET interfaces are available?
It has 2 PROFINET interfaces: the 1st interface supports PROFINET IRT with a 3-port switch, and the 2nd supports PROFINET RT.
4. What is required for the configuration?
A SIMATIC Memory Card and a connection module are required.
