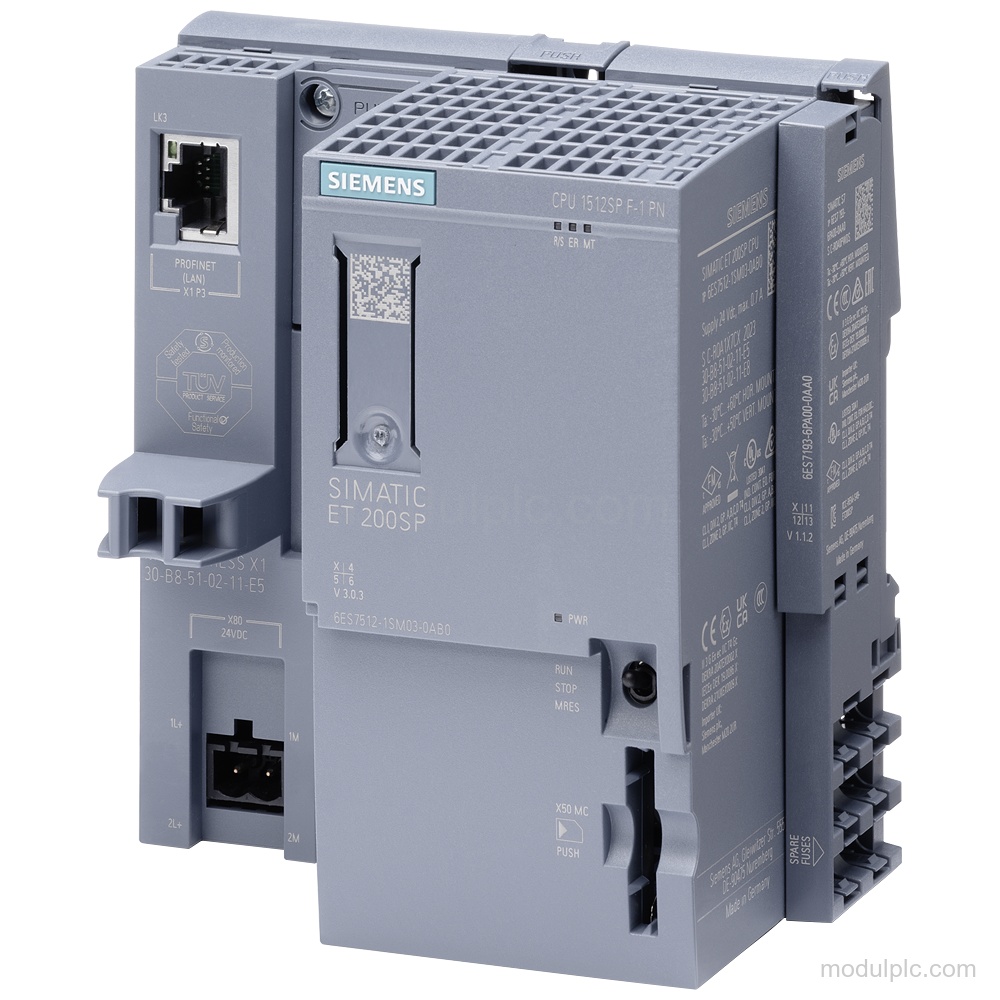

Product Overview

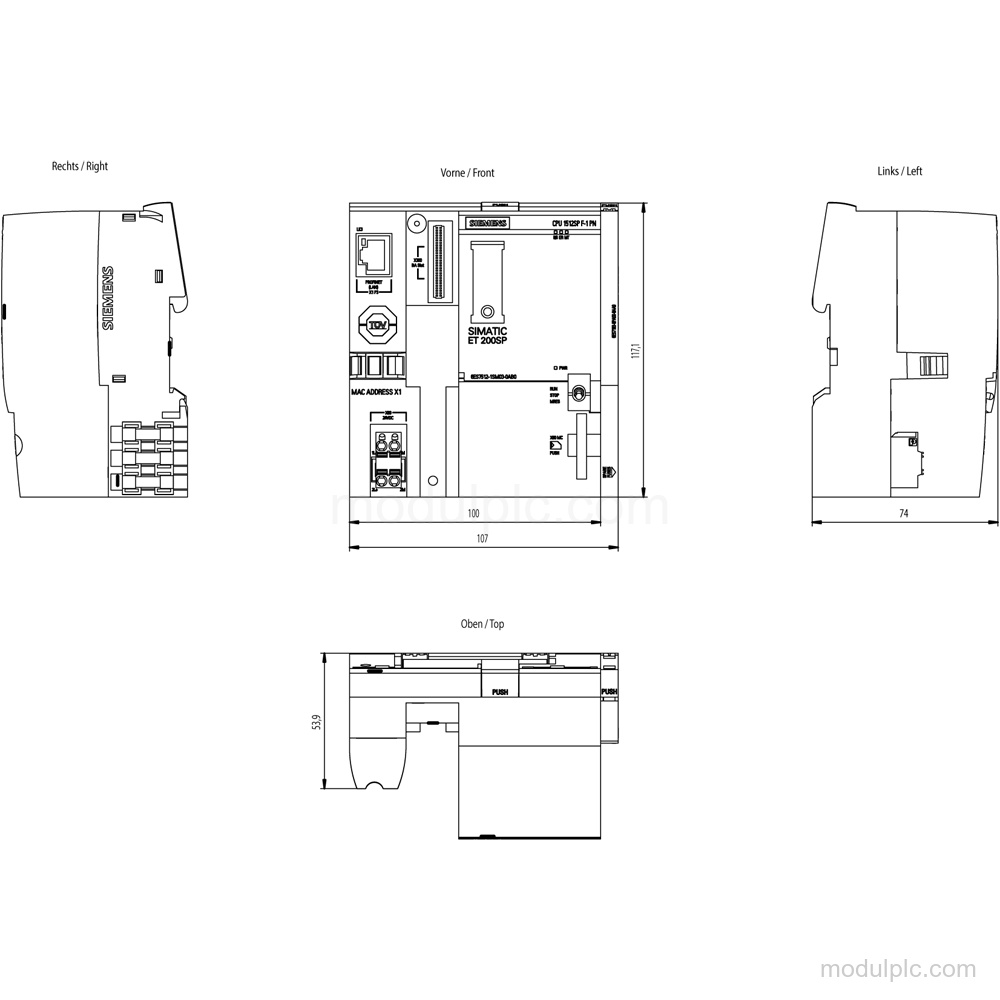

Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP F-1 PN |
| System context | SIMATIC DP for ET 200SP |
| Program work memory | 600 kbyte |
| Data work memory | 2 Mbyte |
| PROFINET interface | 1; PROFINET IRT with integrated 3-port switch |
| Bit operation time | 6 ns, typ. |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| SIMATIC memory card slot | 1; SIMATIC Memory Card required |
Applications
- PROFINET communication: Communicates as a PROFINET IO Controller and PROFINET IO device, with PROFINET IRT, RT and direct data exchange support.
- PROFIBUS DP communication: Communicates as a PROFIBUS DP master and PROFIBUS DP device via a CM DP module.
- Program execution and diagnostics: Executes user programs and provides diagnostic buffer entries, traces, status/control variables and forcing without fail-safe.
Key Features
- CPU for ET 200SP: SIMATIC DP CPU 1512SP F-1 PN with 600 kbyte integrated work memory for programs and 2 Mbyte for data.

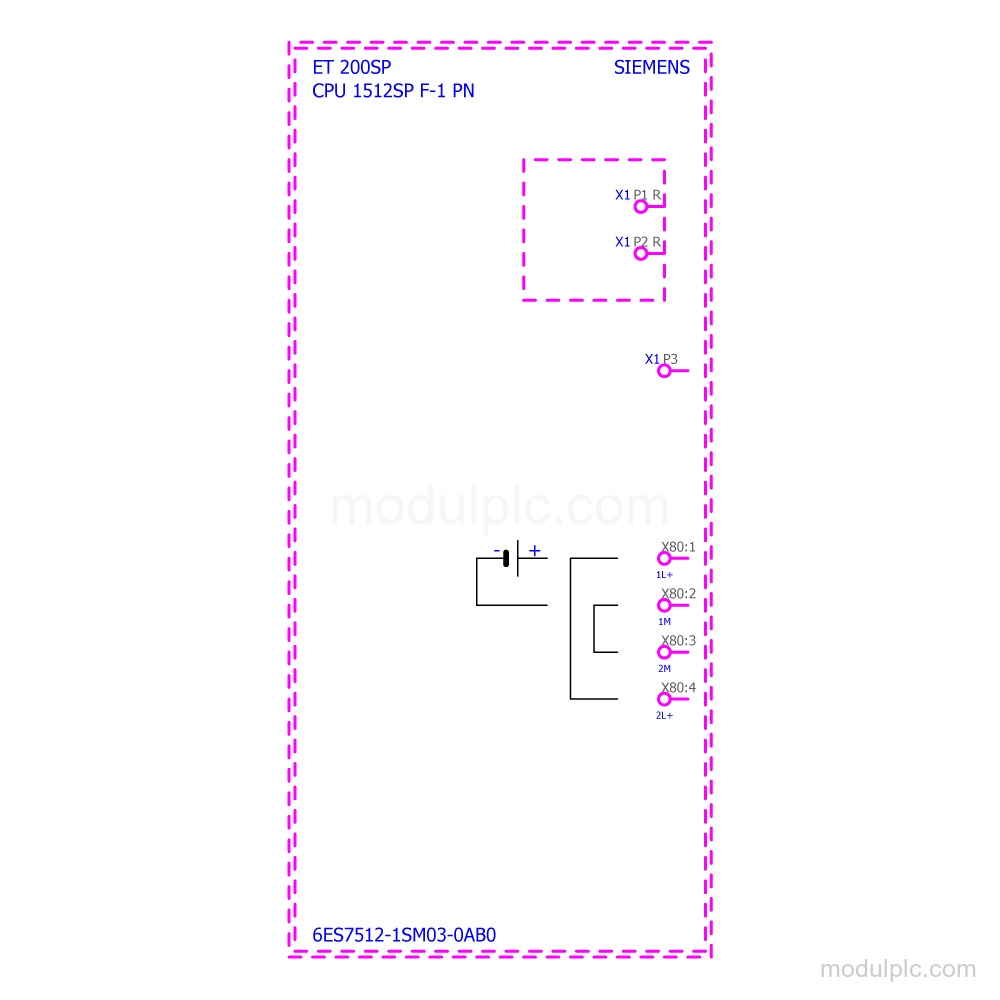

- PROFINET IRT interface: 1 PROFINET interface with an integrated 3-port switch; port 1 and port 2 require a BusAdapter.
- Processing performance: Bit operations have a typical processing time of 6 ns.
- Power supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
- Memory card and server module: 1 SIMATIC memory card slot is available; a SIMATIC Memory Card and the included server module are required.
- Fail-safe and diagnostic functions: The CPU supports PROFIsafe V2.4 / V2.6, a diagnostic buffer with up to 1 000 entries, and RUN/STOP, ERROR, MAINT and PWR LEDs.
Frequently Asked Questions
1. What type of CPU is Siemens 6ES7512-1SM03-0AB0?
It is a SIMATIC DP CPU 1512SP F-1 PN for ET 200SP.
2. What PROFINET interface does this CPU have?
It has 1 PROFINET IRT interface with an integrated 3-port switch. Port 1 and port 2 require a BusAdapter.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Is a memory card required?
Yes. A SIMATIC Memory Card is required, and the CPU has 1 SIMATIC memory card slot.
5. What is included and what is required for the configuration?
The server module 6ES7193-6PA00-0AA0 is included. A SIMATIC Memory Card and BusAdapter for port 1 and port 2 are required.
