Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP F-1 PN |
| Program memory | 300 kbyte |
| Data memory | 1 Mbyte |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current consumption | 0.6 A rated; 0.9 A maximum |
| SIMATIC Memory Card | Required; load memory up to 32 Gbyte |
| PROFIBUS DP master | Yes; via CM DP module |
| Motion Control resources | 800 |
Applications
- PROFINET I/O communication: The CPU supports PROFINET IO Controller and IO Device functions, including IRT and direct data exchange.
- PROFIBUS DP communication: The CPU supports PROFIBUS DP master and device functions via a CM DP module, including activation and deactivation of DP devices.
- Motion Control: The CPU supports Motion Control technology objects and provides 800 available Motion Control resources.
Key Features

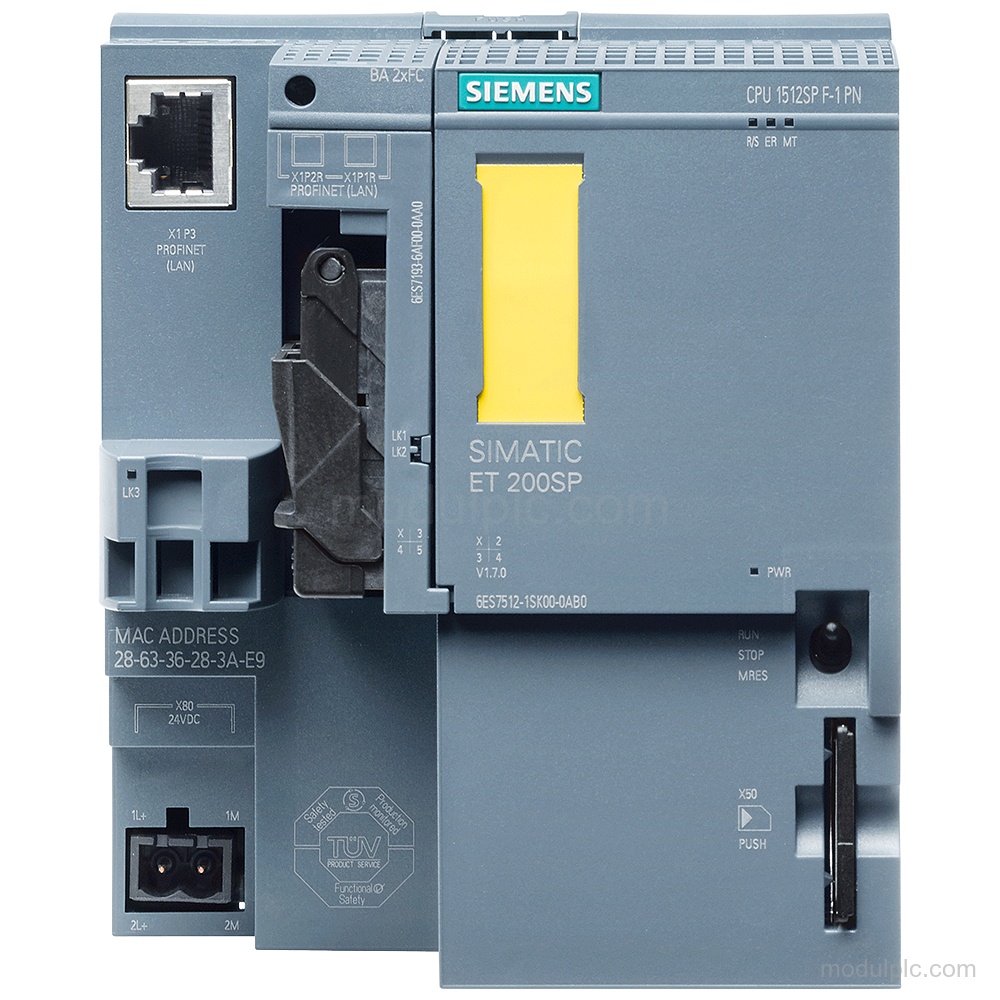

- CPU for ET 200SP: CPU 1512SP F-1 PN central processing unit for ET 200SP, with FS05 hardware functional status.
- PROFINET IRT interface: 1 PROFINET interface with a 3-port switch; 1 integrated port and 2 additional ports via BusAdapter.
- Memory: 300 kbyte integrated program memory, 1 Mbyte integrated data memory, and plug-in SIMATIC Memory Card load memory up to 32 Gbyte; SIMATIC Memory Card required.
- Supply and consumption: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Current consumption is 0.6 A rated and 0.9 A maximum.
- Communication protocols: Supports PROFINET IO Controller and IO Device, PROFIBUS DP master and device via CM DP module, SIMATIC communication, Open IE communication, and MODBUS TCP.
- Diagnostics and safety: Includes diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR, MAINT and PWR LEDs, and safety performance level PLe with SIL 3.
Frequently Asked Questions
1. What is the function of Siemens 6ES7512-1SK01-0AB0?
It is a CPU 1512SP F-1 PN central processing unit for ET 200SP.
2. How many PROFINET ports does this CPU have?
It has 3 ports: 1 integrated port and 2 additional ports via BusAdapter.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Is a SIMATIC Memory Card included with the CPU?
The SIMATIC Memory Card is required; the source does not state that it is included.
5. What should be checked before requesting a quote?
Check the required BusAdapter, SIMATIC Memory Card, interfaces, memory, supply voltage and exact 6ES7512-1SK01-0AB0 configuration.
