Product Overview
Technical Summary
| Parameter | Value |
|---|---|

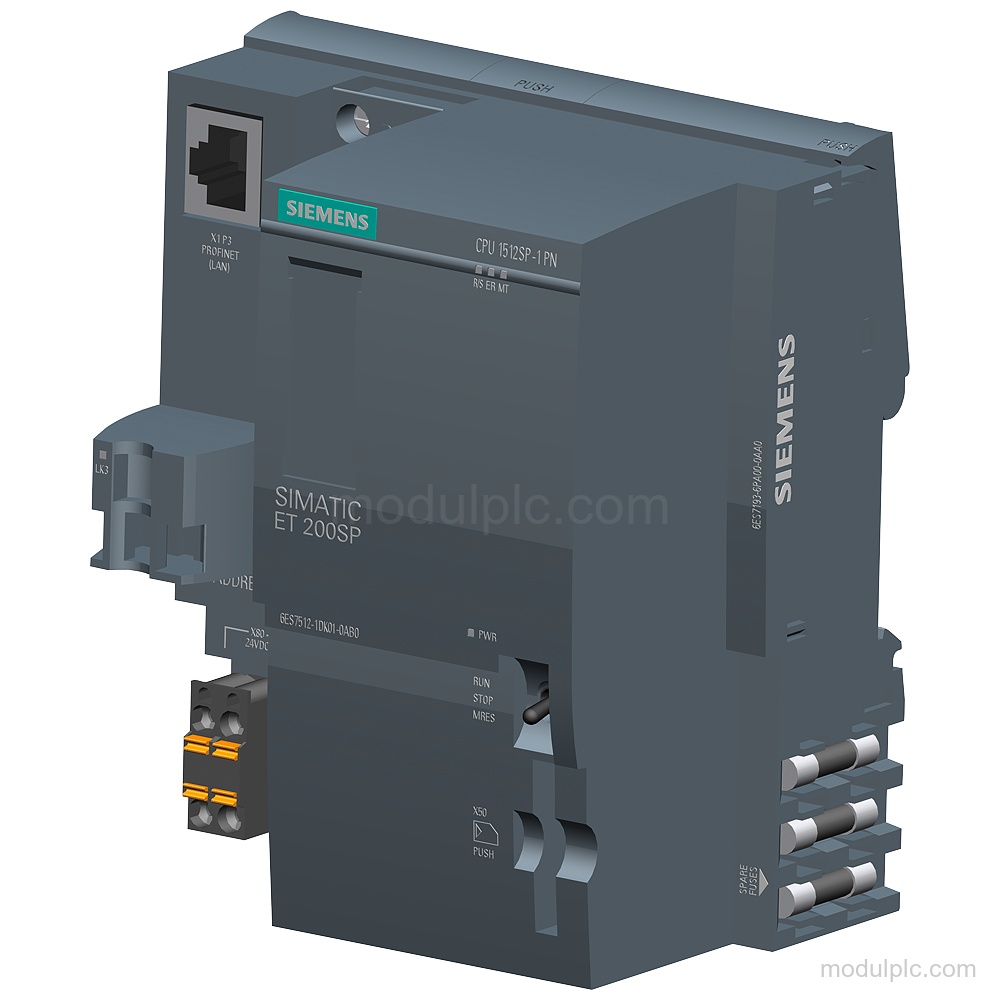

| Product type | CPU 1512SP-1 PN |
| System context | ET 200SP |
| Program work memory | 200 kbyte |
| Data work memory | 1 Mbyte |
| Rated supply voltage | 24 V DC |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| PROFINET IO Devices, max. | 128 |
| PROFIBUS DP connections, max. | 48; 4 each reserved for ES and HMI |
| Diagnostic buffer entries, max. | 1 000 |
Applications
- PROFINET communication: The CPU supports PROFINET IO Controller and IO Device functions, including IRT, RT, direct data exchange and prioritized startup.
- PROFIBUS DP communication: The CPU supports PROFIBUS DP master and device functions via a CM DP module.
- Motion Control: The CPU supports Motion Control technology objects, positioning axes, speed-controlled axes, synchronous axes, external encoders, output cams and cam tracks.
- Closed-loop control and counting: The CPU supports PID_Compact, PID_3Step, PID-Temp and high-speed counter functions.
Key Features

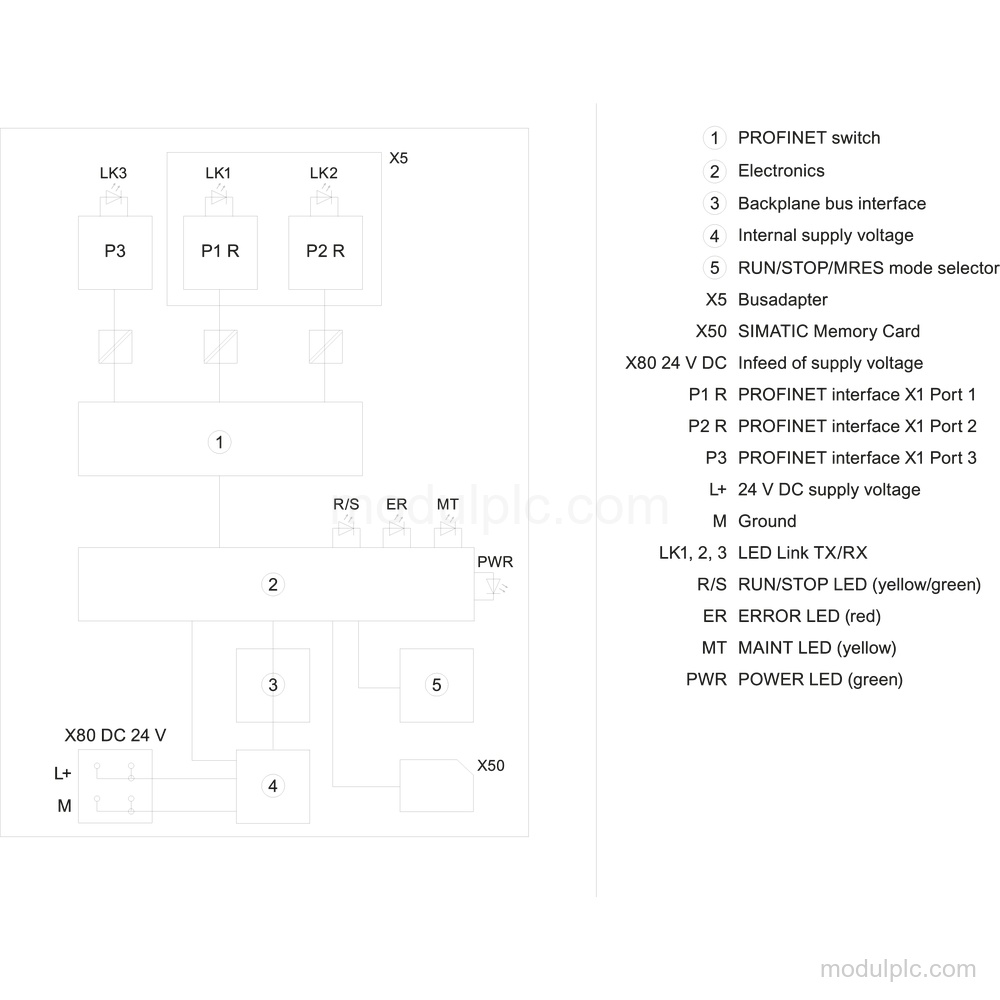

- PROFINET IRT interface: The first interface provides PROFINET IRT with an integrated 3-port switch and 48 ns bit performance.
- Memory and storage: Integrated work memory is 200 kbyte for the program and 1 Mbyte for data. A SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.
- Supply voltage: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
- Communication protocols: The CPU supports PROFINET IO Controller and IO Device, PROFIBUS DP master and device via CM DP module, SIMATIC communication, OPC UA, MODBUS TCP, and Open IE communication.
- Diagnostics and commissioning: Features include a diagnostic buffer with up to 1 000 entries, 4 configurable traces, RUN/STOP, ERROR, MAINT and PWR LEDs, and Motion Control support.

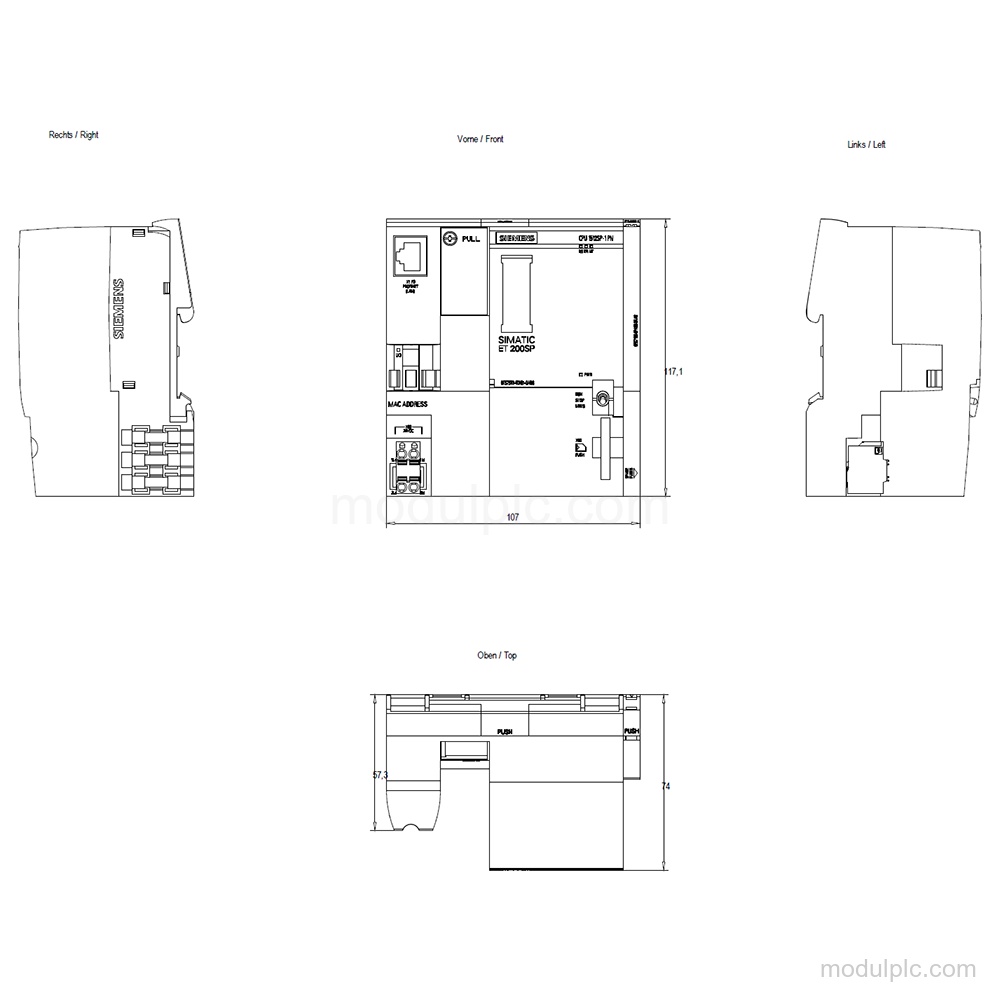

- Dimensions and installation: Dimensions are 100 mm width, 117 mm height and 75 mm depth. Ambient operation is -25 °C to 60 °C for horizontal installation and -25 °C to 50 °C for vertical installation, without condensation.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7512-1DK01-0AB0?
It is a CPU 1512SP-1 PN central processing unit for ET 200SP.
2. Which memory does the CPU provide?
It has 200 kbyte integrated work memory for the program and 1 Mbyte for data. A SIMATIC Memory Card is required.
3. Which interfaces and protocols are supported?
It supports PROFINET IRT, PROFIBUS DP via CM DP module, SIMATIC communication, OPC UA, MODBUS TCP and Open IE communication.
4. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What is included in the selected configuration?
It is without a SIMATIC Memory Card and requires a BusAdapter for port 1 and port 2.
