Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1510SP F-1 PN |
| Supply voltage, rated value (DC) | 24 V |
| PROFINET interfaces | 1; PROFINET IRT with 3-port switch |
| Bit operations, typical | 72 ns |
| SIMATIC Memory Card required | Yes; 1 slot |
| Integrated work memory | 150 kbyte |
| Maximum DB size | 750 kbyte; 64 KB maximum for DBs with absolute addressing |
| PROFINET IO Devices, maximum | 64 |
| PROFIBUS DP transmission rate, maximum | 12 Mbit/s |
| Safety level | PLe; SIL 3 in safety mode |
Applications
- PROFINET communication: Acts as a PROFINET IO Controller or PROFINET IO Device and supports PROFINET IRT.
- PROFIBUS communication: Acts as a PROFIBUS DP master or PROFIBUS DP device via a CM DP module.
- Program diagnostics: Provides a diagnostic buffer, diagnostic alarms, status/control variables, forcing, and trace functions.

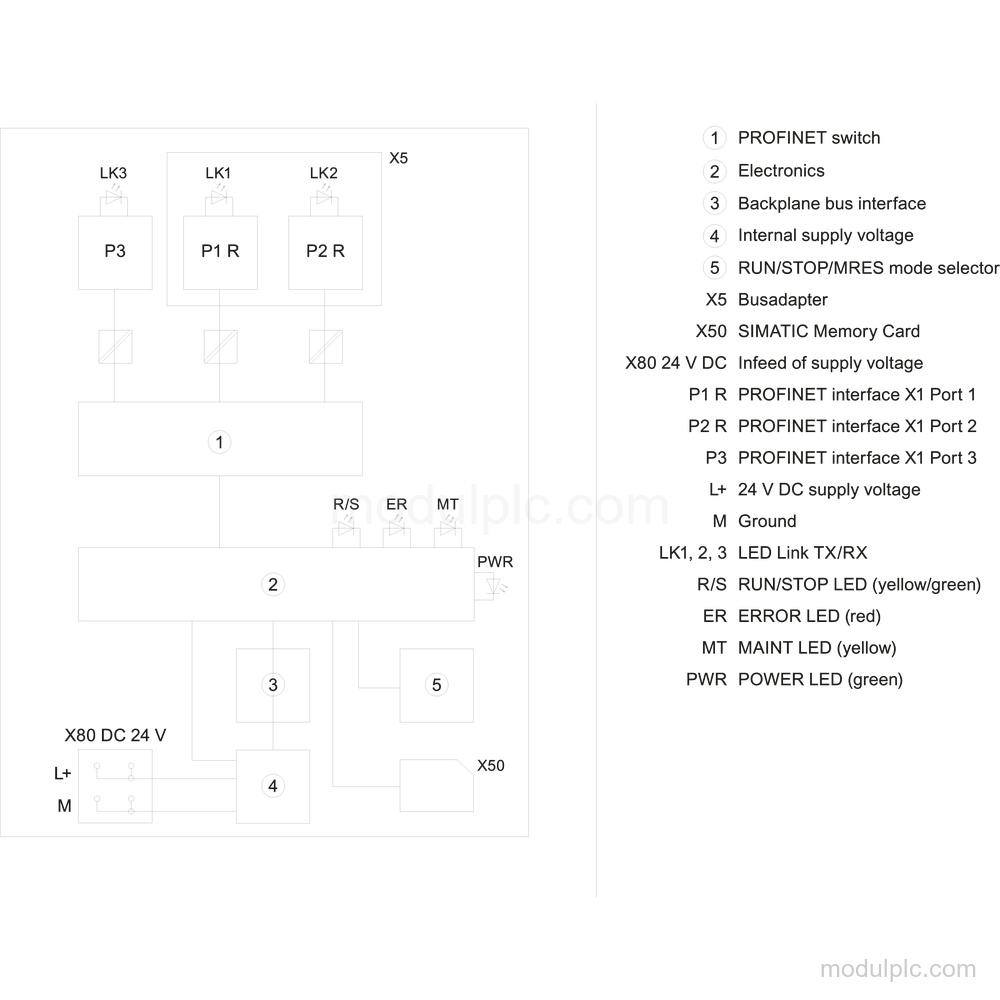

Key Features
- CPU and processing: CPU 1510SP F-1 PN with 72 ns typical bit-operation processing time, 86 ns for word operations, and 115 ns for fixed-point arithmetic.
- PROFINET interfaces: 1 PROFINET interface with PROFINET IRT and an integrated 3-port switch; the RJ45 interface supports 100 Mbps.
- Memory and storage: 150 kbyte integrated work memory for the program, 750 kbyte maximum DB size, and a required SIMATIC Memory Card with 1 slot.
- Supply and current: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 0.6 A rated current consumption, and reverse-polarity protection.
- Diagnostics and protection: Diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR, MAINT, and PWR LEDs, plus Performance level PLe and SIL 3 in safety mode.

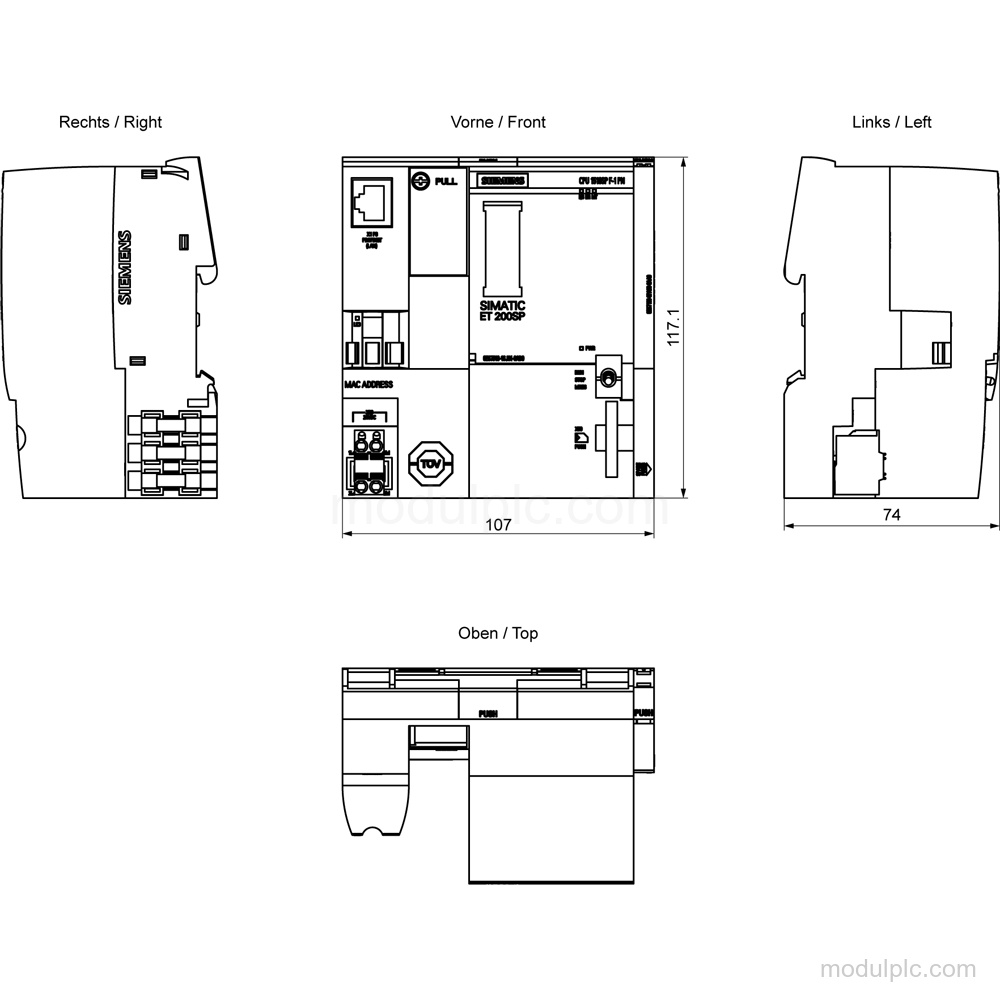

- Installation and dimensions: Dimensions are 100 mm wide, 117 mm high, and 75 mm deep; ambient operation is -25 °C to 60 °C for horizontal installation and -25 °C to 50 °C for vertical installation, without condensation.
Frequently Asked Questions
1. What is the function of Siemens 6ES7510-1SJ01-0AB0?
It is a CPU 1510SP F-1 PN central processing unit for ET 200SP with PROFINET IRT and an integrated 3-port switch.
2. How many PROFINET IO Devices can this CPU connect?
It can connect up to 64 PROFINET IO Devices; in total, up to 256 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET.
3. What supply voltage does the CPU require?
The rated DC supply is 24 V, with a permissible range of 19.2 V to 28.8 V.
4. Is a SIMATIC Memory Card included in the configuration?
The SIMATIC Memory Card is required; the CPU has 1 slot for it.
5. What should be verified before requesting a quote?
Verify the required SIMATIC Memory Card and BusAdapter, because the source configuration states that the SIMATIC Memory Card is required and the BusAdapter is required for port 1 and port 2.
