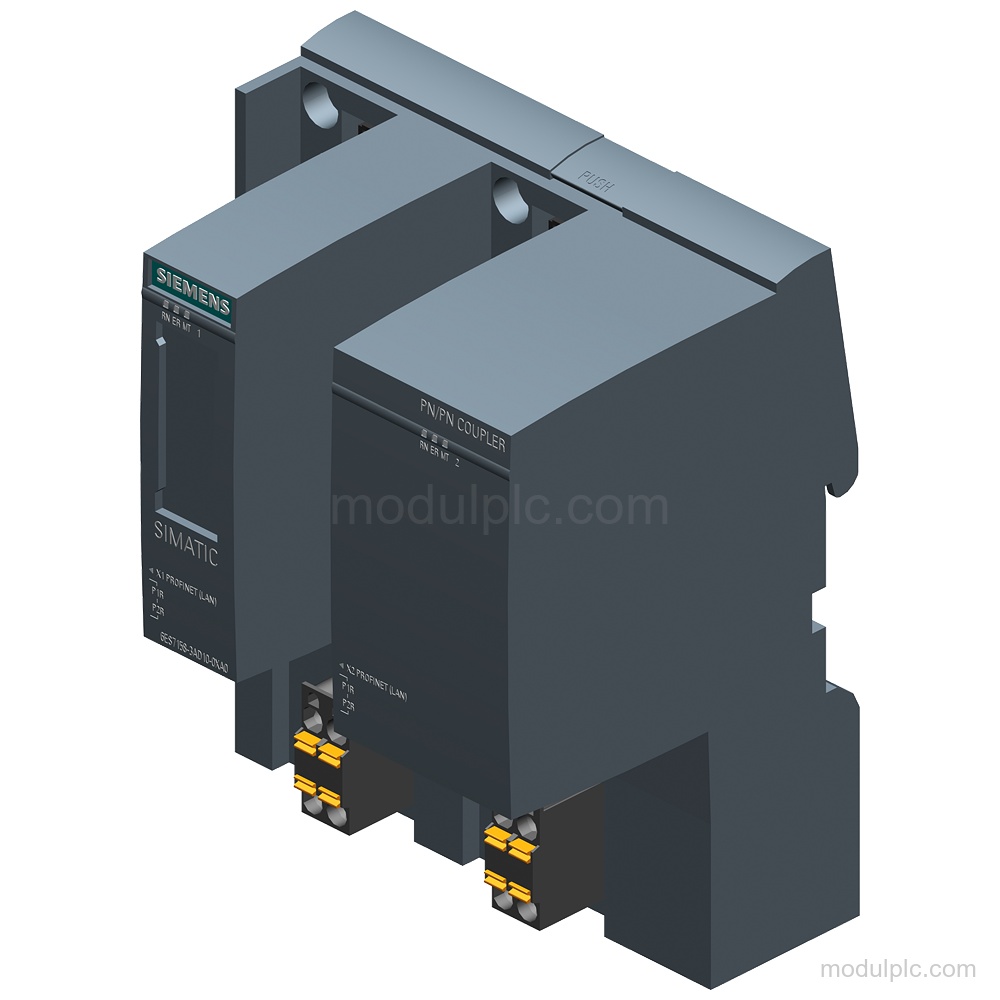

Product Overview
Technical Summary

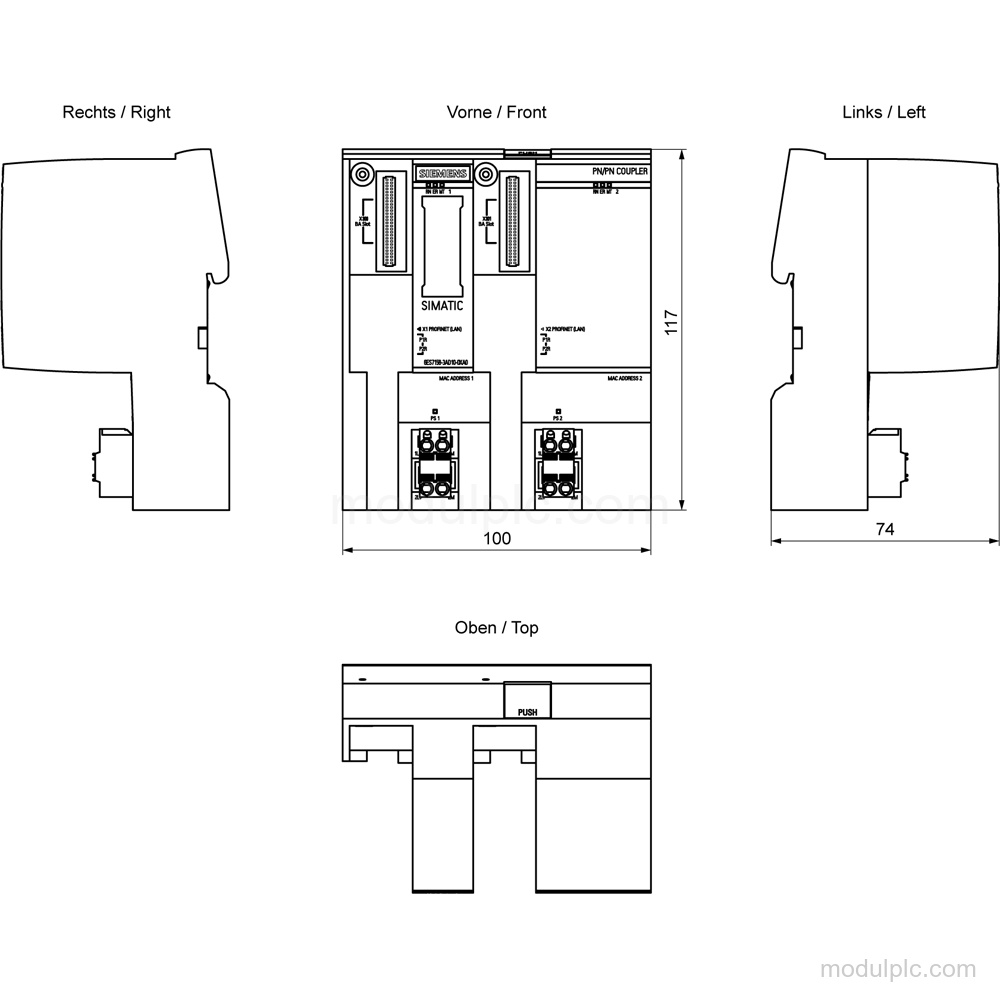

| Parameter | Value |
|---|---|
| Product type | PN/PN coupler |
| PROFINET interfaces | 2; via BusAdapter |
| Ports | 2; via BusAdapter |
| Transmission rate, max. | 100 Mbit/s |
| PROFINET protocols | PROFINET IO Device; Open IE communication |
| Communication services | IRT; Dynamic Frame Packing (DFP); MRP; MRPD |
| Supply voltage, rated value (DC) | 24 V |
| Supply voltage, permissible range (DC) | 19.2 V to 28.8 V |
| Mounting | Mounting rail 7.5 mm and 15 mm |
| Delivery configuration | Without BusAdapter |
Applications
- Deterministic data exchange: Exchanges deterministic data between max. 4 PN Controllers per subnet and between subnets.
- Safety and process data communication: Supports PROFIsafe data exchange together with I/O, MSI, MSO, and data record communication.
- Local coupling: Provides local coupling for I/O data and data records in non-isochronous mode.
Key Features
- Deterministic data exchange: Supports deterministic data exchange between max. 4 PN Controllers per subnet and from subnet to subnet.
- PROFINET interfaces: Provides 2 PROFINET interfaces and 2 ports via SIMATIC BusAdapter, with transmission up to 100 Mbit/s.
- Communication services: Supports PROFIsafe data exchange, PROFINET IO Device, Open IE communication, IRT, DFP, MRP, and MRPD.
- Coupling and address capacity: Supports I/O, MSI, MSO, and data record communication, with max. 254 byte address space per module and max. 1 440 byte per station.
- Supply and mounting: Uses a rated 24 V DC supply with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and mounting on 7.5 mm or 15 mm mounting rail.
- Diagnostics and delivery: Includes parameterizable diagnostics, status and alarm functions, RUN, ERROR, MAINT, LINK, and PWR LEDs, and is delivered without BusAdapter.
Frequently Asked Questions
1. Which protocols and communication services does the 6ES7158-3AD10-0XA0 support?
It supports PROFINET IO Device, Open IE communication, TCP/IP, SNMP, LLDP, PROFIsafe data exchange, IRT, Dynamic Frame Packing (DFP), MRP, and MRPD.
2. How many PROFINET ports does this PN/PN Coupler have?
It has 2 PROFINET interfaces and 2 ports via SIMATIC BusAdapter, with transmission up to 100 Mbit/s.
3. What supply voltage and mounting are specified?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is on 7.5 mm and 15 mm mounting rail.
4. Is the BusAdapter included with the 6ES7158-3AD10-0XA0?
It is without BusAdapter. The PN connection is via SIMATIC BusAdapter.
