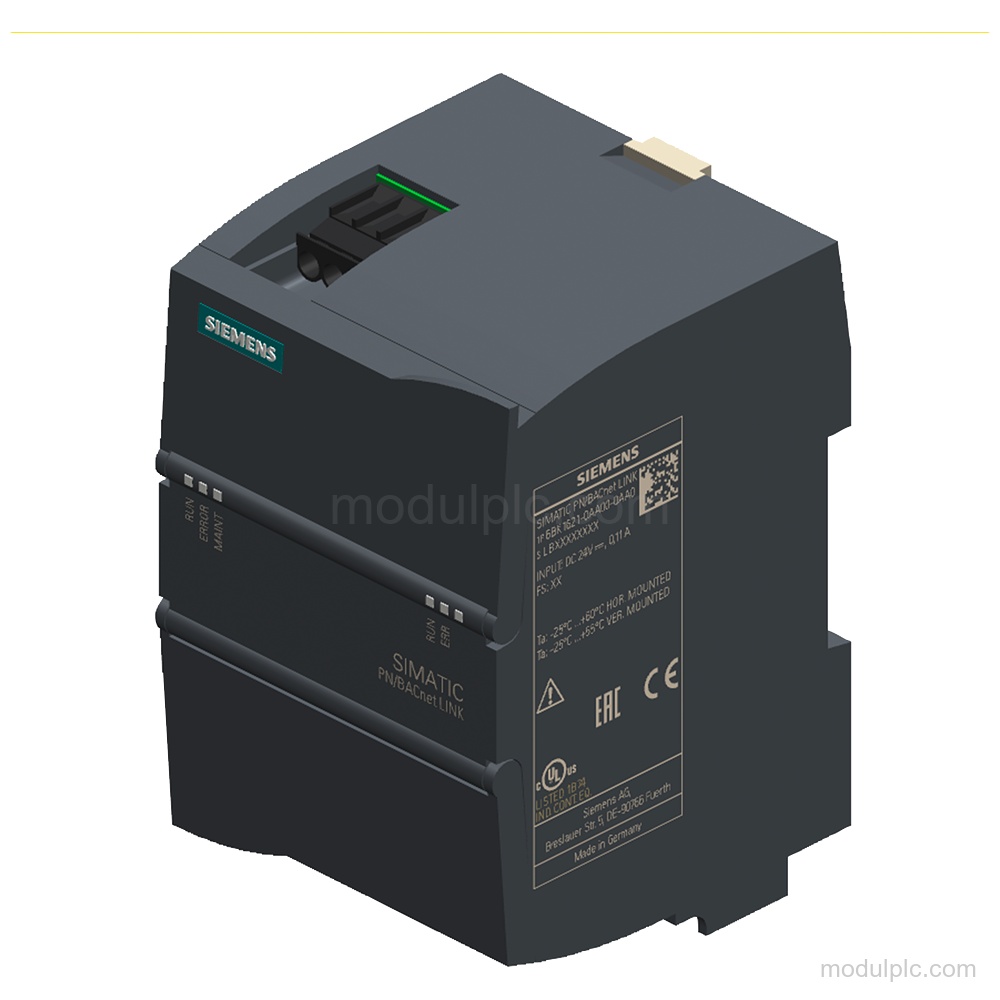

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module function | PROFINET to BACnet/IP Fieldbus coupling |
| PROFINET interface | 2 RJ45 ports; 2 FC (FastConnect) connections |
| BACnet/IP interface | 1 RJ45 port |
| PROFINET transmission rate, max. | 100 Mbit/s |
| BACnet device profile | B-GW |
| Supply voltage | 24 V DC; permissible range: 20.4 V to 28.8 V |
| Current consumption | Rated value: 0.11 A; max.: 0.13 A |

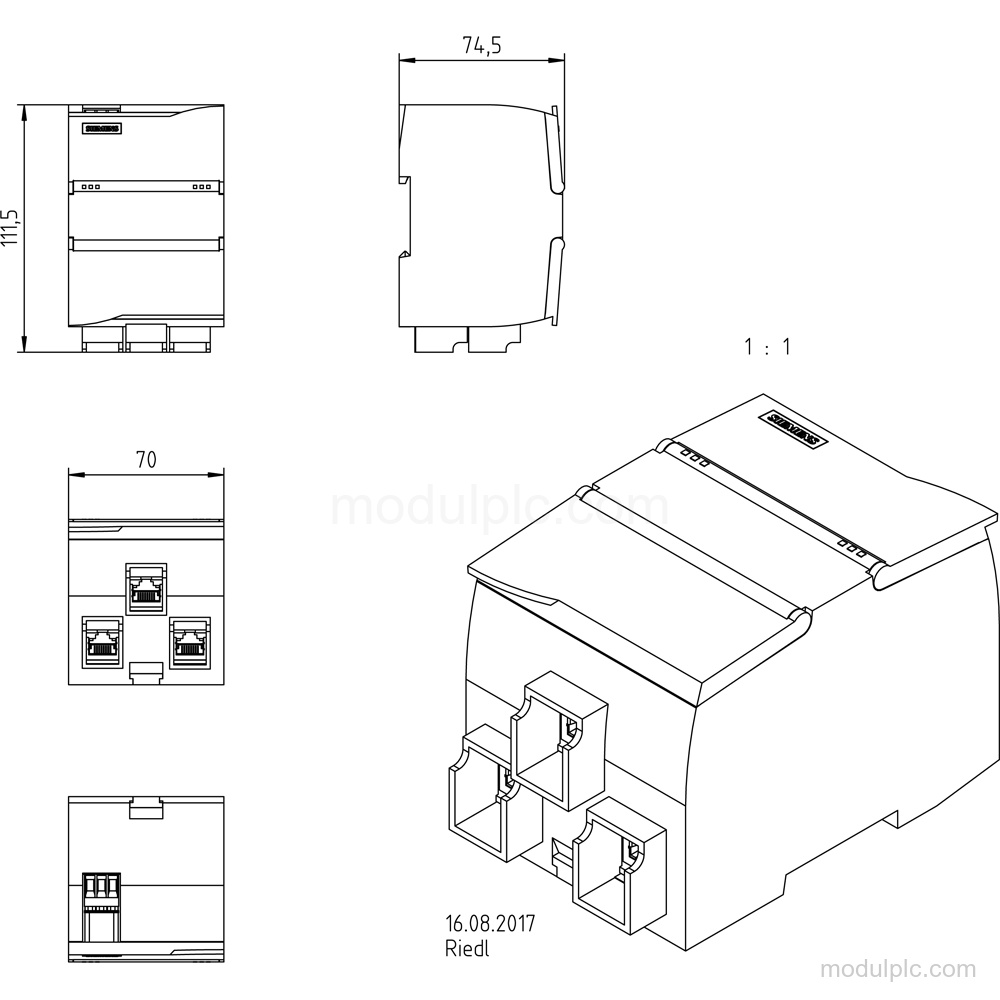

| Mounting | DIN rail, wall mounting, portrait mounting |
| Protection | IP20 |
Applications
- PROFINET to BACnet/IP coupling: Couples PROFINET with BACnet/IP Fieldbus using Device-Profile: B-GW.
Key Features
- PROFINET to BACnet/IP coupling: PN/BACnet Link coupling module for PROFINET to BACnet/IP Fieldbus with Device-Profile: B-GW.
- Network interfaces: PROFINET has 2 RJ45 ports, 2 FC (FastConnect) connections, and an integrated switch. BACnet/IP has 1 RJ45 port.
- Transmission rate: PROFINET transmission rate: max. 100 Mbit/s.
- Power supply: DC supply with a rated value of 24 V; permissible range: 20.4 V to 28.8 V.
- Diagnostics and identification: Status indicator, alarms, diagnostics function, RUN, ERROR, MAINT, LINK, and RX/TX LEDs; IP address and device name assignment supported.
- Installation and protection: DIN rail, wall mounting, or portrait mounting; control cabinet installation supported. IP degree of protection: IP20.
Frequently Asked Questions
1. What function does the Siemens 6BK1621-0AA00-0AA0 provide?
It is a PN/BACnet Link coupling module for PROFINET to BACnet/IP Fieldbus with Device-Profile: B-GW.
2. How many network ports does the module have?
It has 2 PROFINET RJ45 ports and 1 BACnet/IP RJ45 port.
3. What PROFINET transmission rate is supported?
The maximum PROFINET transmission rate is 100 Mbit/s.
4. What supply voltage does the module require?
The DC rated supply voltage is 24 V, with a permissible range from 20.4 V to 28.8 V.
5. How can the module be mounted?
It supports DIN rail, wall mounting, and portrait mounting; control cabinet installation is supported.
