Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module function | DP/DP coupler for connecting two PROFIBUS DP networks |
| Protocol | PROFIBUS DP |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage range | 20.4 V DC to 28.8 V DC |
| Typical current consumption | 90 mA |
| Typical power loss | 2 W |
| Diagnostics function | Yes |
| Status indicator | Yes |
| Protection rating | IP20 |
Applications
- PROFIBUS DP network coupling: Couples two PROFIBUS DP networks.
Key Features

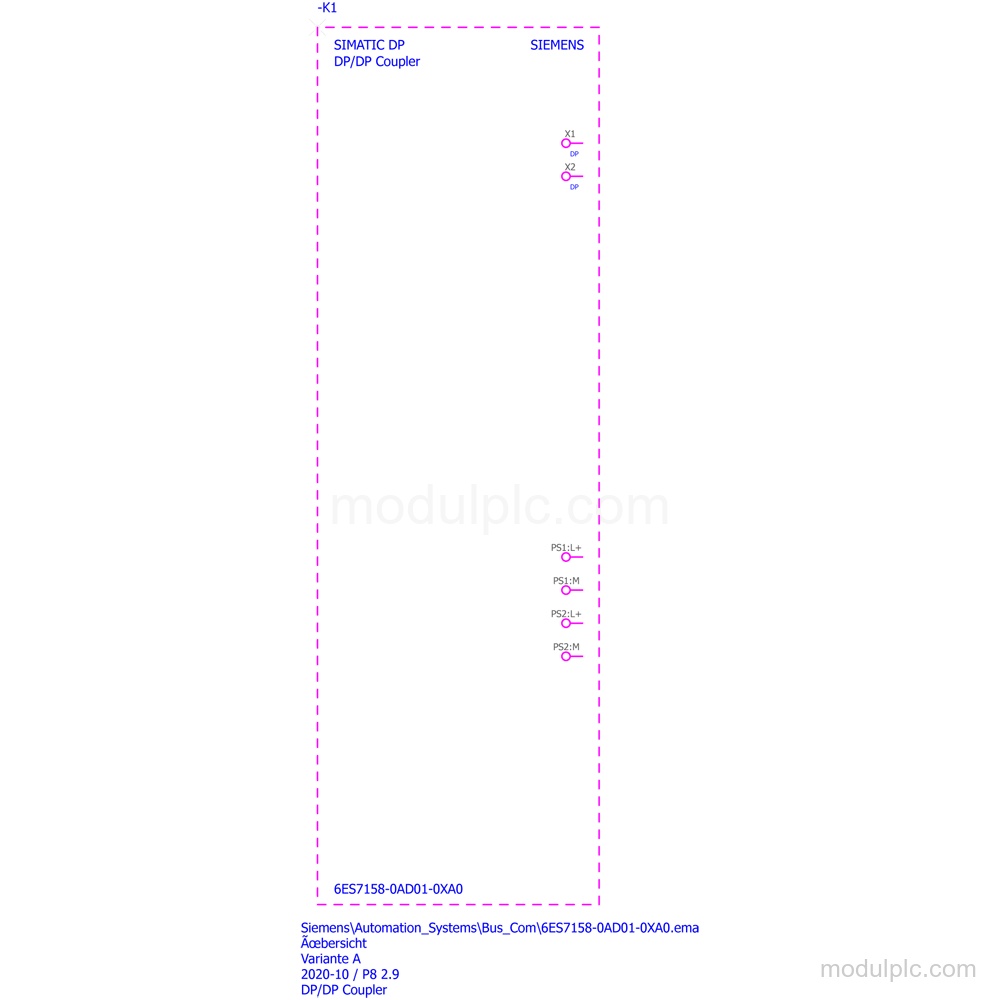

- DP/DP coupling module: Connects two PROFIBUS DP networks and provides redundant current infeed.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
- Diagnostics and status: Has a diagnostics function and status indicator.
- Power and current: Typical current consumption is 90 mA; typical power loss is 2 W.

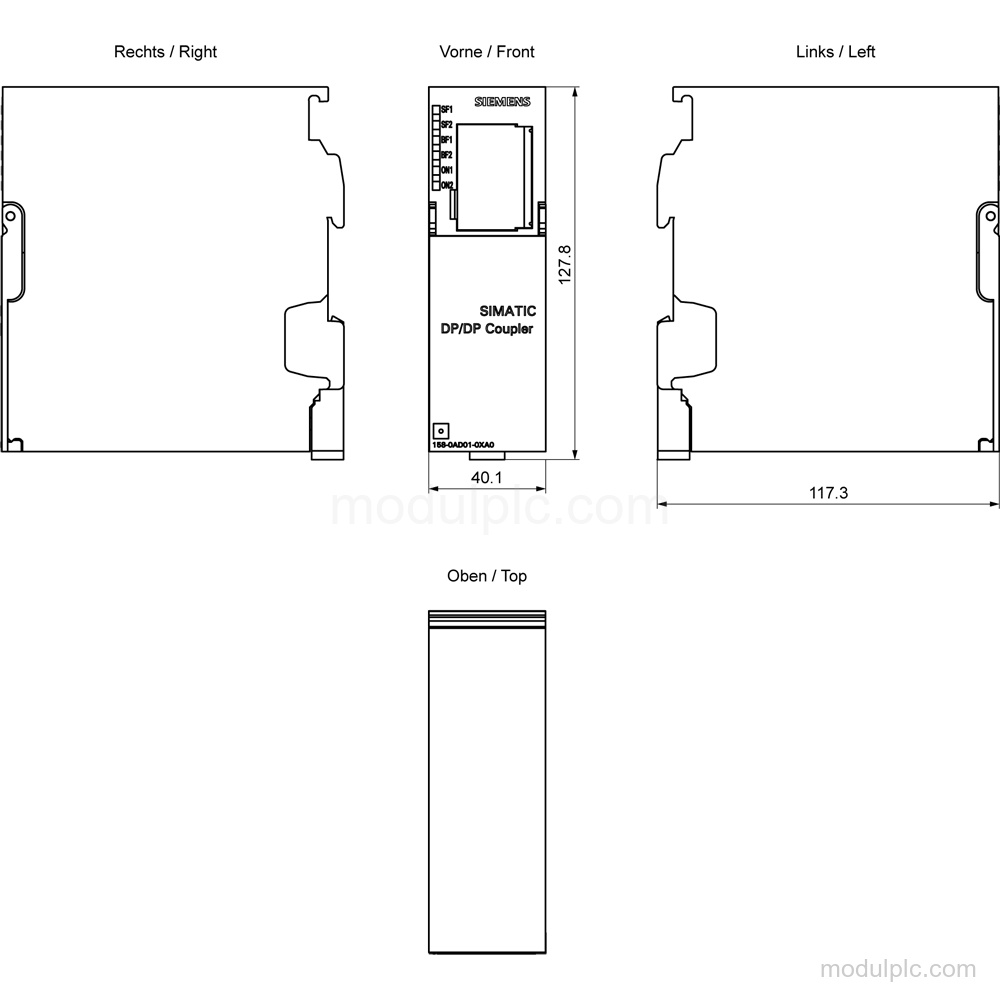

- Protection and dimensions: IP20 protection; dimensions are 40 mm wide, 127 mm high, and 117 mm deep.
Frequently Asked Questions
1. What does the Siemens 6ES7158-0AD01-0XA0 do?
It is a SIMATIC DP/DP coupler for connecting two PROFIBUS DP networks with redundant current infeed.
2. What supply voltage does this DP/DP coupler require?
Its rated supply voltage is 24 V DC, with a permissible range from 20.4 V DC to 28.8 V DC.
3. Does the module provide diagnostics and status indication?
Yes. It has a diagnostics function and a status indicator.
4. What protection rating and dimensions does it have?
It has IP20 protection and measures 40 mm wide, 127 mm high, and 117 mm deep.
