Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KP400 Basic color PN |
| Display | 4.3 in TFT, 256 colors |
| Resolution | 480 pixel × 272 pixel |
| Function keys | 8 |
| Industrial Ethernet interfaces | 1 |
| Supply | 24 V DC; permissible range 19.2 V DC to 28.8 V DC |
| Protection | IP65 at the front; IP20 at the rear |
| Mounting | Landscape mounting possible; maximum permissible angle of inclination without external ventilation: 35° |
Applications
- Key operation: The panel provides explicit key operation through 8 function keys, system keys, and numeric and alphanumeric keyboards.
Key Features
- 4.3 in TFT display: The display has a 4.3 in screen diagonal, 256 colors, and 480 pixel × 272 pixel resolution.
- Key operation and function keys: The panel has key operation, 8 function keys, system keys, a numeric keyboard, and an alphanumeric keyboard similar to a mobile phone. It has no touch screen.

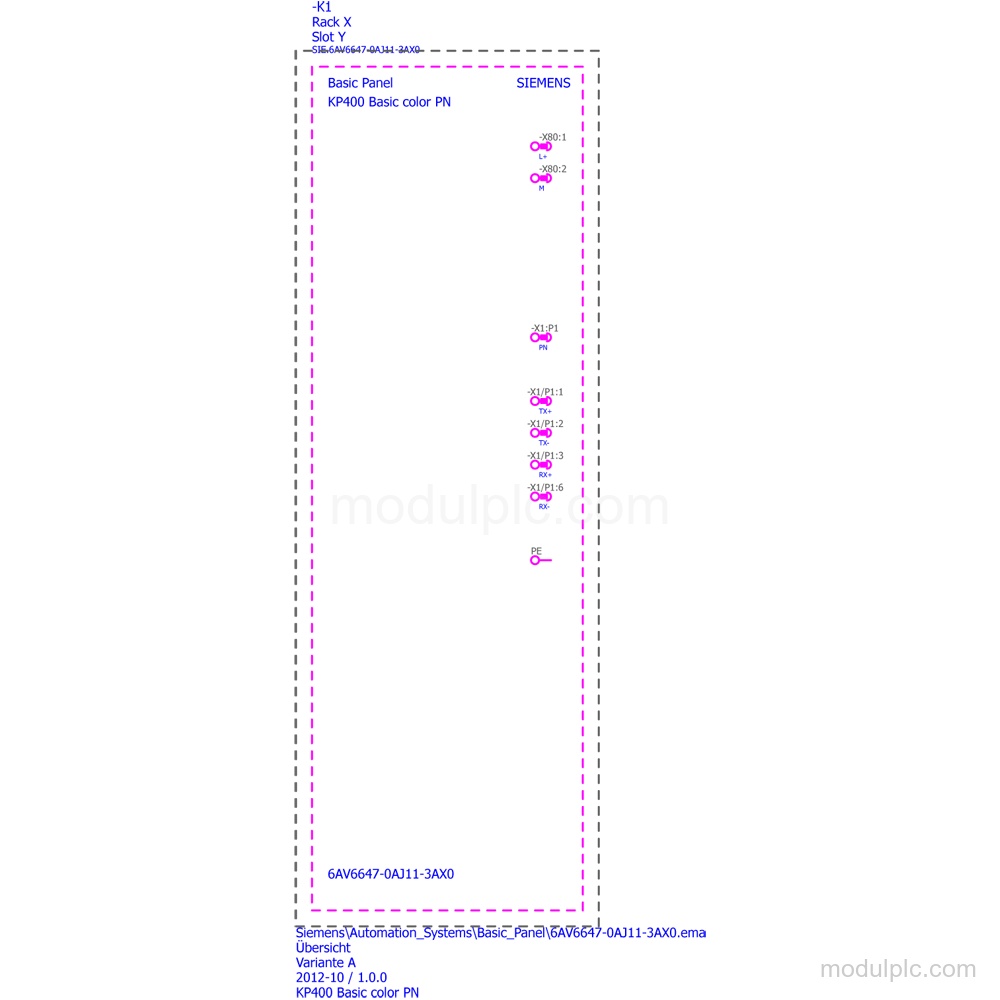

- PROFINET interface: The panel has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
- 24 V DC supply: The rated supply is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC. Current consumption is 0.1 A at the rated value.

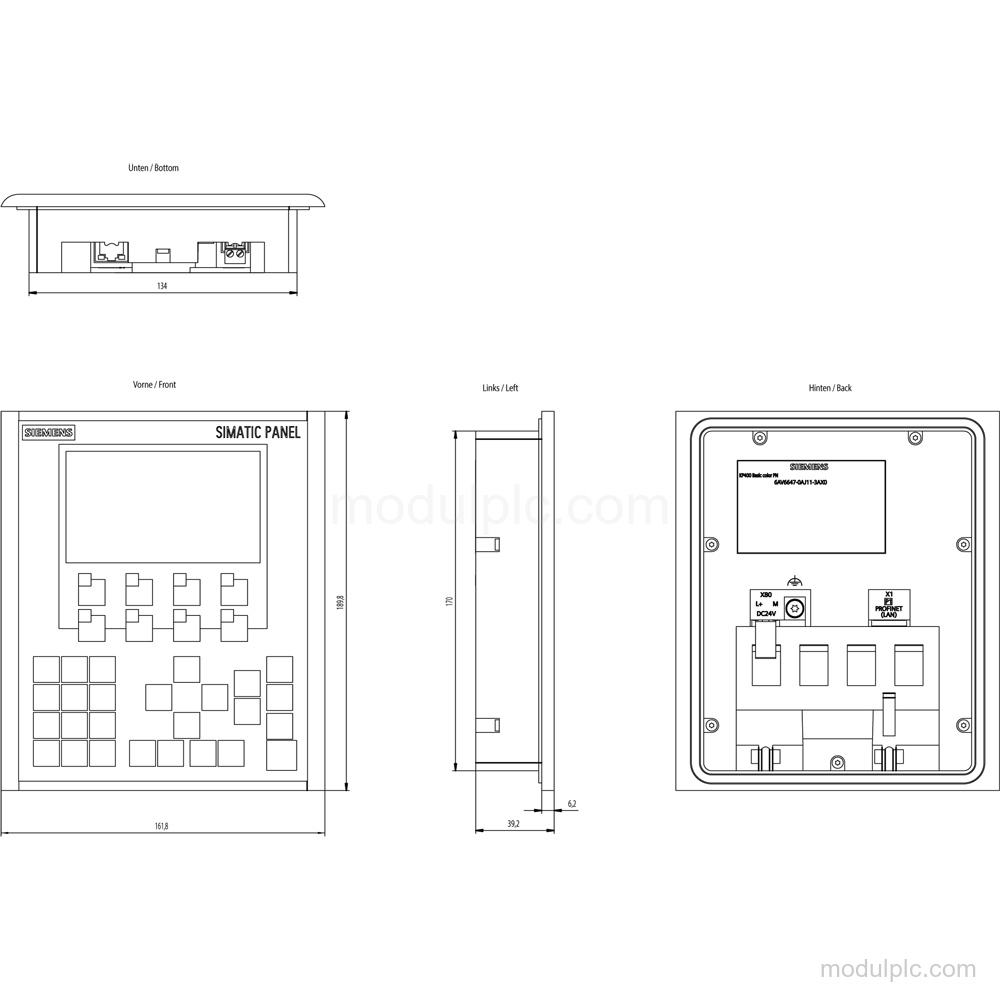

- Landscape installation: The panel supports landscape mounting and vertical mounting position. The maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: Protection is IP65 at the front and IP20 at the rear. Enclosure Type 4 and Enclosure Type 4x are available at the front.
Frequently Asked Questions
1. What display does the Siemens 6AV6647-0AJ11-3AX0 have?
It has a 4.3 in TFT display with 256 colors and 480 pixel × 272 pixel resolution.
2. How is the Siemens 6AV6647-0AJ11-3AX0 operated?
It uses key operation with 8 function keys, system keys, a numeric keyboard, and an alphanumeric keyboard similar to a mobile phone. It has no touch screen.
3. Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
4. What supply does this HMI panel require?
The supply is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC.
5. What mounting and protection details should be verified before inquiry?
Landscape mounting is possible, and the maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
