Product Overview
Technical Summary

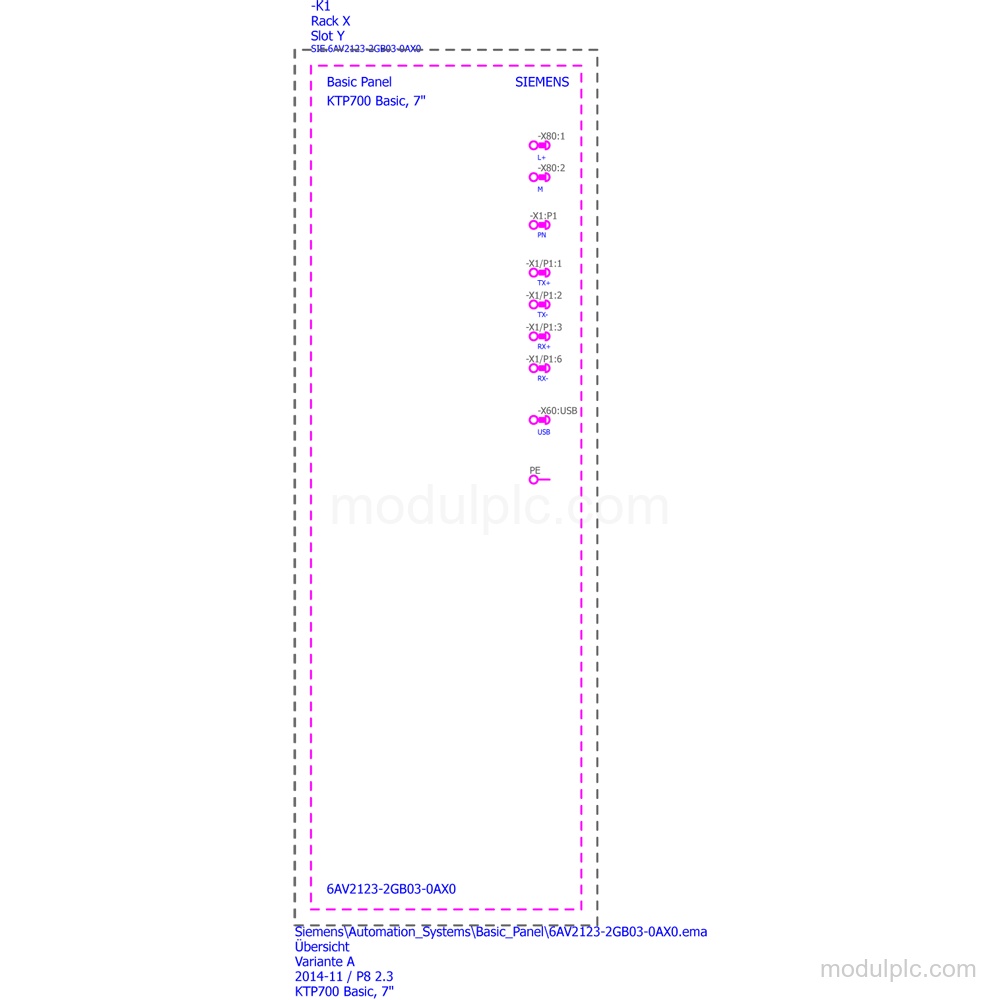

| Parameter | Value |
|---|---|
| Product type | KTP700 Basic color PN |
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 pixel × 480 pixel |
| Operation | Key/touch operation with 8 function keys and analog-resistive touch |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP |
| USB interfaces | 1; up to 16 GB |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 230 mA rated |

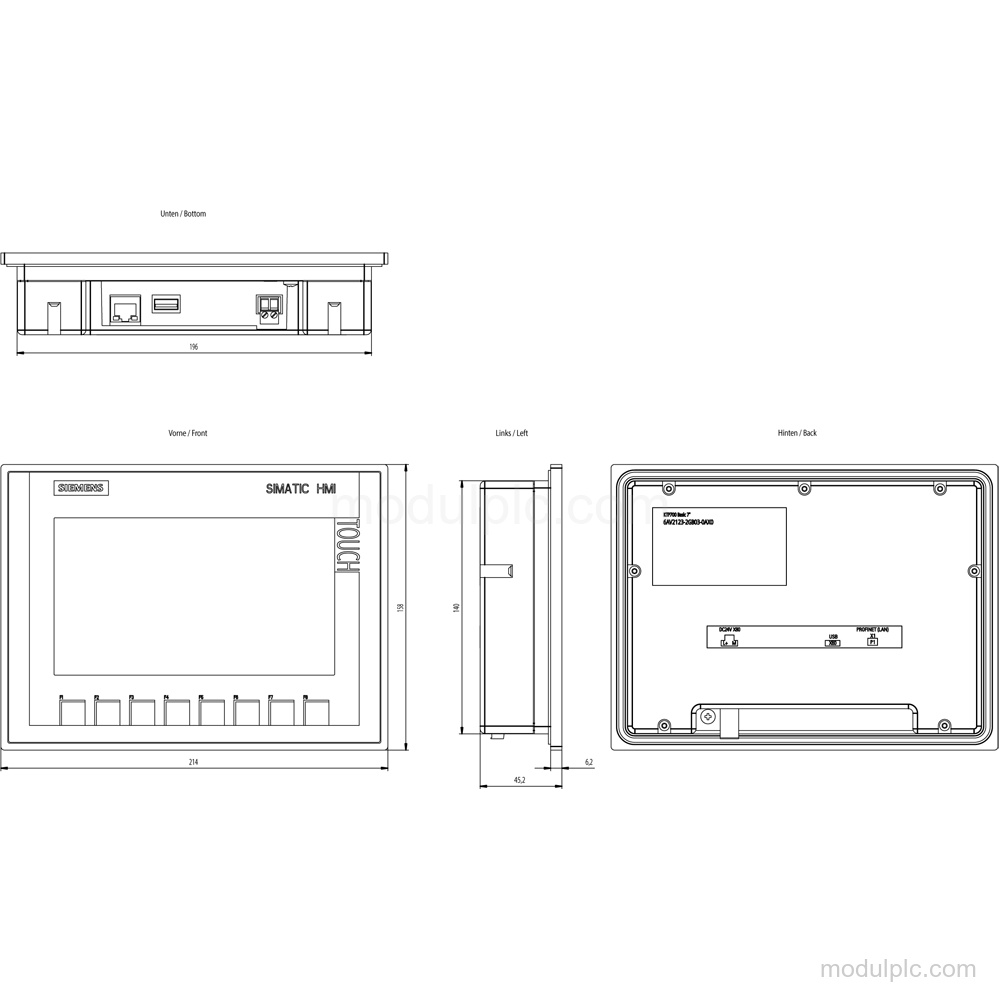

| Mounting | Vertical; portrait and landscape mounting possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- Display and operation: 7 in TFT widescreen display with LED backlighting, 65 536 colors, 800 pixel × 480 pixel resolution, 8 function keys, and analog-resistive touch operation.
- Network interface: 1 industrial Ethernet interface with PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, and LLDP support.
- USB interface: 1 USB interface, supporting up to 16 GB.
- Supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 230 mA rated and typical active power input is 5.5 W.
- Mounting and protection: Vertical mounting; portrait and landscape mounting are possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display and operating elements does the 6AV2123-2GB03-0AX0 have?
It has a 7 in TFT widescreen display with 65 536 colors, 800 pixel × 480 pixel resolution, 8 function keys, and analog-resistive touch operation.
2. Which interfaces and protocols are available?
It has 1 industrial Ethernet interface and 1 USB interface. Supported protocols include PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, and LLDP.
3. What supply voltage and protection ratings apply?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Protection is IP65 at the front and IP20 at the rear.
